Procurement Report: Honeycomb Core Panels

1. Technical Specifications and Performance Metrics

Honeycomb panels are engineered sandwich structures consisting of a core material (typically metallic, aramid, or aluminum) bonded to two face sheets. The procurement focus must be on the specific balance between weight reduction and structural rigidity.

• Target Thickness: The core thickness typically ranges from 10 mm to 150 mm. Thinner cores (10–25 mm) are preferred for lightweight interior applications, while thicker cores (50–150 mm) are required for high-load bearing or acoustic insulation scenarios.
• Standard Panel Dimensions: Common stock sizes include 1200 × 2400 mm, 1220 × 2440 mm, and 1500 × 3000 mm. Custom cutting is available but may impact lead times.
• Core Types:
  • Aluminum: Best for general structural applications; density ranges from 0.05 to 0.3 g/cm³ depending on cell size.

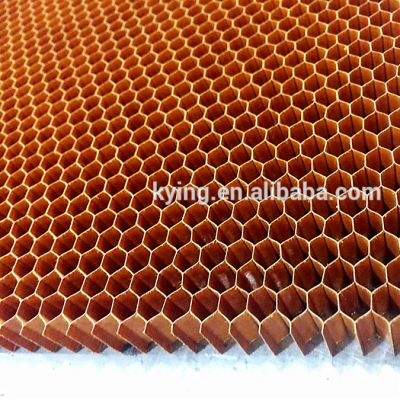

  • Aramid (Nomex): Essential for fire-resistant and high-temperature environments.
  • Metallic (Stainless/Titanium): Used for extreme durability and specific MRO requirements.
• Performance Metrics:
  • Specific Stiffness: Typically 20–50 GPa/(g/cm³), offering superior rigidity-to-weight ratios compared to solid metals.
  • Density: Ranges from 40 kg/m³ to 300 kg/m³ depending on the cell size and material.
  • Fire Performance: Must meet FAR 25.853 (Aircraft) or EN 45545 (Rail) standards, with smoke density and toxicity ratings being critical for transport sectors.

Actionable Recommendation: When requesting quotes, specify the required face sheet material (e.g., aluminum alloy 2024-T3, carbon fiber prepreg) and the cell size (typically 3.2 mm to 12.7 mm) to ensure the panel meets the specific load-bearing and acoustic requirements of your application.

2. Industry Compliance and Quality Assurance

Procurement of honeycomb components, particularly for aerospace and rail, requires strict adherence to quality management systems to ensure traceability and safety.

• Certification Standards: Suppliers must maintain ISO 9001 for general quality management and AS9100 for aerospace-specific requirements. These certifications ensure consistent manufacturing standards and traceability of raw materials.
• Traceability: Complete documentation is mandatory, including material certificates (Mill Certs), heat lot numbers, and batch traceability records.
• Conformance: Products must conform to specific industry specifications (e.g., MIL-HDBK-5 for metals) and customer-specific engineering drawings.
• Quality Control: In-process inspections for cell uniformity, bond strength (peel strength), and dimensional tolerance are standard. Tolerances are typically ±0.5 mm for thickness and ±1.0 mm for flatness on standard panels.

Actionable Recommendation: Verify the supplier's current AS9100 certification status and request a sample of their Quality Assurance Plan (QAP) before placing an order. Ensure the supplier provides full traceability documentation for every batch to mitigate MRO (Maintenance, Repair, and Operations) compliance risks.

3. Cost Efficiency and Integration Capabilities

Honeycomb panels offer significant lifecycle cost savings through weight reduction, which translates to fuel efficiency in transport and reduced structural load in construction.

• Cost Drivers: The primary cost factors are the core material (aluminum vs. aramid), face sheet material, and the complexity of the bonding process.
• Weight Savings: Replacing solid aluminum with honeycomb structures can reduce component weight by 60% to 80%, directly impacting operational costs in aviation and automotive sectors.
• Integration: Panels are designed for seamless integration with CNC machining, drilling, and bonding processes. They can be easily cut to custom shapes without compromising core integrity if proper tooling is used.
• MOQ & Lead Time:
  • MOQ: Typically 10–50 kg for standard stock items; custom builds may require higher minimums.
  • Lead Time: Standard stock is often available within 3–7 days. Custom manufacturing typically requires 2–4 weeks, though rapid response options exist for urgent MRO needs.

Actionable Recommendation: Optimize procurement by purchasing standard stock sizes (1200×2400 mm) whenever possible to leverage lower unit costs and faster delivery. For custom projects, negotiate a consolidated delivery schedule to minimize logistics costs and ensure just-in-time (JIT) integration with your production line.

4. Typical Use Cases

Honeycomb panels are ubiquitous in industries where high strength-to-weight ratios and fire resistance are paramount.

• Aerospace (OEM & MRO): Used for floor panels, wall linings, ceiling panels, and cargo doors. The ability to meet strict fire/smoke/toxicity (FST) standards is the primary driver here.
• Marine & Rail: Applied in bulkheads, partitions, and flooring for ships and high-speed trains to reduce overall vessel weight and improve acoustic insulation.
• Construction & Architecture: Utilized for lightweight facades, elevator panels, and decorative wall cladding where structural rigidity is needed without heavy loads.
• Industrial: Used in cleanroom partitions and high-precision machinery bases where vibration damping is required.

Actionable Recommendation: Match the core material to the specific environment. For interior aircraft or rail applications, prioritize Aramid (Nomex) cores for superior fire resistance. For structural or exterior applications, Aluminum cores offer the best balance of cost and mechanical performance.

5. Long-Term Planning Considerations

The market for honeycomb materials is driven by the global push for lightweighting and sustainability in transport sectors.

• Market Trends: There is a growing demand for recyclable aluminum honeycomb and bio-based core materials to meet evolving environmental regulations.
• Supply Chain Resilience: Diversifying suppliers is critical. Relying on a single source for critical aerospace components poses a risk; maintaining a relationship with at least two certified suppliers (one for standard stock, one for custom) is advisable.
• Demand Signals: The expansion of the commercial aviation fleet and the high-speed rail network in Asia and Europe are driving steady demand. Conversely, supply chain disruptions in raw aluminum or aramid fibers can impact lead times.
• Technological Shifts: Expect increased adoption of hybrid honeycomb structures (combining different core materials) to optimize specific performance metrics like thermal insulation and acoustic damping.

Actionable Recommendation: Incorporate sustainability criteria into your vendor selection process, asking for data on the recyclability of the core material. Plan for a 15–20% buffer in lead times for custom orders to account for potential raw material volatility.

6. Special Product Recommendations

The following table compares common honeycomb configurations to assist in selecting the right build-up for your specific project needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Aluminum Honeycomb | Aerospace OEM, Marine, Construction | Thickness: 10–100mm; Density: 40–150 kg/m³ | Corrosion in marine environments without coating | Verify surface treatment (anodizing/painting) for marine use. | | Aramid (Nomex) Honeycomb | Aircraft Interiors, High-Speed Rail | Thickness: 10–50mm; Fire Rating: FAR 25.853 | Higher cost; moisture sensitivity if not sealed | Ensure supplier provides full FST certification documentation. | | Stainless Steel Honeycomb | Extreme Environments, Chemical Processing | Thickness: 15–150mm; Temp: -200°C to +600°C | Higher weight than Al; difficult machining | Request samples for weldability and thermal expansion testing. | | Custom Cut Panels | Prototyping, Unique Architectural Projects | Sizes: Custom; Tolerance: ±0.5mm | Higher risk of waste; longer lead time | Order 5–10% overage for cutting losses; confirm CNC capabilities. |

Actionable Recommendation: For MRO (Maintenance, Repair, and Operations) scenarios, prioritize suppliers with rapid response capabilities and streamlined purchasing processes to minimize aircraft downtime. For new production, focus on suppliers with AS9100 certification and proven traceability.

7. Frequently Asked Questions (FAQ)

Q1: What is the typical lead time for custom honeycomb panels? A: Standard stock panels are often available within 3–7 days. Custom-manufactured panels typically require 2–4 weeks, depending on the complexity of the core and face sheet bonding process.

Q2: Can honeycomb panels be cut to non-standard sizes? A: Yes, honeycomb panels can be CNC machined to custom dimensions. However, cutting must be done with specialized tools to prevent core crushing or delamination. Always confirm the supplier's cutting capabilities and tolerance levels (typically ±0.5 mm).

Q3: What certifications are required for aerospace applications? A: For aerospace, suppliers must hold AS9100 certification, and the material must comply with FAR 25.853 (fire, smoke, and toxicity) and MIL-HDBK standards. Full traceability documentation is mandatory.

Q4: How does honeycomb compare to solid aluminum in terms of weight? A: Honeycomb structures typically offer a 60–80% weight reduction compared to solid aluminum of equivalent stiffness, making them ideal for fuel-efficient designs.

Q5: Are there specific thickness limitations for honeycomb cores? A: While custom thicknesses are possible, the typical commercial range is 10 mm to 150 mm. Thicker cores may require specialized bonding techniques to ensure structural integrity.

Q6: What is the Minimum Order Quantity (MOQ) for these products? A: For standard stock items, MOQs are typically low (e.g., 10–50 kg). For custom builds, MOQs may vary based on the supplier's production run efficiency, often starting at 100 kg or specific panel counts.

Q7: How do I ensure the fire safety of the honeycomb panel? A: Specify the core material (e.g., Aramid for high fire resistance) and require the supplier to provide a Certificate of Conformance referencing the specific fire rating standard (e.g., FAR 25.853 or EN 45545).

Q8: What is the difference between metallic and aramid honeycomb? A: Metallic (Aluminum) honeycomb is cost-effective and strong but conducts heat and electricity. Aramid (Nomex) honeycomb is non-conductive, offers superior fire resistance, and is lighter, but is generally more expensive and sensitive to moisture if not properly sealed.
