Procurement Report: HVLP Spray Gun Systems

Product Category: Industrial Painting Equipment / High Volume Low Pressure (HVLP) Spray Guns

1. Technical Specifications and Performance Metrics

To ensure optimal atomization and finish quality in automotive and industrial applications, procurement must focus on specific air pressure, flow rate, and fluid tip dimensions. The following parameters define a standard, high-performance HVLP unit:

• Inlet Pressure Range: 0.7 – 3.5 bar. Operating outside this range can lead to poor atomization (too low) or excessive overspray and bounce-back (too high).
• Air Consumption (CFM): 4 – 22 CFM (Cubic Feet per Minute).
  • Typical B2B Range: 9.7 – 10.2 CFM (approx. 275–288 L/min) for standard 1.4mm–1.7mm nozzles.
  • Critical Constraint: The air compressor must sustain the peak CFM requirement continuously. Starved air supply results in "orange peel" texture and uneven coverage.
• Fluid Tip (Nozzle) Sizes: 1.2 – 1.8 mm is the industry standard for automotive basecoats and clearcoats.
  • Versatility: Kits often include 1.4mm, 1.7mm, 2.0mm, and 2.5mm tips to handle primers, basecoats, and heavy-bodied sealers.

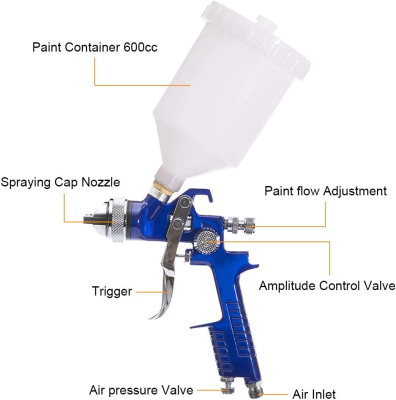

• Container Capacity: 600cc (Gravity feed) is the standard for professional touch-ups and small batches; larger 1L+ options exist for high-volume production.
• Connection Standards: 1/4" NPT (National Pipe Thread) is the standard inlet connection.
• Trigger Mechanism: 2.0mm needle travel is typical for fine control over material flow.

Procurement Recommendation: Verify that the compressor's CFM rating exceeds the gun's maximum consumption by at least 20% to prevent pressure drops during continuous operation. Prioritize kits with interchangeable nozzles (e.g., 1.4/1.7/2.0/2.5mm) to maximize utility across different coating viscosities.

2. Industry Compliance and Quality Assurance

While specific certification names (e.g., ISO 9001) vary by manufacturer, the procurement of HVLP guns must adhere to industry standards regarding environmental compliance and operational safety.

• Environmental Compliance: HVLP technology is inherently designed to meet VOC (Volatile Organic Compound) reduction standards by increasing transfer efficiency (typically >65%). This reduces material waste and helps facilities comply with local air quality regulations.
• Material Durability: Professional-grade units should feature corrosion-resistant bodies (often aluminum or stainless steel) and high-quality internal seals (Teflon or Viton) to withstand harsh solvents and thinners.
• Safety Standards: Equipment must be rated for use in potentially explosive atmospheres if used with flammable solvents, adhering to general electrical and mechanical safety standards (e.g., ATEX zones if applicable).
• Quality Assurance: Look for manufacturers with documented quality control processes regarding nozzle machining tolerances (±0.01mm) to ensure consistent spray patterns.

Procurement Recommendation: Request material safety data sheets (MSDS) compatibility lists from the supplier to ensure the gun's seals and body materials are compatible with the specific solvents used in your facility. Avoid "generic" unbranded units lacking documented quality control, as inconsistent nozzle machining leads to frequent rework.

3. Cost Efficiency and Integration Capabilities

HVLP systems offer a balance between high-quality finish and operational cost. The efficiency of the system directly impacts the total cost of ownership (TCO) through material savings.

• Material Savings: HVLP guns typically achieve 65–70% transfer efficiency compared to 40–50% for conventional guns, reducing paint consumption costs by approximately 20–30%.
• Integration with Compressors:
  • Typical B2B Range: Requires a compressor capable of 4–12 CFM at 2–3 bar for standard operations.
  • Integration: Ensure the air line diameter is sufficient (typically 1/4" or 3/8" hose) to minimize pressure drop over distance.
• Maintenance Costs: Standard kits include 4 nozzles, reducing the need for immediate spare part purchases. Replacement parts (needles, nozzles, seals) should be readily available with a lead time of <5 days.
• Labor Efficiency: The superior control reduces the need for sanding and re-spraying, lowering labor hours per unit.

Procurement Recommendation: Calculate the ROI based on material savings. If the facility uses high-cost automotive paints, the 20–30% reduction in waste often pays for the HVLP gun within 6 months. Ensure the procurement includes a comprehensive spare parts kit (nozzles, needles, O-rings) to minimize downtime.

4. Typical Use Cases

HVLP spray guns are versatile tools used across various sectors where finish quality and material efficiency are paramount.

• Automotive Refinishing: Ideal for applying basecoats, clearcoats, and primers on vehicles. The 1.2–1.8mm tip range allows for fine atomization required for metallic and pearl finishes.
• Furniture and Cabinetry: Used for applying lacquers, stains, and varnishes on wood surfaces where a smooth, non-drip finish is critical.
• Industrial Manufacturing: Suitable for coating machinery parts, metal enclosures, and plastic components with high-precision coatings.
• DIY and Small Workshops: Gravity feed models (600cc) are preferred for small batch jobs and touch-ups due to their ease of handling and lower air consumption.

Procurement Recommendation: Match the nozzle size to the specific use case. For automotive clearcoats, procure 1.3mm–1.4mm tips. For primers or heavy sealers, ensure the kit includes 2.0mm or 2.5mm tips. Do not use a single gun for all tasks without interchangeable nozzles, as this compromises finish quality.

5. Long-Term Planning Considerations

Market trends indicate a shift towards higher efficiency and environmental sustainability in painting operations.

• Market Demand Signals: There is increasing regulatory pressure globally to reduce VOC emissions. HVLP technology is becoming the baseline requirement rather than an optional upgrade.
• Technology Evolution: Expect a growing demand for guns with adjustable air pressure controls and ergonomic designs to reduce operator fatigue during long shifts.
• Supply Chain Resilience: Procure from suppliers with a track record of maintaining inventory for critical spare parts (nozzles, needles) to avoid production stoppages.
• Operator Training: Long-term success depends on operator skill. Plan for training budgets to ensure staff can adjust air pressure and fluid flow correctly to avoid "starved spray" conditions.

Procurement Recommendation: Adopt a modular procurement strategy. Purchase a high-quality core gun with a comprehensive nozzle kit now, but negotiate a framework agreement for future upgrades or additional nozzles as material requirements change. Prioritize suppliers who offer training resources or technical support.

6. Special Product Recommendations

The following comparison table highlights key product configurations based on buyer profiles and operational needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Professional Kit (4 Nozzles) | Automotive Shops / High-Volume Workshops | 1.4/1.7/2.0/2.5mm tips; 9.7–10.2 CFM; 0.7–3.5 bar | Check compressor CFM rating; verify NPT thread compatibility | Essential for versatility. Ensure the kit includes a 600cc gravity cup and high-quality seals. | | Entry-Level Gravity Feed | Small Workshops / DIY Enthusiasts | 1.7mm fixed tip; 4–6 CFM; 1/4" NPT | Lower durability; potential for inconsistent atomization | Good for low-volume touch-ups. Verify the body material is corrosion-resistant. | | High-Flow Industrial Unit | Large Manufacturing Lines | 2.0–2.5mm tip; 15–22 CFM; 200mm barrel | Requires large compressor; higher air cost | Only procure if the compressor can sustain >20 CFM continuously. Avoid for small jobs. | | Specialized Fine Finish | Luxury Automotive / Furniture | 1.2–1.3mm tip; 600cc cup; Precision needle | Fragile needle; requires skilled operator | Best for metallics/clearcoats. Do not use for primers. Ensure spare needles are stocked. |

Procurement Recommendation: For most B2B scenarios, the Professional Kit (4 Nozzles) is the optimal choice. It balances cost, versatility, and performance. Avoid fixed-tip models unless the application is strictly limited to one material type.

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum air compressor capacity required for a standard HVLP gun? A: You need a compressor capable of delivering at least 4–12 CFM at the rated working pressure. For continuous professional use, a compressor rated for 10–15 CFM is recommended to prevent pressure drops that cause orange peel.

Q2: Can I use an HVLP gun for primers and heavy sealers? A: Yes, but you must switch to a larger fluid tip (typically 2.0mm or 2.5mm). Using a small tip (1.4mm) for heavy materials will result in clogging and poor atomization.

Q3: How does HVLP reduce material costs compared to conventional guns? A: HVLP guns operate at lower pressure, which significantly reduces overspray and bounce-back. This increases transfer efficiency to 65–70%, saving 20–30% on paint material costs compared to conventional systems.

Q4: What is the standard inlet pressure range for these guns? A: The typical operating range is 0.7 to 3.5 bar. It is crucial to use a regulator to maintain this pressure; too high pressure causes excessive misting, while too low pressure causes poor atomization.

Q5: How often should I replace the nozzle and needle? A: Replacement frequency depends on usage and material abrasiveness. However, for professional automotive finishing, inspect the nozzle tip for wear (oval shape) every 2–3 weeks. Replace immediately if the spray pattern becomes uneven.

Q6: What is the difference between gravity feed and suction feed? A: Gravity feed guns have the cup on top and require less air pressure (4–12 CFM), making them ideal for HVLP. Suction feed guns pull paint from a cup below and generally require higher air pressure, making them less efficient for modern HVLP standards.

Q7: Is a 600cc cup size sufficient for professional work? A: Yes, for most automotive and furniture applications. The 600cc capacity allows for frequent refilling without excessive downtime, and the smaller weight improves maneuverability compared to larger 1L+ cups.

Q8: What connection size should I look for? A: The standard inlet connection is 1/4" NPT. Ensure your air hose and compressor outlet match this thread size to prevent leaks and pressure loss.
