Procurement Report: Hydraulic Power Packs

Product Category: Industrial Hydraulic Power Units (HPU) / Hydraulic Power Packs

1. Technical Specifications and Performance Metrics

When procuring a hydraulic power pack, the primary focus must be on matching the unit's output to the specific mechanical demands of the application. Specifications are not merely numbers; they dictate the efficiency, longevity, and safety of the entire system.

• Flow Rate and Pressure:
  • Typical B2B Range: Flow rates generally span from 10 L/min for light-duty applications to 500+ L/min for heavy industrial machinery. Working pressures range widely from 50 bar (light-duty) up to 370 bar (high-force compact applications).
  • Procurement Action: Do not select a unit based solely on peak pressure. Ensure the pump type (e.g., gear, vane, or piston) matches the required flow stability. High-pressure systems (>200 bar) typically require piston pumps, while lower pressure systems may utilize gear or vane pumps.
• Tank Capacity:
  • Typical B2B Range: Reservoir volumes typically range from 50 liters to 1,000+ liters, often sized to be 3 to 5 times the pump flow rate per minute to ensure adequate cooling and air separation.
  • Procurement Action: Verify that the tank design allows for easy inspection and maintenance. A tank that is too small will cause rapid overheating, while one that is too large may be difficult to cool or inspect.
• Motor and Drive Configuration:
  • Typical B2B Range: Motors are available in Single-phase / DC (for portable or small units), Three-phase AC (standard industrial), or Servo motors (for precision control). Power ratings typically range from 0.75 kW to 100+ kW.
  • Procurement Action: Confirm the electrical supply availability at the installation site. For applications requiring precise speed control, specify a servo motor drive; for continuous heavy-duty operation, a standard three-phase induction motor is often more cost-effective.

2. Industry Compliance and Quality Assurance

Reliability in hydraulic systems is paramount to preventing downtime and ensuring operator safety. Procurement must prioritize units that adhere to recognized engineering standards and safety protocols.

• Safety and Design Standards:
  • Key Requirements: Units should be designed to prevent overheating and facilitate inspection. Systems operating at high pressures (up to 370 bar) must include robust safety relief valves and pressure gauges calibrated to industry standards.
  • Procurement Action: Request documentation confirming that the power pack design allows for easy cooling and maintenance access. Avoid suppliers who prioritize compactness over serviceability, as this leads to higher long-term maintenance costs.
• Quality Assurance Protocols:
  • Key Requirements: Look for manufacturers who perform pressure testing (typically 1.5x working pressure) and leak testing before shipment.
  • Procurement Action: Require a Factory Acceptance Test (FAT) report for custom or high-value units. Ensure the manufacturer provides a clear warranty on the pump and motor, typically ranging from 12 to 24 months.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) is a more accurate metric than the initial purchase price. A cheaper unit that is difficult to cool or repair will incur higher operational costs.

• Integration and Modularity:
  • Typical B2B Range: Customization costs can vary from 10% to 30% of the base unit price depending on the complexity of the manifold and control logic.
  • Procurement Action: Opt for modular designs where possible. This allows for future upgrades (e.g., adding a servo drive or increasing tank capacity) without replacing the entire unit. Ensure the footprint fits the designated installation space with adequate clearance for airflow.
• Operational Efficiency:
  • Cost Factors: Energy consumption is directly linked to motor efficiency and pump type. Variable speed drives (VSD) can reduce energy consumption by 20-40% in applications with varying load cycles.
  • Procurement Action: Calculate the energy savings of a VSD-enabled unit against the higher upfront cost. For applications with intermittent duty cycles, a VSD is often the most cost-efficient choice.

4. Typical Use Cases

Hydraulic power packs are versatile and serve as the heart of various industrial machinery. Understanding the specific application helps in selecting the right pressure and flow specifications.

• Heavy Machinery: Excavators, cranes, and presses often require high-pressure units (up to 370 bar) with high flow rates to generate significant force.
• Manufacturing Automation: Injection molding machines and CNC lathes typically use units with precise flow control, often utilizing servo motors for accurate positioning.

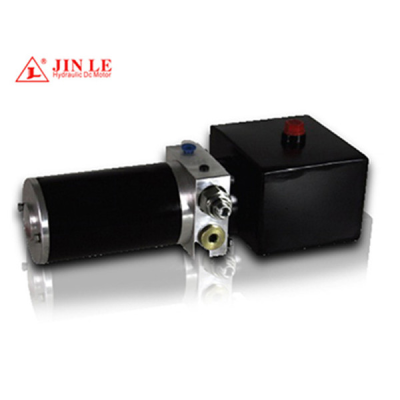

• Mobile and Portable Equipment: Agricultural machinery and mobile lifts often require compact, single-phase or DC-powered units with lower flow rates (10-50 L/min) and lower pressures (50-200 bar).
• Procurement Action: Match the duty cycle of the application to the motor rating. Continuous duty applications require larger motors and tanks to dissipate heat, while intermittent duty applications can utilize smaller, more compact units.

5. Long-Term Planning Considerations

Strategic procurement involves anticipating future market trends and the evolving needs of the facility.

• Market Trends and Demand Signals:
  • Electrification: There is a growing demand for electric hydraulic power packs over diesel-driven units due to stricter emissions regulations and the push for electrification in manufacturing.
  • Smart Monitoring: Integration of IoT sensors for real-time monitoring of temperature, pressure, and fluid levels is becoming a standard expectation in new procurement.
  • Efficiency Standards: Global regulations are increasingly favoring high-efficiency motors and pumps to reduce energy consumption.
• Scalability:
  • Procurement Action: When planning for future expansion, consider purchasing a power pack with a slightly larger tank capacity or a motor with a higher power reserve than currently required. This allows for increased production capacity without a full system replacement.
• Spare Parts Availability:
  • Procurement Action: Ensure the chosen pump and motor models have a supply chain guarantee for spare parts for at least 10 years. Avoid proprietary components that lock you into a single supplier.

6. Special Product Recommendations

The following table compares common hydraulic power pack configurations to assist in selecting the right product for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Fixed Speed | General Manufacturing, Low-Cost Projects | 50-200 bar, 3-Phase AC, Gear/Vane Pump | High noise, lower efficiency in partial load | Ideal for constant load applications; ensure proper cooling. | | Servo-Driven HPU | Precision Automation, Injection Molding | 100-350 bar, Servo Motor, High Flow Stability | Higher initial cost, complex maintenance | Essential for applications requiring precise pressure/flow control. | | Portable/Compact Unit | Mobile Equipment, Construction Sites | 50-150 bar, Single-phase/DC, <100L Tank | Limited cooling capacity, lower durability | Verify power source availability; prioritize vibration resistance. | | Custom Bespoke Unit | Specialized Machinery, High-Force Applications | >200 bar, Custom Tank, Integrated Manifolds | Long lead time, higher integration risk | Require detailed FAT and clear interface specifications. |

7. Frequently Asked Questions (FAQ)

Q1: What is the typical pressure range for a standard hydraulic power pack? A: Standard units typically operate between 50 bar for light-duty applications and 370 bar for high-force compact applications. The specific range depends on the pump type and the intended mechanical load.

Q2: How do I determine the correct tank capacity for my application? A: A common rule of thumb is to size the reservoir to hold 3 to 5 times the pump's flow rate per minute. This ensures adequate cooling and allows air to separate from the fluid.

Q3: Can I use a single-phase motor for a large hydraulic power pack? A: Generally, no. Single-phase motors are typically limited to small, portable units (usually under 2-3 kW). For industrial applications requiring higher power (3 kW+), a three-phase AC motor is standard and recommended for efficiency and reliability.

Q4: What is the typical lead time for a custom hydraulic power pack? A: While standard units may be available immediately or within 2-4 weeks, bespoke units with custom manifolds and controls typically require 6-12 weeks for design, manufacturing, and testing.

Q5: How often should the hydraulic fluid be changed? A: While this depends on the operating environment, a typical maintenance schedule suggests checking fluid quality every 6 months and changing it every 1-2 years or based on contamination levels.

Q6: Is it better to buy a standard unit or a bespoke one? A: Buy a standard unit if your application fits common specifications (e.g., standard pressure/flow) to save cost and lead time. Choose a bespoke unit only if your application requires unique integration, extreme pressure, or specific control logic that standard units cannot provide.

Q7: What are the risks of buying a unit that is hard to cool? A: Units that are difficult to cool often suffer from rapid fluid degradation, seal failure, and pump cavitation, leading to frequent downtime and premature component failure. Always ensure the installation site allows for adequate airflow or cooling system integration.

Q8: Do hydraulic power packs come with safety certifications? A: Reputable manufacturers design units to meet general safety standards (such as pressure vessel directives), but specific certifications (like CE or UL) depend on the region and the specific components used. Always request the Declaration of Conformity or relevant safety test reports before purchase.
