Procurement Report: Intense Pulsed Light (IPL) Devices

Product Category: Professional Medical Aesthetic Equipment / Home-Use Beauty Devices

1. Technical Specifications and Performance Metrics

To ensure optimal procurement outcomes, the IPL device must be selected based on precise spectral and energy parameters. The core technology relies on a broadband filtered light source with an output range typically between 500 nm and 1200 nm.

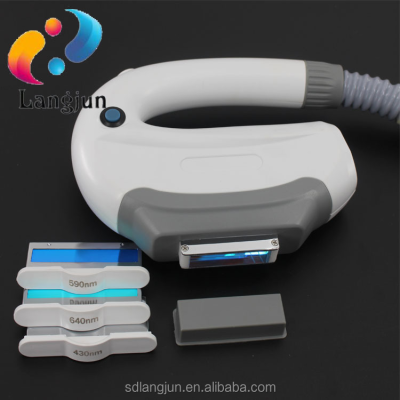

• Wavelength Filters: Procurement should prioritize units offering selectable filters to target specific chromophores. Standard configurations include 515 nm, 560 nm, 590 nm, and 640 nm.
  • Recommendation: For clinics treating diverse skin types, ensure the unit supports at least three distinct filter wavelengths (e.g., 515/560/640 nm) to cover hair removal and vascular treatments.
• Fluence (Energy Density): The adjustable fluence range is critical for efficacy and safety.
  • Typical B2B Range: 1.0 J/cm² to 60.0 J/cm².
  • Hair Removal Specific: 8 J/cm² to 50 J/cm².
  • Action: Verify that the device allows step-wise adjustment within this range to accommodate varying patient skin tones (Fitzpatrick scale I–VI).
• Cooling Systems: Effective cooling is non-negotiable for patient comfort and epidermal safety.
  • Spec: Look for integrated sapphire contact cooling or "ice cooling" systems capable of maintaining the skin surface at 10°C to 15°C during pulse emission.
• Pulse Duration: Adjustable pulse widths are required to match thermal relaxation times of target tissues.
  • Typical B2B Range: 3 ms to 30 ms.

Procurement Action: Request a technical data sheet (TDS) confirming the spectral output curve and fluence stability across the full range. Do not accept devices with fixed fluence settings.

2. Industry Compliance and Quality Assurance

Regulatory compliance is the primary gatekeeper for market access, particularly in the EU and North America. Non-compliant devices pose significant liability risks and import barriers.

• European Union (EU) Compliance:
  • Requirement: CE Marking under the Medical Device Regulation (MDR) 2017/745.
  • Classification: Home-use devices generally fall under Class IIa, requiring involvement from a Notified Body. Professional devices may be classified as Class IIb depending on the energy output and intended medical use.
  • Testing Standards: Devices must pass electrical safety testing per IEC 60601-1 and electromagnetic compatibility (EMC) standards.
• North American Market:
  • Requirement: FDA 510(k) clearance is the standard benchmark for safety and efficacy claims.
• Documentation Requirements:
  • Sellers must provide certification images (CE marks, FDA letters) prominently.
  • Technical documentation must include risk management files (ISO 14971) and clinical performance data.

Procurement Action: Before finalizing an order, verify the validity of the CE certificate via the NANDO database (for EU) or request the FDA 510(k) summary number. Do not proceed with suppliers who only provide "CE" without specifying the MDR directive or the Notified Body number.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in IPL procurement extends beyond the unit price to include operational costs, maintenance, and integration into existing workflows.

• Pricing Structure:
  • Typical B2B Range: Professional units often range from $3,000 to $15,000 USD depending on power output and cooling technology. Home-use devices range from $150 to $800 USD.
  • Consumables: Flash lamps are consumable items. Expect a lifespan of 100,000 to 500,000 flashes for professional grade, with replacement costs factored into the TCO (Total Cost of Ownership).
• Integration:
  • Connectivity: Modern units should support Bluetooth or Wi-Fi for patient record integration and treatment history tracking.
  • Software: Look for devices with customizable treatment protocols and safety interlocks that integrate with clinic management software.
• MOQ and Lead Time:
  • MOQ: Typically 1 unit for sample orders; 10–50 units for bulk B2B distribution.
  • Lead Time: 15–30 days for standard configurations; 45–60 days for customized branding (OEM/ODM).

Procurement Action: Calculate the cost-per-flare over the device's lifespan. Prioritize suppliers offering Trade Assurance to mitigate payment risks, especially for first-time international buyers. Ensure the supplier provides a 12–24 month warranty covering the flash lamp and mainboard.

4. Typical Use Cases

IPL devices are versatile but require specific configurations for different applications.

• Hair Removal: The primary use case. Requires high fluence (up to 50 J/cm²) and specific filters (590/640 nm) to target melanin in the hair follicle.
• Skin Rejuvenation: Uses lower fluence and broader filters (515/560 nm) to stimulate collagen and treat fine lines.
• Vascular Lesions: Targets hemoglobin using specific wavelengths (515/560 nm) to treat spider veins and rosacea.
• Pigmentation: Treats sun spots and melasma using 515 nm or 560 nm filters.
• Home vs. Professional:

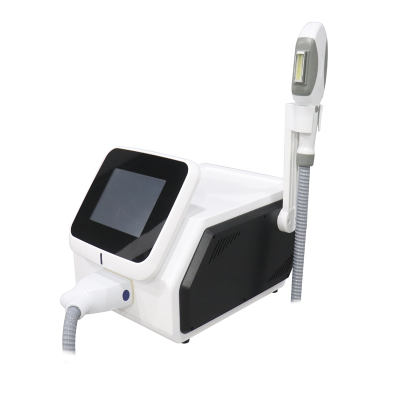

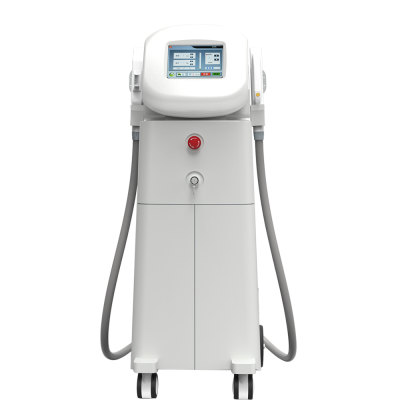

  • Professional: High power, rapid treatment times, advanced cooling, suitable for clinics.

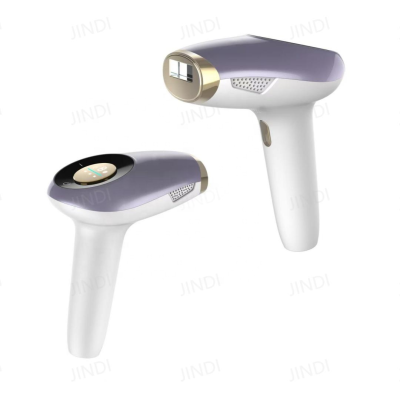

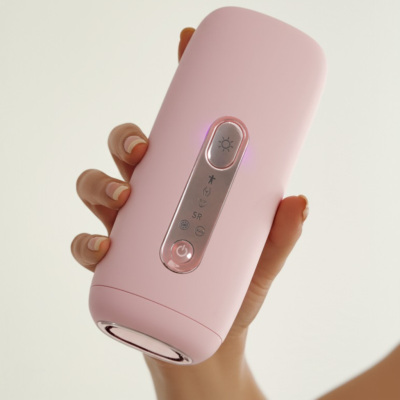

  • Home-Use: Lower power (typically < 6 J/cm²), safety interlocks, suitable for consumer retail.

Procurement Action: Match the device configuration to the primary service offering of the buyer. If the target market is a medical clinic, prioritize professional-grade Class IIb devices. If the target is e-commerce retail, focus on Class IIa home-use units with strong safety features.

5. Long-Term Planning Considerations

Strategic procurement must account for market evolution and regulatory shifts.

• Market Trends:
  • Demand Signal: There is a rising demand for "painless" IPL devices with advanced ice-cooling technology.
  • Regulatory Shift: The EU MDR transition is increasing the barrier to entry; suppliers with older CE certificates (under MDD 93/42/EEC) may face obsolescence.
  • Technology: Integration of AI for skin tone detection and automatic energy adjustment is becoming a standard differentiator.
• Supply Chain Resilience:
  • Diversify suppliers to avoid single-point failures.
  • Ensure spare parts (flash lamps, cooling units) are available for at least 5 years.
• Scalability:
  • Choose platforms that allow software updates to add new treatment protocols without hardware replacement.

Procurement Action: Prioritize suppliers with "Verified Supplier" status on B2B platforms to ensure long-term stability. Ask suppliers for their roadmap regarding MDR compliance and AI integration to future-proof the inventory.

6. Special Product Recommendations

The following table compares common IPL configurations to assist in selecting the right product for specific buyer profiles.

Procurement Action: For B2B buyers entering the market, the Professional Clinic IPL is the recommended starting point for revenue generation, provided the regulatory documentation is flawless. For retail, the Home-Use IPL offers higher volume potential but requires strict quality control on safety features.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between a Class IIa and Class IIb IPL device? A: Class IIa devices (typically home-use) have lower energy output and require a Notified Body for CE marking under MDR. Class IIb devices (professional) have higher energy outputs and are subject to stricter clinical testing and regulatory oversight.

Q2: How long do the flash lamps typically last? A: Professional grade flash lamps typically last between 100,000 and 500,000 flashes. Home-use devices often have a lower lifespan, typically around 10,000 to 30,000 flashes.

Q3: Is CE certification mandatory for selling IPL devices in the EU? A: Yes. Under the Medical Device Regulation (MDR) 2017/745, CE marking is mandatory for market access. Devices must undergo testing for electrical safety (IEC 60601-1) and EMC.

Q4: What is the typical lead time for a bulk order of 50 units? A: Typical B2B lead time is 45–60 days for bulk orders involving OEM customization or specific certification verification. Standard stock orders may ship within 15–30 days.

Q5: Can IPL devices treat all skin types? A: IPL is most effective on Fitzpatrick skin types I–IV. For darker skin types (V–VI), specific wavelengths and lower fluence settings are required to prevent burns, and some devices may not be suitable.

Q6: What cooling methods are best for patient comfort? A: Sapphire contact cooling is the industry standard for professional devices, maintaining skin temperature at 10°C–15°C. Air cooling is common in home-use devices but offers less protection for high-fluence treatments.

Q7: How do I verify a supplier's certification claims? A: Request the full certificate number and verify it against the official EU NANDO database for CE or the FDA 510(k) database for US clearance. Do not rely solely on images provided in the listing.

Q8: What is the minimum order quantity (MOQ) for professional IPL devices? A: MOQs vary by supplier but typically range from 1 unit for sample testing to 10–50 units for bulk distribution. Some suppliers offer lower MOQs for first-time buyers under Trade Assurance.
