Procurement Report: Irrigation Sprinklers

Product Category: Agricultural and Landscape Irrigation Equipment (Sprinklers, Travelers, and Reel Systems)

1. Technical Specifications and Performance Metrics

Procurement of irrigation sprinklers requires precise matching of hydraulic performance to the physical constraints of the application site. The selection criteria hinge on pressure requirements, flow rates, and mechanical durability.

• Pressure and Flow Requirements:
  • Oscillating Sprinklers: Optimized for rectangular lawns; require inlet pressure between 20–35 psi.
  • Rotary/Gear-Driven & Impact Sprinklers: Designed for medium to large areas and uneven zones; operate effectively within 30–80 psi.
  • Traveler/Reel Systems: Large-scale units (e.g., Model 2550 Series) support flow rates ranging from 74 to 695 GPM (Gallons Per Minute) for high-capacity applications, while smaller electric/bellows-driven models (e.g., Models E110, B110) operate in the 3 to 80 GPM range.
• Reach and Coverage:
  • Reel Systems: Capable of reaching up to 1,200 feet (quarter-mile) for specific plastic tape/mulch applications, covering 2.8 to 11.6 acres per run.
  • Compact Travelers: Electric and bellows-driven units typically cover 0.2 to 2.0 acres per run, with a maximum linear reach of 449 feet.
• Mechanical Construction:
  • Inlet Connections: Standard fittings are 1/2" NPT (National Pipe Thread) or 3/4" BSP (British Standard Pipe).
  • Internal Components: Durability is determined by material selection. Procurement should prioritize POM-gear (Polyoxymethylene) or brass internals for high-wear environments over standard plastic to prevent premature failure.
  • Drive Mechanisms: Options include Hydraulic, Turbine, Engine, Electric DC motor, and Bellows drives.

Actionable Recommendation: Conduct a hydraulic survey of the site to verify static and dynamic pressure. Select the head type strictly based on the pressure range (20–35 psi vs. 30–80 psi) and ensure the inlet size matches existing infrastructure to avoid costly adapter modifications.

2. Industry Compliance and Quality Assurance

While specific named certifications were not provided in the source context, industry standards for irrigation equipment focus on material integrity and flow consistency.

• Material Standards:
  • Emitters: High-quality streamlines should feature seamless, molded emitters to ensure consistent flow rates. Variations in emitter spacing (4, 8, 12, 16, 24 inches) and thickness (4 to 15 mil) must align with crop or landscape requirements.
  • Durability: Units intended for long-term use should specify POM-gear or brass internals. Plastic internals are acceptable for low-pressure, short-duration applications but pose a higher risk of wear in high-psi environments.
• Performance Consistency:
  • Flow rates must remain stable across the specified operating range (e.g., 74–695 GPM for large reels).
  • Reel systems must demonstrate the ability to handle variable terrain without jamming, a critical metric for uneven zones.

Actionable Recommendation: Require suppliers to provide material composition data sheets for internal gears and nozzles. Prioritize vendors who offer seamless molded emitters for drip integration to minimize clogging risks and ensure uniform water distribution.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in irrigation procurement extends beyond the unit price to include operational energy consumption and system integration.

• Power and Drive Costs:
  • Electric Drive Systems: Utilize DC motors (e.g., Models E110, E140) with optional booster pumps (1 HP, 5 HP, 9 HP). These offer lower maintenance costs but require electrical infrastructure.
  • Hydraulic/Engine Driven: Suitable for remote locations without power; higher fuel or hydraulic fluid maintenance costs but greater autonomy.
• Integration:
  • Reel Compatibility: Systems like the Model 2550 Series offer removable end plates and various chassis options, allowing for integration with existing water reels and hose assemblies.
  • Flow Matching: Ensure the selected sprinkler's flow demand (GPM) matches the pump capacity. Oversizing leads to pressure drops; undersizing leads to inefficient coverage.
• Typical B2B Ranges:
  • MOQ (Minimum Order Quantity): Typically 1 unit for standard oscillating/rotary heads; 5–10 units for specialized traveler reels or custom chassis configurations.
  • Lead Time: Standard units 2–4 weeks; custom chassis or hydraulic drive systems 6–12 weeks.

Actionable Recommendation: Calculate the total cost of ownership (TCO) by factoring in booster pump energy costs (1 HP vs. 9 HP options). For large-scale operations, prioritize systems with modular chassis designs to allow for future expansion or reconfiguration without replacing the entire unit.

4. Typical Use Cases

The application of irrigation sprinklers varies significantly based on the terrain and the scale of the operation.

• Residential and Small Commercial Lawns:
  • Equipment: Oscillating sprinklers.
  • Scenario: Rectangular lawns with consistent pressure (20–35 psi).
  • Benefit: Uniform coverage for small, defined areas.
• Medium to Large Agricultural Fields:
  • Equipment: Rotary/Gear-driven or Impact sprinklers.
  • Scenario: Medium-large areas requiring 30–80 psi; uneven terrain.
  • Benefit: Robust performance in challenging topographies.
• Large-Scale Crop Irrigation (Plasticulture):
  • Equipment: Water Reels (e.g., Model 2550 Series) and Travelers.
  • Scenario: Irrigating 2.8 to 11.6 acres per run; mulch or plastic tape application.
  • Benefit: High flow rates (up to 695 GPM) and long reach (up to 1,200 ft).
• Specialized/Remote Applications:
  • Equipment: Bellows-driven or Engine-driven travelers.
  • Scenario: Areas with limited power access or specific flow requirements (3–80 GPM).
  • Benefit: Portability and independence from grid power.

Actionable Recommendation: Map the site geometry before purchasing. Use oscillating heads for simple rectangles, impact heads for irregular shapes, and reel systems for large, contiguous fields where mobility is required.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends, scalability, and lifecycle management.

• Market Trends and Demand:
  • Efficiency Focus: There is a growing demand for systems with precise flow control (e.g., emitter spacing of 4–24 inches) to reduce water waste.
  • Automation: Shift toward electric DC motor drives and remote-controlled hydraulic systems for labor reduction.
  • Durability: Increased preference for brass and POM-gear internals over plastic in high-pressure environments to extend asset life.
• Scalability:
  • Systems should be selected with the ability to handle future flow rate increases (e.g., upgrading from a 1 HP to a 9 HP booster pump).
  • Modular designs (removable end plates, various chassis) allow for scaling from 0.2 acres to 11.6 acres without changing the core technology.
• Lifecycle Management:
  • Plan for the replacement of wear items (gears, nozzles) every 3–5 years depending on usage intensity.
  • Ensure spare parts availability for specific models (e.g., E110, B110) to minimize downtime.

Actionable Recommendation: Invest in modular systems that allow for booster pump upgrades. Avoid proprietary locking mechanisms that prevent the use of third-party parts. Factor in a 10% budget buffer for potential pressure regulation upgrades as water availability fluctuates.

6. Special Product Recommendations

The following table compares key product types to assist in selecting the right equipment based on specific buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Oscillating Sprinkler | Residential / Small Landscape | 20–35 psi, Rectangular coverage | Low pressure variance | Verify inlet size (1/2" NPT) matches existing hose bibs. | | Impact/Rotary Sprinkler | Medium Farms / Golf Courses | 30–80 psi, Uneven terrain tolerance | Gear wear in high dust | Specify POM-gear internals for longevity. | | Water Reel (Model 2550) | Large Scale Agriculture | 74–695 GPM, 1,200 ft reach, 2.8–11.6 acres | Hydraulic leaks | Confirm hydraulic control compatibility with existing pump stations. | | Electric Traveler (E110) | Remote Fields / Limited Power | 3–80 GPM, 449 ft reach, DC Motor | Battery/Power dependency | Ensure 1 HP booster pump is available if flow demand exceeds 3 GPM. | | Bellows Traveler (B110) | Variable Terrain | 3–80 GPM, 0.2–1.5 acres | Mechanical jamming | Inspect bellows integrity for resistance to debris. |

Actionable Recommendation: For new installations, prioritize the Water Reel for large-scale efficiency and Electric Travelers for areas with reliable power access. Always request a sample unit for field testing before bulk ordering to verify flow uniformity.

7. Frequently Asked Questions (FAQ)

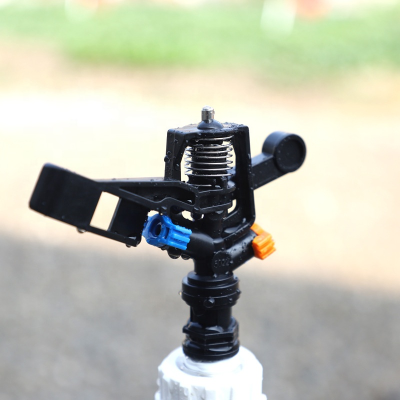

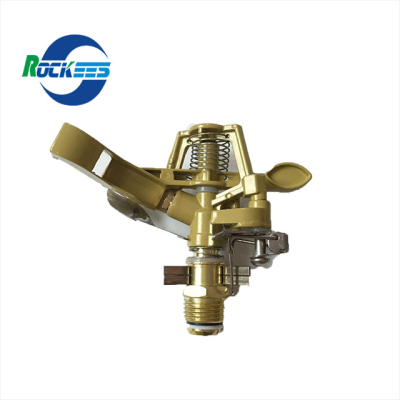

Q1: What is the difference between a rotary and an impact sprinkler? A: Rotary sprinklers use gear-driven mechanisms for medium-to-large areas, while impact sprinklers use a striking arm to rotate, making them better suited for large, uneven zones. Both typically require 30–80 psi.

Q2: Can I use a standard garden hose with a large water reel system? A: No. Large systems like the Model 2550 Series require high flow rates (74–695 GPM) and specialized hoses. Standard garden hoses cannot handle the pressure or volume and will likely burst.

Q3: What inlet size should I look for? A: The industry standard is 1/2" NPT or 3/4" BSP. Ensure your water source matches this specification to avoid pressure loss or the need for adapters.

Q4: How long is the reach of a typical traveler system? A: Compact electric/bellows models reach up to 449 feet, while large hydraulic reel systems can reach up to 1,200 feet (a quarter mile).

Q5: Are plastic internals durable enough for high-pressure systems? A: For systems operating above 35 psi, plastic internals are prone to wear. It is recommended to select units with POM-gear or brass internals for durability in high-pressure (30–80 psi) applications.

Q6: What is the typical flow rate for a small electric traveler? A: Small electric models (e.g., Models E110, B110) typically operate in the 3 to 80 GPM range, suitable for covering 0.2 to 2.0 acres per run.

Q7: Do these systems require a booster pump? A: Many traveler systems (E110, B110) offer optional booster pumps (1 HP, 5 HP, 9 HP) to increase reach and flow. Check if your water source pressure meets the 30–80 psi requirement before purchasing a pump.

Q8: How much area can a single run of a water reel cover? A: Depending on the model and flow rate, a single run can irrigate between 0.2 acres (compact) and 11.6 acres (large hydraulic reel).
