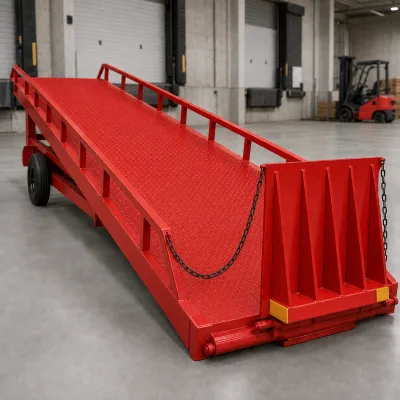

3 Ton Mobile Yard Ramp 1.6m 1.8m 2m Portable Loading Ramp Steel Structure for Container Loading Unloading Wholesale
PANDA LOGISTICS EQUIPMENT (NANTONG) CO., LTD.
Lead Time
| Quantity | 旺季 | 淡季 |
|---|---|---|
| 1 - 20 | 8 days | 8 days |
| 21 - 50 | 30 days | 30 days |
| > 50 | To be negotiated | To be negotiated |
Product profile
- Port Board connection Mode
- Open hinge
- Place of Origin
- Jiangsu, China
- Thickness and Length of the Base Plate
- 12mm * W 400mm 12mm
- Material
- Stainless Steel
- Main Board Cylinder
- 30mm*450mm
- Brand Name
- PANDA
- Single package size
- 160X50X50 cm
- Rated Load
- Dynamic load 3 tons; Ensure the plate surface won't deform
- Main Board Skeleton
- U-shaped reinforcement 4, thickness of 4mm
- Base Frame
- 60mm slot steel with welded bottom frame
- Power Form
- Electric hydraulic
- Adjustable Time
- Up Time 16S Down Time 10S
- Single gross weight
- 240.000 kg
- Lift Drive / Actuation
- Hydraulic
- Selling Units
- Single item
- Adjustable Range
- +150mm/-150mm
- Anti-collision Rubber
- Double collision block mounting base 500 wide
