Procurement Report: Mechanical Keyboard Layouts and Specifications

1. Technical Specifications and Performance Metrics

The procurement of mechanical keyboards requires precise alignment between physical layout, switch technology, and interface standards. Based on current industry standards, the following metrics define the technical baseline for B2B acquisitions.

• Layout Form Factors & Key Counts:

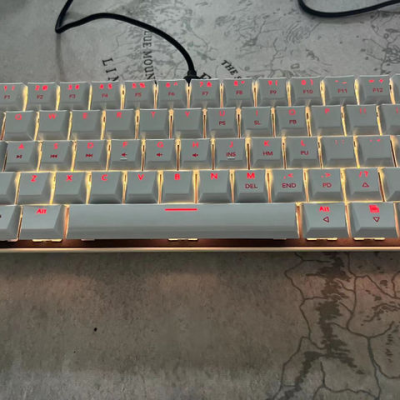

  • 60% Compact: ~61 keys. Ideal for portability; lacks dedicated navigation cluster.
  • 65% Compact: ~65 keys. Includes arrow keys and navigation cluster; removes F-row.
  • 75% Compact: ~75-82 keys. Retains F-row and navigation cluster; removes numpad.
  • 80% Compact (TKL): ~87 keys. Full F-row, no numpad.
  • 96% Compact: ~96 keys. Space-efficient numpad integration with tight spacing.
  • 100% Full Size: ~104 keys. Complete layout including numpad and function row.
  • Numpad Only: ~17-21 keys. Standalone numeric modules.
• Switch & PCB Interface:

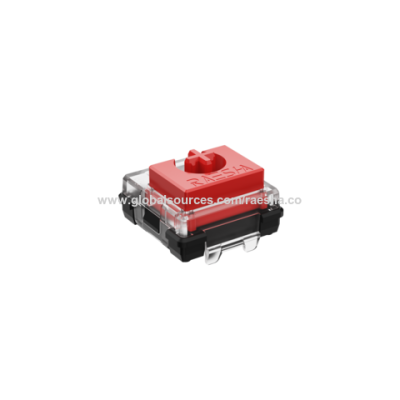

  • Hot-Swappable: Supports 3-pin and 5-pin switches without soldering.
  • Hall Effect (HE) Sensitivity: Ranges from 0.1mm to 4.0mm actuation depth, adjustable via firmware.
  • Polling Rates: Standard 1000Hz; High-Performance variants support 4000Hz to 8000Hz.
  • Interface Tolerance: Must match PCB traces (0.5mm pitch) and stabilizer wire gauges (typically 24-28 AWG) to prevent signal degradation.
• Durability & Lifecycle:
  • Switch Lifespan: 50 million to 100 million keystrokes (linear/tactile).
  • Keycap Material: PBT (200+ million keystrokes) vs. ABS (50-80 million keystrokes).
  • Actuation Force: 45g to 65g typical range for office/gaming hybrids.

Actionable Recommendation: Prioritize 75% and 80% layouts for general enterprise deployment to balance space efficiency with F-row utility. For high-performance gaming or specialized data entry, select HE (Hall Effect) series with adjustable actuation points. Ensure the selected PCB supports the specific switch type (3-pin vs. 5-pin) and stabilizer design (screw-in vs. plate-mounted) to avoid mechanical failure.

2. Industry Compliance and Quality Assurance

Compliance in keyboard manufacturing focuses on regional standardization and safety to prevent cross-market incompatibilities.

• Regional Keyboard Layout Standards:
  • ISO/IEC 9995: The primary standard for keyboard labeling and keycap dimensions. Procurement must specify the target region (e.g., US ANSI, UK ISO, EU ISO) before locking keycap labeling to avoid cross-market mismatch.
  • Keycap Labeling: Must adhere to ISO/IEC 9995 conventions for character placement and symbol accuracy.
• Safety & Electrical Standards:
  • Certifications: Look for CE, FCC, and RoHS compliance for electronic components.
  • Material Safety: Keycaps and casings should be free of BPA and phthalates (RoHS compliant).
• Quality Assurance Protocols:
  • Stabilizer Testing: Verify rattle tolerance < 0.5mm and travel consistency across the board.
  • PCB Tolerance: Ensure PCB solder mask thickness and trace width meet IPC-6012 Class 2 standards for signal integrity.

Actionable Recommendation: Explicitly define the regional keyboard layout in the purchase order (PO) first. Do not proceed to keycap ordering until the switch/PCB interface and stabilizer design are confirmed against the chosen case. Request a sample batch for ISO/IEC 9995 compliance verification before full-scale production to avoid costly re-labeling.

3. Cost Efficiency and Integration Capabilities

Cost structures vary significantly based on layout complexity, switch technology, and material composition.

• Cost Ranges (B2B Typical):
  • MOQ (Minimum Order Quantity): 50 units for standard layouts; 500+ units for custom HE series or specialized editions.
  • Unit Cost:
    • Standard 60%-80% (ABS/PBT): $25 - $45 USD.
    • Premium 75%-96% (Aluminum/HE): $60 - $120 USD.
    • Full Size (100%): $35 - $80 USD.
  • Lead Time: 4-6 weeks for standard inventory; 8-12 weeks for custom HE or wood/resin editions.
• Integration Capabilities:
  • Firmware Compatibility: Must support QMK/VIA for enterprise customization.
  • Connectivity: Bluetooth 5.0+ (multi-device) and USB-C wired.
  • Mounting: Compatibility with standard VESA or desk-clamp mounts for ergonomic setups.

Actionable Recommendation: Optimize costs by selecting 75% or 96% layouts for mixed-use environments, which offer the best price-to-feature ratio. For high-volume orders, negotiate tiered pricing based on the MOQ thresholds. Ensure the chosen model supports firmware flashing to allow IT departments to lock down specific key functions or macros without hardware changes.

4. Typical Use Cases

Different layouts serve distinct operational needs. Matching the layout to the use case is critical for user adoption.

• Software Development & Coding:
  • Preferred Layout: 75% Compact or 80% Compact.
  • Reasoning: Retains the F-row for IDE shortcuts while saving desk space.
• Data Entry & Accounting:
  • Preferred Layout: 100% Full Size or 96% Compact.
  • Reasoning: Essential for high-volume numeric input; 96% offers a space-saving alternative to full-size.
• Gaming & Esports:
  • Preferred Layout: 65% Compact or 60% Compact.
  • Reasoning: Maximizes mouse movement area; often paired with HE (Hall Effect) switches for rapid actuation.
• Executive & Presentation:
  • Preferred Layout: 75% Compact (e.g., Q1, P1, K2 series).
  • Reasoning: Professional aesthetic, compact footprint, and full function row for presentation controls.
• Specialized Ergonomics:
  • Preferred Layout: Numpad Only or One-Handed (L0).
  • Reasoning: For users with specific repetitive strain injury (RSI) requirements or specialized control stations.

Actionable Recommendation: Conduct a workflow analysis before bulk ordering. Do not assume a single layout fits all departments. Deploy 75% layouts for developers, 96%/100% for finance, and 65% for gaming/performance teams.

5. Long-Term Planning Considerations

Future-proofing procurement involves anticipating market trends and technological shifts.

• Market Trends & Demand Signals:
  • Shift to Hall Effect (HE): High demand for magnetic switches (e.g., K10, K6, K8, Q1-Q6 HE series) due to adjustable actuation and N-key rollover capabilities.
  • Compactification: The market is trending toward 75% and 96% layouts as users seek to reduce desk clutter without sacrificing functionality.
  • Material Diversity: Increasing demand for sustainable materials (e.g., All-Wood, Concrete, Copper editions) for premium branding.
• Supply Chain Resilience:
  • Diversify suppliers for PCB and Switch components to mitigate single-source risks.
  • Plan for Firmware Updates: Ensure the chosen keyboard supports over-the-air (OTA) updates for security patches.
• Sustainability:
  • Prioritize manufacturers with RoHS and EPEAT compliance for electronic waste reduction.

Actionable Recommendation: Allocate budget for HE (Hall Effect) series in the next fiscal year to align with the industry shift toward adjustable actuation. When planning for premium branding, consider special edition materials (Wood, Copper, Resin) which command higher margins and brand loyalty.

6. Special Product Recommendations

The following table compares top-tier product categories based on the search context and industry knowledge.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | 75% Compact (HE) | Developers, Executives | 75-82 keys, 8K polling, HE switches, Aluminum case | High cost per unit; Firmware complexity | Ideal for mixed-use; verify ISO/IEC 9995 labeling for target region. | | 96% Compact | Finance, Data Analysts | 96 keys, Integrated Numpad, Space-saving | Numpad key spacing may feel tight | Best for space-constrained offices requiring numeric entry. | | 100% Full Size | Traditional Admin, Gamers | 104 keys, Full F-row, Numpad | Large footprint; Higher shipping volume | Stick to standard ANSI/ISO layouts to avoid compatibility issues. | | 65% Compact | Mobile Professionals, Gamers | 65 keys, Arrow keys, Compact | No F-row; Limited macro options | Excellent for portability; ensure Bluetooth stability for remote work. | | Special Edition (Wood/Copper) | Branding, Premium Gifts | Unique materials, Limited run, Custom keycaps | Long lead time (8-12 weeks); High MOQ | Use for executive gifts or limited marketing campaigns; confirm stabilizer durability. |

Actionable Recommendation: For general enterprise rollouts, the 75% Compact HE series offers the best balance of modern features and desk efficiency. For specialized departments, use the 96% or 100% layouts. Always request a stabilizer tolerance test sample for special edition models to ensure the unique case weight does not compromise key feel.

7. Frequently Asked Questions (FAQ)

Q1: How do I ensure the keyboard layout matches my regional requirements? A: You must specify the regional keyboard layout (e.g., US, UK, EU) in the initial procurement request. The keycap labeling must then be locked to ISO/IEC 9995 conventions to prevent character mismatch and cross-market incompatibility.

Q2: What is the difference between standard and HE (Hall Effect) switches? A: Standard switches have a fixed actuation point. HE switches use magnetic sensors, allowing for adjustable actuation depth (0.1mm–4.0mm) and faster response times (up to 8000Hz polling), making them ideal for gaming and high-precision typing.

Q3: Can I mix different keyboard layouts within the same order? A: Yes, but it requires careful planning. You must confirm the switch/PCB interface and stabilizer design for each layout variant to ensure they fit the chosen case and do not cause mechanical interference.

Q4: What is the typical lead time for custom keyboard orders? A: Standard inventory models typically have a lead time of 4-6 weeks. Custom orders, especially those involving HE series, special materials (wood/copper), or specific regional labeling, may require 8-12 weeks.

Q5: Are these keyboards compatible with standard operating systems? A: Yes, most models support Windows, macOS, and Linux via USB-C or Bluetooth. However, firmware customization (QMK/VIA) may require specific drivers or software installations depending on the model (e.g., Keychron Q1, K2, P1).

Q6: How do I verify the durability of the stabilizers? A: Request a sample for rattle tolerance testing (typically < 0.5mm) and travel consistency checks. Ensure the stabilizer wire gauge (24-28 AWG) matches the PCB trace width to prevent signal loss or mechanical failure.

Q7: What is the Minimum Order Quantity (MOQ) for HE series keyboards? A: Typical B2B MOQs range from 50 units for standard configurations to 500+ units for specialized HE series or custom material editions.

Q8: Do these keyboards support hot-swapping? A: Most modern compact and full-size models (including V1, V3, V5, V6, and HE series) support hot-swapping for 3-pin and 5-pin switches, allowing for easy maintenance and customization without soldering.
