Procurement Report: Kinematic Viscosity Measurement and Calibration Solutions

1. Technical Specifications and Performance Metrics

When procuring equipment for kinematic viscosity measurement, the primary focus must be on the instrument's ability to cover the specific viscosity range of the target fluids while maintaining high precision under controlled thermal conditions.

• Kinematic Viscosity Range: Procurement must align with the specific fluid properties. Typical industrial fluids range from 0.5 mm²/s (light solvents) to over 10,000 mm²/s (heavy oils). The selected viscometer must have a calibrated measurement span that fully encompasses the expected operating range.
• Accuracy Specifications: High-performance laboratory instruments typically offer an accuracy of ±0.2% to ±5% of reading. For critical quality control, instruments closer to the ±0.2% end of the spectrum are required.
• Temperature Control: Temperature is the most critical variable in kinematic viscosity.
  • Standard Lab Range: 0°C to 150°C covers the vast majority of lubricants, fuels, and chemical solvents.
  • Specialized Range: For cryogenic or high-temperature polymers, systems capable of -20°C to 200°C should be considered.
  • Stability: Thermal stability should be maintained within ±0.01°C to ensure measurement repeatability.
• Operational Torque: For rotational viscometers, reliable results are achieved when the sample operates near 20% to 80% of the full-scale torque. Procurement should prioritize instruments with auto-ranging capabilities to ensure the sample remains within this optimal window.

Actionable Recommendation: Before purchasing, map the viscosity range of your specific products against the instrument's calibrated span. Avoid "near-capacity" purchases; select a device where your highest viscosity sample operates at no more than 80% of the full-scale torque to maximize accuracy and extend sensor life.

2. Industry Compliance and Quality Assurance

Traceability and certification are non-negotiable for maintaining regulatory compliance and ensuring data integrity in global supply chains.

• Traceability Standards: All viscosity standards and calibration fluids must be traceable to primary standards. The industry benchmark is pure water, which has a defined Kinematic Viscosity of 1.0034 mm²/s at 20°C. This standard is adopted by National Metrology Laboratories (e.g., NIST) and international bodies including ASTM, IP, and ISO.
• Certified Reference Materials (CRMs): Procurement of calibration fluids should prioritize suppliers who provide full traceability documentation. Using uncertified fluids introduces significant risk of calibration drift and non-compliance with ISO 17025 requirements.
• Equipment Verification: Instruments must be capable of verification against these CRMs. The system should support calibration for glass capillary viscometers, auto viscometers, rotational viscometers, and flow cups.

Actionable Recommendation: Mandate that all viscosity standards and calibration fluids purchased include a Certificate of Analysis (CoA) explicitly stating traceability to NIST or equivalent national metrology standards. Do not accept "internal" calibration claims without third-party verification documentation.

3. Cost Efficiency and Integration Capabilities

While the initial capital expenditure (CapEx) for high-precision viscometers is significant, the Total Cost of Ownership (TCO) is driven by maintenance, calibration frequency, and integration with existing Quality Management Systems (QMS).

• Typical B2B Cost Ranges:
  • Entry-Level Rotational Viscometers: $3,000 – $8,000.
  • High-Precision Glass Capillary Systems: $5,000 – $15,000 (excluding automated bath).
  • Automated Kinematic Viscometers: $25,000 – $60,000+.
  • Calibration Fluids (CRMs): $150 – $400 per liter, depending on viscosity grade and certification level.
• Integration: Modern instruments should support digital output via USB, RS-232, or Ethernet to integrate directly with LIMS (Laboratory Information Management Systems).
• Durability & Maintenance: Glass capillary viscometers are consumable but highly durable if handled correctly. Rotational viscometers require periodic spindle replacement and bearing checks.

Actionable Recommendation: Calculate TCO over a 5-year period, including the cost of annual calibration services and the recurring purchase of certified reference standards. Prioritize instruments with open API or standard communication protocols to avoid vendor lock-in and ensure seamless data integration.

4. Typical Use Cases

Kinematic viscosity measurement is a critical parameter across multiple industries, primarily for quality control, product formulation, and regulatory compliance.

• Lubricants and Engine Oils: Monitoring viscosity to ensure proper film thickness and wear protection in automotive and industrial machinery.
• Petroleum and Fuels: Ensuring fuel injectors receive the correct viscosity for atomization and combustion efficiency.
• Chemical Manufacturing: Controlling polymer molecular weight and resin consistency during production.
• Food and Beverage: Assessing the texture and flow properties of syrups, oils, and sauces.
• Paints and Coatings: Verifying application viscosity to prevent sagging or poor coverage.

Actionable Recommendation: Define the specific industry standard (e.g., ASTM D445 for petroleum, ISO 3104 for transparent liquids) required for your application before selecting the measurement method (capillary vs. rotational). Ensure the procurement scope includes the necessary accessories (e.g., specific flow cups or spindles) for these standard tests.

5. Long-Term Planning Considerations

The market for viscosity measurement is evolving towards automation, digitalization, and stricter environmental regulations.

• Market Trends: There is a growing demand for automated systems that reduce human error and increase throughput. Digital twins and predictive maintenance features are becoming standard in high-end rotational viscometers.
• Regulatory Shifts: Stricter environmental regulations regarding volatile organic compounds (VOCs) and energy efficiency in manufacturing are driving the need for faster, more precise measurements to reduce waste.
• Supply Chain Resilience: Reliance on a single source for Certified Reference Standards (CRMs) poses a risk. Procurement strategies should diversify suppliers to ensure continuity of supply for calibration fluids.
• Skill Gap: As instruments become more automated, the need for specialized training on data interpretation and maintenance increases.

Actionable Recommendation: Plan for a phased upgrade strategy. Invest in modular systems that can be upgraded with automation modules later. Establish a multi-vendor relationship for calibration fluids to mitigate supply chain disruptions. Budget for annual staff training on new digital interfaces and data security protocols.

6. Special Product Recommendations

The following table compares the primary categories of viscosity measurement solutions to assist in selecting the right tool for specific procurement needs.

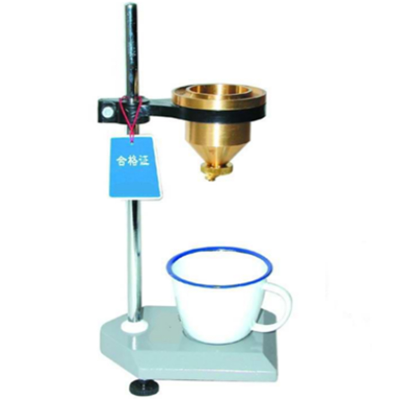

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Glass Capillary Viscometer | Research Labs, Petrochemical QC | Temp: 20°C ±0.01°C; Range: 0.5–10,000 mm²/s | High breakage risk; Manual timing required | Ideal for primary calibration; ensure spare glassware inventory. | | Rotational Viscometer | Manufacturing QC, R&D | Torque: 20–80% FS; Temp: 0–150°C | Spindle wear; Viscosity range limits | Best for non-Newtonian fluids; check torque stability specs. | | Automated Viscometer | High-Volume Production | Throughput: >10 samples/hr; Auto-temp control | High CapEx; Complex maintenance | Justify cost via labor savings; verify LIMS integration. | | Flow Cup (e.g., Ford) | Paints, Coatings, Simple QC | Temp: Ambient to 50°C; Simple operation | Low accuracy (±5%); Operator dependent | Use only for quick checks; do not use for critical certification. | | Certified Reference Fluids | All Calibration Needs | Traceable to NIST/ASTM; ±0.2% accuracy | Expiration dates; Storage conditions | Buy from expert partners (e.g., LGC) for full traceability. |

Actionable Recommendation: For critical calibration, do not mix and match equipment types. If using glass capillaries, ensure the reference fluids are specifically certified for that method. For high-volume environments, the ROI of an automated system usually pays back within 18–24 months through reduced labor and increased data reliability.

7. Frequently Asked Questions (FAQ)

Q1: What is the standard reference point for viscosity calibration? A: The industry standard is pure water, which has a kinematic viscosity of 1.0034 mm²/s at 20°C. All certified reference standards must be traceable to this primary standard via national metrology laboratories like NIST.

Q2: How do I ensure my viscometer is accurate? A: Accuracy is maintained by operating the instrument within 20% to 80% of its full-scale torque (for rotational) and using certified reference fluids with full traceability documentation. Regular calibration against these standards is mandatory.

Q3: What temperature range is required for most laboratory work? A: A temperature control range of 0°C to 150°C is sufficient for most standard laboratory applications involving lubricants, fuels, and chemicals. Specialized needs may require -20°C to 200°C.

Q4: Can I use uncertified oils for calibration? A: No. For regulatory compliance and data integrity, you must use Certified Reference Materials (CRMs) traceable to standards like ASTM, IP, or ISO. Uncertified fluids introduce unacceptable risk of measurement drift.

Q5: What is the typical accuracy of a high-end kinematic viscometer? A: High-performance instruments typically achieve an accuracy of ±0.2% to ±5% of reading, depending on the specific model and the viscosity range being measured.

Q6: How often should viscosity standards be replaced? A: Certified reference fluids have expiration dates based on stability testing. They must be replaced according to the manufacturer's shelf-life guidelines (typically 1–3 years) or immediately if the seal is compromised or the fluid appears contaminated.

Q7: What is the difference between kinematic and dynamic viscosity? A: Kinematic viscosity (mm²/s or cSt) measures the fluid's resistance to flow under gravity and includes density. Dynamic viscosity (mPa·s or cP) measures the internal friction. Kinematic viscosity is the standard for most lubricant and fuel specifications (e.g., ASTM D445).

Q8: How do I integrate a viscometer with my lab software? A: Select instruments with digital communication ports (USB, RS-232, Ethernet) and open API support. This allows for direct data transfer to your Laboratory Information Management System (LIMS), reducing manual entry errors.
