Procurement Report: Pulsed Time-of-Flight (TOF) Laser Rangefinders

1. Technical Specifications and Performance Metrics

The procurement of laser rangefinders (LRFs) requires precise alignment between emitter wavelength, measurement range, and environmental constraints. Based on industry standards for pulsed TOF systems, the following specifications define the baseline for evaluation:

• Emitter Wavelength: Selection is critical for safety and range.
  • 905 nm: Standard for general-purpose and handheld applications.
  • 1550 nm: Required for long-range applications (>2 km) and eye-safe operations (Class 1).
• Measurement Range & Accuracy:
  • Handheld/Short-Range: 40–200 meters with an accuracy of ±5–30 mm.
  • Surveying (with Reflector): 200–4,000 meters.
  • Long-Range/Defense: 5–20+ kilometers (up to 38 km in specialized extended-range models).
  • Target Specific: Range to standard NATO vehicles (2.3 × 2.3m) typically spans 1.7 km to 17.5 km depending on the model class.
• Beam Divergence: Critical for target distinction at long distances.
  • Typical ranges: 0.015° to 0.15° (Horizontal × Vertical). Lower divergence (e.g., 0.015°) is essential for distinguishing targets at >10 km.
• Measurement Speed:
  • Single Shot: 1.4s – 1.8s typical response time.
  • Continuous Mode: Supports frequencies from 1 Hz up to 500 Hz for dynamic tracking.
• Precision & Resolution:
  • Standard precision: 10–50 cm (long-range) to ±30 mm (short-range).
  • Range Gating Resolution: Typically 1 meter.
• Power Consumption:
  • Low-power handhelds: < 1.5W – 2W.
  • High-performance long-range units: < 4W.

Procurement Recommendation: Define the maximum required range first. If the application exceeds 2 km, prioritize 1550 nm Class 1 emitters to ensure operator safety and regulatory compliance. Verify that the beam divergence matches the target size at the maximum operating distance to avoid false detections.

2. Industry Compliance and Quality Assurance

Procurement must ensure that devices meet specific safety classes and operational reliability standards, particularly for defense and surveying sectors.

• Laser Safety Class:
  • Class 1: Mandatory for 1550 nm systems and many 905 nm systems designed for public or untrained operator use. These are "eye-safe" under normal operating conditions.
  • Class 1M: Specific to certain 905 nm configurations where the beam divergence requires caution for direct viewing but is generally safe for diffuse reflection.
• False Detection Rate (FDR):
  • Industry standard for reliable systems is < 1%. Systems with higher FDR rates are unsuitable for critical surveying or military applications.
• Target Distinction:
  • Systems must demonstrate the ability to distinguish targets separated by < 20m to < 30m to prevent signal overlap in cluttered environments.
• Interface Standards:
  • Serial interfaces typically utilize UART at 3.3V logic levels.
  • Protocol support often includes IP (Internet Protocol) encapsulation for networked integration.
• Durability:
  • While specific IP ratings vary, long-range military-grade units (e.g., 31.5 km class) are engineered for harsh field conditions, often implying ruggedized housing standards.

Procurement Recommendation: Require proof of Laser Class certification (Class 1 or 1M) in the datasheet. For defense contracts, explicitly demand a False Detection Rate < 1% and verify the "Target Distinction" metric against the specific operational environment's clutter density.

3. Cost Efficiency and Integration Capabilities

While exact unit pricing is not provided in the source data, cost efficiency is driven by the trade-off between range, wavelength, and integration complexity.

• Integration Interfaces:
  • UART (3.3V): Standard for direct microcontroller integration.
  • IP with Oct: Indicates support for networked deployment, reducing cabling costs in large-scale sensor arrays.
• Power Efficiency:
  • Lower power consumption (< 2W for mid-range) extends battery life in portable units, reducing the total cost of ownership (TCO) for field operations.
• Optional Features:
  • Alignment Lasers (630nm): Often optional. Procuring units with built-in alignment lasers reduces the need for secondary sighting equipment, saving on ancillary hardware costs.
  • Development Mode: Some units offer restricted modes for R&D, which may impact warranty or long-term support terms.

Procurement Recommendation: Evaluate the Total Cost of Ownership (TCO) by factoring in power requirements. For battery-operated handhelds, select models with < 2W consumption. For fixed installations, prioritize units with native IP networking to minimize cabling infrastructure costs. Verify if the "Alignment Laser" is included in the base price or requires a costly add-on.

4. Typical Use Cases

Laser rangefinders are deployed across diverse sectors based on their specific range and accuracy profiles:

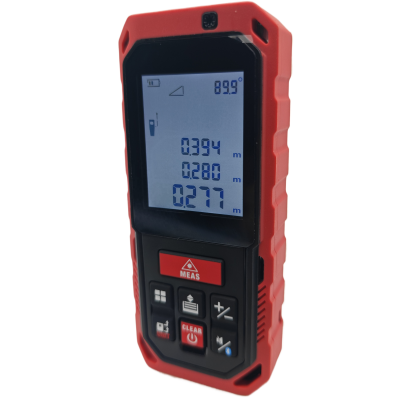

• Handheld Surveying & Construction:
  • Range: 40–200 m.
  • Requirement: High accuracy (±5–30 mm) and portability.
  • Application: Topographic mapping, building inspections, and interior design.
• Professional Surveying:
  • Range: 200–4,000 m (with reflector).
  • Requirement: High precision and stability.
  • Application: Civil engineering, road construction, and large-scale land development.
• Defense & Military:
  • Range: 1.7 km – 17.5 km (to vehicles) / up to 38 km.
  • Requirement: Eye-safe 1550 nm, high target distinction, and low false detection rates.
  • Application: Target acquisition, artillery ranging, and vehicle identification (NATO vehicle profiles).
• Long-Range Monitoring:
  • Range: 5–20+ km.
  • Requirement: Extreme beam collimation (0.015° divergence).
  • Application: Border security, missile defense tracking, and atmospheric monitoring.

Procurement Recommendation: Match the use case to the "Target Distinction" capability. For military vehicle identification, ensure the unit can resolve targets at < 30m separation. For construction, prioritize accuracy over maximum range.

5. Long-Term Planning Considerations

Future-proofing procurement involves analyzing market trends and technological evolution in the LRF sector.

• Market Trends:
  • Shift to 1550 nm: Increasing regulatory pressure and safety standards are driving a shift from 905 nm to 1550 nm for long-range applications to ensure Class 1 eye safety.
  • High-Frequency Continuous Mode: Demand is rising for systems capable of 100–500 Hz continuous measurement for dynamic tracking and drone integration.
  • Networked Sensors: Integration via IP protocols is becoming standard for IoT-enabled security and surveying networks.
• Demand Signals:
  • Defense budgets are stabilizing with a focus on non-lethal, precise targeting solutions.
  • Civil infrastructure projects are driving demand for high-accuracy, long-range surveying tools.
• Scalability:
  • Procure units with modular interfaces (UART/IP) to allow future firmware upgrades or integration with new sensor fusion systems.

Procurement Recommendation: Prioritize 1550 nm technology for any long-range procurement to avoid future obsolescence due to safety regulations. Ensure the selected model supports high-frequency continuous modes (up to 500 Hz) to accommodate future drone or autonomous vehicle integration.

6. Special Product Recommendations

The following table compares specific product tiers based on available industry data. Note that specific model numbers (e.g., LRF3, LRF38) represent typical industry tiers.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Entry-Level Handheld | Surveyors, Real Estate | Range: 40–200m; Acc: ±30mm; Wavelength: 905nm | Check for lack of alignment laser (optional) | Verify battery life (<1.5W) and ensure ±30mm accuracy is sufficient for the task. | | Mid-Range Surveying | Civil Engineers | Range: 200–4km (w/ reflector); Class 1; 1550nm | Ensure reflector compatibility | Confirm Class 1 safety certification for untrained operators. | | Extended Range (3-5km) | Security, Border Patrol | Range: 3–5km; Divergence: 0.03°–0.15°; 1550nm | High power consumption (~2.5W) | Validate target distinction (<20m) against local threat profiles. | | Long-Range Defense (12-38km) | Military, Defense Contractors | Range: 12–38km; Divergence: 0.015°; Class 1 | Complex integration (IP/UART); High cost | Require <1% False Detection Rate and NATO vehicle range validation. | | High-Frequency Tracker | R&D, Autonomous Systems | Continuous: 100–500 Hz; Precision: 10–50cm | Thermal management at high Hz | Ensure cooling solutions are included for continuous 500Hz operation. |

Procurement Recommendation: For defense applications, the Long-Range Defense tier is the only viable option, provided the budget allows for the high power and integration complexity. For general commercial use, the Mid-Range Surveying tier offers the best balance of safety (1550nm) and cost.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between 905 nm and 1550 nm laser rangefinders? A: 905 nm is standard for shorter ranges and lower costs but is not eye-safe for high-power long-range shots. 1550 nm is eye-safe (Class 1) even at high power, making it mandatory for long-range applications (>2 km) and military use.

Q2: How do I determine the required beam divergence for my application? A: Beam divergence determines how much the laser spot spreads over distance. For long-range targeting (e.g., >10 km), a divergence of 0.015° to 0.03° is required to maintain a small spot size and distinguish targets. For short-range handhelds, 0.15° is acceptable.

Q3: What is the typical False Detection Rate (FDR) for reliable systems? A: Reliable industrial and defense-grade systems maintain a False Detection Rate of less than 1%. Systems with higher rates are unsuitable for critical applications where signal integrity is paramount.

Q4: Can these devices be integrated into existing network infrastructure? A: Yes. Many modern units support UART (3.3V) and IP protocols (often with Oct encapsulation), allowing them to be integrated into networked sensor arrays and IoT systems without complex custom drivers.

Q5: What is the measurement speed for continuous mode? A: Continuous measurement speeds vary by model, typically ranging from 1 Hz up to 500 Hz. High-frequency modes (100–500 Hz) are essential for tracking moving targets or drones.

Q6: Are alignment lasers included in all models? A: No. Alignment lasers (typically 630 nm) are often optional features. Procurement should verify if this is included in the base price, as it simplifies aiming significantly.

Q7: What is the typical response time for a single measurement? A: For most pulsed TOF systems, a single measurement takes between 1.4 seconds and 1.8 seconds, depending on the range and target reflectivity.

Q8: How does target reflectivity affect the maximum range? A: Range is heavily dependent on target reflectivity. Specifications often cite "Range to NATO Vehicle" (2.3 × 2.3m) as a standard benchmark. Low-reflectivity targets (e.g., black surfaces) will significantly reduce the effective range compared to high-reflectivity targets.
