Procurement Report: Optical Lenses

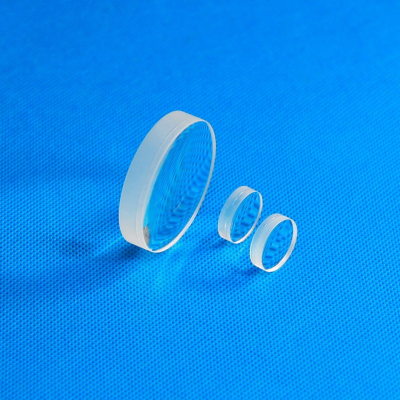

1. Technical Specifications and Performance Metrics

To ensure the acquisition of the correct optical components, procurement must begin by defining the primary optical function: collimation, imaging, or focusing. Misalignment in these functional definitions leads to system failure. The following technical parameters define the standard B2B procurement scope for general optical lenses:

• Optical Diameter: Ranges from Ø1 mm to 150 mm. Standard off-the-shelf sizes typically fall between Ø12.5 mm and Ø50 mm.
• Focal Length: Broadly spans 0.5 mm to 2000+ mm. High-precision imaging systems often require focal lengths between 10 mm and 200 mm.
• Substrate Material:
  • BK7 (Borosilicate Crown Glass): Recommended for visible light applications (400–700 nm) due to cost-effectiveness and high homogeneity.
  • Fused Silica: Required for UV applications or high-power laser environments where thermal expansion must be minimized.
• Coating Specifications: Standard broadband anti-reflection (AR) coatings cover 400–700 nm. For specialized needs, single-wavelength coatings (e.g., 632.8 nm for HeNe lasers) or High-Reflectivity (HR) coatings are available.
• Surface Quality: Typically specified as 60-40 or 40-20 scratch-dig for general industrial use; 10-5 or better for high-end imaging.
• Centering and Tilt: Standard tolerance is < 3 arc-minutes for centering and < 0.5 degrees for wedge.

Actionable Recommendation: Before issuing a Request for Quotation (RFQ), explicitly document the required focal length and diameter. Verify that the material (BK7 vs. Fused Silica) matches the operating wavelength to prevent thermal distortion or absorption losses.

2. Industry Compliance and Quality Assurance

Procurement of optical lenses must adhere to established industry standards to ensure interoperability and safety. The Lens Product Description Standard (referenced in industry guidelines) provides a unified data file structure for technical attributes, replacing proprietary formats and ensuring accurate transmission of front surface geometry for non-spherical lenses.

• Data Standardization: Suppliers should provide data files compliant with the Lens Product Description Standard v2.3 (Revised 2025) to facilitate seamless integration with laboratory lens layout software.
• Marking and Origin: Compliance with Country of Origin Marking Rules is mandatory for import/export logistics. Lenses must be clearly marked to indicate manufacturing origin.
• Safety Standards:
  • Sunglasses and Readers: Must meet impact resistance standards (e.g., FDA 21 CFR or equivalent ISO standards).
  • Rimless Frames: If lenses are intended for drill-mount rimless frames, they must meet specific Rimless Frame Drill Mount Standards to prevent chipping during installation.
• Quality Assurance: Vendors should provide a Certificate of Conformance (CoC) detailing surface irregularity, wavefront error, and coating reflectivity data.

Actionable Recommendation: Require suppliers to submit technical data sheets that explicitly reference the Lens Product Description Standard. Verify that the lens marking includes the country of origin and that the material safety data aligns with the intended application (e.g., impact resistance for eyewear).

3. Cost Efficiency and Integration Capabilities

Cost efficiency in lens procurement is driven by the balance between standardization and customization. While custom aspheric lenses offer superior performance, they significantly increase unit costs and lead times.

• Cost Drivers:
  • Standard Spherical Lenses: Lowest cost tier; typically $5 – $50 per unit for small diameters in bulk.
  • Aspheric/Custom Lenses: Higher cost tier; typically $50 – $500+ per unit depending on diameter and tolerance.
  • Coatings: Standard AR coatings add 10–20% to the base cost; specialized multi-layer coatings can add 50–100%.
• Minimum Order Quantity (MOQ):
  • Stock Items: MOQs typically range from 10 to 50 units.
  • Custom Orders: MOQs often start at 100 units to justify tooling and coating setup.
• Lead Time:
  • Stock/Standard: 1–2 weeks.
  • Custom Coating: 3–4 weeks.
  • Complex Custom Optics: 6–12 weeks.
• Integration: Adherence to the Lens Product Description Standard reduces integration time by ensuring software vendors can automatically parse lens specifications, reducing engineering hours spent on data conversion.

Actionable Recommendation: Prioritize stock items with standard diameters (e.g., Ø25 mm, Ø50 mm) and focal lengths to minimize lead times. For custom projects, negotiate a tiered pricing model where the unit cost decreases significantly as the volume exceeds the initial MOQ.

4. Typical Use Cases

Optical lenses are critical components across diverse industries. The selection of the lens type depends heavily on the specific application environment.

• Imaging Systems: Camera modules, microscopes, and telescopes require high-resolution lenses with precise focal lengths (typically 10–200 mm) and low distortion.
• Laser Systems: Collimation and focusing of laser beams require fused silica substrates and high-damage-threshold coatings (400–700 nm or specific IR wavelengths).
• Consumer Eyewear: Prescription lenses and sunglasses require impact-resistant materials (polycarbonate or Trivex) and specific curvature standards for rimless or semi-rimless frames.
• Industrial Automation: Machine vision sensors utilize lenses with wide dynamic ranges and specific working distances (often < 100 mm).
• Medical Devices: Endoscopes and diagnostic tools require miniaturized, high-transmission lenses with strict biocompatibility and sterilization resistance.

Actionable Recommendation: Map the procurement request to a specific use case. For laser applications, explicitly request "High-Damage Threshold" coatings. For eyewear, ensure the lens geometry matches the frame type (drill-mount vs. full-rim) to avoid installation failures.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and supply chain resilience.

• Market Trends:
  • Miniaturization: Increasing demand for micro-lenses and aspheric elements in mobile devices and AR/VR headsets.
  • Material Shifts: Growing preference for fused silica and specialized glass types for high-power laser and UV applications.
  • Digitalization: Adoption of the Lens Product Description Standard is becoming a prerequisite for supply chain integration, moving away from proprietary formats.
• Supply Chain Resilience: Diversify suppliers across different geographic regions to mitigate risks associated with raw material shortages (e.g., optical glass) or geopolitical trade barriers.
• Sustainability: Consider the environmental impact of coating processes and glass waste. Some manufacturers are adopting eco-friendly coating technologies.
• Technology Obsolescence: Ensure that the lens specifications (e.g., coating bands) are not tied to legacy systems that may become obsolete within 3–5 years.

Actionable Recommendation: Develop a 3-year procurement roadmap that includes a transition plan for adopting the Lens Product Description Standard across all vendor interactions. Monitor the shift toward aspheric and freeform optics for future product lines.

6. Special Product Recommendations

The following table compares common lens types to assist in selecting the right product for specific buyer profiles.

Actionable Recommendation: For high-volume projects, standardize on Standard Spherical Lenses where possible. Reserve Aspheric and Fused Silica options for applications where performance metrics strictly demand them, as these carry higher integration risks and costs.

7. Frequently Asked Questions (FAQ)

Q1: How do I determine the correct focal length for my application? A: The focal length is determined by the distance between the object and the image plane required for your specific optical function (imaging, collimation, or focusing). Use the lens formula ($1/f = 1/d_o + 1/d_i$) or consult with an optical designer to calculate the exact requirement based on your system geometry.

Q2: What is the difference between BK7 and Fused Silica? A: BK7 is a borosilicate crown glass ideal for visible light (400–700 nm) and general-purpose applications due to its low cost. Fused Silica is pure silica glass, offering superior transmission in the UV range and higher resistance to thermal shock, making it essential for laser and high-power applications.

Q3: What does the "Lens Product Description Standard" cover? A: This standard provides a unified data file structure for describing technical attributes of lens products, including front surface geometry for non-spherical lenses. It ensures that suppliers and software vendors can exchange specifications accurately without proprietary format conversion errors.

Q4: Are there specific standards for lenses used in rimless frames? A: Yes. Lenses intended for rimless frames must meet Rimless Frame Drill Mount Standards to ensure they can withstand the drilling process without chipping or cracking. Always verify the lens edge strength and thickness before ordering for this application.

Q5: What is the typical lead time for custom-coated lenses? A: While stock lenses are available in 1–2 weeks, custom-coated lenses typically require 3–4 weeks for production and coating application. Complex custom optics may take 6–12 weeks.

Q6: How do I verify the quality of an optical lens? A: Request a Certificate of Conformance (CoC) that details surface quality (scratch-dig), centering tolerance, and coating reflectivity. For critical applications, consider third-party inspection or requesting a sample for wavefront testing.

Q7: What is the Minimum Order Quantity (MOQ) for custom lenses? A: MOQs vary by manufacturer but typically start at 100 units for custom orders to justify tooling and coating setup costs. Stock items usually have an MOQ of 10–50 units.

Q8: How do I ensure the lens is suitable for UV applications? A: Select lenses made from Fused Silica rather than BK7, as BK7 absorbs UV light below 350 nm. Additionally, ensure the coating is specifically designed for the UV band (e.g., 250–400 nm) rather than the standard visible band.
