Procurement Report: Magnetic Level Gauges

Product Category: Industrial Level Measurement Instruments (Magnetic Level Gauges)

1. Technical Specifications and Performance Metrics

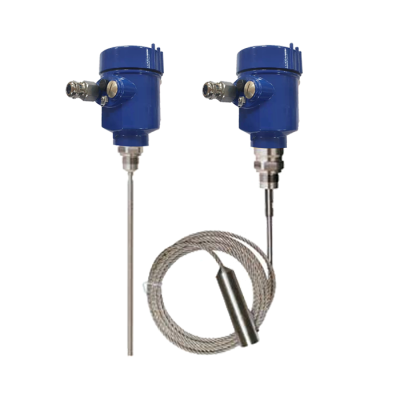

The Magnetic Level Gauge is a robust, direct-reading instrument designed for high-accuracy liquid level monitoring in pressurized vessels. Based on the provided technical data, the following specifications define the performance baseline for procurement:

• Housing Materials: Standard options include Aluminum or Stainless Steel (SS316). SS316 is recommended for corrosive environments.
• Enclosure Protection: Ratings range from IP 66/67 to IP 68, ensuring protection against dust and temporary or continuous immersion in water.
• Connection Standards: Available in M16 x 1.5, M20 x 1.5, ½" NPT, and ¾" NPT.
• Output Signals: Standard analog output is 4 – 20 mA / 2-wire. Advanced configurations support HART 5/7, PROFIBUS, and FIELDBUS protocols.
• Accuracy Tiers:
  • Model P-25: ± 1.3 mm (High Precision)
  • Model P-05: ± 2.5 mm
  • Model P-10: ± 5 mm
  • Model P-15: ± 7.5 mm (Standard)
• Operating Limits:
  • Pressure: Up to 60 bar (dependent on specific model configuration).
  • Temperature: Up to 350 °C (System limit); Indication rail (Polycarbonate) limited to 105 °C (temporary up to 120 °C).
  • Measuring Length: Maximum of 5500 mm.
• Mechanical Configuration: Options include 3-rod designs with diameters of 76 mm or 104 mm, and pipe stilling wells (e.g., 60.3 x 2 mm).

Procurement Recommendation: Select the P-25 or P-05 accuracy models for critical process control loops where ±2.5 mm tolerance is required. For general tank monitoring, the P-15 offers a cost-effective balance. Ensure the enclosure IP rating matches the site environment (IP 68 for outdoor/washdown, IP 67 for indoor). Always verify the polycarbonate rail temperature limit against the process fluid temperature; if the process exceeds 105 °C, request a metal rail or alternative indication method.

2. Industry Compliance and Quality Assurance

To ensure safety and regulatory adherence, procurement must verify the following certifications and material standards:

• Material Certification: Mandatory EN 10204 3.1 certificates for all stainless steel components, accompanied by material drawings.
• Pressure Testing: All units must undergo pressure testing with a BV (Bureau Veritas) certificate.
• Explosion Protection: Certified for hazardous areas with ATEX compliance (e.g., KEMA 10 ATEX0199). Ratings include II 1/2G c IIC T1…T6 (Gas) and II 1 D Txx °C (Dust).
• Corrosion Resistance: For sour gas or oilfield applications, verify compliance with NACE MR 01.75 / ISO 15156.
• Welding Standards: Ensure WPS/PQR (Welding Procedure Specification/Record) documentation is available for SS316 welds.

Procurement Recommendation: For projects in refineries, chemical plants, or offshore platforms, strictly require ATEX and NACE documentation prior to order placement. Do not accept generic "stainless steel" claims; demand the EN 10204 3.1 certificate to validate the material grade (1.4404/SS316L). Verify that the specific model's temperature rating aligns with the process safety limits defined in the P&ID.

3. Cost Efficiency and Integration Capabilities

• Signal Integration: The standard 4-20 mA output allows for immediate integration into existing DCS/PLC systems without additional converters.
• Protocol Support: Upgrading to HART 7 or PROFIBUS enables digital diagnostics and remote configuration, reducing maintenance downtime.
• Installation Flexibility: The availability of multiple connection types (M16, M20, NPT) reduces the need for custom flange adapters or piping modifications.
• Reversibility: Standard D.A. (Double Acting) reversible action allows for flexible mounting orientations, optimizing space in tight tank arrangements.
• Cost Drivers:
  • Material: SS316 housing and internal components typically carry a 15–25% premium over Aluminum.
  • Accuracy: Moving from P-15 (±7.5 mm) to P-25 (±1.3 mm) may increase unit cost by 20–30%.
  • Display: Adding an LCD optical display adds a moderate cost but eliminates the need for a separate local indicator.

Procurement Recommendation: Prioritize HART-enabled units for new installations to future-proof the asset against digital transformation initiatives. When budget is constrained, use Aluminum housings for non-corrosive, low-pressure applications to reduce CAPEX, but reserve SS316 for high-pressure (>20 bar) or corrosive duties. Leverage the reversible action feature to minimize piping changes during retrofit projects.

4. Typical Use Cases

• Oil & Gas Storage: Monitoring crude oil, diesel, and LPG in atmospheric and pressurized tanks (up to 60 bar).
• Chemical Processing: Handling aggressive acids and solvents where SS316 housing and NACE compliance are mandatory.
• Power Generation: Boiler drum level monitoring and condensate tank management (high temperature up to 350 °C).
• Water & Wastewater: Open and closed tank level monitoring in municipal facilities (IP 68 protection required).
• Pharmaceutical/Bio: Hygienic applications requiring cleanable surfaces and high-accuracy level control (P-05/P-25 models).

Procurement Recommendation: For high-temperature applications (>105 °C), explicitly specify a metal indication rail instead of the standard polycarbonate rail to prevent deformation. In corrosive environments, ensure the SS316L (1.4404) grade is specified rather than standard SS316 for superior weld decay resistance.

5. Long-Term Planning Considerations

• Market Trends: There is a growing demand for smart sensors with HART/PROFIBUS integration to support Industry 4.0 predictive maintenance strategies.
• Durability Signals: The 5500 mm maximum measuring length indicates a trend toward larger storage tanks in the energy sector, requiring longer gauge assemblies.
• Regulatory Pressure: Increasing safety regulations in the chemical sector are driving demand for ATEX-certified equipment with higher explosion protection classes (IIC).
• Supply Chain Resilience: SS316 material availability can fluctuate; securing suppliers with WPS/PQR on file ensures consistent quality during high-demand periods.
• Lifecycle Management: Units with LCD displays offer easier visual verification, reducing the frequency of manual inspections and associated labor costs.

Procurement Recommendation: Adopt a digital-first procurement strategy by prioritizing HART/Fieldbus models even if current infrastructure is analog-only, as this facilitates future upgrades. Plan for a 5-7 year lifecycle by selecting units with EN 10204 3.1 traceability, ensuring spare parts and replacement sensors remain compatible with the original batch.

6. Special Product Recommendations

The following comparison table highlights the best-fit products based on specific buyer needs:

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | High-Precision (P-25) | Process Control Engineers | ±1.3 mm Accuracy, 4-20mA, SS316 | High cost, requires stable process | Verify if ±1.3 mm is strictly necessary; otherwise, P-10 may suffice. | | High-Temp (350°C) | Refinery/Power Plant Buyers | Max 350°C, Metal Rail (Non-Poly) | Polycarbonate rail failure risk | Mandatory: Confirm rail material is metal, not polycarbonate, for >105°C. | | Hazardous Area (ATEX) | Oil & Gas Operators | II 1/2G c IIC T6, KEMA Cert | Explosion risk if cert missing | Demand KEMA 10 ATEX0199 certificate copy before shipping. | | Corrosive Service (NACE) | Chemical/Offshore Buyers | SS316L, NACE MR 01.75 | Material failure in sour gas | Ensure SS316L (1.4404) is specified, not standard SS316. | | Long-Range (5500mm) | Large Storage Facility | Max 5500mm, 3-rod design | Structural sagging risk | Verify stilling well diameter (60.3mm vs 76mm) for stability. |

7. Frequently Asked Questions (FAQ)

Q1: What is the maximum operating temperature for the standard indication rail? A: The standard polycarbonate indication rail is rated for a maximum of 105 °C (with a temporary limit of 120 °C). For continuous operation above 105 °C, a metal rail must be specified.

Q2: Can this gauge be used in explosive atmospheres? A: Yes, provided the specific model is ordered with ATEX certification (e.g., KEMA 10 ATEX0199) covering groups II 1/2G c IIC T1…T6 for gas and II 1 D for dust.

Q3: What accuracy levels are available? A: Four accuracy tiers are available: P-25 (±1.3 mm), P-05 (±2.5 mm), P-10 (±5 mm), and P-15 (±7.5 mm).

Q4: What materials are used for the housing? A: Standard housing materials are Aluminum or Stainless Steel (SS316). SS316L (1.4404) is available for corrosive or sour gas applications.

Q5: What connection sizes are supported? A: The gauges support M16 x 1.5, M20 x 1.5, ½" NPT, and ¾" NPT connections.

Q6: Is the output signal configurable? A: Yes. The standard output is 4 – 20 mA / 2-wire. Optional upgrades include HART 5/7, PROFIBUS, and FIELDBUS protocols.

Q7: What is the maximum measuring length? A: The maximum measuring length is 5500 mm.

Q8: Do you require specific documentation for pressure vessels? A: Yes, procurement should require EN 10204 3.1 material certificates, BV pressure test certificates, and WPS/PQR documentation for welding.
