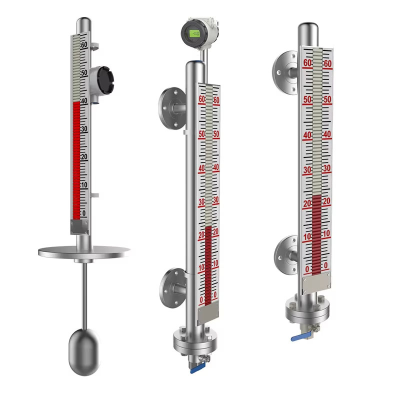

Procurement Report: Level Measuring Instruments

Product Category: Industrial Process Level Measurement & Surveying Equipment Report Date: October 26, 2023 Scope: Ultrasonic, Radar, Guided-Wave Radar, and Optical Level Instruments

1. Technical Specifications and Performance Metrics

When procuring level measuring instruments, the selection must be grounded in the specific process medium, environmental conditions, and required accuracy. The following technical parameters define the baseline for B2B procurement decisions.

• Measuring Range & Principle Selection:
  • Ultrasonic Sensors: Best suited for clean tanks with ranges of 0.25 m to 20 m. Accuracy typically falls within ±3 mm to ±10 mm.
  • Guided-Wave Radar (GWR): Ideal for complex interfaces (liquid/liquid or liquid/solid) and tall vessels, supporting ranges up to 70 m.
  • Non-Contact Radar: Required for applications involving vapors, foam, or aggressive chemicals, covering ranges from 0.2 m to 100 m.
• Environmental Ratings:
  • For outdoor or harsh industrial environments, instruments must possess an Ingress Protection rating of IP66 or IP67 (or higher) to ensure resistance against dust and water jets.
• Accuracy Standards:
  • Standard engineering level instruments generally target an accuracy of ±2 mm to ±10 mm depending on the technology (Radar vs. Ultrasonic).
  • High-precision surveying auto-levels require specific magnification power checks and precision standards to ensure vertical alignment within tight tolerances.
• Process Conditions:
  • Procurement must specify maximum operating temperature and pressure. For high-pressure vessels, the flange rating and diaphragm material must be verified against the process P&ID.

Actionable Recommendation: Define the "Purpose" and "Indicators" before selection. If the data requires external accountability (e.g., custody transfer), prioritize instruments with certified calibration and higher accuracy tiers (±2 mm). For internal process control, standard accuracy (±10 mm) may suffice, reducing cost. Always verify the medium's dielectric constant for radar selection to avoid signal loss.

2. Industry Compliance and Quality Assurance

Compliance is critical for legal accountability, safety, and insurance validity. Procurement must verify that instruments meet relevant international standards.

• Certification Requirements:
  • OIML R129: Essential for multi-dimensional measuring instruments used in trade or legal metrology.
  • MID (2014/32/EU): Mandatory for instruments used in water, gas, and energy metering within the EU market.
  • Hazardous Area Compliance: If the installation involves flammable vapors or dust, instruments must carry ATEX, IECEx, or UL/CSA certifications for the specific Zone (e.g., Zone 1, Zone 2).
• Calibration Protocols:
  • Standard delivery usually includes calibration covering the full specification of the instrument.
  • Procurement should request a "Calibration Certificate" traceable to national standards (e.g., NIST, PTB).
  • Calibration can be tailored to specific needs; if no specific specification exists, the instrument is calibrated to the manufacturer's standard limits.
• Quality Assurance:
  • Verify the supplier's capability to provide a Certificate of Conformity (CoC).
  • For surveying equipment (Auto Levels), check for ISO 9001 certification of the manufacturing process.

Actionable Recommendation: Do not assume standard delivery includes full traceability. Explicitly request calibration certificates for the specific range of the instrument being purchased. For hazardous area installations, demand proof of ATEX/IECEx certification matching the specific zone classification of the site.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) involves more than the unit price; it includes integration, maintenance, and lifecycle costs.

• Cost Structure (Typical B2B Ranges):
  • Entry-Level Ultrasonic: $200 – $800 per unit.
  • Mid-Range Radar/GWR: $1,500 – $5,000 per unit.
  • High-Precision Surveying Auto-Levels: $1,000 – $4,000 per unit.
  • MOQ (Minimum Order Quantity): Typically 1 unit for standard models; bulk discounts (5–10%) often apply for orders >10 units.
  • Lead Time: Standard lead time is 4–8 weeks; customized hazardous-area units may require 12–16 weeks.
• Integration Capabilities:
  • Signal Outputs: Ensure compatibility with existing PLC/DCS systems (4–20 mA HART, Modbus RTU, Profibus, or Ethernet/IP).
  • Power Supply: Verify compatibility with site power (24 VDC, 110/230 VAC).
  • Software: Look for vendors offering configuration software for remote tuning and diagnostics to reduce on-site downtime.

Actionable Recommendation: Prioritize instruments with digital communication protocols (HART/Modbus) over analog-only outputs to facilitate predictive maintenance and remote diagnostics. When evaluating cost, factor in the lead time; a 20% cheaper unit with a 12-week lead time may incur higher project delay costs than a slightly more expensive unit with immediate stock availability.

4. Typical Use Cases

Procurement decisions should align with the specific application scenario to ensure reliability.

• Clean Water & Wastewater Treatment:
  • Instrument: Ultrasonic (0.25–20 m) or Non-Contact Radar.
  • Scenario: Open tanks, clarifiers, and aeration basins where foam is minimal.
• Chemical & Petrochemical Processing:
  • Instrument: Guided-Wave Radar (up to 70 m) or Non-Contact Radar.
  • Scenario: High-pressure vessels, corrosive liquids, and interfaces between immiscible liquids.
• Hazardous Environments (Oil & Gas):
  • Instrument: Intrinsically Safe Radar or Ultrasonic.
  • Scenario: Storage tanks with volatile organic compounds (VOCs) requiring explosion-proof certification.
• Civil Engineering & Construction:
  • Instrument: Optical Auto-Levels.
  • Scenario: Site leveling, foundation setting, and topographic surveys requiring high magnification and precision.

Actionable Recommendation: Match the sensor technology strictly to the medium. Do not use ultrasonic sensors in applications with heavy foam or significant vapors, as signal attenuation will cause data loss. For interface measurement (e.g., oil-water), Guided-Wave Radar is the only reliable choice among the standard options.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and future scalability.

• Market Trends & Demand Signals:
  • IoT & Industry 4.0: There is a rising demand for smart sensors with built-in edge computing and wireless connectivity (LoRaWAN, NB-IoT) for real-time monitoring.
  • Sustainability: Increased focus on leak detection and precise inventory management to reduce waste and emissions.
  • Digital Twin Integration: Instruments that provide high-fidelity data for digital twin modeling are becoming a priority for large industrial plants.
• Durability & Lifecycle:
  • Standard electronic components typically have a lifespan of 5–10 years.
  • Mechanical parts (e.g., GWR antennas) may require replacement every 3–5 years depending on abrasion.
  • Plan for a 10–15% budget allocation for annual calibration and spare parts.
• Scalability:
  • Ensure the selected protocol allows for network expansion. Avoid proprietary protocols that lock the buyer into a single vendor for future expansion.

Actionable Recommendation: Select vendors who offer firmware update capabilities and support for emerging communication protocols. When planning for a 10-year horizon, budget for the eventual replacement of the sensor head, even if the transmitter electronics remain functional.

6. Special Product Recommendations

The following table compares the primary level measuring technologies to assist in rapid decision-making.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Ultrasonic Sensor | Water/Wastewater, Clean Bulk Solids | Range: 0.25–20 m; Acc: ±3–10 mm; IP66+ | High risk with foam/vapors; temperature sensitive | Verify medium is clean and stable; check for temperature compensation. | | Guided-Wave Radar (GWR) | Chemical, Interfaces, Tall Tanks | Range: Up to 70 m; Acc: ±2–5 mm | Probe damage in high turbulence; dielectric dependency | Ensure probe material matches chemical compatibility; check for turbulence dampening. | | Non-Contact Radar | Vapors, Foam, Aggressive Chemicals | Range: 0.2–100 m; Acc: ±2–10 mm | Beam angle issues with small tanks | Use narrow beam angle for small vessels; verify vapor density impact. | | Auto-Level (Optical) | Construction, Surveying, Civil Eng. | Magnification: 30x–40x; Acc: ±1–2 mm | Mechanical shock damage; lens fogging | Check for waterproof housing; verify calibration certificate for the specific model. |

Actionable Recommendation: For new projects involving unknown variables (e.g., potential foam formation), opt for Non-Contact Radar as the primary choice due to its robustness against environmental interferences, despite the higher initial cost. For established processes with stable media, Ultrasonic offers the best cost-performance ratio.

7. Frequently Asked Questions (FAQ)

Q1: How do I decide between Ultrasonic and Radar for a tank with foam? A: Do not use Ultrasonic sensors for tanks with significant foam, as the foam absorbs sound waves. Choose Non-Contact Radar, which can penetrate foam and vapors to measure the liquid surface accurately.

Q2: What is the standard accuracy for industrial level instruments? A: Typical B2B accuracy ranges from ±3 mm to ±10 mm for ultrasonic devices and ±2 mm to ±10 mm for radar devices. Surveying auto-levels typically offer ±1 mm to ±2 mm precision.

Q3: Is calibration included in the standard delivery? A: Yes, standard delivery usually covers calibration for the full specification of the instrument. However, if you have specific site requirements, you can request tailored calibration, provided you specify the needs during the order.

Q4: What certifications are required for hazardous area installations? A: Instruments must be certified for the specific hazardous zone (e.g., ATEX, IECEx, or UL). The certification must match the gas/dust group and temperature class of your specific environment.

Q5: What is the typical lead time for custom level instruments? A: Standard off-the-shelf units typically ship within 4–8 weeks. Customized units requiring specific hazardous area certifications or non-standard materials may require 12–16 weeks.

Q6: Can I integrate these instruments with my existing PLC? A: Most modern instruments support standard industrial protocols like 4–20 mA HART, Modbus RTU, or Profibus. Verify the protocol compatibility with your PLC/DCS system before purchasing.

Q7: How often should level instruments be recalibrated? A: While there is no universal mandate, a 12-month interval is the industry standard for maintaining accuracy and compliance, especially for custody transfer or safety-critical applications.

Q8: What is the minimum order quantity (MOQ) for these instruments? A: The typical MOQ is 1 unit for standard models. Bulk discounts are often available for orders exceeding 10 units, but this varies by supplier.
