Procurement Report: Industrial and Decorative Light Shades

Product Category: Lighting Components (Light Shades/Covers) Date: October 26, 2023 Subject: Strategic Sourcing Guidelines for Light Shades

1. Technical Specifications and Performance Metrics

Procurement of light shades requires precise definition of optical and physical parameters to ensure compatibility with existing fixtures and desired lighting effects. Based on industry standards for both thermoplastic and glass applications, the following specifications are critical:

• Dimensions & Tolerance:
  • Diameter: Typical range of 50–800 mm.
  • Height: Typical range of 30–600 mm.
  • Fit Tolerance: A strict tolerance of ±0.5–2.0 mm is required to ensure a secure fit on standard fixture interfaces without excessive play or interference.
• Material Thickness:
  • Thermoplastic (Decorative): 1.5–4.0 mm. Thinner gauges offer flexibility and lower weight, while thicker gauges provide structural rigidity for larger diameters.
  • Glass (Industrial/High Heat): 2.0–6.0 mm. Thicker glass is necessary for thermal shock resistance and safety in high-temperature environments.
• Optical Performance:
  • Light Transmittance: Target a range of 30–70% for frosted or diffused effects. Lower transmittance (<30%) is suitable for glare reduction in high-bay industrial settings, while higher transmittance (>70%) is preferred for ambient residential lighting.
  • Diffusion Target: Uniform light distribution is the primary metric; procurement should specify the desired "frost" level to match the 30–70% transmittance window.

Actionable Recommendation: When issuing RFQs, explicitly state the required interface type (e.g., E26, M12, or custom clip) and the specific diameter/height tolerance band. Do not rely on "standard" sizing without verifying the ±0.5–2.0 mm fit tolerance, as this is the most common cause of assembly failure in automated lighting production.

2. Industry Compliance and Quality Assurance

Quality assurance for light shades hinges on material stability, safety certifications, and environmental resistance.

• Material Standards:
  • Glass: For industrial applications involving thermal cycling or chemical exposure, Borosilicate is the required standard. For general high-heat environments, Heat-Tempered Soda-Lime is acceptable. Quartz is recommended for extreme UV or high-temperature laboratory settings.
  • Thermoplastics: Must meet UL 94 flammability ratings (typically V-0 or V-2) and demonstrate resistance to yellowing under UV exposure.
• Safety & Durability:
  • Thermal Cycling: Glass shades must withstand repeated heating and cooling cycles without cracking.
  • Impact Resistance: Tempered glass must pass standard impact tests (e.g., dropping a steel ball from a specified height).
  • Chemical Resistance: In industrial settings, shades must resist degradation from cleaning agents or airborne chemicals.
• Certifications: While specific named certifications were not provided in the source context, procurement should demand compliance with local electrical safety standards (e.g., CE, UL, RoHS) and specific lab testing reports for thermal and chemical resistance.

Actionable Recommendation: Require suppliers to provide a Material Safety Data Sheet (MSDS) and a Certificate of Analysis (CoA) specifically detailing thermal shock resistance for glass and flammability ratings for plastics. For industrial projects, mandate Borosilicate glass over standard soda-lime to mitigate long-term failure risks.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in light shade procurement is driven by material selection, volume, and integration complexity.

• Cost Drivers:
  • Material: Borosilicate and Quartz glass carry a premium over standard soda-lime or thermoplastics.
  • Thickness: Increasing thickness from 2.0 mm to 6.0 mm in glass significantly increases material and processing costs.
  • Finishing: Frosted effects (30–70% transmittance) require additional acid etching or sandblasting steps, adding to the unit cost compared to clear glass.
• Integration:
  • Standardization: Utilizing standard drum sizes (e.g., 40 × 25 cm equivalents) reduces tooling costs.
  • Modularity: Designs that allow for a 1/3 to 1/2 height ratio relative to the lamp stand simplify inventory management and reduce the need for custom brackets.
• MOQ & Lead Time (Typical B2B Ranges):
  • MOQ: Typically 500–1,000 units for custom glass; 2,000+ units for complex thermoplastic injection molds.
  • Lead Time: 4–8 weeks for glass (due to tempering/curing); 2–4 weeks for thermoplastics.

Actionable Recommendation: To optimize costs, standardize on a limited SKU set (e.g., 3 diameters, 2 heights) across product lines. For high-volume projects, negotiate volume discounts on the 1.5–4.0 mm thermoplastic range where possible, as it offers the best balance of cost and weight. Avoid custom tolerances unless absolutely necessary, as the ±0.5–2.0 mm standard is widely available.

4. Typical Use Cases

Light shades are categorized by their application environment, which dictates material and spec requirements.

• Industrial Lighting:
  • Scenario: High-bay warehouses, chemical plants, manufacturing floors.
  • Requirement: High thermal resistance and chemical stability.
  • Spec: Borosilicate glass, 2.0–6.0 mm thickness, high durability.
• Commercial & Retail:
  • Scenario: Showrooms, hotels, office spaces.
  • Requirement: Aesthetic appeal with controlled glare.
  • Spec: Frosted glass or high-quality thermoplastics, 30–70% transmittance, decorative finishes.
• Residential:
  • Scenario: Living rooms, bedrooms, dining areas.
  • Requirement: Soft diffusion and design harmony.
  • Spec: Thermoplastic or standard tempered glass, 50–800 mm diameter, following the 1/3 rule for height proportion.
• Specialized/Outdoor:
  • Scenario: Street lighting, marine environments.
  • Requirement: Weather resistance and UV stability.
  • Spec: Quartz or high-grade tempered glass with UV-stabilized coatings.

Actionable Recommendation: Match the material strictly to the environment. Do not use standard thermoplastics in industrial zones with high heat or chemical vapors. Conversely, do not overspecify Borosilicate for residential decor where cost is a primary driver, as standard tempered glass or high-grade plastics suffice.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and future-proofing.

• Market Trends:
  • Energy Efficiency: There is a growing demand for shades that maximize lumen output while minimizing heat loss, pushing for higher transmittance efficiency within the 30–70% range.
  • Sustainability: Increased preference for recyclable thermoplastics and glass with lower carbon footprints in manufacturing.
  • Smart Lighting Integration: Shades are increasingly being designed to accommodate smart LED modules, requiring precise internal dimensions to prevent overheating of electronics.
• Demand Signals:
  • Industrial sectors are shifting toward Borosilicate due to stricter safety regulations regarding thermal cycling.
  • Residential markets are seeing a trend toward larger diameter shades (>400 mm) for statement lighting.
• Risk Mitigation:
  • Supply chain volatility for raw glass materials suggests maintaining a buffer stock of ±0.5–2.0 mm tolerance compatible parts.
  • Regulatory changes regarding flammability in public spaces may require upgrading to higher-grade thermoplastics.

Actionable Recommendation: Develop a dual-sourcing strategy for glass materials to mitigate supply chain risks. Plan for a 10–15% increase in inventory for standard sizes (e.g., 40 × 25 cm equivalents) to accommodate the trend toward larger residential fixtures.

6. Special Product Recommendations

The following table compares product types to assist in selecting the optimal shade for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Borosilicate Glass | Industrial/Chemical Plants | 2.0–6.0 mm, High Thermal Shock Resistance | High cost, heavy weight | Mandate for any environment with >100°C fluctuation or chemical exposure. | | Tempered Soda-Lime | Commercial/Residential | 2.0–6.0 mm, Impact Resistant | Moderate cost, standard durability | Ideal for general commercial use; ensure "heat-tempered" certification. | | Thermoplastic (Decorative) | Retail/Residential | 1.5–4.0 mm, 30–70% Transmittance | Lower heat resistance | Best for cost-sensitive projects; verify UV stability for outdoor use. | | Quartz Glass | Specialized/Lab | High UV/Heat Resistance, 2.0–6.0 mm | Very High Cost, Fragile | Reserve for extreme UV or high-temperature laboratory applications only. | | Standard Drum (40x25cm) | General Decor | 1/3 Height Rule, Standard Interface | Limited size flexibility | Use for bulk residential orders to minimize tooling costs. |

Actionable Recommendation: For new product development, prioritize Thermoplastic for rapid prototyping and Tempered Soda-Lime for mass-market commercial products. Reserve Borosilicate strictly for verified industrial use cases to avoid unnecessary cost inflation.

7. Frequently Asked Questions (FAQ)

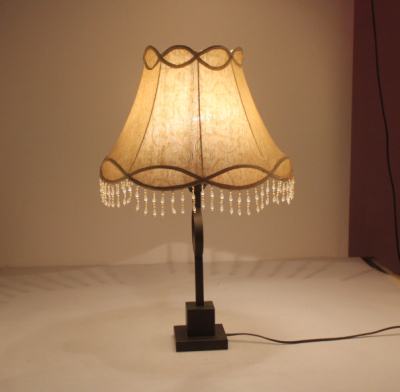

Q1: What is the ideal height-to-diameter ratio for a lampshade? A: Industry guidelines suggest the shade height should be approximately 1/3 of the total stand height or roughly 50% of the lamp's height for balanced aesthetics.

Q2: How do I ensure the light shade fits my existing fixture? A: You must specify the fixture interface and maintain a dimensional tolerance of ±0.5–2.0 mm. Always measure the fixture's socket or mounting ring before ordering.

Q3: Which glass material is best for high-heat industrial environments? A: Borosilicate glass is the superior choice for environments subject to thermal cycling and chemical exposure due to its high resistance to thermal shock.

Q4: What light transmittance should I target for a frosted effect? A: A transmittance range of 30–70% is standard for achieving a soft, diffused frosted effect that reduces glare while maintaining visibility.

Q5: What are the typical thickness requirements for glass vs. plastic shades? A: Glass shades typically require 2.0–6.0 mm thickness for safety and durability, whereas thermoplastic decorative shades generally range from 1.5–4.0 mm.

Q6: Are there standard sizes available for quick procurement? A: Yes, standard drum sizes such as 40 × 25 cm are commonly available, which can significantly reduce lead times and tooling costs.

Q7: How does material thickness affect the cost and durability? A: Thicker materials (e.g., 6.0 mm glass vs. 2.0 mm) increase material costs and weight but offer superior impact resistance and thermal stability.

Q8: What is the typical lead time for custom glass shades? A: Custom glass shades typically require 4–8 weeks for production, primarily due to the tempering and cooling processes required for safety.
