Procurement Report: Magnetic Materials and Components

Product Category Identification: Permanent Magnets (primarily Rare Earth/Neodymium, Ferrite, and Alnico) and Soft Magnetic Materials (Electrical Steel, Amorphous Alloys).

1. Technical Specifications and Performance Metrics

When procuring magnetic materials, the distinction between permanent magnets (for holding force/field generation) and soft magnetic materials (for flux conduction/transformers) is critical. The following metrics define performance boundaries:

• Magnetic Grade & Energy Product (BHmax):
  • Neodymium (NdFeB): Ranges from N35 to N52. Higher grades (N48–N52) offer superior energy density but are more susceptible to demagnetization at high temperatures.

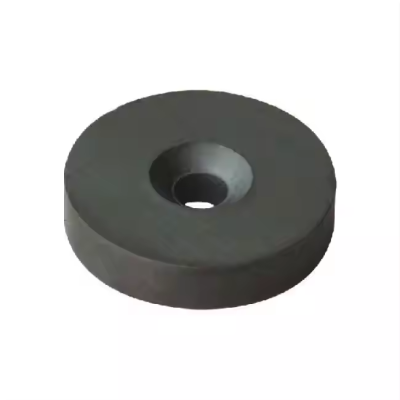

  • Ferrite: Typically ranges from 3.0 to 4.5 MGOe. Lower cost but lower strength.
  • Actionable Recommendation: Select N42 or higher for compact motor designs; select Ferrite for cost-sensitive, high-volume applications where size is not a constraint.
• Coercivity (Hcj) & Operating Temperature:
  • Standard Grades: Operate up to 80°C.
  • High-Temp Grades (e.g., H, SH, AH): Operate up to 150°C–230°C.
  • Actionable Recommendation: Verify the maximum operating temperature of your application. If the environment exceeds 80°C, standard N-series magnets will suffer irreversible loss. Specify "High Coercivity" grades for automotive or high-speed motor applications.
• Electrical Steel Specifications (Soft Magnetics):
  • Thickness Tolerance: Typically 0.10mm to 0.35mm with tolerances of ±0.01mm.
  • Core Loss: Must be specified at 1.5T flux density and 50/60Hz (e.g., < 1.0 W/kg for grain-oriented).
  • Actionable Recommendation: For high-frequency inverters (>10kHz), specify amorphous or nanocrystalline alloys rather than traditional silicon steel to minimize eddy current losses.
• Dimensions & Shape Tolerances:
  • Typical B2B Range: Diameter/Length tolerance ±0.05mm; Flatness ±0.02mm.
  • Actionable Recommendation: Define "Critical Dimensions" on the drawing. For precision assemblies, request a tolerance of ±0.02mm on the air gap face.

2. Industry Compliance and Quality Assurance

Procurement of magnetic materials requires strict adherence to environmental and safety standards, particularly for global supply chains.

• Environmental Certifications:
  • RoHS & REACH: Mandatory for electronics and automotive sectors. Ensures restriction of hazardous substances (lead, cadmium, mercury).
  • CE Marking: Required for products sold in the European Economic Area.
  • Actionable Recommendation: Require a Declaration of Conformity (DoC) for RoHS/REACH with every batch. Do not accept "compliant" claims without third-party test reports.
• Quality Control & Inspection:
  • Inspection Certificates: Magfine and similar suppliers provide control and distribution certificates.
  • Key Metrics: Br (Residual Induction), Hcj (Coercivity), and BHmax (Max Energy Product) must be tested per ASTM or IEC standards.
  • Actionable Recommendation: Implement a "First Article Inspection" (FAI) protocol. For mass production, request a Certificate of Analysis (CoA) for every shipment.
• Coating Integrity:
  • Types: Nickel-Copper-Nickel (Ni-Cu-Ni), Epoxy, Zinc, or Parylene.
  • Salt Spray Test: Standard Ni plating should withstand 48–96 hours; high-performance coatings should exceed 200 hours.
  • Actionable Recommendation: Specify coating thickness (e.g., 8–12 µm for Ni-Cu-Ni) and demand salt spray test results for automotive or marine applications.

3. Cost Efficiency and Integration Capabilities

Balancing performance with Total Cost of Ownership (TCO) is essential.

• Cost Drivers:
  • Raw Materials: Neodymium and Dysprosium prices fluctuate significantly.
  • Typical B2B Range: Neodymium magnets cost $15–$45/kg depending on grade and volume; Ferrite costs $2–$5/kg.
  • Actionable Recommendation: Lock in pricing contracts for 6–12 months if production volumes are stable to hedge against rare earth volatility.
• Minimum Order Quantity (MOQ) & Lead Time:
  • MOQ: Typically 1,000–5,000 units for standard shapes; custom shapes may require 10,000+ units.
  • Lead Time: Standard stock items: 2–4 weeks; Custom sintered magnets: 6–10 weeks.
  • Actionable Recommendation: Maintain a safety stock of 10–15% for standard grades. For custom orders, factor in a 2-week buffer for tooling adjustments.
• Integration Capabilities:
  • Bonding & Machining: Magnets can be bonded with epoxy or machined (diamond grinding) to tight tolerances.
  • Actionable Recommendation: Design for "near-net-shape" manufacturing to reduce machining costs. If complex geometries are needed, specify "bonded magnet" technology rather than sintering.

4. Typical Use Cases

• Automotive & EV: Electric traction motors, sensors, and actuators. Requires high-temperature resistance (150°C+) and vibration durability.
• Consumer Electronics: Hard disk drives, speakers, and haptic feedback motors. Focus on miniaturization and precise magnetic fields.
• Industrial Manufacturing: Magnetic separators, lifting magnets, and conveyor systems. Focus on high pull force and durability.
• Renewable Energy: Wind turbine generators (direct drive) and solar tracking systems. Requires corrosion resistance and high energy density.
• Medical Devices: MRI components and surgical tools. Requires biocompatible coatings and non-magnetic interference.

5. Long-Term Planning Considerations

• Market Trends & Demand Signals:
  • EV Growth: The shift to electric vehicles is driving a 15–20% annual increase in demand for high-grade NdFeB magnets.
  • Supply Chain Diversification: Geopolitical tensions are prompting buyers to diversify suppliers beyond single-source regions.
  • Recycling: Increased focus on recycling rare earth magnets from e-waste is becoming a viable secondary supply source.
• Sustainability & Regulatory Shifts:
  • Expect stricter regulations on rare earth extraction and processing.
  • Actionable Recommendation: Develop a "Dual-Source" strategy for critical magnet grades. Evaluate the feasibility of using high-performance ferrite or alternative magnet materials (e.g., Mn-Al) for non-critical applications to reduce rare earth dependency.
• Technology Evolution:
  • Shift towards higher frequency operation in power electronics requires amorphous/nanocrystalline soft magnets over traditional silicon steel.

6. Special Product Recommendations

The following table compares common magnetic product types to assist in selection based on specific buyer needs.

7. Frequently Asked Questions (FAQ)

Q1: How do I determine the correct grade of Neodymium magnet for my application? A: Calculate the required magnetic field strength and the maximum operating temperature. If the temperature exceeds 80°C, select a grade with "H" (High), "SH" (Super High), or "AH" (Above High) in the designation to prevent irreversible demagnetization.

Q2: What is the difference between grain-oriented and non-oriented electrical steel? A: Grain-oriented steel has magnetic properties optimized in one direction (rolling direction), making it ideal for transformers. Non-oriented steel has uniform properties in all directions, making it better for rotating machines like motors and generators.

Q3: Are magnetic materials RoHS compliant? A: Most modern sintered magnets and electrical steels are RoHS compliant. However, you must verify the coating materials (e.g., lead-based solders or plating) and request a specific RoHS test report from the supplier.

Q4: What is the typical lead time for custom-shaped magnets? A: For custom sintered magnets, expect 6 to 10 weeks, which includes tooling fabrication, sintering, and coating. For standard shapes, lead time is typically 2 to 4 weeks.

Q5: How do I prevent corrosion on Neodymium magnets? A: Neodymium is prone to oxidation. Always specify a protective coating such as Nickel-Copper-Nickel (Ni-Cu-Ni), Epoxy, or Zinc. For harsh environments, consider Parylene coating or stainless steel encapsulation.

Q6: Can I use amorphous alloy instead of silicon steel for a 50Hz transformer? A: While possible, amorphous alloys are significantly more expensive and are primarily optimized for high-frequency applications (>1kHz). For standard 50/60Hz transformers, grain-oriented silicon steel is generally more cost-effective unless extreme efficiency is required.

Q7: What is the Minimum Order Quantity (MOQ) for custom magnets? A: Typical B2B MOQs range from 1,000 to 5,000 units for standard custom shapes. For highly complex or low-volume prototypes, some suppliers may accept orders as low as 100 units at a premium price.

Q8: How is magnetic strength measured and verified? A: Strength is measured using a Gaussmeter or Hall Effect probe to determine Flux Density (B) and Coercivity (H). For bulk properties, a B-H loop tracer is used to determine BHmax. Always request a Certificate of Analysis (CoA) with your shipment.
