Procurement Report: Magnetic Drill Systems

Product Category: Industrial Power Tools / Metal Fabrication Equipment

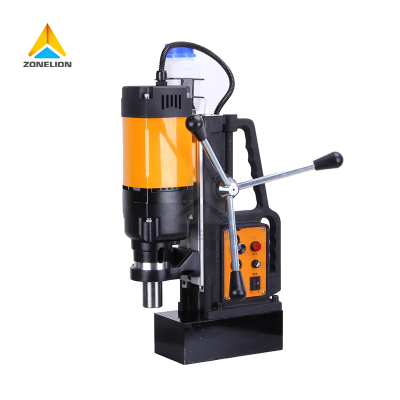

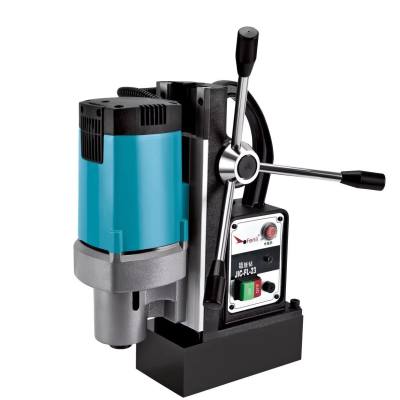

1. Technical Specifications and Performance Metrics

When procuring magnetic drills, the primary focus must be on the alignment between motor power, magnetic holding force, and spindle capabilities to ensure efficiency across varying plate thicknesses.

• Spindle Speed and Power:
  • Portable/General Fabrication: Motor power typically ranges from 0.75 kW to 2.2 kW. Spindle speeds should be variable, covering 50–6,000 rpm to accommodate different materials (e.g., steel vs. aluminum) and drill bit types.
  • Heavy-Duty Applications: For thick plate fabrication, motors should exceed 7.5 kW. These units often feature higher torque outputs (e.g., 90 Nm) to prevent stalling during deep drilling.
• Chuck Capacity and Hole Diameter:
  • Core Drilling: Standard capacity ranges from 20 mm to 50 mm, with high-end models supporting up to 100 mm.
  • Spiral Drilling: Typically limited to 20 mm maximum diameter.
  • Thread Cutting: Capable of threading up to M16 depending on the specific chuck adapter.
• Magnetic Strength and Quill Travel:
  • Holding Force: Critical for safety; units should provide sufficient magnetic flux to secure the drill on vertical or overhead surfaces.
  • Quill Travel: Must match the required hole depth. Typical travel ranges from 60 mm to 120 mm.
  • Repeatability: High-precision models offer repeatability within ±0.05 mm, essential for batch production.
• Actionable Recommendation: Procurement teams should select a motor power rating that exceeds the maximum anticipated load by at least 20% to ensure longevity. Verify that the chuck capacity matches the largest hole diameter required in the immediate project scope, as larger capacities often necessitate a larger footprint and higher power draw.

2. Industry Compliance and Quality Assurance

Ensuring that magnetic drills meet international safety and quality standards is non-negotiable for industrial deployment.

• Safety Standards: Equipment must comply with relevant electrical safety directives (e.g., CE marking in Europe, UL/ETL in North America) and machinery safety standards regarding electromagnetic shielding and emergency stop functions.
• Durability Metrics:
  • Mean Time Between Failures (MTBF): Industrial-grade units should demonstrate an MTBF of 1,000+ hours under continuous operation.
  • IP Rating: For environments with coolant or metal shavings, an IP54 or higher rating is recommended to protect internal electronics and the motor.
• Quality Assurance Protocols:
  • Vendors should provide certification of magnetic field strength testing and spindle runout verification (typically < 0.02 mm).
  • Look for ISO 9001 certified manufacturing processes for the base unit and accessories.
• Actionable Recommendation: Require a Certificate of Conformity (CoC) and a detailed test report for magnetic pull force and spindle concentricity before finalizing the purchase. Avoid units lacking clear safety certification markings, as these pose significant liability risks in industrial settings.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) involves not just the unit price but also energy consumption, accessory compatibility, and maintenance costs.

• Cost Structure:
  • Unit Price: Typical B2B ranges for portable units (0.75–2.2 kW) are $1,500 – $4,500. Heavy-duty units (7.5 kW+) typically range from $8,000 – $15,000.
  • Accessory Costs: Core drill bits and annular cutters represent a recurring cost, often $50 – $200 per unit depending on diameter and material.
• Integration:
  • Coolant Systems: Compatibility with external coolant pumps is essential for high-volume drilling to extend bit life.
  • Automation: Modern units should support integration with CNC controllers or robotic arms for automated hole patterns.
  • Power Supply: Ensure compatibility with site power (e.g., 230V single-phase vs. 400V three-phase).
• Actionable Recommendation: Calculate the cost per hole, factoring in bit life and power consumption. Prioritize models with modular designs that allow for easy swapping of chucks and adapters, reducing the need for multiple specialized machines.

4. Typical Use Cases

Magnetic drills are specialized for applications where portability and precision on fixed steel structures are required.

• Steel Construction & Erection: Drilling holes for bolting steel beams, columns, and trusses on-site. Ideal for plate thicknesses of 10 mm to 50 mm.
• Shipbuilding & Offshore: Used for hull plating and structural components where overhead drilling is necessary.
• Heavy Machinery Repair: Maintenance of large equipment frames and bases without disassembly.
• Metal Fabrication Shops: High-volume production of steel components requiring precise hole patterns.
• Actionable Recommendation: For field work, prioritize low-profile models with high magnetic strength to ensure stability on vertical surfaces. For shop floor use, prioritize high-speed spindles and larger quill travel to maximize throughput.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends, technological evolution, and supply chain resilience.

• Market Trends:
  • Shift to Cordless: There is a growing demand for high-voltage (e.g., 36V/48V) cordless magnetic drills to eliminate cable hazards on construction sites.
  • Smart Monitoring: Integration of IoT sensors for real-time monitoring of motor temperature, torque load, and bit wear is becoming a standard differentiator.
  • Energy Efficiency: Increased focus on brushless DC (BLDC) motors for reduced energy consumption and longer motor life.
• Demand Signals:
  • Rising infrastructure projects globally are driving demand for portable, high-capacity drilling solutions.
  • Labor shortages in skilled trades are pushing for tools that reduce operator fatigue and increase drilling speed.
• Supply Chain:
  • Lead Time: Typical B2B lead times range from 4 to 12 weeks for custom configurations or heavy-duty models.
  • MOQ: Minimum Order Quantities are typically 1 unit for standard models, but bulk discounts often apply for orders of 5+ units.
• Actionable Recommendation: Plan for a 20% budget buffer for future accessory upgrades (e.g., larger diameter bits). Consider purchasing from suppliers with a robust spare parts inventory to minimize downtime.

6. Special Product Recommendations

The following table compares product types to assist in selecting the right equipment based on specific buyer profiles and risk factors.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Portable Low-Profile | Field Construction Teams | 0.75–2.2 kW, 50–6,000 rpm, 20–50mm capacity | Check magnetic pull force on vertical surfaces | Verify battery compatibility if cordless; prioritize weight under 25kg. | | Heavy-Duty Floor Stand | Metal Fabrication Shops | 7.5 kW+, 100mm capacity, 90 Nm torque | Ensure floor stability and power supply (3-phase) | Confirm quill travel >100mm for deep holes; check for coolant integration. | | High-Speed Core Drill | High-Volume Production | 2.2–5.5 kW, 6,000+ rpm, <0.02mm repeatability | Monitor spindle bearing wear rates | Buy in bulk for core bits to reduce per-unit cost; check warranty on spindle. | | Thread Cutting Unit | Maintenance & Repair | M16 thread capacity, variable torque control | Verify thread accuracy on soft metals | Ensure adapter compatibility with existing tap sets; check for reverse function. |

7. Frequently Asked Questions (FAQ)

Q1: What is the maximum plate thickness a standard magnetic drill can handle? A: While capabilities vary by model, standard portable units typically handle up to 50 mm of steel. Heavy-duty industrial models can drill through plates exceeding 100 mm, provided the correct core drill bits and sufficient motor torque are used.

Q2: How do I determine the correct magnetic strength for my application? A: Magnetic strength must be calculated based on the weight of the drill and the drilling force required. A general rule of thumb is to ensure the magnetic holding force is at least 3 to 5 times the weight of the machine to prevent slipping, especially on vertical or overhead surfaces.

Q3: What is the difference between core drilling and spiral drilling on a magnetic drill? A: Core drilling uses annular cutters to remove a solid slug of metal, allowing for larger diameters (up to 100mm) and faster drilling in thick plates. Spiral drilling uses standard twist bits, suitable for smaller diameters (typically up to 20mm) and is often used for lighter gauge materials.

Q4: Can magnetic drills be used on stainless steel? A: Yes, but it requires specific drill bits (typically carbide-tipped or HSS with specific coatings) and lower spindle speeds to prevent work hardening of the material. Ensure the motor has sufficient torque to handle the increased resistance of stainless steel.

Q5: What is the typical lead time for ordering a heavy-duty magnetic drill? A: For standard portable models, lead times are often 2–4 weeks. For heavy-duty, custom-configured units (7.5 kW+), expect a lead time of 8–12 weeks depending on the manufacturer's current production schedule.

Q6: Are there specific safety certifications I should look for? A: Yes. Ensure the unit carries CE (Europe), UL/ETL (North America), or CSA (Canada) certifications. Additionally, look for specific machinery safety compliance regarding electromagnetic shielding and emergency stop mechanisms.

Q7: How often should the magnetic base be inspected? A: The magnetic base should be inspected before every use for surface contamination (metal shavings, dirt) which can reduce holding force. A full mechanical inspection of the magnetic circuit and sealing should be performed annually or after every 1,000 operating hours.

Q8: What is the typical cost range for a professional-grade magnetic drill? A: Professional-grade portable units generally range from $1,500 to $4,500. Heavy-duty industrial units capable of 100mm drilling typically range from $8,000 to $15,000, excluding accessories.
