Procurement Report: Magnetic Materials

1. Technical Specifications and Performance Metrics

Procurement of magnetic materials requires a precise alignment between the material's intrinsic properties and the operational demands of the end application. The selection is primarily dictated by the frequency of operation, required flux density, and thermal constraints.

• Material Families & Composition:
  • Electrical Steel: Target an iron basis with low impurity levels (>95%) and silicon content typically ranging from 1.0% to 3.5%. This composition is critical for minimizing eddy current losses in motors and transformers.

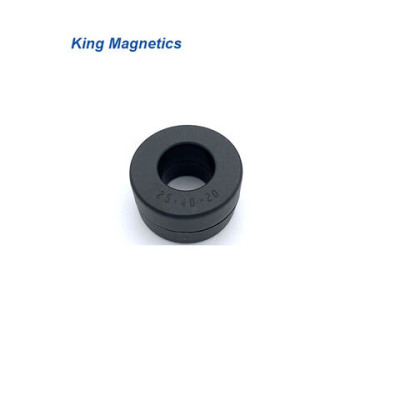

  • Amorphous/Nanocrystalline: Best suited for ultra-low-loss high-frequency cores. These materials exhibit high permeability and low coercivity, essential for efficiency in switching power supplies.
  • Soft Magnetic Composites (SMC): Utilize magnetic powder insulation to allow for 3D flux paths, ideal for complex geometries.
• Performance Parameters:
  • Frequency Range: Electrical steel is typically optimized for 50–400 Hz, while amorphous/nanocrystalline materials excel in the 10 kHz to 100 kHz+ range.
  • Flux Density ($B$): Standard electrical steel operates effectively up to 1.5–2.0 Tesla, whereas specialized amorphous alloys may saturate at slightly lower levels (1.2–1.5 Tesla) but offer superior loss characteristics.
  • Operating Temperature: Standard grades function up to 150°C, while high-temperature variants (e.g., certain nanocrystalline grades) can sustain 200°C–300°C.
  • Core Losses: For high-frequency applications, core losses should be measured in W/kg at specific flux densities (e.g., <0.5 W/kg at 100 kHz for amorphous).

Actionable Recommendation: Before sourcing raw stock, explicitly define your operating frequency, target flux density, and maximum ambient temperature. Request a material data sheet (MDS) that validates the silicon content and core loss curves at your specific operating points.

2. Industry Compliance and Quality Assurance

Ensuring regulatory compliance and consistent quality is paramount for global supply chain integration. Procurement strategies must prioritize vendors who can demonstrate adherence to international standards.

• Certification Landscape:
  • Environmental & Safety: Materials must comply with CE, RoHS, and REACH directives to ensure they are free from restricted hazardous substances (e.g., lead, cadmium) and safe for the European market.
  • Quality Management: Look for ISO 9001 (NEN-EN-ISO 9001) certification, which guarantees a robust quality control system and continuous process improvement.
  • Regional Specifics: In specific markets, such as India, BIS (Bureau of Indian Standards) certification may be required to confirm that amorphous strips meet essential magnetic property benchmarks.
• Material Traceability:
  • Vendors should provide batch-specific traceability for raw material purity (e.g., confirming the >95% iron basis).
  • Stainless steel grades used in magnetic assemblies must have documented CE certification alignment to prevent compliance gaps in the final product.

Actionable Recommendation: Mandate that all suppliers provide a Certificate of Compliance (CoC) covering RoHS/REACH and a valid ISO 9001 certificate. For high-volume contracts, request third-party audit reports or sample testing results from an accredited lab to verify magnetic properties against the agreed specifications.

3. Cost Efficiency and Integration Capabilities

Cost optimization in magnetic materials involves balancing unit price with total cost of ownership (TCO), including energy losses and assembly complexity.

• Cost Drivers:
  • Raw Material Purity: Higher purity iron and specialized alloying elements (e.g., Cobalt in nanocrystalline) increase raw material costs but reduce long-term energy losses.
  • Processing: Amorphous and nanocrystalline materials often command a premium over standard electrical steel due to complex manufacturing processes (rapid solidification).
  • Typical B2B Ranges: Unit costs for electrical steel typically range from $2.00 to $5.00/kg, while amorphous/nanocrystalline cores can range from $15.00 to $40.00/kg depending on volume and geometry.
• Integration Factors:
  • Machinability: Electrical steel is relatively easy to stamp; SMCs allow for complex 3D shapes without lamination, reducing assembly steps.
  • Lead Time & MOQ: Standard electrical steel often has lower Minimum Order Quantities (MOQ) (e.g., 50–100 kg) and shorter lead times (2–4 weeks). Custom amorphous cores may require MOQs of 500+ units and lead times of 6–10 weeks.

Actionable Recommendation: Conduct a TCO analysis rather than focusing solely on material cost. Calculate the energy savings over the product's lifecycle (e.g., 10–15 years) to justify the higher upfront cost of ultra-low-loss amorphous materials. Negotiate volume-based pricing tiers and request flexible MOQs for prototype phases.

4. Typical Use Cases

The application of magnetic materials is highly specialized based on the device's function and frequency requirements.

• Motors and Generators: Primarily utilize Electrical Steel (Si-steel) due to its balance of high saturation flux density and cost-effectiveness at low-to-medium frequencies.
• Transformers and Inductors:
  • Power Distribution: Standard electrical steel is used for 50/60 Hz transformers.
  • High-Frequency Switching: Amorphous and nanocrystalline cores are preferred for high-efficiency transformers and inductors in EV chargers and renewable energy inverters.
• Sensors and Actuators: Soft Magnetic Composites (SMC) are ideal for complex 3D flux paths required in automotive sensors and compact actuators.
• Consumer Electronics: Small ferrite or amorphous components are used in power adapters and wireless charging coils.

Actionable Recommendation: Map your product's frequency spectrum to the correct material family. Do not substitute electrical steel for high-frequency applications without verifying core loss data, as this will lead to overheating and efficiency failures.

5. Long-Term Planning Considerations

Strategic procurement must account for evolving market trends, regulatory shifts, and supply chain resilience.

• Market Trends & Demand Signals:
  • Electrification: The surge in Electric Vehicles (EVs) and renewable energy infrastructure is driving demand for high-efficiency magnetic cores (amorphous/nanocrystalline) to meet stricter energy efficiency standards.
  • Miniaturization: There is a growing demand for SMCs and high-permeability nanocrystalline materials to support the miniaturization of power electronics.
  • Sustainability: Increasing pressure for "green" manufacturing and recyclable magnetic materials is influencing certification requirements (e.g., stricter REACH updates).
• Supply Chain Resilience:
  • Diversify suppliers across different geographic regions to mitigate raw material (iron, silicon, rare earths) volatility.
  • Monitor geopolitical factors affecting the supply of critical alloying elements.

Actionable Recommendation: Develop a 3–5 year sourcing roadmap that aligns with the projected growth of EV and renewable energy sectors. Prioritize suppliers with demonstrated R&D capabilities in next-generation low-loss materials to future-proof your product lines against tightening efficiency regulations.

6. Special Product Recommendations

The following table compares key magnetic material categories to assist in selecting the right product for specific procurement scenarios.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Electrical Steel | Motor/Transformer OEMs | Si: 1.0–3.5%; $B_{sat}$: 1.5–2.0 T; Freq: 50–400 Hz | Verify lamination insulation quality | Request samples for stamping trials; check for surface coating adhesion. | | Amorphous/Nanocrystalline | High-Freq Power Supply Mfrs | Core Loss: <0.5 W/kg @ 100kHz; High Permeability | Check for brittleness and handling fragility | Confirm BIS/ISO certification; order small batches first for thermal testing. | | Soft Magnetic Composites (SMC) | Automotive Sensor Mfrs | 3D Flux Capability; Insulated Powder; Temp: up to 200°C | Ensure consistent insulation coating uniformity | Validate 3D printing/molding compatibility; check for particle size distribution. | | Stainless Steel (Magnetic) | Medical/Corrosive Env. | CE Certified; Grade 400 Series; Corrosion Resistant | Verify magnetic permeability vs. corrosion trade-off | Ensure CE alignment with final product; test for magnetic saturation in saline environments. |

Actionable Recommendation: Use the comparison table to filter suppliers. For high-volume, low-frequency applications, prioritize Electrical Steel with established supply chains. For high-value, high-efficiency applications, invest in Amorphous/Nanocrystalline materials despite higher initial costs.

7. Frequently Asked Questions (FAQ)

Q1: How do I determine the correct silicon content for electrical steel? A: Target a silicon content between 1.0% and 3.5%. Higher silicon reduces core loss but increases brittleness. Select the grade based on your specific balance of efficiency requirements and mechanical forming capabilities.

Q2: Are amorphous magnetic materials suitable for high-temperature environments? A: Standard amorphous materials may lose properties above 150°C. However, specific nanocrystalline grades are engineered to operate reliably up to 200°C–300°C. Always verify the Curie temperature and thermal stability data sheet.

Q3: What certifications are mandatory for exporting magnetic materials to the EU? A: Materials must generally comply with CE, RoHS, and REACH regulations. Additionally, a supplier's ISO 9001 certification is a strong indicator of consistent quality control.

Q4: What is the typical lead time for custom amorphous cores? A: While standard electrical steel may be available in 2–4 weeks, custom amorphous or nanocrystalline cores often require 6–10 weeks due to specialized manufacturing processes and potential batch sizing.

Q5: Can I use standard steel for high-frequency inductors? A: No. Standard electrical steel suffers from high eddy current losses above 1 kHz. For high-frequency applications (10 kHz+), you must use amorphous, nanocrystalline, or ferrite materials to maintain efficiency.

Q6: How does BIS certification impact procurement in India? A: BIS certification confirms that amorphous strips meet essential magnetic properties like high permeability and low coercivity. It is often a mandatory requirement for government tenders and specific domestic market access.

Q7: What is the typical Minimum Order Quantity (MOQ) for magnetic powder? A: While exact figures vary by supplier, typical B2B MOQs for magnetic powder (for SMCs) range from 50 kg to 500 kg, depending on the specific alloy and particle size requirements.

Q8: How do I verify the purity of raw magnetic stock? A: Request a Mill Test Certificate (MTC) that explicitly states the iron basis purity (target >95%) and the specific alloying element percentages. Third-party lab testing is recommended for critical applications.
