Procurement Report: Mailbox Systems

1. Technical Specifications and Performance Metrics

Procurement of mailbox systems requires strict adherence to material thickness and coating standards to ensure longevity, particularly for outdoor installations. The selection of steel gauge and powder coating thickness directly correlates with the operational environment and expected load.

• Material Thickness:
  • Residential Standard: Steel thickness should range between 0.8 mm and 1.5 mm. This provides sufficient rigidity for standard curbside or wall-mounted units without excessive weight.
  • Heavy-Duty/Commercial: For high-traffic areas or cluster box units (CBU), steel thickness must be between 1.5 mm and 3.0 mm to prevent deformation and vandalism.
• Surface Protection:
  • Powder Coating: A minimum thickness of 40–80 μm is required to ensure a uniform finish and resistance to chipping.
  • Corrosion Resistance: Outdoor units must demonstrate a salt-spray resistance of 500–1000 hours to withstand harsh weather conditions, including coastal environments.
• Installation Dimensions:
  • Height: Curbside units typically require a height range of 41–45 inches from the road surface to the bottom of the mailbox or the top of the flag.
  • Setback: The mailbox must be positioned 6–8 inches back from the curb face to ensure safe access for carriers while remaining visible to traffic.

Actionable Recommendation: When sourcing, request mill test certificates for steel thickness and independent salt-spray test reports. Do not accept units with powder coating below 40 μm for outdoor applications, as this leads to premature rusting and warranty claims.

2. Industry Compliance and Quality Assurance

Compliance with federal standards is non-negotiable for units intended for United States Postal Service (USPS) delivery. Non-compliant installations can lead to suspended delivery services and costly retrofits.

• Regulatory Standards:
  • USPS STD-7C: Applies to residential curbside and locking mailboxes. Units must bear the PMG (Postal Mail Group) approval seal to be eligible for delivery.
  • USPS STD-4C: Mandatory for Cluster Box Units (CBU) and 4C horizontal installations. These units require specific internal compartmentalization and locking mechanisms.
  • Wall-Mounted Units: While they do not strictly require the PMG seal, they must meet USPS capacity and placement standards to ensure carrier accessibility.
• Quality Assurance Protocols:
  • Approval Verification: Procurement teams must verify the presence of the PMG seal on all curbside and locking units prior to purchase.
  • Pre-Installation Approval: For wall-mounted and cluster installations, the specific location must receive approval from the local Postmaster before installation begins.
  • Structural Integrity: Units must be tested for wind load resistance and impact durability, particularly in regions prone to severe weather.

Actionable Recommendation: Implement a "Compliance First" procurement policy. Require suppliers to provide documentation proving adherence to STD-7C or STD-4C. Avoid generic "mailbox" listings that do not explicitly state USPS compliance, as these are often intended for private use only and will not be serviced by the USPS.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in mailbox procurement is driven by volume, material selection, and the complexity of the locking mechanism. Integration capabilities refer to the ability of the unit to fit existing infrastructure or integrate with smart access systems.

• Cost Parameters:
  • Typical B2B Unit Cost: Residential steel mailboxes typically range from $45 to $120 per unit depending on finish and lock type.
  • Heavy-Duty/CBU Cost: Cluster Box Units and heavy-duty steel units range from $350 to $1,200+ per unit, depending on the number of compartments and locking hardware.
  • Post/Bracket Costs: Additional $20–$60 per post/curb assembly is typical for heavy-duty galvanized steel posts.
• Integration:
  • Modular Design: Modern procurement favors modular systems that allow for easy addition of compartments or replacement of lock cores.
  • Smart Integration: Emerging trends include integration with electronic access control systems for CBU units, allowing for keyless entry or digital logging.

Actionable Recommendation: For large-scale developments, negotiate tiered pricing based on volume (MOQs of 50+ units). Prioritize suppliers offering modular designs to reduce long-term maintenance costs. When budgeting, include a 10–15% contingency for specialized posts or custom finishes required to match property aesthetics.

4. Typical Use Cases

Mailbox systems are categorized by their installation method and the specific needs of the property class.

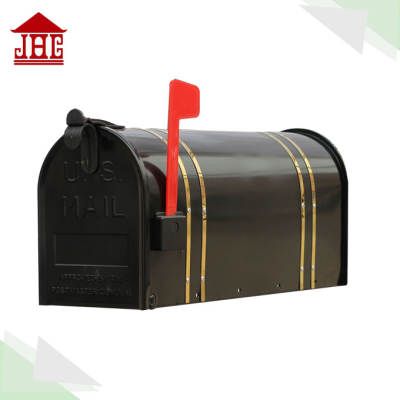

• Residential Curbside: Standard single-unit boxes installed on posts near the street. Used for single-family homes requiring direct carrier delivery.

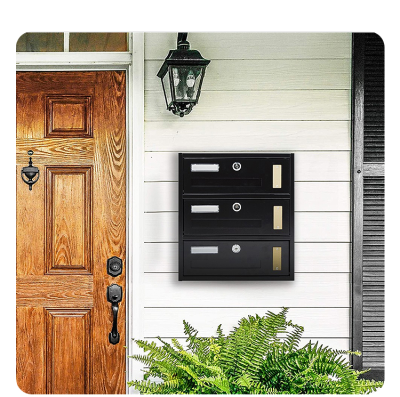

• Wall-Mounted: Attached directly to the building facade. Ideal for multi-unit residential buildings (apartments) or commercial properties where curbside space is limited.
• Cluster Box Units (CBU): Large, centralized locking units serving multiple residences (typically 4–16+). Used in subdivisions, apartment complexes, and commercial parks to streamline carrier routes.
• 4C Horizontal: Specialized horizontal units often used in specific municipal or high-density commercial settings.
• Parcel Lockers: While distinct from traditional mailboxes, these are increasingly procured alongside mailbox systems to handle high volumes of package deliveries.

Actionable Recommendation: Conduct a site survey to determine the delivery mode. If the property has a high density of units (>4), a CBU is the most cost-effective and compliant solution. For single-family homes, ensure the selected unit meets the specific height and setback requirements of the local postmaster.

5. Long-Term Planning Considerations

Procurement strategies must account for future maintenance, regulatory changes, and market demand signals.

• Market Trends:
  • Security Focus: There is a rising demand for high-security locking mechanisms and anti-theft designs due to increasing package theft.
  • Sustainability: Buyers are increasingly requesting recycled steel content and eco-friendly powder coatings.
  • Smart Logistics: Integration with smart city infrastructure and digital notification systems is becoming a standard expectation for new developments.
• Durability Planning:
  • Lifecycle: High-quality steel units with proper powder coating have a lifespan of 15–20 years.
  • Maintenance: Regular inspection of hinges and locks is required to prevent rust and mechanical failure.
• Regulatory Evolution: USPS standards are subject to updates. Procurement contracts should include clauses for future compliance upgrades.

Actionable Recommendation: Plan for a 20-year lifecycle in capital expenditure budgets. Select suppliers who offer long-term warranties (minimum 5 years) and have a track record of adapting to USPS regulation changes. Consider "future-proofing" by selecting CBU models that can be easily expanded with additional compartments.

6. Special Product Recommendations

The following table compares the primary mailbox categories to assist in selecting the right product for specific procurement needs.

Actionable Recommendation: For new developments, prioritize CBU procurement to reduce long-term carrier delivery time and improve security. For retrofits, ensure the selected unit matches the existing post infrastructure or budget for new post installation.

7. Frequently Asked Questions (FAQ)

1. Do all mailboxes require USPS approval? No. Only curbside and locking mailboxes require the PMG approval seal. Wall-mounted mailboxes do not require the seal but must still meet USPS capacity and placement standards. Cluster Box Units (CBU) must strictly comply with USPS STD-4C.

2. Can I install a mailbox anywhere on my property? No. USPS specifies strict requirements for height (typically 41–45 inches), setback (6–8 inches from curb), and road-side placement. Wall mount and cluster installations require specific postmaster approval for the location before work begins.

3. What steel thickness should I choose for a coastal area? For coastal areas with high salt exposure, choose steel with a thickness of 1.5–3.0 mm and a powder coating that has passed 1000 hours of salt-spray testing to prevent rapid corrosion.

4. What is the difference between STD-7C and STD-4C? STD-7C applies to residential curbside and locking mailboxes, focusing on individual unit dimensions and flag mechanisms. STD-4C applies to Cluster Box Units (CBU) and 4C horizontal units, focusing on multi-unit security, compartmentalization, and carrier access.

5. How long do high-quality mailboxes last? With proper powder coating (40–80 μm) and steel thickness (0.8–3.0 mm), high-quality mailboxes typically last 15–20 years in standard environments. Coastal or high-traffic areas may require more frequent replacement or higher-grade materials.

6. Do I need to hire a professional for installation? While DIY is possible for residential curbside units, professional installation is highly recommended for CBU and wall-mounted units to ensure compliance with USPS standards and structural safety.

7. What happens if my mailbox is non-compliant? Non-compliant installations can result in suspended USPS delivery, requiring the property owner to rework the installation at their own expense to meet federal standards.

8. Are there smart mailbox options available? Yes, while traditional steel mailboxes remain the standard, there is a growing market for CBU units with electronic access control and smart notification systems, though these must still meet the physical dimensions and security standards of STD-4C.
