Procurement Report: Industrial Flow Meters (Meter Instruments)

1. Technical Specifications and Performance Metrics

When procuring flow meters, the selection hinges on matching the instrument's physical capabilities to the process fluid dynamics. The "meter instrument" category primarily encompasses flow meters designed for liquid, gas, and steam measurement.

• Measurement Accuracy: Typical industrial flow meters offer accuracy ranges between ±0.5% to ±2.0% of reading. High-precision applications (e.g., custody transfer) may require ±0.1% to ±0.2%.
• Flow Range (Turndown Ratio): A critical metric for operational flexibility. Standard meters typically provide a turndown ratio of 10:1 to 20:1, while advanced technologies (e.g., Coriolis or Ultrasonic) can achieve ratios up to 100:1.
• Pressure and Temperature Ratings:
  • Pressure: Standard ratings range from 0 to 100 bar (1500 psi), with high-pressure variants reaching 400+ bar.
  • Temperature: Operating ranges typically span -40°C to +200°C for general industrial use, with specialized materials (e.g., Hastelloy, Inconel) extending limits to +450°C.
• Response Time: Critical for control loops. Electromagnetic and Coriolis meters typically offer response times of <100ms, whereas thermal mass meters may range from 100ms to 1s.
• Output Signals: Standard B2B interfaces include 4-20 mA HART, Modbus RTU, Profibus, and Ethernet/IP. Digital communication protocols are increasingly standard for predictive maintenance integration.

Procurement Recommendation: Define the minimum and maximum flow rates of your process first. Select a meter with a turndown ratio that covers at least 3x the expected maximum flow to ensure accuracy during low-flow operations. Verify that the pressure and temperature ratings exceed your process maximums by at least 20% to account for pressure surges and thermal cycling.

2. Industry Compliance and Quality Assurance

Compliance is non-negotiable for safety, legal liability, and operational continuity. Certifications vary strictly by application sector.

• Hazardous Locations: Mandatory for installations in explosive atmospheres. Required certifications include ATEX (Europe), IECEx (International), and FM Approval (North America).
• Sanitary Standards: For food and beverage, pharmaceutical, and biotech, 3-A Sanitary Standards are the industry benchmark for cleanability and material safety.
• Potable Water: Systems handling drinking water must possess WRAS (Water Regulations Advisory Scheme) approval or equivalent local potable water certifications.
• Petroleum and Gas: API standards (e.g., API 2510, API 2520) are often required for custody transfer and pipeline applications.
• Quality Management: Manufacturers should hold ISO 9001 certification to ensure consistent product quality, traceability, and robust quality control processes.
• Calibration: Most industrial flow meters require annual calibration to maintain accuracy specifications. Critical applications may demand semi-annual verification.

Procurement Recommendation: Do not purchase a "universal" meter without verifying specific industry certifications. If your facility has explosive gas zones, explicitly require ATEX/IECEx rated units. For food processing, insist on 3-A certification to avoid regulatory rejection. Always request a Certificate of Calibration (CoC) with every unit, traceable to national standards.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) extends beyond the initial purchase price to include installation, maintenance, and calibration.

• Initial Cost Ranges:
  • Economic Tier (e.g., Vortex, Thermal): $500 – $2,500 per unit.
  • Mid-Tier (e.g., Electromagnetic, Ultrasonic): $2,500 – $8,000 per unit.
  • High-Tier (e.g., Coriolis, High-Precision Ultrasonic): $8,000 – $25,000+ per unit.
• Installation Costs: Typically 15% – 30% of the unit cost, heavily dependent on piping modifications and wiring requirements.
• Maintenance & Calibration: Annual calibration costs range from $300 – $800 per unit. Replacement intervals typically range from 10 to 20 years, though abrasive fluids or extreme temperature cycling can reduce this lifespan significantly.
• Integration: Modern meters support Industry 4.0 via digital protocols (HART, Modbus, Foundation Fieldbus), allowing direct integration into DCS/SCADA systems without additional converters.

Procurement Recommendation: Prioritize Total Cost of Ownership over unit price. A cheaper meter with poor turndown ratio may require multiple units or frequent recalibration, increasing TCO. For high-volume procurement, negotiate bulk calibration contracts with the manufacturer to reduce annual verification costs. Ensure the selected meter has open communication protocols to avoid vendor lock-in during system integration.

4. Typical Use Cases

Flow meters are application-specific. The wrong technology can lead to measurement drift or equipment failure.

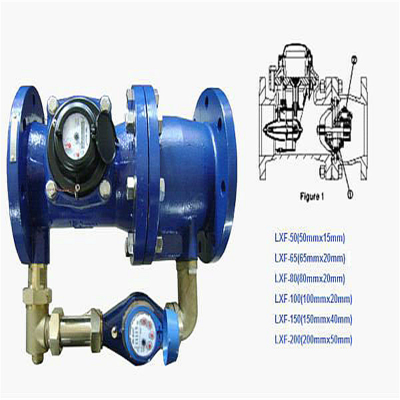

• Potable Water Distribution: Requires non-intrusive or sanitary meters with WRAS approval. Best Tech: Ultrasonic or Electromagnetic.
• Food & Beverage Processing: Demands hygienic design with no dead legs. Best Tech: Electromagnetic (Sanitary) or Coriolis.
• Petroleum & Chemical: Requires high-pressure, temperature-resistant meters with API or FM approval. Best Tech: Coriolis (for custody transfer) or Magnetic.
• Hazardous Environments (Oil & Gas, Mining): Must handle explosive atmospheres. Best Tech: Intrinsically Safe Ultrasonic or Magnetic with ATEX/IECEx.
• Steam Measurement: High temperature and density changes. Best Tech: Vortex or Coriolis.
• HVAC and Cooling Water: Low flow, large pipe diameters. Best Tech: Clamp-on Ultrasonic.

Procurement Recommendation: Map your fluid properties (conductivity, viscosity, abrasiveness) to the meter technology. For conductive liquids (water, acids), Electromagnetic is often the most cost-effective. For non-conductive liquids (hydrocarbons, oils), Coriolis or Ultrasonic are preferred. For steam, avoid thermal mass meters unless specifically rated for high temperatures.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends, lifecycle management, and supply chain resilience.

• Market Trends: There is a strong shift toward digitalization and IIoT (Industrial Internet of Things). Buyers should prioritize meters with built-in digital diagnostics and predictive maintenance capabilities to reduce downtime.
• Lifecycle Management: With replacement intervals of 10–20 years, procurement should align with capital expenditure (CapEx) cycles.
• Supply Chain Resilience: Lead times for specialized hazardous location or sanitary meters can extend to 12–16 weeks. Standard units typically have lead times of 4–8 weeks.
• Sustainability: Energy-efficient meters (e.g., battery-powered wireless ultrasonic) are gaining demand for remote monitoring and reducing carbon footprints.
• Obsolescence: Avoid proprietary communication protocols that may become unsupported. Stick to open standards (Modbus, HART, OPC UA).

Procurement Recommendation: Adopt a 5-year lifecycle plan for your flow meter inventory. Stock critical spare parts (transmitters, seals) for meters with a 10+ year expected life. When bidding for new projects, prioritize vendors who offer software updates and long-term support for their digital protocols. Factor in a 20% buffer for lead times when ordering for hazardous or sanitary applications.

6. Special Product Recommendations

The following table compares top-tier flow meter technologies based on common buyer profiles and risk factors.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Coriolis | Custody Transfer, High-Purity Pharma | Accuracy: ±0.1%; Density/Viscosity measurement; Pressure: Up to 400 bar | High initial cost; Pressure drop; Susceptible to vibration | Verify vibration isolation requirements; Ensure calibration traceability for custody transfer. | | Electromagnetic | Water, Wastewater, Acids | Conductivity > 5 µS/cm; Turndown: 100:1; No moving parts | Requires conductive fluid; Liner wear in abrasive slurries | Check liner material compatibility (PTFE vs. Rubber) for chemical resistance. | | Ultrasonic (Clamp-on) | HVAC, Large Pipes, Non-Invasive | No pipe modification; Range: DN50 to DN3000+ | Accuracy drops with poor pipe condition; Requires straight pipe runs | Inspect pipe condition before installation; Ensure access to pipe surface for transducers. | | Vortex | Steam, Gases, High Temp | Temp: Up to 450°C; Wide rangeability; Robust | Accuracy loss at very low flows; Noise in high-velocity gas | Use for steam applications only if flow is stable; Avoid for low-flow liquid applications. | | Thermal Mass | Gas Flow, Low Flow | High sensitivity; No pressure drop | Sensitive to fluid composition changes; Limited to gases | Verify gas composition stability; Ideal for leak detection and ventilation monitoring. |

7. Frequently Asked Questions (FAQ)

Q1: How often do industrial flow meters need calibration? A: Most industrial flow meters require annual calibration to maintain accuracy specifications. However, critical applications (e.g., custody transfer) or harsh environments may demand semi-annual verification.

Q2: What certifications are mandatory for hazardous locations? A: For installations in explosive atmospheres, mandatory certifications include ATEX (Europe), IECEx (International), or FM Approval (North America).

Q3: What is the typical lifespan of a flow meter? A: Replacement intervals typically range from 10 to 20 years, depending on the technology, process conditions, and maintenance practices. Abrasive fluids or extreme temperature cycling can significantly reduce this lifespan.

Q4: Do I need a specific certification for drinking water systems? A: Yes, systems handling potable water must possess WRAS (Water Regulations Advisory Scheme) approval or equivalent local potable water certifications to ensure safety.

Q5: Can a single flow meter measure both flow rate and density? A: Yes, Coriolis flow meters are unique in their ability to measure mass flow, volume flow, and fluid density simultaneously with high accuracy.

Q6: What is the difference between 4-20 mA and digital protocols? A: 4-20 mA is an analog signal standard, while digital protocols (like HART, Modbus, Profibus) allow for two-way communication, enabling remote diagnostics, configuration, and predictive maintenance.

Q7: How do I select a flow meter for steam? A: Steam applications typically require Vortex or Coriolis meters due to their ability to handle high temperatures (up to 450°C) and the need for mass flow measurement to account for density changes.

Q8: What factors impact the accuracy of a flow meter? A: Accuracy is impacted by fluid abrasiveness, temperature cycling, installation environment (vibration, pipe straightness), and the quality of the initial calibration.
