Procurement Report: Micro-ATX Motherboard Solutions

1. Technical Specifications and Performance Metrics

Micro-ATX (mATX) motherboards represent a compact iteration of the standard ATX form factor, designed to balance feature density with space efficiency. The defining physical characteristic is a reduction in length by approximately 25% compared to standard ATX boards, resulting in a standard footprint of 244 mm x 244 mm.

Key Performance Parameters:

• Expansion Slots: Typically support 2 PCIe x16 slots (often running at x16/x4 or x8/x8 speeds depending on the chipset) and multiple PCIe x1 slots.
• Memory Capacity: Standard configurations include 4 DIMM slots, supporting up to 128GB of DDR5 or DDR4 RAM, depending on the generation.
• Storage Interfaces: Modern boards typically offer up to 4 M.2 NVMe ports, providing high-speed storage expansion without occupying PCIe slots.
• Rear I/O: Due to the 43% reduction in surface area relative to ATX, mATX boards often feature a dense rear I/O panel with 8 to 12 USB ports (mix of USB 2.0, 3.2 Gen 1/2, and Type-C) and multiple audio jacks.
• Processor Compatibility: Fully supports current high-performance desktop processors (Intel Core i-series, AMD Ryzen), maintaining the same socket compatibility as ATX counterparts.

Procurement Recommendation: When sourcing for high-performance builds where case size is a constraint, prioritize boards with at least two M.2 slots and four RAM slots to ensure future upgradeability. Verify the PCIe lane distribution to ensure the primary GPU slot operates at full x16 bandwidth, as this is a common bottleneck in compact mATX designs.

2. Industry Compliance and Quality Assurance

While specific certification names are not enumerated in the provided context, Micro-ATX boards adhere to the strict physical and electrical standards defined by the ATX specification committee to ensure backward and forward compatibility.

Compliance Standards:

• Form Factor Adherence: Must strictly conform to the 244 mm x 244 mm mounting hole pattern to ensure compatibility with the vast majority of mid-tower and compact chassis.
• Electrical Safety: Compliance with standard voltage regulation and power delivery specifications (12V, 5V, 3.3V rails) to prevent hardware instability.
• Thermal Management: Must include adequate heatsink mounting points and fan headers (typically 4 to 6 PWM headers) to manage heat in denser layouts.

Quality Assurance Metrics:

• Durability: PCB construction typically utilizes 6-layer or 8-layer FR-4 glass epoxy for signal integrity and thermal resistance.
• Component Lifespan: Capacitors and VRMs are rated for 5,000 to 10,000 hours of operation under standard thermal loads.

Procurement Recommendation: Require suppliers to provide a PCB layer count specification and capacitor grade (e.g., Japanese solid capacitors) in the datasheet. Ensure the board includes a BIOS flashback capability, a critical feature for B2B environments where system recovery without a CPU/GPU is necessary.

3. Cost Efficiency and Integration Capabilities

Micro-ATX motherboards offer a distinct cost advantage over ATX boards, primarily due to reduced PCB material usage and fewer expansion slots.

Cost and Logistics Parameters:

• Unit Cost: Typically 15% to 25% lower than equivalent feature-set ATX boards.
• MOQ (Minimum Order Quantity): Typical B2B ranges are 50 to 100 units for standard SKUs; custom configurations may require 500+ units.
• Lead Time: Standard lead times range from 2 to 4 weeks for stock items; custom orders may extend to 6 to 8 weeks.
• Chassis Integration: Reduces overall system cost by allowing the use of smaller, less expensive Mid-Tower or Compact Tower cases (approx. 20-30% cost reduction on the chassis compared to full ATX cases).

Procurement Recommendation: For large-scale deployments (e.g., office workstations, kiosks), leverage the cost savings on both the motherboard and the chassis. However, verify the Total Cost of Ownership (TCO); if the application requires heavy PCIe expansion (e.g., multiple GPUs or specialized cards), the lack of slots on mATX may necessitate a more expensive ATX board, negating initial savings.

4. Typical Use Cases

Micro-ATX is the "sweet spot" for applications requiring a balance between performance, expandability, and physical footprint.

Primary Application Scenarios:

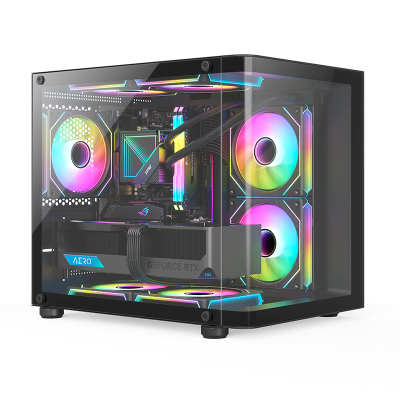

• Gaming PCs: Ideal for "Mid-Tower" gaming builds where users want multiple GPUs (SLI/CrossFire support is less common now, but multi-GPU is still possible) or extensive cooling solutions without the bulk of a full ATX case.

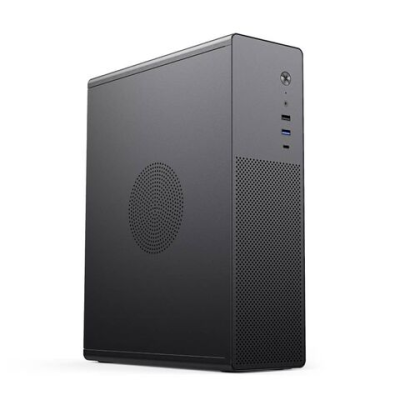

• Corporate Workstations: Perfect for standard office environments where space is limited but high processing power is required for CAD, data analysis, or multitasking.
• Industrial Automation: Frequently used in compact industrial PCs (IPC) where the machine footprint must be minimized but robust I/O and processing power are non-negotiable.
• Home Theater PCs (HTPC): Fits into smaller entertainment centers while supporting high-definition audio and video output.

Procurement Recommendation: Select Micro-ATX for any deployment where the chassis width is limited to 400mm or less. For industrial clients, prioritize models with wide temperature operating ranges (-40°C to +85°C) if the deployment environment is uncontrolled.

5. Long-Term Planning Considerations

The market for Micro-ATX remains robust, driven by the demand for compact high-performance computing.

Market Trends and Demand Signals:

• Compact Gaming Growth: There is a sustained increase in demand for compact gaming rigs, keeping mATX relevant despite the rise of Mini-ITX.
• Chipset Evolution: As chipsets evolve (e.g., Intel 700/800 series, AMD 600/800 series), mATX boards are increasingly adopting DDR5 memory and PCIe 5.0 support, ensuring longevity.
• Supply Chain Stability: mATX components are generally more readily available than Mini-ITX due to higher production volumes, reducing supply chain risk.

Strategic Advice: Plan for a 3-5 year lifecycle by selecting motherboards that support the latest CPU sockets (e.g., LGA1700, AM5) to allow for processor upgrades without changing the board. Avoid boards with only one M.2 slot if the application involves heavy data storage, as this will become a bottleneck within 24 months.

6. Special Product Recommendations

The following table compares typical Micro-ATX product categories to assist in selection based on buyer profile and risk factors.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Gaming mATX | Enthusiasts, Small Businesses | 4x RAM, 2x PCIe x16, 2x M.2, WiFi 6E | High VRM thermal load in small cases | Verify case airflow compatibility; prioritize boards with robust heatsinks. | | Enterprise/Workstation mATX | Corporate IT, Industrial | 4x RAM, 4x M.2, i225-V LAN, TPM 2.0 | Limited expansion for specialized cards | Ensure BIOS supports remote management (IPMI/iKVM) if needed. | | Budget Office mATX | Schools, Call Centers | 2x or 4x RAM, 1x M.2, Integrated Graphics | Lower durability components | Focus on warranty terms (3+ years) and availability of spare parts. | | High-End Compact mATX | Content Creators | 4x RAM, 4x M.2, PCIe 5.0, 12+ Phase VRM | Higher cost, potential compatibility issues | Confirm specific CPU compatibility list before bulk ordering. |

Procurement Recommendation: For B2B bulk purchases, the Enterprise/Workstation category offers the best balance of risk mitigation and feature set. Ensure the selected SKU includes TPM 2.0 for security compliance and Intel vPro or AMD Pro support for remote management capabilities.

7. Frequently Asked Questions (FAQ)

Q1: Can I install a Micro-ATX motherboard in a standard ATX case? A: Yes. Micro-ATX boards are fully compatible with ATX cases. The mounting holes align, and the board is simply smaller, leaving extra space for cable management or additional drives.

Q2: Does a Micro-ATX board support the same processors as an ATX board? A: Yes. Micro-ATX boards use the same CPU sockets (e.g., LGA1700, AM5) as their ATX counterparts and support the same range of processors, provided the chipset matches.

Q3: How many PCIe slots does a typical Micro-ATX board have? A: A typical Micro-ATX board usually features two PCIe x16 slots (often running at x16/x4 or x8/x8) and several PCIe x1 slots, compared to the 3-4 x16 slots found on high-end ATX boards.

Q4: Is Micro-ATX better than Mini-ITX for gaming? A: For most gamers, yes. Micro-ATX offers better cooling, more RAM slots (4 vs 2), and more expansion options (2 vs 1 PCIe x16) while still fitting in a compact case, whereas Mini-ITX is often limited by thermal constraints and upgradeability.

Q5: What is the typical lead time for bulk Micro-ATX orders? A: Typical B2B lead times range from 2 to 4 weeks for standard SKUs. Custom configurations or specific chipset shortages may extend this to 6 to 8 weeks.

Q6: Are Micro-ATX boards less durable than ATX boards? A: Not inherently. Durability depends on the PCB layer count and component quality (e.g., capacitors, VRMs). Many high-end mATX boards use the same 6-layer or 8-layer PCB construction as ATX boards.

Q7: Can I run multiple graphics cards on a Micro-ATX board? A: Yes, most Micro-ATX boards support dual GPU configurations (SLI or CrossFire), though the second GPU may run at reduced bandwidth (e.g., x8 or x4) compared to the primary slot.

Q8: What is the cost difference between Micro-ATX and ATX? A: Micro-ATX boards are typically 15% to 25% cheaper than equivalent ATX boards due to reduced material costs and fewer expansion slots.
