Procurement Report: Mini Cooling Tower Solutions

1. Technical Specifications and Performance Metrics

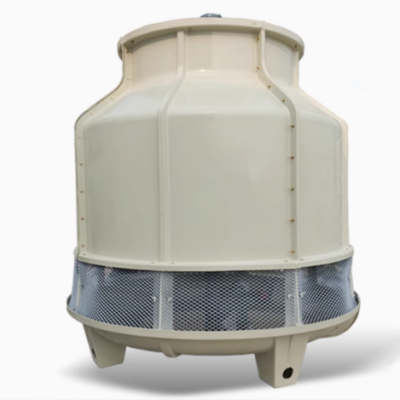

For mini-scale applications, the procurement focus should center on compact mechanical-draft induced counterflow cooling towers. These units are engineered to maximize heat rejection efficiency within a minimal footprint.

• Construction Material: Fiber Reinforced Plastic (FRP) casing is the industry standard for corrosion resistance and structural integrity in humid environments.
• Fan Control: Variable Frequency Drive (VFD) integration is critical for modulating fan speed based on load, ensuring optimal energy efficiency and noise reduction.
• Modularity: Single-cell modularity allows for scalable capacity. Systems can be expanded by adding discrete cells without replacing the entire unit.
• Performance Range:
  • Cooling Capacity: Typically ranges from 10 to 100 tons of refrigeration (TR) for mini-scale units.
  • Approach Temperature: High-efficiency models achieve an approach of 3°C to 5°C (difference between cold water temperature and wet-bulb temperature).
  • Range: Standard thermal range is 5°C to 10°C.
  • Water Flow: Typically 5 to 50 m³/h depending on the specific cell configuration.
  • Airflow: Fan diameters usually range from 600mm to 1200mm with air velocities between 2.5 to 4.5 m/s.
• Durability: FRP components generally offer a service life of 15 to 20 years with proper maintenance, significantly outperforming galvanized steel in corrosive environments.

Actionable Recommendation: Prioritize specifications that explicitly state VFD compatibility and FRP construction. Verify the "approach temperature" rating against your specific site wet-bulb conditions to ensure the unit can meet the required load without oversizing.

2. Industry Compliance and Quality Assurance

Procurement of cooling towers requires rigorous verification of third-party certifications to ensure performance claims are not marketing exaggerations.

• FM Approvals: Look for the "FM Approved" mark. This indicates the product has undergone scientific testing for quality, technical integrity, and loss prevention, providing confidence in global markets.
• Eurovent Certification: This is the global leader for HVAC-R performance certification. Eurovent certification verifies that published performance data (capacity, power, noise) is accurate and independently tested.
• Acoustic Standards: Independent sound testing (e.g., SSA Acoustic) is essential. Published noise data can be misleading; third-party verification ensures the unit meets local noise ordinances, typically measured in dBA at 1 meter.
• Regional Compliance: Ensure the unit meets specific regional electrical and safety standards (e.g., CE marking for Europe, UL for North America).

Actionable Recommendation: Do not rely solely on manufacturer datasheets. Request the specific Eurovent certificate number and FM approval documentation for the exact model being quoted. Verify that the noise rating provided matches the independent SSA test report, not just the theoretical calculation.

3. Cost Efficiency and Integration Capabilities

Mini cooling towers offer significant operational savings through modularity and advanced control systems, though initial capital expenditure (CAPEX) varies by configuration.

• Capital Cost: Typical B2B pricing for a single-cell mini tower ranges from $8,000 to $25,000 USD, depending on capacity, material grade, and included accessories (e.g., fill media, drift eliminators).
• Operating Cost (OPEX): VFD integration can reduce fan energy consumption by 30% to 50% compared to fixed-speed units, particularly in partial load scenarios.
• Water Consumption: Modern drift eliminators reduce water loss to <0.005% of circulation rate, minimizing makeup water costs.
• Integration: These units are designed for plug-and-play integration with existing HVAC chiller plants or process loops. They typically require 1.5 to 2.5 meters of clearance on all sides for maintenance access.
• Lead Time: Standard lead times for FRP mini-towers are typically 4 to 8 weeks post-order, depending on customization.

Actionable Recommendation: Calculate the Total Cost of Ownership (TCO) over a 10-year period. A unit with a higher upfront cost but VFD control and Eurovent-certified efficiency often yields a lower TCO than a cheaper, fixed-speed alternative. Ensure the procurement contract includes a 5-year warranty on the FRP casing and motor.

4. Typical Use Cases

The compact nature of mini cooling towers makes them ideal for applications where space is at a premium or where process cooling requirements are variable.

• Small-Scale HVAC: Perfect for boutique hotels, small office buildings, or medical clinics requiring 10–50 TR of cooling capacity.
• Process Cooling: Ideal for laser cutting machines, small-scale chemical reactors, or food processing lines where precise temperature control is needed.
• Rooftop Installations: The lightweight FRP construction and compact footprint allow for installation on reinforced rooftops where structural load is a constraint.
• Retrofit Projects: Single-cell modularity allows for the replacement of aging steel towers in existing plants without major structural modifications.

Actionable Recommendation: Match the unit's turndown ratio to the facility's load profile. If the facility operates at 40% load for 60% of the time, a VFD-controlled mini tower is superior to a large, fixed-speed unit that would cycle frequently.

5. Long-Term Planning Considerations

Strategic procurement must account for future scalability and evolving market demands.

• Scalability: The single-cell modular design allows for capacity expansion. If demand increases by 20–30%, an additional cell can be added rather than replacing the entire system.
• Market Trends: There is a growing demand for "green" cooling solutions with lower Global Warming Potential (GWP) refrigerant compatibility and reduced water usage.
• Regulatory Shifts: Noise regulations in urban areas are tightening. Procuring units with verified low-dBA ratings now prevents costly retrofits later.
• Supply Chain Resilience: FRP components are generally sourced from stable supply chains, but lead times for specialized VFDs can fluctuate.
• Lifecycle Management: Plan for a 15-year lifecycle. Ensure spare parts (fill media, nozzles, motors) are available from the manufacturer for at least 10 years.

Actionable Recommendation: Design the procurement strategy to allow for "phased expansion." Order the base unit with预留 (reserved) connections for future cells. Monitor local noise ordinance trends to ensure the selected unit remains compliant for the next decade.

6. Special Product Recommendations

The following table compares the recommended compact mechanical-draft induced counterflow tower against alternative configurations to guide the final selection.

Actionable Recommendation: Select the Compact FRP Induced Counterflow option for almost all mini-scale scenarios. The risk of corrosion and noise in alternative steel or crossflow units outweighs the initial cost savings. Ensure the VFD is sized correctly for the motor to prevent harmonic issues.

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum footprint required for a 20-ton mini cooling tower? A: A typical single-cell 20-ton unit requires a footprint of approximately 1.5m x 1.5m (2.25 m²), with a height of roughly 2.0m to 2.5m. Ensure at least 1 meter of clearance on all sides for maintenance access.

Q2: How does VFD control impact energy savings? A: VFDs allow the fan to slow down during low-load conditions. This can reduce fan power consumption by 30% to 50% compared to fixed-speed operation, significantly lowering electricity costs in facilities with variable loads.

Q3: Are these towers suitable for coastal environments? A: Yes, provided they feature FRP (Fiber Reinforced Plastic) casings and stainless steel hardware. FRP offers superior corrosion resistance compared to galvanized steel in salt-air environments.

Q4: What is the typical lead time for a custom FRP unit? A: Standard lead times are typically 4 to 8 weeks from order confirmation. Custom colors or specialized VFD integrations may extend this to 10–12 weeks.

Q5: How do I verify the noise rating of a cooling tower? A: Do not rely on manufacturer estimates. Request the SSA Acoustic Independent Sound Testing report or Eurovent certification data, which provides verified dBA levels measured at specific distances.

Q6: Can I expand the capacity of a mini tower later? A: Yes. The single-cell modularity allows you to add additional cells to the system as cooling demands increase, without replacing the existing infrastructure.

Q7: What is the expected service life of the FRP casing? A: With proper maintenance, FRP casings typically last 15 to 20 years. The fill media may require replacement every 5 to 10 years depending on water quality and fouling.

Q8: Is FM Approval mandatory for these units? A: It is not legally mandatory in all jurisdictions, but it is highly recommended for insurance purposes and to ensure the highest standards of quality and safety, especially in commercial and industrial applications.
