Procurement Report: Carbon Monoxide (CO) Alarms

1. Technical Specifications and Performance Metrics

Carbon monoxide (CO) alarms are critical life-safety devices designed to detect the odorless, colorless gas produced by incomplete combustion. For B2B procurement, specifications must go beyond basic functionality to include sensor longevity, response times, and environmental robustness.

• Sensor Technology: The industry standard for residential and commercial applications is the Electrochemical Sensor. These offer high sensitivity and low power consumption.
  • Typical B2B Range: Sensor lifespan of 5 to 10 years (often matching the unit's total life).
  • Response Time: Must trigger an alarm within 60 to 180 minutes at 50 ppm CO concentration, and 15 to 30 minutes at 200 ppm, adhering to UL 2034 standards.
• Power Supply:
  • Hardwired Units: Require 120V AC with a battery backup. Typical standby current is < 50 µA.
  • Battery-Only Units: Typically use AA or 9V alkaline batteries or sealed lithium batteries.

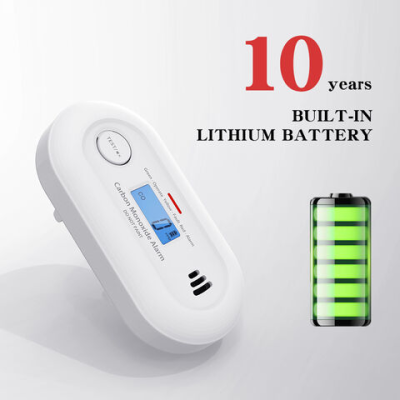

  • Lithium-Ion Options: Offer a lifespan of 10+ years without battery replacement.
• Alarm Thresholds & Output:
  • Audible Alarm: Minimum 85 dB at 10 feet (typical B2B range: 85–95 dB).

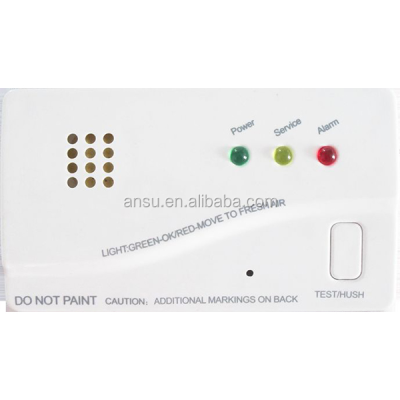

  • Visual Indicators: LED status lights (Green for power, Red for alarm, Yellow for fault).
• Environmental Durability:
  • Operating Temperature: -10°C to 50°C (14°F to 122°F).
  • Humidity: 10% to 95% RH (non-condensing).

Procurement Recommendation: Prioritize units with electrochemical sensors rated for a minimum 7-year lifespan to reduce maintenance frequency. Verify that the response time specifications explicitly meet or exceed the 50 ppm/60-minute threshold required by most international safety codes.

2. Industry Compliance and Quality Assurance

Procuring CO alarms without verified certifications poses significant liability risks. Compliance is not optional; it is the primary filter for vendor selection.

• Primary Certifications:
  • UL 2034 (USA): The gold standard for residential and commercial CO alarms. Procurement must verify the "UL Listed" mark on the product and packaging.
  • EN 50291 (Europe): Essential for European markets, covering both single-station and multi-station alarms.
  • CSA (Canada): Required for Canadian distribution.
• Quality Assurance Protocols:
  • Factory Audits: Evaluate the manufacturer's ISO 9001 certification status to ensure consistent quality control in sensor calibration and assembly.
  • Traceability: Ensure the supplier provides batch traceability for sensor components to manage recalls effectively.
  • Third-Party Testing: Request recent test reports from accredited laboratories (e.g., Intertek, SGS) verifying the alarm's performance under high humidity and temperature stress.

Procurement Recommendation: Do not accept "CE Marked" or "FCC Compliant" as standalone proof of safety. Demand specific evidence of UL 2034 or EN 50291 certification. Verify the certification number on the official UL or notified body database before finalizing the order.

3. Cost Efficiency and Integration Capabilities

While unit cost is a factor, the Total Cost of Ownership (TCO) for CO alarms is driven by maintenance, replacement cycles, and integration with broader building management systems.

• Cost Structure:
  • Unit Cost (B2B): $15 – $45 per unit for standard battery models; $40 – $80 for hardwired or smart-enabled models.
  • MOQ (Minimum Order Quantity): Typical B2B ranges are 50 to 100 units for standard SKUs; custom branding may require 500+ units.
  • Lead Time: 4 to 8 weeks for standard stock; 12+ weeks for custom OEM orders.
• Integration Capabilities:
  • Smart Home Protocols: Look for units supporting Zigbee, Z-Wave, or Wi-Fi for integration with Building Management Systems (BMS) or IoT platforms.
  • Interconnectivity: Hardwired units should support 3-wire interconnect (allowing one alarm to trigger all others in the building).
  • Remote Monitoring: Smart units should offer API access for real-time status reporting (battery low, alarm triggered, sensor end-of-life).

Procurement Recommendation: For large facilities, opt for hardwired, interconnectable units to ensure synchronized evacuation warnings. For remote monitoring needs, select Wi-Fi/Zigbee-enabled models despite the higher upfront cost, as they reduce the labor cost of manual inspections and provide data logs for safety audits.

4. Typical Use Cases

CO alarms are deployed in environments where combustion appliances are present or where ventilation is poor.

• Residential Multi-Family Housing: Apartments and condos with gas stoves, furnaces, or attached garages.
  • Requirement: Battery-operated or hardwired with battery backup; must be easily replaceable by tenants or property managers.
• Commercial & Industrial Facilities: Hotels, restaurants, warehouses with boiler rooms, and parking garages.
  • Requirement: Industrial-grade durability, high sensitivity, and integration with fire alarm panels.
• Hospitality & Healthcare: Hotels and hospitals where guest/patient safety is paramount.
  • Requirement: Low-noise alarm modes (where appropriate) and long-life sealed batteries to minimize maintenance disruptions.
• Transportation: RVs, boats, and buses.
  • Requirement: Vibration-resistant sensors and compact form factors.

Procurement Recommendation: Segment your procurement strategy by environment. Use sealed lithium battery units for hard-to-reach commercial locations (hotels, high ceilings) to minimize maintenance visits. Use interconnectable hardwired units for large residential complexes to ensure system-wide alerts.

5. Long-Term Planning Considerations

The CO alarm market is shifting towards "smart" safety and regulatory tightening regarding sensor lifespan.

• Market Trends:
  • Mandated Replacement Cycles: Regulations increasingly require the replacement of CO alarms every 5 to 10 years (depending on the sensor type). Procurement must plan for a recurring replacement budget.
  • IoT Convergence: Demand is rising for alarms that feed data into central dashboards for predictive maintenance and compliance reporting.
  • Sensor Technology Evolution: While electrochemical is standard, research into MEMS (Micro-Electro-Mechanical Systems) sensors is ongoing, promising smaller form factors and lower costs in the next 3-5 years.
• Supply Chain Resilience:
  • Sensor shortages can impact lead times. Diversify suppliers across different geographic regions to mitigate supply chain disruptions.
  • Plan for obsolescence management: Ensure the chosen model has a clear end-of-life (EOL) notification period (typically 1-2 years) to allow for phased replacement.

Procurement Recommendation: Develop a 5-year replacement schedule immediately upon installation. Prioritize suppliers who offer volume discounts for bulk replacement orders and guarantee a 10-year supply chain commitment for the specific model line to avoid forced obsolescence.

6. Special Product Recommendations

The following table compares product categories to assist in selecting the right solution for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Battery-Operated | Small landlords, rental properties | 5-year sealed battery, 85dB alarm, UL 2034 | Battery corrosion if installed in damp areas | Ideal for low-budget projects; verify seal integrity. | | Hardwired Interconnectable | Large residential complexes, schools | 120V AC, 3-wire interconnect, battery backup | Complex wiring requires certified electrician | Best for safety synchronization; higher initial labor cost. | | Smart IoT (Wi-Fi/Zigbee) | Property managers, smart buildings | Remote alerts, app integration, API access | Dependency on Wi-Fi stability; data privacy | High ROI for large portfolios; reduces manual inspection costs. | | Industrial Grade | Warehouses, factories, parking garages | Wide temp range, high sensitivity, NEMA rating | Over-specification for small spaces | Essential for high-risk environments; verify specific ppm thresholds. |

Procurement Recommendation: For new construction, Hardwired Interconnectable units are the safest investment. For retrofitting existing buildings where wiring is difficult, Smart IoT units offer the best balance of modern features and ease of installation.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between a CO detector and a CO alarm? A: In the context of safety procurement, the terms are often used interchangeably. However, strictly speaking, a "detector" may refer to the sensing element, while an "alarm" is the complete device that includes the sensor, power source, and audible/visual warning system. Procurement should always target "CO Alarms" certified to UL 2034 or EN 50291.

Q2: How often must CO alarms be replaced? A: Most manufacturers and safety standards recommend replacing the entire unit every 5 to 10 years. The electrochemical sensor degrades over time and loses sensitivity. Check the specific expiration date printed on the device.

Q3: Can CO alarms be used in outdoor environments? A: Generally, no. Standard CO alarms are designed for indoor use. Outdoor exposure to rain, extreme temperatures, and direct sunlight can damage the sensor and electronics. Outdoor-rated units are rare and specific to industrial applications.

Q4: Do CO alarms detect other gases like smoke or carbon dioxide? A: No. CO alarms are specifically tuned to detect Carbon Monoxide. They do not detect smoke (which requires a smoke detector) or Carbon Dioxide (CO2). A single unit cannot perform both functions effectively; separate devices are required for comprehensive safety.

Q5: What is the typical lead time for custom-branded CO alarms? A: For custom branding (OEM/ODM) with a minimum order quantity (MOQ) of 500+ units, the typical lead time is 12 to 16 weeks. This includes sensor calibration, housing molding, and certification testing.

Q6: Is it necessary to have a backup battery in a hardwired CO alarm? A: Yes, it is a critical safety requirement. If the main power fails, the alarm must continue to function. Most standards (UL 2034) mandate a battery backup that can operate the alarm for a minimum of 4 to 6 hours during a power outage.

Q7: How do I verify a supplier's certification claims? A: Do not rely solely on the supplier's website. Request the Certificate of Conformity and verify the certification number (e.g., UL File Number) directly on the official certification body's online database (e.g., UL Product iQ).

Q8: What is the typical response time for a CO alarm at 50 ppm? A: According to UL 2034 standards, a CO alarm must sound an alarm within 60 to 180 minutes when exposed to 50 ppm of carbon monoxide. Faster response times are possible at higher concentrations (e.g., 200 ppm).
