MOSFET Procurement Report

1. Technical Specifications and Performance Metrics

When procuring Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs), the selection process must prioritize a hierarchy of electrical parameters to ensure circuit reliability and efficiency. The primary decision factors include Drain-Source Voltage ($V_{DS}$), Continuous Drain Current ($I_D$), On-Resistance ($R_{DS(on)}$), and Gate Charge ($Q_g$).

• Voltage Rating ($V_{DS}$): For standard industrial applications, typical B2B ranges for $V_{DS}$ span from 20V to 1000V. Procurement strategy dictates locking in the required voltage and then applying a derating factor of 70% to ensure long-term reliability against voltage spikes. For example, if a circuit operates at 400V, a MOSFET rated for at least 570V should be selected.

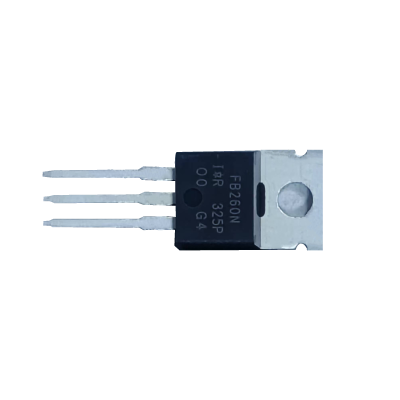

• Current Handling ($I_D$): Continuous drain current ratings typically range from 1A to 500A depending on the package (e.g., TO-220, D2PAK, or PowerPAK). Reliability guidelines suggest derating the continuous current to 60% of the datasheet maximum to manage thermal stress.
• On-Resistance ($R_{DS(on)}$): This is critical for power loss. Modern low-voltage MOSFETs often exhibit $R_{DS(on)}$ values between 0.5mΩ and 10mΩ at drive voltages of 4.5V or 10V. Lower resistance directly correlates to reduced heat generation.
• Switching Charge ($Q_g$): For high-frequency switching applications, $Q_g$ values typically range from 1nC to 100nC. Lower $Q_g$ reduces drive losses and allows for faster switching speeds.
• Thermal Limits: Maximum junction temperature ($T_{j,max}$) is typically 150°C to 175°C. Thermal resistance ($\theta_{JA}$) varies by package, often ranging from 30°C/W to 150°C/W for through-hole packages, while surface-mount options can achieve <10°C/W with proper PCB thermal design.

Actionable Recommendation: Do not select a MOSFET based solely on datasheet maximums. Calculate the operational $V_{DS}$ and $I_D$, then apply the 70% voltage and 60% current derating rules to select the component. Prioritize $R_{DS(on)}$ at the specific gate drive voltage your controller provides (e.g., 4.5V vs. 10V) rather than the generic 10V spec.

2. Industry Compliance and Quality Assurance

MOSFETs are integral to safety-critical systems, necessitating strict adherence to quality standards. While specific named certifications were not provided in the context, the industry standard for reliability involves rigorous testing against environmental and electrical stress.

• Material and Environmental Compliance: Components must comply with global restrictions on hazardous substances (e.g., RoHS, REACH), ensuring lead-free soldering and halogen-free packaging.
• Reliability Standards: Procurement should verify that the manufacturer adheres to AEC-Q101 (for automotive) or similar industrial reliability standards, which mandate testing for:
  • Temperature cycling (-55°C to +150°C).
  • High-temperature operating life (HTOL) testing.
  • Electrostatic Discharge (ESD) susceptibility (typically HBM > 2kV).
• CMOS Logic Integration: In digital logic applications, the use of Complementary Metal-Oxide-Semiconductor (CMOS) technology is standard. This involves pairing P-channel and N-channel MOSFETs to minimize static power consumption and heat generation.

Actionable Recommendation: Require a Certificate of Conformity (CoC) and a Material Declaration (IMDS/ELV) from the supplier. For automotive or medical applications, explicitly demand AEC-Q101 qualification data. Verify that the manufacturer has a documented process for managing ESD sensitivity, as MOSFET gates are highly susceptible to static damage.

3. Cost Efficiency and Integration Capabilities

The cost of MOSFETs is driven by the balance between performance (low $R_{DS(on)}$, high voltage) and volume. Integration capabilities are paramount for reducing system complexity.

• Cost Drivers: Pricing typically correlates with voltage rating and current capacity. Low-voltage, high-current devices often command a premium due to advanced silicon technology (e.g., Superjunction).
• Integration:
  • Low-Side Switching: The most common configuration involves an N-channel MOSFET connected to ground, with the load connected to the rail voltage. This is cost-effective and easy to drive.

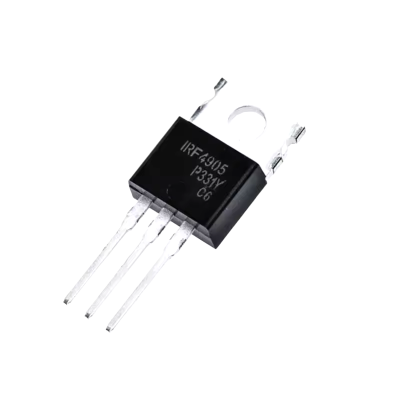

  • High-Side Switching: Requires P-channel MOSFETs or N-channel MOSFETs with a gate driver. P-channel devices are generally more expensive per ampere but simplify drive circuitry.
  • Depletion Mode: Less common and typically used for specific linear applications or fail-safe designs where the channel is "ON" by default.

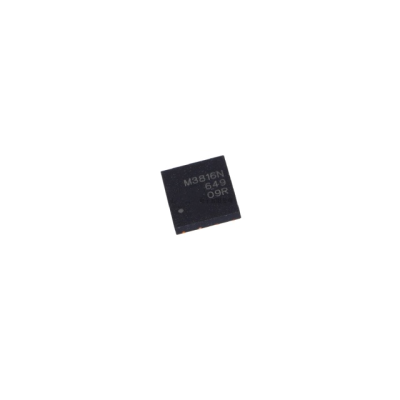

• Packaging Efficiency: Surface-mount devices (SMD) like D2PAK or QFN offer better thermal performance and smaller footprints compared to through-hole TO-220, potentially reducing assembly costs in high-volume production.

Actionable Recommendation: Evaluate the total cost of ownership (TCO), not just the unit price. A slightly more expensive MOSFET with lower $R_{DS(on)}$ may reduce the need for large heatsinks, saving PCB area and cooling system costs. For high-volume consumer electronics, prioritize N-channel low-side switches for their cost-efficiency and ease of integration.

4. Typical Use Cases

MOSFETs serve as the backbone of modern power electronics, functioning primarily as high-speed switches and amplifiers.

• Power Supply Conversion: Used in DC-DC converters and AC-DC adapters to switch current at high frequencies (kHz to MHz), enabling compact transformer designs.
• Motor Control: Essential in brushless DC (BLDC) motors and inverters for electric vehicles and industrial automation, where precise control of current and voltage is required.
• CMOS Logic Circuits: Used in integrated circuits to create logic gates (AND, OR, NOT) where P and N-channel pairs reduce power consumption and heat.
• Load Switching: Acting as electronic fuses or power switches to isolate circuits, protect against overcurrent, and manage power sequencing in battery-operated devices.
• Linear Regulation: Depletion mode MOSFETs are occasionally used in linear applications requiring low channel resistance and low distortion across a signal amplitude range.

Actionable Recommendation: Match the device type to the application topology. Use N-channel MOSFETs for low-side switching in motor drivers and power supplies. Consider P-channel MOSFETs only when high-side switching is required without a dedicated gate driver IC, accepting the higher cost.

5. Long-Term Planning Considerations

Procurement strategies must account for market volatility and technological evolution.

• Market Trends: There is a sustained demand for higher voltage ratings and lower $R_{DS(on)}$ to support the electrification of transportation and renewable energy systems. The shift toward wider bandgap semiconductors (like SiC and GaN) is beginning to impact the high-power MOSFET market, though silicon MOSFETs remain dominant for general-purpose applications.
• Supply Chain Resilience: MOSFETs are critical components; shortages can halt production. Diversifying suppliers and maintaining a safety stock of 3-6 months for high-volume parts is recommended.
• Lifecycle Management: Electronics lifecycles are shortening. Procurement should prioritize components with long-term availability guarantees (10+ years) for industrial and automotive applications to avoid costly redesigns.
• Thermal Management Evolution: As power densities increase, the focus is shifting from component-level thermal resistance ($\theta_{JC}$) to system-level cooling solutions.

Actionable Recommendation: Establish a "design for supply chain" protocol. When selecting a MOSFET, check the manufacturer's product lifecycle status (Active, Not Recommended for New Design, or Obsolete). Plan for a 10-15% buffer in inventory for critical N-channel and P-channel devices to mitigate lead time fluctuations.

6. Special Product Recommendations

The following table compares common MOSFET configurations to assist in selecting the right product for specific buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | N-Channel Low-Side | General Power Supply, Motor Control | $V_{DS}$: 30V-100V, $I_D$: 10A-50A, $R_{DS(on)}$ < 5mΩ | Gate drive voltage must be sufficient (5V-10V) | High Priority: Standard choice for most applications. Derate to 60% current. | | P-Channel High-Side | Battery Management, Simple Switching | $V_{DS}$: 20V-60V, $I_D$: 5A-20A, $R_{DS(on)}$ < 20mΩ | Higher cost per amp; slower switching than N-channel | Medium Priority: Use only if gate driver complexity must be minimized. | | Depletion Mode | Linear Amplifiers, Fail-Safe Circuits | Low Channel Resistance, "ON" at 0V | Rarely stocked; longer lead times | Niche: Verify specific linear application needs before ordering. | | CMOS Logic Pair | Digital ICs, Low Power Logic | Complementary P & N pairs, Low $V_{th}$ | Integration complexity in discrete form | System Level: Usually bought as an IC, not discrete. |

Actionable Recommendation: For new designs, default to N-channel low-side configurations unless the system architecture strictly requires high-side switching. Always verify the $R_{DS(on)}$ at the actual gate drive voltage of your controller, not just the 10V spec.

7. Frequently Asked Questions (FAQ)

Q1: How do I determine the correct voltage rating for a MOSFET? A: Calculate the maximum voltage the MOSFET will see in the circuit, then apply a derating factor of 70%. For example, if the circuit sees 400V, select a MOSFET with a $V_{DS}$ rating of at least 570V to ensure reliability.

Q2: What is the difference between N-channel and P-channel MOSFETs? A: N-channel MOSFETs are typically used for low-side switching (connected to ground) and offer lower $R_{DS(on)}$ and higher current capability. P-channel MOSFETs are used for high-side switching (connected to the voltage rail) but are generally more expensive and have higher resistance.

Q3: Why is derating current to 60% recommended? A: Derating to 60% of the continuous drain current ($I_D$) rating accounts for thermal stress, ambient temperature variations, and transient spikes, significantly extending the component's lifespan and preventing thermal runaway.

Q4: What is a Depletion Mode MOSFET? A: Unlike standard Enhancement Mode MOSFETs which are "OFF" at zero gate voltage, Depletion Mode MOSFETs have a channel that is "ON" by default. They are less common and used in specific linear applications requiring low distortion and linear channel resistance.

Q5: How does $R_{DS(on)}$ affect my design? A: $R_{DS(on)}$ determines the power loss ($P = I^2 \times R$) when the MOSFET is on. A lower $R_{DS(on)}$ reduces heat generation, allowing for smaller heatsinks and higher efficiency. Always check this value at your specific gate drive voltage.

Q6: Are MOSFETs compatible with CMOS logic? A: Yes. CMOS technology utilizes both P-channel and N-channel MOSFETs in complementary pairs to create logic gates. This configuration minimizes static power consumption and heat generation in integrated circuits.

Q7: What should I look for in a supplier for long-term projects? A: Look for suppliers who provide AEC-Q101 qualification data (for automotive), clear lifecycle status updates, and a commitment to long-term availability (10+ years). Ensure they can support your required volume without excessive lead times.

Q8: How do I handle ESD sensitivity during procurement? A: MOSFET gates are highly sensitive to Electrostatic Discharge. Ensure your procurement includes packaging that protects against ESD (e.g., anti-static tubes or trays) and that your assembly line follows strict ESD handling protocols.
