Motherboard Procurement Report

1. Technical Specifications and Performance Metrics

When procuring motherboards, the primary technical decision matrix involves the CPU socket compatibility, chipset architecture, and physical form factor. The motherboard acts as the central nervous system, dictating the maximum performance ceiling of the entire system.

• CPU Socket & Chipset Matching: The first step is verifying the exact CPU socket (e.g., LGA1700, AM5) to ensure compatibility with the intended processor generation. Mismatched sockets render the board unusable regardless of other specs.
• Form Factor Dimensions:
  • ATX: Standard full-size at 305 × 244 mm (12" × 9.6"). Typically features 7 expansion slots spaced 0.7" apart and 4 DIMM slots.

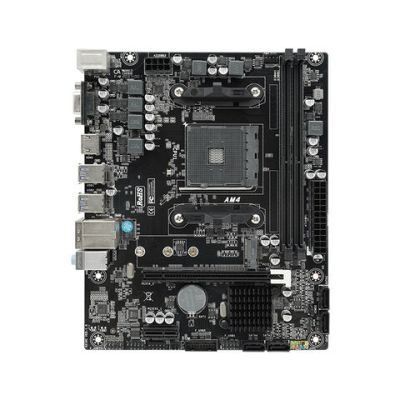

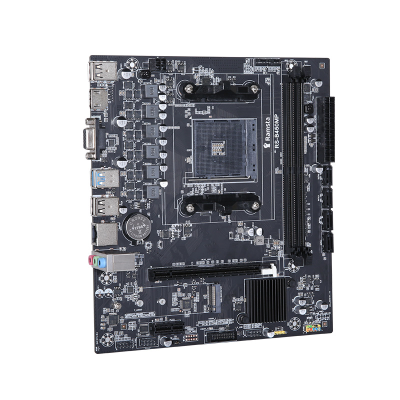

  • Micro-ATX (mATX): Compact variant at 244 × 244 mm (9.6" × 9.6"). Usually includes 2 full-size (×16) expansion slots and 4 DIMM slots. Compatible with ATX mounting holes.

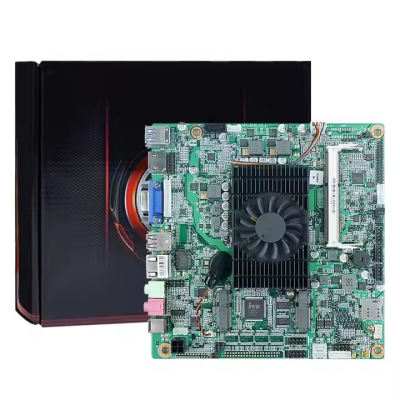

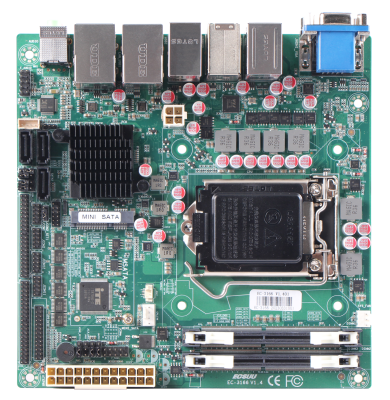

  • Mini-ITX: Small form factor at 170 × 170 mm (6.7" × 6.7"). Designed for compact builds, typically offering 1 full-size PCIe slot and 2 DIMM slots.
  • Extended ATX (eATX): Larger variant at 305 × 330 mm (12" × 13"), offering additional real estate for enthusiast configurations.
• Memory Support:
  • DDR4: Frequency ranges from 2133 MHz to 5333 MHz (OC).
  • DDR5: Frequency ranges from 4800 MHz to 8000 MHz (OC).
  • Capacity: Verify total slot capacity (typically 4 slots for ATX/mATX, 2 for ITX) against required system RAM (e.g., 64GB, 128GB).
• Power Delivery: Ensure the board includes a 24-pin ATX main connector and sufficient 8-pin or 4-pin EPS CPU power connectors. High-end VRMs are critical for sustained workloads; look for phases rated for 60A+ current handling for enthusiast builds.
• Video Output:
  • HDMI: Supports resolutions up to 8K at 30Hz (HDMI 2.1).
  • DisplayPort: Supports resolutions up to 8K at 60Hz.

Procurement Recommendation: Prioritize the CPU socket and chipset first. Verify that the form factor matches the target chassis dimensions exactly. For high-performance workloads, ensure the VRM power delivery exceeds the CPU's TDP by at least 20% to prevent thermal throttling.

2. Industry Compliance and Quality Assurance

Motherboards must adhere to strict electrical and environmental standards to ensure stability and safety in commercial and industrial deployments.

• Electrical Safety: Boards must comply with regional safety standards (e.g., UL, CE, FCC) regarding voltage regulation and short-circuit protection.
• Component Durability: Capacitors and inductors should be rated for industrial-grade longevity, typically 5,000 to 10,000 hours of operation at 105°C ambient temperature.
• Thermal Management: Compliance with thermal dissipation standards is vital. Look for PCBs with 6-layer or 8-layer designs for better signal integrity and heat distribution.
• Supply Chain Traceability: Ensure components (VRMs, BIOS chips) are sourced from reputable manufacturers to avoid counterfeit parts.
• Warranty Standards: Standard industry warranty periods range from 2 to 5 years, with some enterprise-grade boards offering extended coverage up to 10 years.

Procurement Recommendation: Request certification documentation (UL/CE) for all bulk orders. For mission-critical applications, specify industrial-grade capacitors and verify the manufacturer's burn-in testing protocols (minimum 24 hours at full load).

3. Cost Efficiency and Integration Capabilities

Cost efficiency in motherboard procurement is driven by volume, form factor, and feature set. Integration capabilities determine how easily the board fits into existing infrastructure.

• Cost Ranges (Typical B2B):
  • Mini-ITX: $80 – $250 per unit.
  • Micro-ATX: $70 – $200 per unit.
  • ATX: $100 – $400 per unit.
  • eATX/Enthusiast: $250 – $600+ per unit.
• MOQ (Minimum Order Quantity): Typical B2B MOQs range from 10 to 50 units for standard SKUs, with potential discounts for orders exceeding 100 units.
• Lead Time: Standard lead times are 2 to 4 weeks for in-stock items. Custom configurations or high-volume orders may require 6 to 12 weeks.
• Integration:
  • Backward Compatibility: ATX mounting holes are compatible with Micro-ATX and Mini-ITX cases, offering flexibility in chassis selection.
  • Expansion: ATX boards offer the highest integration potential with 7 expansion slots, allowing for multiple GPUs, RAID controllers, and specialized I/O cards.
  • Power Efficiency: Boards with efficient VRMs reduce overall system power consumption, lowering TCO (Total Cost of Ownership) in server environments.

Procurement Recommendation: For large deployments, standardize on ATX or Micro-ATX to maximize expansion flexibility and spare part availability. Negotiate tiered pricing for orders over 100 units to reduce per-unit costs by 10–15%.

4. Typical Use Cases

Motherboards are selected based on specific workload requirements and physical constraints.

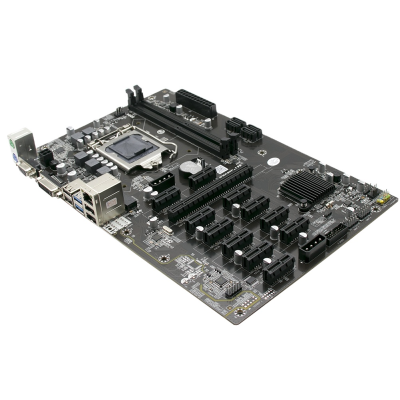

• Gaming & Enthusiast Builds: Requires ATX or eATX form factors with high-speed DDR5 memory support (4800–8000 MHz), robust VRMs, and multiple PCIe slots for multi-GPU setups.

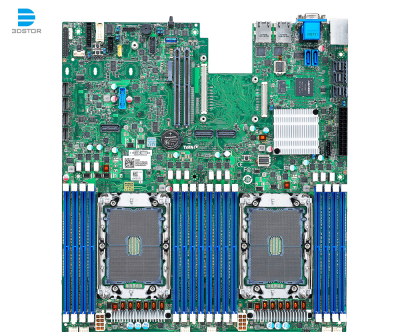

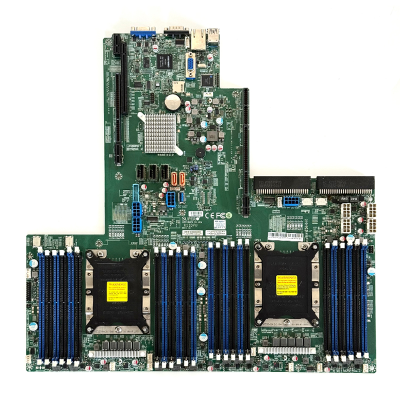

• Enterprise Servers & Workstations: Utilizes ATX or eATX boards with ECC memory support, redundant power inputs, and extended thermal durability. Focus on stability over raw overclocking potential.
• Compact Office/Edge Computing: Micro-ATX or Mini-ITX boards are ideal for space-constrained environments. These often utilize integrated graphics (HDMI/DP) to save on discrete GPU costs.

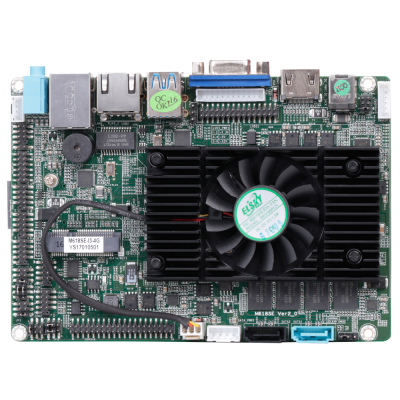

• Industrial Automation: Mini-ITX boards are preferred for embedded systems due to their compact size and ability to operate in non-fan-cooled or dusty environments.
• Home Theater PCs (HTPC): Mini-ITX boards with HDMI 2.1 support (up to 8K @ 30Hz) are optimal for media centers requiring low power and small footprints.

Procurement Recommendation: Match the use case to the form factor strictly. Do not overspecify an eATX board for a compact office PC, nor underspecify an ATX board for a multi-GPU rendering workstation.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends, technology lifecycles, and future scalability.

• Market Trends:
  • DDR5 Adoption: The market is shifting rapidly toward DDR5. Procuring DDR4 boards now may limit future upgrade paths.
  • PCIe 5.0: Newer chipsets are introducing PCIe 5.0 support for faster storage and GPU bandwidth.
  • Sustainability: Increased demand for RoHS-compliant and lead-free components.
• Technology Lifecycle:
  • Socket Longevity: CPU sockets typically support 2–3 generations. Plan for a 3–5 year refresh cycle to avoid obsolescence.
  • BIOS Support: Ensure the manufacturer provides long-term BIOS updates for security patches and new CPU support.
• Scalability: ATX boards offer the best long-term scalability due to the 7 expansion slots and 4 DIMM slots, allowing for future GPU or RAM upgrades without replacing the board.
• Supply Chain Resilience: Diversify suppliers to mitigate risks associated with semiconductor shortages.

Procurement Recommendation: Prioritize platforms with sockets that have a predicted 3-year support window. For new deployments, favor DDR5-capable boards to future-proof against memory bandwidth bottlenecks.

6. Special Product Recommendations

The following table compares the primary motherboard form factors to assist in selecting the right product for specific buyer profiles.

Procurement Recommendation: Select the smallest form factor that meets the performance requirements to save on chassis and power costs. For mixed environments, standardizing on ATX reduces inventory complexity.

7. Frequently Asked Questions (FAQ)

Q1: Can I install a Micro-ATX motherboard in an ATX case? A: Yes. Micro-ATX boards (244×244 mm) are designed with mounting holes that align with ATX cases (305×244 mm), offering flexibility in chassis selection.

Q2: What is the maximum resolution supported by HDMI on modern motherboards? A: As of the HDMI 2.1 revision, motherboards with HDMI ports support resolutions up to 8K at 30Hz.

Q3: How do I determine if a motherboard supports my CPU? A: You must match the CPU socket type (e.g., LGA1700) and ensure the chipset supports the specific CPU generation. Always check the manufacturer's CPU support list before purchasing.

Q4: What is the difference between DDR4 and DDR5 memory speeds? A: DDR4 typically ranges from 2133 MHz to 5333 MHz (OC), while DDR5 offers higher speeds ranging from 4800 MHz to 8000 MHz (OC), providing significantly higher bandwidth.

Q5: How many expansion slots does a standard ATX motherboard have? A: A standard consumer ATX motherboard usually features seven expansion slots, spaced 0.7 inches apart.

Q6: What power connectors are essential for a high-performance build? A: Essential connectors include the 24-pin ATX for the motherboard and 8-pin or 4-pin EPS for the CPU. High-end builds often require dual 8-pin EPS for stability.

Q7: Which form factor is best for a Home Theater PC (HTPC)? A: Mini-ITX is the best choice for HTPCs due to its compact size (170×170 mm) and support for HDMI 2.1, allowing for 8K video output in a small footprint.

Q8: What is the typical lead time for bulk motherboard orders? A: Typical B2B lead times range from 2 to 4 weeks for standard stock, extending to 6–12 weeks for custom configurations or high-volume orders.
