Niobium Procurement Report

1. Technical Specifications and Performance Metrics

Niobium (Nb), also known as columbium, is a transition metal characterized by a high melting point, superconductivity at low temperatures, and exceptional corrosion resistance. For procurement purposes, the material is typically supplied in the form of bar, rod, and wire.

• Physical State & Temper: Unless otherwise specified in the purchase order, materials are supplied in a fully annealed condition, defined as having at least 90% recrystallization. This ensures optimal ductility for subsequent forming operations.
• Chemical Composition:
  • Base Analysis: The manufacturer's ingot analysis is generally accepted as the definitive chemical analysis for the product.
  • Interstitial Elements: Critical for high-performance applications, the levels of Carbon (C), Oxygen (O), Nitrogen (N), and Hydrogen (H) must be verified. When requested, a specific report certifying these interstitial values is required for each lot.
  • Typical Purity Ranges: Standard commercial grades often exceed 99.5% Nb, while high-purity grades for superconducting applications may reach 99.9% to 99.99%.
• Mechanical Properties (Annealed):
  • Tensile Strength: Typically ranges from 200 MPa to 350 MPa depending on the specific alloying and processing history.
  • Yield Strength: Generally falls between 100 MPa and 200 MPa.
  • Elongation: High ductility is expected, typically >20% in the annealed state.
• Processing Limits: Interstitial samples must be taken after all thermal and chemical processing to ensure the final product meets the strict purity requirements.

Procurement Recommendation: When defining technical requirements, explicitly request the Interstitial Element Report (C, O, N, H) for every lot if the application involves superconductivity or extreme corrosion environments. Do not rely solely on the ingot analysis for critical interstitial specifications.

2. Industry Compliance and Quality Assurance

Quality assurance for niobium is governed by strict specifications regarding manufacturing, sampling, and testing. Compliance is not optional for high-reliability sectors like aerospace and nuclear energy.

• Certification Requirements: A producer's or supplier's certification must be furnished to the purchaser. This document confirms that the material was manufactured, sampled, tested, and inspected in accordance with the applicable specification and found to meet all requirements.
• Testing Protocols:
  • Chemical Analysis: While the ingot analysis is standard, representative samples of the in-process or final product from the same ingot may be substituted if specified.
  • Interstitial Testing: If requested at the time of purchase, the manufacturer must provide a report certifying interstitial values for each lot.
• Standards & Guides:
  • ASTM Standards: Compliance with specifications such as ASTM B393 (Niobium and Niobium Alloy Bar, Rod, and Wire) is the industry baseline.
  • Testing Guides: Guide E2626 is recommended for applicable sampling and testing procedures.
• Traceability: Each lot of material supplied must be traceable to its specific ingot to ensure the chemical analysis holds true for the final product.

Procurement Recommendation: Include a clause in the purchase order mandating the furnishing of a test report for interstitial elements (C, O, N, H) for every batch. Verify that the supplier's certification explicitly references the specific ASTM or equivalent specification number. Ensure the supplier follows Guide E2626 for sampling to avoid non-conformance in final testing.

3. Cost Efficiency and Integration Capabilities

Niobium is a strategic material with a supply chain that requires careful management to balance cost and performance.

• Cost Drivers:
  • Purity Levels: High-purity niobium (interstitial-free) commands a significant premium over commercial grades.
  • Form Factor: Wire and fine rod typically incur higher processing costs per kilogram compared to large bars due to the extensive drawing and annealing required.
  • Typical B2B Price Range: While exact market prices fluctuate, high-purity niobium wire often ranges between $150 and $400 per kilogram, depending on diameter and purity.
• Integration Capabilities:
  • Weldability: Niobium is readily weldable using TIG (GTAW) or electron beam welding, provided it is handled in an inert atmosphere (argon/helium) to prevent oxygen contamination.
  • Formability: In the fully annealed condition, it offers excellent formability for deep drawing and bending.
  • Compatibility: Highly compatible with superconducting magnets, liquid metal cooling systems, and nuclear cladding environments.
• MOQ & Lead Time:
  • Minimum Order Quantity (MOQ): Typically 1 kg to 5 kg for custom wire/rod; bulk orders may start at 25 kg.
  • Lead Time: Standard lead times range from 4 to 8 weeks for annealed stock. Custom interstitial-free grades or specific diameters may require 12 to 16 weeks.

Procurement Recommendation: Optimize costs by purchasing in the fully annealed condition unless specific work-hardened properties are required, as this reduces secondary processing costs for the buyer. For long-term projects, negotiate annual volume contracts to secure pricing stability and reduce lead times for critical interstitial-free grades.

4. Typical Use Cases

Niobium's unique properties make it indispensable in specialized industries where standard metals fail.

• Superconducting Magnets: Used in MRI machines, particle accelerators (e.g., LHC), and fusion reactors. The material's ability to maintain superconductivity at low temperatures is critical.
• Nuclear Industry: Utilized as cladding for nuclear fuel rods due to its low neutron absorption cross-section and high corrosion resistance in high-temperature water.
• Aerospace & Defense: Employed in rocket nozzles, jet engine components, and high-temperature structural parts due to its high melting point (~2477°C).
• Chemical Processing: Used in heat exchangers and reaction vessels for handling aggressive acids (e.g., hydrochloric, sulfuric) where stainless steel would corrode.
• Electronics: Used in capacitors and specialized semiconductor components.

Procurement Recommendation: For superconducting applications, prioritize suppliers who can guarantee interstitial levels (specifically Oxygen and Nitrogen) below 50 ppm (typical for Nb-Ti or pure Nb superconductors). For nuclear cladding, ensure the supplier can provide a full Lot Traceability Report and certification of interstitial values as per the specific ASTM requirements.

5. Long-Term Planning Considerations

Strategic procurement of niobium requires monitoring global supply dynamics and technological shifts.

• Market Trends:
  • Demand Signals: The global push for fusion energy and high-field magnets is driving increased demand for high-purity niobium.
  • Supply Concentration: Production is concentrated in a few key regions (e.g., China, Brazil, Russia). Geopolitical factors can impact supply stability.
  • Substitution Risks: While niobium is unique for superconductivity, alloying with titanium (Nb-Ti) is common. Buyers should monitor the price of titanium as a cost driver for these alloys.
• Durability & Lifecycle:
  • Niobium components generally offer a 20+ year service life in inert or controlled environments.
  • In high-temperature oxidation environments, protection (coatings) is required, as pure niobium oxidizes rapidly above 400°C in air.
• Sustainability:
  • Niobium is recyclable. Procurement strategies should include take-back programs or suppliers with established recycling loops to reduce environmental impact and secure secondary supply.

Procurement Recommendation: Develop a dual-sourcing strategy to mitigate geopolitical supply risks. Incorporate recycling clauses into contracts to ensure end-of-life material recovery. Monitor the fusion energy sector for early adoption opportunities, as this will likely be the primary growth driver for niobium demand in the next decade.

6. Special Product Recommendations

The following table compares common niobium product forms to assist in selecting the right material for specific buyer needs.

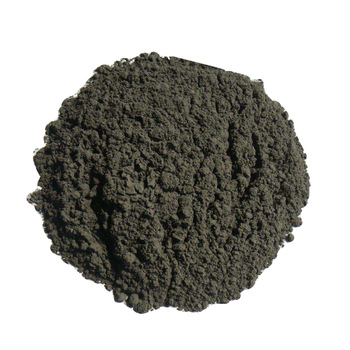

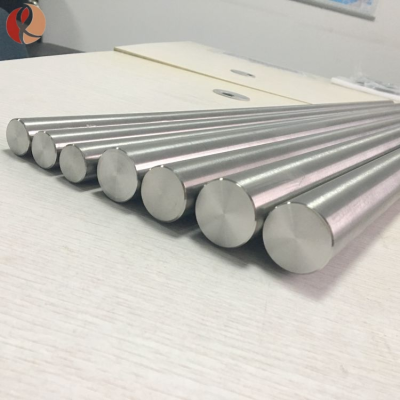

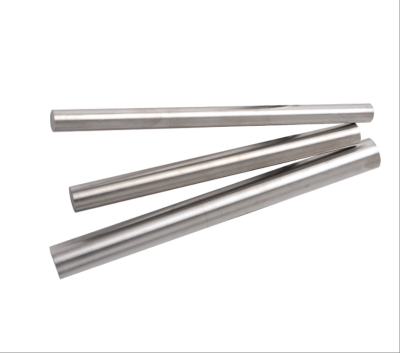

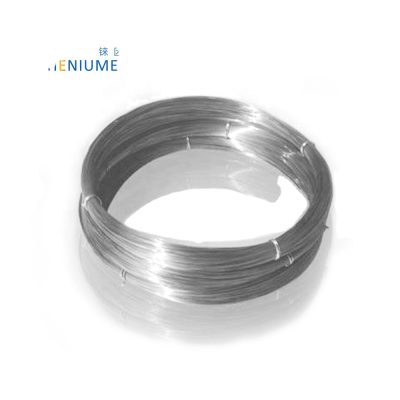

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Annealed Rod/Bar | Structural components, heat exchangers | 99.5%+ Purity, 90% Recrystallized | Oxidation sensitivity during machining | Specify inert atmosphere handling during delivery to prevent surface contamination. | | Superconducting Wire | MRI, Particle Accelerators | Interstitials (C, O, N, H) < 50 ppm | High cost, strict lot-to-lot variance | Mandatory: Require interstitial test report for every lot; do not accept ingot analysis alone. | | Niobium Alloy (e.g., Nb-Ti) | High-field magnets, cryogenics | Nb-Ti ratio 50:50 or 60:40 | Phase separation risks | Verify homogeneity via representative sampling; check for Guide E2626 compliance. | | Powder (Sintering Grade) | Additive Manufacturing, Ceramics | Particle size < 45 µm, Low O-content | High surface area = high reactivity | Store in dry, inert conditions; request specific oxygen content data (< 1000 ppm). |

Procurement Recommendation: For wire applications, always specify the temper designation (e.g., fully annealed vs. work-hardened) clearly. For alloys, ensure the purchase order explicitly states the required interstitial limits, as these are the primary failure points in superconducting applications.

7. Frequently Asked Questions (FAQ)

Q1: Is the manufacturer's ingot analysis sufficient for all chemical requirements? A: No. While the ingot analysis is the standard for the base material, it is not sufficient for interstitial elements (C, O, N, H) if high purity is required. You must explicitly request a report certifying interstitial values on the end product for each lot.

Q2: What is the standard condition for delivered niobium bar and wire? A: Unless otherwise stated, materials are supplied in the fully annealed condition, which is defined as having at least 90% recrystallization. This ensures maximum ductility.

Q3: When must interstitial samples be taken? A: Interstitial samples must be taken after all thermal and chemical processing is complete. Sampling prior to final processing will not reflect the final material properties.

Q4: What happens if I do not specify a test report for interstitials? A: The supplier will likely only provide the standard ingot analysis. If your application is sensitive to Carbon, Oxygen, Nitrogen, or Hydrogen levels, this could lead to non-conformance and material failure. Always request the report at the time of purchase.

Q5: Are there specific standards for sampling and testing? A: Yes, Guide E2626 is recommended as a guide for sampling and testing procedures where applicable. Ensure your supplier is familiar with this guide.

Q6: Can niobium be welded easily? A: Yes, but it requires strict controls. Welding must be performed in an inert atmosphere (Argon/Helium) to prevent oxygen and nitrogen pickup, which can embrittle the material.

Q7: What is the typical lead time for custom niobium wire? A: For standard annealed wire, expect 4 to 8 weeks. For custom interstitial-free grades or specific diameters, lead times may extend to 12 to 16 weeks.

Q8: How do I ensure traceability of the material? A: Require a certification that links the final product lot back to the specific manufacturer's ingot. The certification must confirm that the material was manufactured and tested in accordance with the specification.
