Procurement Report: Industrial Paint Rooms (Spray Booths)

Product Category: Industrial Painting Equipment / Environmental Control Systems Market Context: The global demand for industrial paint rooms is driven by stringent environmental regulations, the need for high-quality surface finishes in automotive and manufacturing sectors, and the shift toward water-based and low-VOC coatings.

1. Technical Specifications and Performance Metrics

When procuring a paint room, the core technical differentiator is airflow dynamics and filtration efficiency. The system must maintain a consistent velocity to prevent overspray from settling on the product or escaping the enclosure.

• Airflow Velocity: Typical B2B ranges for cross-draft booths are 0.3 – 0.5 m/s (60 – 100 fpm) at the operator's face and 0.4 – 0.6 m/s (80 – 120 fpm) in the work zone. Down-draft booths typically require 0.25 – 0.4 m/s (50 – 80 fpm).
• Filtration Efficiency: Primary filters (face filters) should capture particles >10 microns with an efficiency of 85% – 95%. Final exhaust filters (if applicable) or water wash systems must handle particulate loading to maintain system pressure drop within 50 – 150 Pa (0.2 – 0.6 in. H2O) under normal operation.
• Lighting Standards: Illumination levels must meet 1000 – 1500 Lux (90 – 140 foot-candles) at the work surface to ensure color accuracy and defect detection.
• Temperature Control: Heating systems should maintain an ambient temperature of 20°C – 25°C (68°F – 77°F) with a variance of ±2°C to ensure proper paint curing and drying times.
• Air Exchange Rate: A typical range is 20 – 40 air changes per hour depending on booth volume and coating type.

Actionable Recommendation: Procurement teams must request a certified airflow test report (anemometer readings) prior to final acceptance. Do not rely on manufacturer estimates; verify that the actual velocity profile meets the specific requirements of the coating material being used (e.g., high-solids paints require higher capture velocities).

2. Industry Compliance and Quality Assurance

Compliance is non-negotiable in the paint booth sector due to fire safety risks and environmental emissions. The procurement process must prioritize adherence to national and international standards.

• Primary Standards:
  • Australia: AS/NZS 4114:2020 is the mandatory benchmark for design, installation, testing, and commissioning.
  • General Safety: Compliance with NFPA 33 (Standard for Spray Application Using Flammable or Combustible Materials) is the global baseline for fire prevention.
  • Environmental: Emissions must align with local VOC (Volatile Organic Compound) limits, often requiring a 98% – 99% capture efficiency for overspray to meet air quality regulations.
• Certification Requirements:
  • UL/CE Marking: Electrical components and structural steel must carry recognized safety certifications.
  • Fire Rating: Walls and ceilings typically require a 1-hour fire-resistance rating (ASTM E119).
  • Explosion Proofing: Motors and lighting must be rated for Class I, Division 1 or 2 hazardous locations depending on the solvent class used.

Actionable Recommendation: Verify that the supplier provides a "Compliance Declaration" referencing the specific standard (e.g., AS/NZS 4114:2020 or NFPA 33) applicable to your jurisdiction. Ensure the contract includes a clause for third-party inspection and testing prior to handover to validate fire suppression systems and electrical grounding.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) is driven by energy consumption, filter replacement frequency, and maintenance downtime.

• Capital Expenditure (CAPEX): Typical B2B ranges for a standard walk-in booth are $40,000 – $150,000, while large automated systems can exceed $300,000.
• Operational Expenditure (OPEX):
  • Energy: HVAC systems typically consume 15 – 30 kW per unit depending on size and heating requirements.
  • Filter Replacement: Water wash systems reduce filter costs but increase water treatment costs. Dry filter booths require filter changes every 2 – 4 weeks depending on volume, costing $500 – $2,000 annually per booth.
• Integration: Modern booths should support PLC (Programmable Logic Controller) integration for automated lighting, airflow monitoring, and safety interlocks.
• Lead Time: Typical manufacturing and delivery lead time is 8 – 16 weeks for custom units.
• MOQ (Minimum Order Quantity): Typically 1 unit for custom builds, though volume discounts apply for 3+ units.

Actionable Recommendation: Prioritize energy recovery systems (heat exchangers) which can reduce heating costs by 30% – 50% in colder climates. When evaluating suppliers, request a 5-year TCO projection that includes estimated energy, filter, and maintenance costs rather than just the sticker price.

4. Typical Use Cases

Paint rooms are specialized environments designed for specific industrial applications where surface finish and safety are paramount.

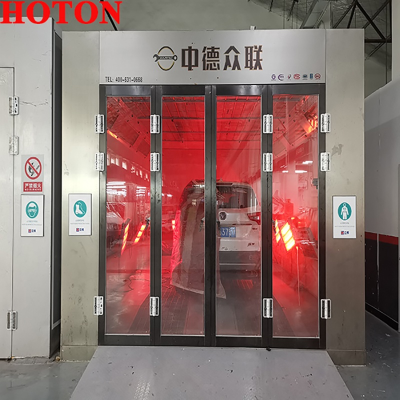

• Automotive Refinishing & Manufacturing: High-volume painting of vehicle bodies, requiring large walk-in booths with down-draft airflow to prevent dust settling on wet paint.
• Aerospace Components: Small, high-precision booths for coating turbine blades or fuselage sections, often requiring cleanroom-level filtration (ISO Class 8 or better).
• Industrial Machinery & Equipment: Medium-sized booths for painting agricultural machinery, construction equipment, and steel structures.
• Woodworking & Furniture: Booths designed for water-based lacquers and stains, often featuring lower velocity requirements and specialized lighting for grain inspection.
• Marine Industry: Corrosion-resistant booths for boat hulls, often utilizing water wash systems to handle high volumes of overspray.

Actionable Recommendation: Match the booth configuration strictly to the product size and coating type. For automotive or aerospace, specify a down-draft system to ensure the highest finish quality. For heavy machinery, a cross-draft system may offer better cost-efficiency and easier access for large components.

5. Long-Term Planning Considerations

The market is shifting towards sustainability and automation, requiring procurement strategies that future-proof the facility.

• Market Trends:
  • Water-Based Coatings: There is a 15% – 20% annual increase in the adoption of water-based paints, necessitating booths with enhanced humidity control and corrosion-resistant materials (stainless steel).
  • Automation: Integration with robotic painting arms is becoming standard, requiring precise airflow stability to prevent robot collision with overspray.
  • Energy Efficiency: Demand for high-efficiency fans and variable frequency drives (VFDs) is rising to meet carbon reduction goals.
• Scalability: Procure booths with modular designs that allow for extension or reconfiguration as production lines expand.
• Regulatory Trajectory: VOC regulations are tightening globally. A booth purchased today must be capable of retrofitting advanced filtration (e.g., activated carbon or catalytic oxidizers) to meet future standards.

Actionable Recommendation: Include a "Future-Proofing Clause" in the contract allowing for the addition of VFDs or advanced filtration modules without major structural modifications. Avoid purchasing booths with fixed-speed motors if production volume is expected to fluctuate.

6. Special Product Recommendations

The following table compares common paint room configurations to assist in selecting the right product for your specific operational needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Cross-Draft Booth | General Manufacturing, Heavy Equipment | Velocity: 0.4-0.6 m/s; Simple filtration; Lower cost. | Overspray may settle on vertical surfaces if airflow is uneven. | Ideal for budget-conscious buyers; ensure proper exhaust placement to avoid re-circulation. | | Down-Draft Booth | Automotive, Aerospace, High-End Furniture | Velocity: 0.25-0.4 m/s; Floor filtration; High finish quality. | Higher initial CAPEX; Complex floor plenum maintenance. | Mandatory for critical finish applications; verify floor drain capacity for water wash options. | | Water Wash Booth | High-Volume Industrial, Woodworking | No filters; Water treatment system; High overspray capacity. | Water treatment costs; Corrosion risk if not stainless steel. | Best for high-volume operations; insist on 316L stainless steel for water chambers. | | Dry Filter Booth | Low-Volume, Refinishing Shops | Filter banks; Easy installation; Lower water usage. | Filter disposal costs; Frequent maintenance required. | Suitable for intermittent use; calculate filter replacement frequency carefully. | | Mobile/Portable Booth | On-site Repair, Construction | Wheels; Modular panels; Temporary setup. | Lower durability; Limited airflow stability. | Only for temporary or remote sites; verify power requirements for portable units. |

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum certification required for a paint booth in Australia? A: The benchmark is AS/NZS 4114:2020, which covers design, installation, testing, and commissioning. Compliance with this standard is mandatory for legal operation and insurance validity.

Q2: How often should I replace the filters in a dry paint booth? A: Typically, filters need replacement every 2 to 4 weeks depending on the volume of painting and the type of coating. However, if the pressure drop across the filter exceeds 150 Pa, immediate replacement is required regardless of time elapsed.

Q3: Can I install a paint booth in an existing warehouse without structural changes? A: It depends on the ceiling height and ventilation capacity. Most standard booths require a minimum ceiling height of 3.5 – 4 meters and may require upgrading the building's HVAC system to handle the additional exhaust load.

Q4: What is the difference between a cross-draft and a down-draft booth? A: A cross-draft booth moves air horizontally from one wall to the opposite wall, while a down-draft booth moves air vertically from the ceiling to the floor. Down-draft is superior for high-quality finishes as it prevents overspray from settling on the product.

Q5: Are paint booths required to be explosion-proof? A: Yes, if flammable solvents are used. Electrical components (lights, motors, switches) must be rated for Class I, Division 1 or 2 hazardous locations to prevent ignition of airborne vapors.

Q6: What is the typical lead time for a custom paint booth? A: For a custom-built unit, the lead time is typically 8 to 16 weeks, including manufacturing, testing, and delivery. Standard modular units may be available sooner (4-6 weeks).

Q7: How do I ensure the paint booth meets environmental emission standards? A: Ensure the booth has a capture efficiency of at least 98%. You may need to integrate supplementary filtration (like carbon filters or thermal oxidizers) to treat the exhaust air before it is released into the atmosphere.

Q8: What safety features are mandatory for a paint booth? A: Mandatory features include fire suppression systems (typically foam or dry chemical), emergency stop buttons, explosion vents, proper grounding for static electricity, and adequate ventilation to keep solvent concentrations below the Lower Explosive Limit (LEL).
