Procurement Report: Pan and Tilt (PTU/PTZ) Systems

Product Category: Pan-Tilt Units (PTU) and Pan-Tilt-Zoom (PTZ) Surveillance Cameras

1. Technical Specifications and Performance Metrics

When procuring Pan and Tilt Units (PTUs) or PTZ cameras, the primary technical differentiators are payload capacity, positioning precision, and environmental resilience. Based on industry standards for OEM and commercial applications, the following metrics define a viable procurement specification:

• Rotation Speed:
  • Typical Range: 5°/s to 300°/s depending on the model class.
  • Procurement Action: Select high-speed units (100°/s+) for security tracking applications requiring rapid target reacquisition. For general monitoring or industrial inspection, 5°–20°/s is sufficient and often more energy-efficient.
• Rotation Angle (Field of View):
  • Pan: Typically 360° continuous rotation.
  • Tilt: Typically -90° (down) to +90° (up), with some industrial units limited to ±45° or ±60° for structural safety.
  • Procurement Action: Verify if "infinite rotation" (continuous 360° pan) is required for perimeter monitoring or if "hard stop" limits are acceptable for fixed-point scanning.
• Load Capacity (Payload):
  • Typical B2B Range: 0.5 kg (lightweight indoor) to 15 kg+ (heavy-duty outdoor industrial).
  • Procurement Action: Calculate the total weight of the camera sensor, lens, and housing. Add a 20% safety margin to the manufacturer's rated load capacity to account for wind load in outdoor scenarios.
• Environmental Durability:
  • IP Rating: Minimum IP66 for outdoor; IP54 for indoor.
  • Operating Temperature: -40°C to +60°C for industrial grades; 0°C to +45°C for consumer-grade indoor units.
  • Procurement Action: For outdoor deployments, mandate IP66 or higher and verify the operating temperature range matches the local climate extremes.
• Control Interface:
  • Protocols: RS-485 (Modbus/PELCO-D/P), ONVIF, RTSP, or proprietary SDKs.
  • Procurement Action: Ensure the PTU supports the specific control protocol of the existing VMS (Video Management System) to avoid costly middleware integration.

2. Industry Compliance and Quality Assurance

Procurement of PTU systems must align with safety and interoperability standards to ensure long-term reliability and legal compliance.

• Safety and Electrical Standards:
  • Voltage: Standard operating voltages are typically 12V DC or 24V AC. High-load industrial units may require 24V AC or 48V PoE.
  • Compliance: Units should comply with CE, FCC, and RoHS standards. For hazardous environments (e.g., oil and gas), ATEX or IECEx certification is mandatory.
• Interoperability (ONVIF):
  • Requirement: Compliance with ONVIF Profile S or G is critical for third-party camera integration.
  • Procurement Action: Request ONVIF compliance certificates from suppliers. Avoid proprietary-only systems unless the ecosystem is locked-in, as this creates vendor lock-in risks.
• Quality Assurance (QA) Protocols:
  • Testing: Look for suppliers offering 48-hour to 72-hour continuous operation burn-in testing prior to shipment.
  • Warranty: Standard B2B warranties range from 1 to 3 years.
  • Procurement Action: Include a clause in the contract requiring a "Zero Defect" acceptance rate for the first 50 units delivered. Request sample reports from the supplier's QA department regarding bearing wear testing.

3. Cost Efficiency and Integration Capabilities

Cost analysis for PTU systems extends beyond the unit price to include installation, power, and maintenance.

• Pricing Ranges:
  • Consumer/Indoor: $90 – $300 per unit (e.g., basic 2K indoor PTZ cameras).
  • Commercial/Outdoor: $500 – $2,500+ per unit (depending on payload and weatherproofing).
  • Industrial/OEM: Custom pricing based on payload and control complexity.
• Integration Costs:
  • Power: PoE (Power over Ethernet) reduces cabling costs by 30–40% compared to separate power adapters.
  • Control: RS-485 integration is generally lower cost than wireless control due to latency and reliability.
• MOQ and Lead Time:
  • MOQ: Typically 10–50 units for standard models; custom OEM orders may require 100+ units.
  • Lead Time: 2–4 weeks for stock items; 8–12 weeks for custom configurations.
• Procurement Action:
  • Prioritize PoE-enabled models to reduce infrastructure cabling costs.
  • Negotiate tiered pricing based on volume, aiming for a 10–15% discount at the 50-unit threshold.
  • Factor in a 15% contingency budget for custom mounting brackets or specialized cabling required for heavy payloads.

4. Typical Use Cases

Understanding the application scenario is the primary driver for selecting the correct PTU specifications.

• Perimeter Security & Surveillance:
  • Requirement: 360° pan, high speed, IP66 rating, night vision.
  • Application: Warehouses, parking lots, and border security.
• Industrial Inspection & Monitoring:

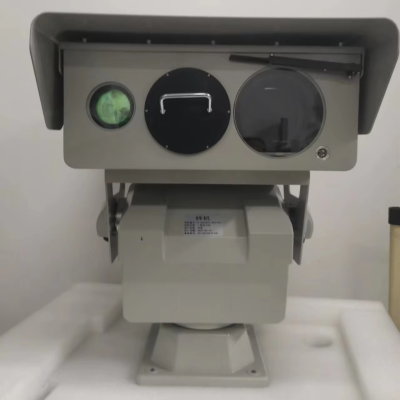

  • Requirement: High load capacity (to hold thermal cameras or LiDAR), precise positioning, ruggedized enclosure.
  • Application: Power plant monitoring, pipeline inspection, and manufacturing line oversight.
• Smart Home & Indoor Monitoring:
  • Requirement: Low noise, 2K/4K resolution, 360° pan, mobile app integration.
  • Application: Home security, pet monitoring, and elderly care.
• Broadcast & Event Coverage:
  • Requirement: Extremely high rotation speed, smooth motion (servo control), remote control via PTZ controllers.
  • Application: Live sports broadcasting and conference coverage.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and future scalability.

• Market Trends:
  • AI Integration: There is a strong shift toward PTUs with built-in edge AI for auto-tracking and object detection, reducing the need for backend processing.
  • Resolution Upgrades: The market is moving from 1080p to 4K and 8MP sensors, requiring PTUs with higher payload capacity and more robust cooling.
  • Connectivity: 5G and Wi-Fi 6 integration are becoming standard for wireless PTZ units, reducing cabling constraints.
• Scalability:
  • Network Load: High-resolution PTZ streams increase bandwidth requirements. Plan for network upgrades if deploying >50 units.
  • Software Lifecycle: Ensure the vendor supports firmware updates for at least 5 years to maintain security patches.
• Procurement Action:
  • Prioritize vendors with open API documentation to ensure future integration with AI analytics platforms.
  • Avoid proprietary protocols that may become obsolete; favor ONVIF-compliant systems.
  • Plan for a 20% capacity buffer in power and network infrastructure to accommodate future high-resolution upgrades.

6. Special Product Recommendations

The following table compares common PTU categories to assist in selecting the right product for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Indoor Consumer PTZ | Homeowners, Small Retail | 2K Resolution, 360° Pan, Wi-Fi, $90–$300 | Privacy concerns, Cloud dependency | Verify local data privacy laws; prefer local storage options. | | Outdoor IP PTZ | Security Integrators, Malls | IP66, 12V/24V, PoE, -20°C to +50°C | Weather sealing failure, Cable theft | Demand IP67 rating for coastal/salty environments; use armored cabling. | | Industrial OEM PTU | Manufacturing, Utilities | 5kg+ Payload, RS-485, -40°C to +60°C, Custom Mounts | Mechanical wear, Vibration | Request bearing life data; specify vibration dampening for heavy machinery. | | High-Speed Tracking PTZ | Broadcast, High-Security | 300°/s Speed, Auto-Tracking, 4K | Latency, Motion blur | Test tracking algorithms in low-light conditions before bulk order. |

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between a PTU and a PTZ camera? A: A PTU (Pan-Tilt Unit) is the mechanical positioning device that holds a camera (which may be purchased separately). A PTZ (Pan-Tilt-Zoom) camera is an all-in-one unit where the camera, lens, and positioning mechanism are integrated. Procurement should focus on PTU if you need to swap sensors frequently; choose PTZ for turnkey simplicity.

Q2: How do I determine the correct load capacity for my PTU? A: Sum the weight of the camera body, lens, and any additional accessories (e.g., heaters, wipers). Add a 20% safety margin to this total. Ensure the PTU's rated load capacity exceeds this final figure to prevent motor burnout and mechanical failure.

Q3: What is the typical lead time for custom industrial PTUs? A: Standard off-the-shelf units are typically available within 2–4 weeks. Custom configurations involving specific payloads, voltages, or environmental ratings usually require 8–12 weeks for manufacturing and testing.

Q4: Can PTU systems operate in extreme cold? A: Yes, but standard consumer models often fail below 0°C. Industrial-grade PTUs are rated for -40°C to +60°C. Procurement must explicitly verify the operating temperature range and check if internal heaters are included for cold climates.

Q5: Is PoE (Power over Ethernet) compatible with all PTU systems? A: No. While many modern PTZ cameras support PoE (802.3af/at), heavy-duty industrial PTUs often require 24V AC or 48V DC inputs. Always verify the power requirements before selecting a switch or injector.

Q6: How often should PTU bearings be maintained? A: In high-traffic or harsh environments, bearings should be inspected every 6–12 months. In clean, indoor environments, maintenance may only be required every 2–3 years. Check the manufacturer's specific maintenance schedule.

Q7: What control protocols are most common? A: RS-485 (using Modbus or PELCO-D/P) is the industry standard for wired control due to its reliability and distance capabilities. ONVIF is the standard for network-based control and interoperability.

Q8: What is the typical warranty period for B2B PTU purchases? A: Standard warranties range from 1 to 3 years. For critical infrastructure, procurement teams should negotiate extended warranties (up to 5 years) or service-level agreements (SLAs) that include on-site replacement.
