Procurement Report: pH Electrodes

Product Category: Analytical Sensors / Electrochemical Measurement Devices Subject: Selection, Procurement, and Lifecycle Management of pH Electrodes

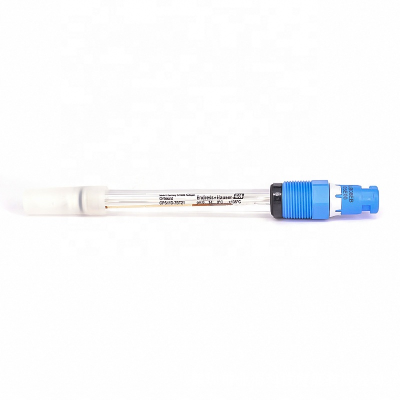

1. Technical Specifications and Performance Metrics

When procuring pH electrodes, the primary technical determinant is the alignment of the glass membrane, junction design, and reference electrolyte with the specific sample chemistry and operating temperature. Accuracy is not universal; it depends on the electrode's ability to handle the specific medium (e.g., wastewater, slurry, strong acid/alkali).

• Measurement Range: Standard electrodes typically cover 0 to 14 pH. Specialized electrodes for extreme conditions may extend to -2 to 16 pH or -1 to 13 pH.
• Temperature Compensation: Automatic Temperature Compensation (ATC) is mandatory for precision. The operational temperature window typically ranges from -5°C to +100°C, with high-temperature variants reaching up to 135°C.
• Response Time: High-quality sensors should achieve a stable reading within 10 to 30 seconds in a standard buffer solution. Slurry or high-viscosity samples may require 30 to 60 seconds.
• Input Impedance: The measuring instrument must support high input impedance, typically >10¹² Ω (1 TΩ), to prevent signal leakage and ensure accuracy with high-impedance glass membranes.
• Junction Types:
  • Ceramic/Jewel: Typical for general water; flow rate ~1 µL/hr.
  • Open/Sleeve: Required for sludge or dirty water; prone to clogging but allows rapid exchange.
  • Double Junction: Essential for samples containing proteins, sulfides, or halides that poison standard reference electrolytes.
• Calibration Requirements: Procurement must include a calibration protocol using at least two buffers bracketing the expected sample pH (e.g., pH 4.01, 7.00, and 10.01).

Actionable Recommendation: Do not select a "universal" electrode. Define the medium (water vs. slurry) and temperature first. Ensure the procurement order includes the specific glass membrane type (e.g., general purpose vs. low-alkaline) and a matching reference electrolyte to prevent junction clogging.

2. Industry Compliance and Quality Assurance

While specific named certifications were not provided in the search context, industry standards for pH measurement rely on rigorous calibration procedures and material integrity. Procurement must verify that the electrode design supports the METTLER TOLEDO pH Lab Certification style procedures or equivalent ISO/IEC standards for laboratory and process control.

• Material Durability: The glass bulb and body materials must be chemically resistant to the sample matrix. For aggressive environments, PTFE (Teflon) or PVDF bodies are preferred over standard glass or plastic.
• Calibration Traceability: The electrode must be compatible with standard NIST-traceable buffer solutions. The certification process requires documenting the slope and offset during calibration.
• Reproducibility: Sensors must demonstrate a repeatability of ±0.01 pH under controlled conditions.
• Quality Assurance Checks:
  • Verify the slope of the electrode during acceptance testing; it should be between 95% and 105% of the theoretical Nernstian slope (59.16 mV/pH at 25°C).
  • Check for zero offset (mV at pH 7.00) which should ideally be within ±30 mV.

Actionable Recommendation: Require the supplier to provide a Certificate of Calibration (CoC) or a detailed test report for each batch. Implement an internal QA protocol that mandates a 2-point or 3-point calibration check upon installation and weekly thereafter to ensure the electrode has not drifted beyond ±0.05 pH.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in pH electrode procurement extends beyond the unit price to include total cost of ownership (TCO), which is heavily influenced by lifespan, maintenance frequency, and integration complexity.

• Unit Cost Range: Typical B2B ranges for standard laboratory electrodes are $150 – $400. Inline process sensors with advanced features (e.g., integrated ATC, double junction) range from $500 – $1,500.
• Lifecycle Cost: High-quality electrodes with replaceable junctions or membranes can extend service life to 12–24 months, whereas low-cost, non-serviceable units may last only 3–6 months.
• Integration:
  • Connectivity: Ensure compatibility with standard connectors (e.g., BNC, DIN, or M12 for industrial inline).
  • Signal Output: Analog (4-20 mA) for process control or Digital (RS-485/Modbus) for smart sensor networks.
  • Instrument Compatibility: The probe must match the input impedance of the meter (>10¹² Ω).
• MOQ and Lead Time: Typical B2B Minimum Order Quantities (MOQ) are 1 unit for standard models, but 10+ units for custom inline configurations. Lead times generally range from 2 to 4 weeks for stock items and 6 to 12 weeks for custom process probes.

Actionable Recommendation: Prioritize electrodes with replaceable reference electrolytes or junctions to reduce long-term costs. When integrating with existing PLCs or DCS systems, verify the communication protocol (Modbus vs. 4-20mA) before purchase to avoid expensive retrofitting.

4. Typical Use Cases

The application scenario dictates the specific electrode configuration. Mismatching the electrode to the use case is the leading cause of measurement failure.

• Laboratory Analysis: High-precision glass electrodes with double junctions for general water, buffers, and food/beverage testing. Focus on ±0.01 pH accuracy and fast response (<15s).
• Wastewater Treatment: Rugged electrodes with open or sleeve junctions to handle suspended solids and prevent clogging. Must withstand pH 2–12 and temperatures up to 60°C.
• Slurry and Bioprocessing: Electrodes with large surface area junctions and PTFE bodies to handle high viscosity and abrasive particles.
• Strong Acid/Alkali: Specialized glass membranes (e.g., lithium-based) designed to minimize alkaline error in high pH (>12) environments.
• Inline Process Control: Stainless steel or PVDF housing with sanitary fittings (e.g., DIN 11851, Tri-Clamp) for continuous monitoring in chemical manufacturing.

Actionable Recommendation: For slurry or wastewater, explicitly specify a "sleeve junction" or "open junction" design. For strong alkali applications, request a "low-alkaline error" glass membrane. Do not use a standard laboratory probe in an inline process without a protective housing.

5. Long-Term Planning Considerations

The market for pH measurement is evolving towards smart sensors and predictive maintenance. Procurement strategies should account for these trends to avoid obsolescence.

• Market Trends:
  • Smart Sensors: Increasing demand for electrodes with embedded digital memory (e.g., storing calibration data, serial numbers) to reduce human error.
  • Predictive Maintenance: Integration with IoT platforms to monitor electrode health (slope, offset, junction potential) and predict failure before it occurs.
  • Sustainability: Shift towards electrodes with lower mercury content (though already rare) and more durable materials to reduce electronic waste.
• Demand Signals: There is a rising demand for inline sensors in the pharmaceutical and food & beverage sectors due to stricter regulatory compliance requirements for real-time monitoring.
• Supply Chain Resilience: Glass membrane manufacturing is a specialized niche. Procurement should consider dual-sourcing or maintaining a 3-month safety stock of critical spare parts (junctions, electrolytes) to mitigate lead time risks.
• Standardization: Adherence to ISO 10523 (Water quality) and ASTM D1293 standards is becoming more critical for international compliance.

Actionable Recommendation: Plan for a 3-year upgrade cycle where "smart" digital probes replace analog ones to enable data logging and remote diagnostics. Ensure the procurement budget includes a reserve for annual buffer solution replenishment and calibration verification kits.

6. Special Product Recommendations

The following table compares common pH electrode types to assist in selecting the right product based on buyer profile and risk factors.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Lab Electrode | R&D Labs, QA/QC | pH 0-14, 25°C, BNC, 3-point cal | High drift in dirty samples | Verify slope >95% on arrival; buy 2 buffers (4.01/7.00) | | Inline Process Probe | Manufacturing, Wastewater | 4-20mA/Modbus, IP68, PTFE body | Clogging in slurry | Specify "Open/Sleeve" junction; check sanitary fittings | | High-Temp Probe | Steam, Boilers, Chemical | 0-135°C, Ceramic junction | Glass fracture risk | Ensure ATC range matches process; verify thermal shock rating | | Specialized Alkali Probe | High pH (>12) Processes | Li-glass membrane, Double junction | Alkaline error | Confirm "Low Alkaline Error" spec; test in 13+ pH buffer | | Portable/Field Probe | Field Sampling, Environmental | Ruggedized, Battery, IP67 | Battery failure | Check battery life (min 500 hrs); include carrying case |

Actionable Recommendation: For high-risk applications (e.g., strong acid/alkali), always purchase a spare electrode immediately upon installation. Do not wait for the primary unit to fail.

7. Frequently Asked Questions (FAQ)

Q1: How many buffers do I need to calibrate my pH electrode? A: You must use at least two buffers that bracket the expected sample pH. For general use, a pH 4.01 and 7.00 pair is standard. For broader ranges, a pH 10.01 buffer is added. Never calibrate with only one buffer.

Q2: What is the typical lifespan of a pH electrode? A: In standard laboratory water applications, a high-quality electrode lasts 12 to 24 months. In harsh environments (slurry, strong acids), lifespan may drop to 3 to 6 months. Regular cleaning and proper storage in storage solution can extend this.

Q3: Why is my pH reading unstable or drifting? A: Common causes include a clogged junction (common in dirty water), a dry reference electrolyte, or a temperature mismatch. Ensure the electrode is stored in the correct solution (usually 3M KCl) and that the ATC is functioning.

Q4: Can I use a standard lab electrode for wastewater? A: Generally, no. Wastewater contains suspended solids that clog standard ceramic junctions. You need an electrode with an open junction or a sleeve design to allow sample flow and prevent clogging.

Q5: What input impedance does my meter need for a pH electrode? A: The meter must have a high input impedance of at least 10¹² Ω (1 TΩ). Lower impedance will cause signal leakage, leading to slow response times and inaccurate readings.

Q6: How often should I recalibrate my pH sensor? A: For critical process control, recalibrate daily or before each batch. For general monitoring, weekly calibration is typical. Always perform a calibration check using a buffer before taking critical measurements.

Q7: What is the difference between single and double junction electrodes? A: A single junction is for clean samples. A double junction has an intermediate chamber filled with a secondary electrolyte, protecting the main reference system from poisoning by proteins, sulfides, or halides found in complex samples like wastewater or biological fluids.

Q8: How do I store my pH electrode when not in use? A: Never store a pH electrode in distilled or deionized water, as this leaches ions from the glass bulb. Store it in the manufacturer-recommended storage solution (typically 3M KCl) or the specific electrolyte solution provided with the probe.
