Procurement Report: Industrial Hydraulic Presses

1. Technical Specifications and Performance Metrics

When procuring industrial hydraulic presses, the primary selection criteria must be tonnage, stroke/daylight, working pressure, and frame architecture. Based on industry standards, the market spans a vast range from 10 to 5,000 tonnes, with the most common mid-size units for general manufacturing falling between 63 and 1,600 tonnes.

• Tonnage Capacity: Select based on the maximum force required for the specific forming or pressing operation.
  • Typical B2B Range: 63–1,600 tonnes (Mid-size); 10–50 tonnes (Light duty); 2,000–5,000 tonnes (Heavy duty).
• Stroke and Daylight: Critical for accommodating tooling and material thickness.
  • Typical B2B Range: Stroke of 50–800 mm; Daylight (open height) of 1,000–2,500 mm.
• System Pressure: Determines the efficiency and power density of the hydraulic system.
  • Typical B2B Range: 160–350 bar.

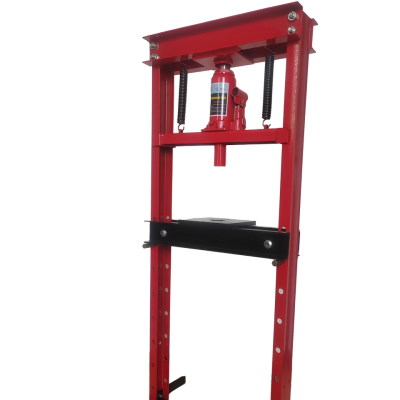

• Frame Type: Choose between C-frame (open front for large parts) or H-frame (rigid, high tonnage) based on accessibility needs.

Actionable Recommendation: Before issuing a Request for Quotation (RFQ), calculate the peak force required for your heaviest material and largest tooling setup. Ensure the selected daylight exceeds the maximum tool height by at least 20% to allow for safe setup and material loading. Do not select a machine based solely on tonnage; verify that the stroke and daylight meet your specific part geometry requirements.

2. Industry Compliance and Quality Assurance

While the provided knowledge base highlights specific certifications for printing control systems (such as G7 Press Control and Hard Proofing System Certification), it is crucial to distinguish these from industrial hydraulic presses. The G7 and Hard Proofing certifications referenced are discontinued for new systems and apply specifically to color management in digital printing presses (electrophotographic and inkjet), validating gray balance and tonality against ISO 15339-2 and GRACoL®/SWOP® specifications.

For industrial hydraulic presses, compliance is generally governed by mechanical safety standards (e.g., ISO 12100 for safety of machinery) and pressure vessel directives, rather than the printing-specific certifications mentioned in the search context.

• Certification Status: G7 and Hard Proofing certifications are archived and no longer available for new system registration.
• Relevant Standards: Procurement should focus on ISO 12647-7 (for color proofing if the press is a hybrid printing machine) or general industrial safety standards (CE, OSHA, ANSI) for mechanical presses.

Actionable Recommendation: If the procurement is for a mechanical forming press, do not expect G7 or Hard Proofing certifications. Instead, verify compliance with local industrial safety regulations and ISO mechanical safety standards. If the "press" in question is a digital printing press, acknowledge that the G7 and Hard Proofing programs are legacy systems; verify if the vendor offers updated color management solutions that align with current ISO 12647-7 requirements for digital devices.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in hydraulic presses is driven by energy consumption, maintenance intervals, and integration with existing automation lines.

• Energy Efficiency: Modern servo-hydraulic systems offer significant savings over traditional constant-speed pumps.
  • Typical B2B Range: Energy savings of 20–40% compared to conventional systems.
• Integration: Look for open communication protocols (e.g., OPC UA, Profinet) to integrate with PLCs and SCADA systems.
• Lifecycle Costs: Consider the cost of seals, hoses, and hydraulic fluid, which typically require replacement every 2–5 years depending on usage intensity.
• Lead Time:
  • Typical B2B Range: 8–16 weeks for standard mid-size units; 20–30 weeks for custom high-tonnage or specialized configurations.

Actionable Recommendation: Prioritize presses with servo-driven hydraulic systems to reduce long-term energy costs, even if the upfront capital expenditure is 10–15% higher. Ensure the control system supports the communication protocols used in your factory's existing automation architecture to minimize integration costs and downtime during installation.

4. Typical Use Cases

Industrial hydraulic presses are versatile and essential across multiple sectors. The specific application dictates the required tonnage and frame type.

• Metal Forming & Stamping: Deep drawing, punching, and bending of sheet metal.
  • Typical Spec: 200–1,000 tonnes, H-frame.
• Powder Metallurgy: Compacting metal or ceramic powders into green parts.
  • Typical Spec: 100–500 tonnes, high precision control.
• Plastic Injection & Molding: Pre-heating or ejecting molds (often auxiliary presses).
  • Typical Spec: 50–300 tonnes.
• Automotive Assembly: Press-fitting bearings, gears, and axles.
  • Typical Spec: 63–250 tonnes, C-frame for accessibility.
• Composite Curing: Pressing carbon fiber or fiberglass components.
  • Typical Spec: 160–800 tonnes, heated platens.

Actionable Recommendation: Define the material type and thickness of the workpiece first. For high-volume stamping, prioritize a press with a high cycle rate and robust frame rigidity. For low-volume, high-mix production, select a press with a programmable stroke and easy tooling changeover features.

5. Long-Term Planning Considerations

The market for industrial presses is shifting towards "Industry 4.0" readiness and sustainability.

• Market Trends: There is a growing demand for presses with integrated IoT sensors for predictive maintenance. Manufacturers are moving away from purely mechanical controls to fully digital, programmable logic controllers (PLCs) with remote monitoring capabilities.
• Demand Signals: The automotive and aerospace sectors are driving demand for high-tonnage (1,000+ t) presses with micron-level precision for lightweighting components.
• Sustainability: Regulations are pushing for lower noise levels and reduced hydraulic fluid leakage.
• Obsolescence Risk: As noted in the context, legacy certification programs (like G7) are being archived. Procurement strategies must anticipate that software support for older control systems may eventually phase out, necessitating upgrades.

Actionable Recommendation: Plan for a 10–15 year lifecycle. Select a press with a modular control architecture that allows for software upgrades. Avoid proprietary, closed-loop control systems that may become unsupported. Factor in the cost of future retrofitting for IoT connectivity and energy efficiency upgrades.

6. Special Product Recommendations

The following table compares different press configurations to assist in selecting the right product based on buyer profile and risk factors.

7. Frequently Asked Questions (FAQ)

Q1: What is the standard tonnage range for a mid-size industrial hydraulic press? A: The typical B2B range for mid-size units is 63 to 1,600 tonnes, suitable for most general manufacturing and automotive applications.

Q2: Are G7 Press Control and Hard Proofing certifications still available for new presses? A: No. According to current industry records, the G7 Press Control System Certification and Hard Proofing System Certification programs have been discontinued for new systems. Archives exist for previously certified systems, but new registrations are not offered.

Q3: What is the typical operating pressure for industrial hydraulic presses? A: Most industrial units operate within a system pressure range of 160 to 350 bar.

Q4: How long is the typical lead time for a custom hydraulic press? A: Lead times typically range from 8 to 16 weeks for standard configurations and 20 to 30 weeks for custom high-tonnage or specialized units.

Q5: What is the difference between C-frame and H-frame presses? A: C-frame presses offer an open front for easier access to large or irregular parts but have lower rigidity. H-frame presses provide superior rigidity and stability for high-tonnage applications but have a more enclosed structure.

Q6: Can a hydraulic press be integrated with existing factory automation? A: Yes, provided the press is equipped with modern control systems supporting standard industrial protocols like OPC UA, Profinet, or Ethernet/IP.

Q7: What are the primary maintenance intervals for hydraulic systems? A: Hydraulic fluid and filter replacements are typically required every 12–24 months, while seals and hoses may need inspection or replacement every 2–5 years depending on usage intensity.

Q8: Is there a specific certification for color accuracy in digital printing presses? A: Historically, the Hard Proofing System Certification validated compliance with ISO 15339-2 (GRACoL/SWOP). However, this program is discontinued. Buyers should now look for compliance with current ISO 12647-7 standards for digital devices.
