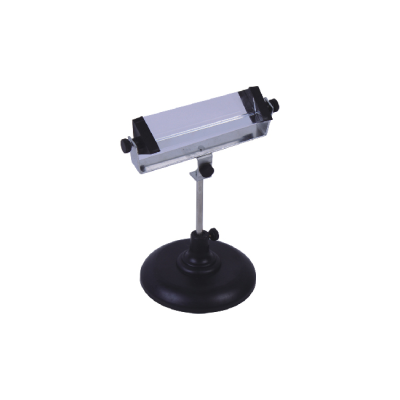

Prisms Procurement Report

Product Category: Optical Components / Precision Optics Procurement Focus: High-precision optical prisms for imaging, beam steering, and laser systems.

1. Technical Specifications and Performance Metrics

When procuring prisms, the primary differentiator is optical precision. The selection process must begin by defining the prism geometry (Right-Angle, Beam-Splitter Cube, Roof/Porro, or IR Prism) before locking in performance parameters.

• Dimensions: Standard right-angle prisms typically range from 3×3×3 mm to 100×100×100 mm. Larger custom apertures are available but significantly increase lead time and cost.
• Angular Tolerance: Critical for beam deviation and image alignment.
  • Standard Grade: 5 to 10 arcminutes.
  • Precision Grade: 1 to 5 arcseconds (essential for interferometry and high-end surveying).
• Surface Quality: Defined by scratch-dig specifications.
  • Commercial: 40-20 or 60-40.
  • High-Precision: 10-5 or 20-10.
• Wavefront Error: For laser applications, wavefront distortion should be < λ/10 (at 632.8 nm) for general use, dropping to < λ/20 for high-coherence laser systems.
• Clear Aperture: Typically > 90% of the physical dimension for standard parts; > 95% for premium optical instruments.
• Coating & Transmission:
  • Uncoated: ~92% transmission per surface (Fresnel loss).
  • Anti-Reflective (AR) Coated: > 99.0% transmission per surface over a specific band (e.g., 400–700 nm or 1064 nm).
  • Reflective Coated: > 98% reflectivity for dielectric mirrors or > 99.5% for enhanced silver/aluminum.

Procurement Recommendation: Do not accept generic "optical grade" without specifying the exact arcsecond tolerance and scratch-dig rating. For laser systems, explicitly request wavefront error data and coating transmission curves for the specific operating wavelength.

2. Industry Compliance and Quality Assurance

Optical components require rigorous quality control to ensure system reliability. While specific named certifications (e.g., ISO 9001) vary by manufacturer, the industry adheres to standardized testing protocols.

• Material Standards: Most prisms are manufactured from BK7 (Borosilicate Crown) or Fused Silica (for UV/IR applications). Material homogeneity should be < 1–5 ppm (parts per million) to prevent beam distortion.
• Testing Protocols:
  • Interferometric Testing: Used to verify surface flatness and angular accuracy.
  • Laser Scattering: Used to quantify surface roughness and subsurface damage.
• Environmental Durability:
  • Thermal Stability: Coatings and substrates should withstand thermal cycling from -40°C to +85°C without delamination or stress birefringence.
  • Hardness: Coatings should meet MIL-C-48497 standards for abrasion resistance where applicable.
• Documentation: Suppliers must provide a Certificate of Conformance (CoC) detailing material batch numbers, measured angular errors, and transmission spectra.

Procurement Recommendation: Require a CoC with traceable batch numbers for every shipment. For critical applications, request a "First Article Inspection" (FAI) report including interferometric maps before full-scale ordering.

3. Cost Efficiency and Integration Capabilities

Cost in the prism market is driven by size, tolerance tightness, and coating complexity.

• Cost Drivers:
  • Tightening angular tolerance from 5 arcminutes to 5 arcseconds can increase unit cost by 300–500%.
  • Custom coatings (e.g., high-damage-threshold dielectric) add 20–40% to the base price.
  • Large apertures (>50mm) increase cost non-linearly due to material waste and grinding time.
• MOQ (Minimum Order Quantity):
  • Standard Stock: 1 unit (often available for immediate shipment).
  • Custom/Coated: 10–50 units to amortize coating setup costs.
• Lead Time:
  • Stock Items: 1–3 business days.
  • Standard Custom: 2–4 weeks.
  • High-Precision/Complex Coating: 6–12 weeks.
• Integration: Prisms are generally "drop-in" replacements for standard optical mounts (e.g., SM1 or SM2 threads, kinematic mounts). However, custom geometries may require bespoke mechanical housing.

Procurement Recommendation: Optimize cost by using stock sizes and standard tolerances (e.g., 5 arcminutes) unless the system design strictly demands higher precision. For custom orders, negotiate a tiered pricing model where the MOQ is reduced if the lead time is extended.

4. Typical Use Cases

Prisms are ubiquitous across photonics, serving distinct functions based on geometry:

• Right-Angle Prisms: Used for 90° beam deviation or 180° retroreflection (in combination with a mirror). Common in laser alignment tools and periscopes.
• Beam-Splitter Cubes: Essential for dual-path interferometry, fluorescence microscopy, and optical sensors where splitting light intensity (e.g., 50/50) is required.
• Roof/Porro Prisms: The standard for binoculars and rangefinders, providing image erection and compact optical paths.
• IR Prisms: Designed for infrared spectroscopy and thermal imaging systems, often using materials like Germanium or Zinc Selenide.
• Wedge Prisms: Used for beam steering and dispersion compensation in laser cavities.

Procurement Recommendation: Match the prism type strictly to the optical function. Do not substitute a right-angle prism for a beam-splitter cube without verifying the internal reflection properties and coating requirements.

5. Long-Term Planning Considerations

The optical component market is shifting towards higher performance and miniaturization.

• Market Trends:
  • Miniaturization: Increased demand for micro-prisms in LiDAR and AR/VR headsets.
  • High-Power Lasers: Growing need for prisms with >10 J/cm² damage thresholds for industrial laser cutting and medical devices.
  • Broadband Coatings: Shift from single-wavelength coatings to broadband AR (400–1000 nm) to support multi-spectral systems.
• Supply Chain Resilience:
  • High-precision glass materials (e.g., Fused Silica) face supply volatility. Diversify suppliers to mitigate risk.
  • Lead times for custom coatings are currently extending; plan procurement cycles 3 months in advance for non-stock items.
• Sustainability: Increasing demand for lead-free glass formulations and eco-friendly coating processes.

Procurement Recommendation: Build a "dual-sourcing" strategy for critical prism types. For R&D projects, lock in long-term pricing agreements with suppliers who can guarantee lead times for custom geometries.

6. Special Product Recommendations

The following table compares common prism types to assist in selecting the right component for specific buyer needs.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between a right-angle prism and a roof prism? A: A right-angle prism reflects light off one internal surface (or two for retroreflection) and is used for beam deviation. A roof prism has a "roof" edge (two surfaces at 90°) that reflects light to erect the image, making it essential for binoculars and rangefinders.

Q2: How do I determine the correct angular tolerance for my application? A: For general alignment, 5–10 arcminutes is sufficient. For high-precision metrology or laser interferometry, you typically require 1–5 arcseconds. Exceeding necessary precision increases cost exponentially.

Q3: Can I use a standard BK7 prism for UV applications? A: No. BK7 has poor transmission below 350 nm. For UV applications, you must specify Fused Silica or UV-grade Quartz, which transmits down to ~180 nm.

Q4: What is the typical lead time for custom-coated prisms? A: Standard stock items ship in 1–3 days. Custom coatings and precision grinding typically require 4–8 weeks, depending on the complexity of the coating stack and the tolerance requirements.

Q5: How is surface quality measured? A: It is measured using the "Scratch-Dig" standard (e.g., 40-20). The first number refers to scratch width, and the second to dig (pitting) size. Lower numbers indicate higher quality.

Q6: Do prisms require special cleaning procedures? A: Yes. Use only lens tissue or microfiber cloths and optical-grade solvents (e.g., Isopropanol). Avoid touching the optical surfaces with bare hands to prevent oil contamination that can degrade coatings.

Q7: What is the impact of temperature on prism performance? A: Thermal expansion can alter the refractive index and physical dimensions, causing beam deviation errors. For high-stability applications, specify low-expansion materials like Fused Silica or ULE Glass.

Q8: How do I verify the coating transmission? A: Request a spectral transmission curve from the supplier. Ensure the peak transmission matches your laser wavelength or system bandpass, and check for the specific coating type (e.g., V-coat, broadband AR).
