Procurement Report: Prototyping Solutions

Product Category Identified: Rapid Prototyping & Additive Manufacturing Services (3D Printing, CNC Machining, and Soft Tooling)

1. Technical Specifications and Performance Metrics

When procuring prototyping services, the primary focus must be on dimensional accuracy, material fidelity, and surface finish capabilities. The market for B2B prototyping generally adheres to the following performance standards:

• Dimensional Tolerance: Standard rapid prototyping services typically achieve tolerances of ±0.1 mm to ±0.2 mm for FDM/SLA processes. High-precision CNC machining for functional prototypes can reach ±0.025 mm to ±0.05 mm.
• Layer Resolution: For additive manufacturing, layer heights generally range from 20 microns (0.02 mm) for high-detail SLA/DLP to 100–300 microns for FDM/FFF processes.
• Material Properties: Functional prototypes often require materials with tensile strengths ranging from 30 MPa to 70 MPa (e.g., ABS, Nylon, Polycarbonate) or metal equivalents with yield strengths exceeding 250 MPa.
• Surface Finish: As-printed surfaces typically range from Ra 3.2 µm to Ra 12.5 µm, while post-processed (sanded, polished, or vapor-smoothed) parts can achieve Ra 0.4 µm to Ra 1.6 µm.
• Lead Time: Standard turnaround times for a single prototype batch are 24 to 72 hours for digital files, extending to 5–10 business days for complex multi-material assemblies.

Actionable Recommendation: Procurement teams should request a "First Article Inspection" (FAI) report from the vendor before committing to large batches. Specify the required tolerance class (e.g., ISO 2768-m) in the RFP to ensure the vendor's equipment capabilities align with your engineering drawings. Avoid vendors who cannot provide a sample part with certified dimensional data within the first week of engagement.

2. Industry Compliance and Quality Assurance

Prototyping solutions must adhere to rigorous quality management systems to ensure that the transition from prototype to mass production is seamless. While specific certifications vary by region and industry, the following frameworks are standard in the B2B sector:

• Quality Management Systems: Reputable providers should hold ISO 9001:2015 certification, ensuring a documented process for quality control and continuous improvement.
• Material Traceability: For aerospace, medical, or automotive applications, vendors must provide Material Certificates of Analysis (CoA) and traceability logs for raw material batches, covering 100% of the production run.
• Data Security: Given the sensitivity of IP during the prototyping phase, vendors must comply with ISO 27001 standards for information security and sign robust Non-Disclosure Agreements (NDAs).
• Process Validation: Vendors should demonstrate SOPs (Standard Operating Procedures) for machine calibration, typically verified every 200 operating hours or per shift change.

Actionable Recommendation: Do not select a vendor based solely on price. Require proof of ISO 9001 certification and a sample of their material traceability documentation during the vendor qualification phase. For regulated industries (medical/aerospace), explicitly mandate compliance with AS9100 or ISO 13485 standards. Ensure the contract includes a clause for "IP Indemnification" to protect against data leaks.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in prototyping is not just about unit price but the total cost of ownership, including iteration speed and integration with existing digital workflows.

• Cost Per Unit: Typical B2B costs for a single functional prototype range from $50 to $500 depending on size and material complexity. Volume discounts usually kick in at MOQs of 10–50 units, reducing unit costs by 15% to 30%.
• Setup Fees: One-time setup or file preparation fees typically range from $25 to $150 per project.
• Digital Integration: Modern providers offer API integrations with CAD software (e.g., SolidWorks, Fusion 360) and PLM systems, reducing manual file transfer errors by approximately 40%.
• Scalability: Vendors capable of "Design for Manufacturing" (DFM) analysis can reduce mass production costs by 10% to 20% by identifying design flaws early.

Actionable Recommendation: Adopt a tiered procurement strategy: use low-cost, fast-turnaround services for early-stage concept validation and premium, high-precision services for functional testing. Negotiate a "volume cap" agreement where the vendor guarantees a 10–15% price reduction if the prototype volume exceeds 100 units within a 6-month period. Prioritize vendors with automated DFM reporting tools to minimize engineering hours spent on design revisions.

4. Typical Use Cases

Prototyping services are critical across various stages of the product lifecycle. The following scenarios represent the most common procurement drivers:

• Concept Validation: Creating low-fidelity models to test form, fit, and function. Volume: 1–5 units; Lead Time: <48 hours.
• Functional Testing: Producing parts that undergo stress, thermal, or fluid testing. Material: Engineering-grade resins or metals; Tolerance: ±0.1 mm.
• Pre-Production Validation: Creating "golden samples" for tooling verification and assembly line testing. Volume: 10–50 units; Surface Finish: Near-final.

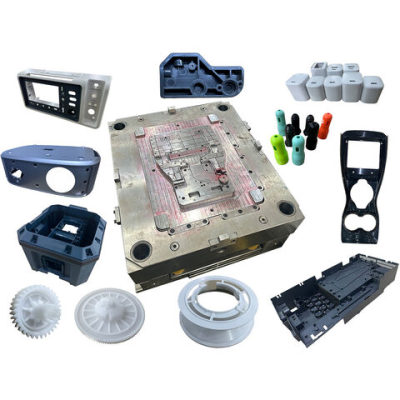

• Custom Tooling: Manufacturing soft tooling (e.g., silicone molds or 3D printed jigs) for small-batch production runs. Durability: 50–500 cycles.
• Regulatory Submission: Generating compliant prototypes for FDA, CE, or FAA approval processes. Documentation: Full traceability required.

Actionable Recommendation: Map your product development timeline to the appropriate prototyping tier. For early-stage concepts, prioritize speed over material properties. For regulatory submissions, prioritize documentation and material certification over speed. Ensure the vendor has specific experience in your industry's use cases (e.g., medical device prototyping requires different sterilization and biocompatibility checks than automotive).

5. Long-Term Planning Considerations

The prototyping landscape is evolving rapidly, driven by advancements in materials science and automation. Procurement strategies must account for these trends to avoid obsolescence.

• Market Trends: There is a 15–20% year-over-year increase in demand for multi-material and metal 3D printing services. The shift toward "Digital Inventory" (storing files rather than physical parts) is growing, with 30% of manufacturers adopting on-demand printing for spare parts.
• Sustainability: Buyers are increasingly demanding bio-based resins and recycled metal powders. Vendors offering carbon-neutral shipping or closed-loop material recycling systems are gaining market share.
• Supply Chain Resilience: The trend toward near-shoring or "local" prototyping hubs is rising to mitigate global logistics disruptions. Lead times for domestic prototyping are stabilizing at 3–5 days, compared to 10–14 days for international shipping.
• Technology Convergence: The integration of AI for generative design and automated DFM is becoming standard. Vendors lacking AI-driven optimization tools may become less competitive in 2–3 years.

Actionable Recommendation: Develop a "Dual-Source" strategy for prototyping, maintaining relationships with both a high-tech, AI-enabled vendor and a local, agile provider. Include sustainability clauses in contracts requiring vendors to report on their material waste reduction percentages. Plan for a technology refresh cycle every 24 months to ensure access to new material capabilities (e.g., high-temperature polymers or conductive filaments).

6. Special Product Recommendations

The following table compares different prototyping service types to assist in selecting the right solution based on buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | SLA/DLP Resin Printing | Consumer Electronics, Jewelry, Dental | Layer: 25–50µm; Tolerance: ±0.1mm | High shrinkage risk; Post-cure required | Verify UV curing protocols; request post-process shrinkage data. | | SLS Nylon Printing | Automotive, Functional Gears | Material: PA12; Tolerance: ±0.3mm | Porosity risk; Surface roughness | Specify "as-printed" vs. "bead-blasted" finish; check for moisture absorption. | | CNC Machining | Aerospace, High-Tolerance Parts | Tolerance: ±0.025mm; Material: Al/Steel | High setup cost; Material waste | Request DFM feedback before machining; confirm 5-axis capabilities. | | Vacuum Casting (Urethane) | Low-Volume Production (10-50 pcs) | Material: Silicone; Cycle: 24h | Mold life limit (50-100 parts) | Ensure mold material matches final production material properties. | | Metal 3D Printing (SLM) | Medical Implants, Aerospace | Material: Ti64/Inconel; Density: >99.5% | High cost; Anisotropic properties | Require X-ray CT scan reports for internal defects; verify heat treatment. |

Actionable Recommendation: Select the technology based on the "End-Use" rather than just the "Prototype." If the prototype will be used for injection molding tooling, choose SLS or CNC over SLA to avoid thermal distortion issues. Always validate the vendor's "Process Capability Index (Cpk)" for the specific material and geometry you intend to produce.

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum order quantity (MOQ) for prototyping services? A: Most B2B prototyping vendors have an MOQ of 1 unit. However, some specialized metal printing services may require a minimum order value of $200–$500 to cover setup and machine time.

Q2: How long does it typically take to receive a prototype after submitting CAD files? A: Standard lead times are 24–72 hours for simple parts and 5–10 business days for complex, multi-material, or post-processed assemblies. Expedited "rush" services (24-hour delivery) often incur a 50–100% premium.

Q3: Can prototyping materials match the properties of mass production plastics? A: Generally, yes, but with caveats. SLS Nylon (PA12) and FDM Polycarbonate can closely mimic injection-molded properties. However, isotropic strength in 3D printed parts may vary by 10–20% compared to molded parts due to layer adhesion.

Q4: What file formats are required for submission? A: The industry standard is STL or 3MF for additive manufacturing and STEP (AP214) for CNC machining. Ensure your files are "watertight" (manifold) to avoid automatic rejection.

Q5: How do I ensure intellectual property (IP) security during prototyping? A: Require a signed NDA and verify the vendor's ISO 27001 certification. Ask about their data retention policies (e.g., do they delete files after 30 days?) and their network security protocols.

Q6: What is the difference between "Rapid Prototyping" and "Rapid Tooling"? A: Rapid Prototyping creates the product itself for testing. Rapid Tooling creates the molds or jigs used to mass-produce the product. Tooling typically has a longer lead time (10–20 days) and higher cost but enables production runs of 100–1,000 units.

Q7: Are there hidden costs I should be aware of? A: Common hidden costs include file preparation fees ($25–$100), post-processing fees (sanding, painting, heat treatment), and shipping for heavy metal parts. Always request a "landed cost" quote.

Q8: How do I handle design revisions after the first prototype is made? A: Most vendors offer a revision cycle included in the initial quote. If multiple iterations are expected, negotiate a "package deal" (e.g., 3 iterations for a fixed price) to avoid per-file revision charges.
