Procurement Report: Industrial and IT Rack Systems

1. Technical Specifications and Performance Metrics

When procuring rack systems, the primary technical differentiator is the load capacity relative to the physical footprint. Procurement decisions must be grounded in the specific requirements of the stored or housed assets.

• Load Capacity:
  • Warehouse Stacking Racks: Typical capacity ranges from 500 kg to 6,000 kg per beam pair.

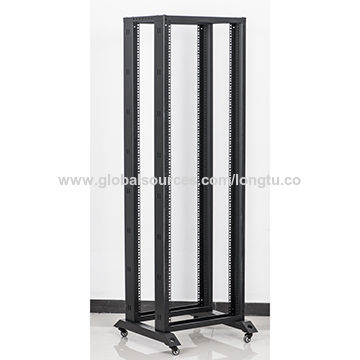

  • IT/Server Racks: Static load capacities typically range from 600 kg (1,360 lbs) to 1,360 kg (3,000 lbs) depending on the model (e.g., SmartCloset vs. standard open rack).
• Dimensions:
  • Bay Width: Standard ranges from 600 mm to 800 mm for IT equipment; warehouse bays typically span 800 mm to 3,400 mm.
  • Depth: IT racks generally require 1,100 mm to 1,200 mm to accommodate deep servers and cooling units. Warehouse depths vary from 300 mm to 1,500 mm.
  • Height: Warehouse systems can reach heights of 1.5 m to 18 m. IT rack units (U) typically range from 40U to 48U (approx. 2,000 mm to 2,200 mm).
• Performance Metrics:
  • Cooling Capacity: For split rack cooling systems, performance is rated at 3,500W for 6U units. Modular data center solutions (SmartMod) offer scalable cooling from 40kW to 80kW.
  • Power Integration: Integrated Power Distribution Units (PDUs) are available with ratings from 3,000VA to 5,000VA.

Procurement Recommendation: Define the maximum load per level and the specific bay dimensions (width/depth/height) before requesting quotes. For high-density IT deployments, prioritize racks with a static load rating of at least 1,360 lbs and a depth of 1,100 mm or greater to prevent overhang issues.

2. Industry Compliance and Quality Assurance

Ensuring compliance is critical for safety, insurance, and regulatory adherence, particularly in data centers and industrial warehouses.

• Certifications:
  • Electrical & Safety: Look for EIA 310E (standard for rack mounting), UL2416 (rack safety), UL, and CSA certifications.
  • Environmental: RoHS and REACH compliance are standard for electronic equipment racks to ensure restricted hazardous substances are not used.
  • Trade Compliance: TAA (Trade Agreements Act) compliance is essential for government contracts in the US.
• Warranty Standards:
  • Standard warranties for rack structures typically range from 3 to 5 years.
  • Cooling and specialized components often carry a 2-year limited warranty.
• Durability:
  • Steel finishes should be specified to prevent corrosion in warehouse environments.
  • Structural integrity must be verified against static load tests (e.g., 1,360 lbs for SmartCloset models).

Procurement Recommendation: Require proof of UL2416 and EIA 310E certification for all IT rack purchases. For government or regulated industry projects, explicitly mandate TAA and RoHS compliance in the purchase order. Verify that the warranty period matches the operational lifecycle expectations (aiming for the 3–5 year standard).

3. Cost Efficiency and Integration Capabilities

Cost efficiency in rack procurement extends beyond the unit price to include integration costs, power management, and scalability.

• Integration:
  • Modular Systems: Solutions like SmartMod allow for scalability from 4,692 mm to 12,192 mm in length, reducing the need for immediate large-scale capital expenditure.
  • Power: Integrated PDUs reduce cabling costs and installation time.
  • Cooling: Split rack cooling units (e.g., 6U, 442mm width) allow for targeted cooling without retrofitting entire rooms.
• Weight and Logistics:
  • Unit weights vary significantly; for example, a 40U SmartCloset weighs between 159 lbs and 204 lbs, impacting shipping and handling costs.
  • Heavy-duty warehouse racks require specialized forklifts for installation, affecting labor costs.

Procurement Recommendation: Evaluate the Total Cost of Ownership (TCO) by selecting systems with integrated power and cooling to reduce installation labor. For growing data centers, opt for modular rack systems (SmartMod) that allow incremental expansion rather than purchasing a fixed large-scale solution immediately.

4. Typical Use Cases

• High-Density Data Centers: Utilizing 42U to 48U racks with 1,100 mm depth for servers, switches, and storage arrays. Requires 3,000 lbs static load capacity and integrated cooling.
• Warehouse Storage: Heavy-duty pallet racking with capacities up to 6,000 kg per beam pair and heights up to 18 m.
• Edge Computing: Compact 40U SmartCloset units for remote sites, offering 3,000VA power and 1,360 lbs load capacity in a self-contained enclosure.
• Telecommunications: Split rack cooling systems (6U) for specific equipment racks requiring 3,500W cooling capacity.

Procurement Recommendation: Match the rack type strictly to the environment. Do not use standard IT racks for heavy warehouse storage; conversely, do not use warehouse racking for sensitive IT equipment without proper environmental controls. For edge sites, prioritize all-in-one solutions (SmartCloset) to minimize on-site engineering.

5. Long-Term Planning Considerations

• Market Trends:
  • There is a rising demand for modular data center solutions that allow for rapid scaling (e.g., SmartMod configurations up to 14 racks).
  • Energy efficiency is a primary driver, pushing demand for integrated cooling and power management systems.
• Scalability:
  • Ensure the chosen rack system supports future height extensions (up to 18 m for warehouses) or width expansion (up to 12,192 mm for modular IT).
  • Plan for power density increases; current standard PDUs range from 3,000VA to 5,000VA, but future hardware may require higher densities.
• Lifecycle Management:
  • With warranties ranging from 2 to 5 years, plan for a replacement or major refurbishment cycle around the 5-year mark.

Procurement Recommendation: Adopt a "future-proofing" strategy by selecting rack systems with modular expansion capabilities. Avoid proprietary locking mechanisms that prevent third-party integration. Monitor the shift toward higher power density (kW per rack) and ensure the cooling infrastructure can scale from 40kW to 80kW as needed.

6. Special Product Recommendations

The following table compares key product categories based on buyer needs, specifications, and procurement risks.

7. Frequently Asked Questions (FAQ)

Q1: What is the maximum height I can achieve with warehouse stacking racks? A: Warehouse stacking racks can typically be configured up to 18 meters in height, depending on the specific load requirements and structural design.

Q2: Do IT racks come with integrated power distribution? A: Yes, many modern IT rack systems (such as the Vertiv VR and SmartCloset lines) are available to ship with integrated PDUs, with power ratings ranging from 3,000VA to 5,000VA.

Q3: What certifications should I look for in a server rack? A: Essential certifications include EIA 310E for mounting standards, UL2416 for safety, and RoHS/REACH for environmental compliance. Government projects often require TAA compliance.

Q4: How much weight can a standard 42U rack support? A: While capacities vary, high-end IT racks like the Vertiv VR support up to 3,000 lbs (approx. 1,360 kg) static load. Standard warehouse racks can support 500–6,000 kg per beam pair.

Q5: What is the typical warranty period for rack systems? A: Standard warranties for rack structures are typically 3 years, with some models offering up to 5 years. Cooling components often carry a 2-year warranty.

Q6: Can I scale my data center rack system later? A: Yes, modular solutions like the SmartMod allow for expansion from 4,692 mm to 12,192 mm in length, supporting up to 14 racks with cooling capacities up to 80kW.

Q7: What depth is required for deep servers? A: For deep servers and networking gear, a rack depth of 1,100 mm to 1,200 mm is standard. Shallow racks (e.g., 602mm) are generally insufficient for high-density server deployments.

Q8: Is the split rack cooling system compatible with standard 19-inch racks? A: The split rack cooling units (e.g., 6U, 442mm width) are designed to fit specific rack configurations. Verify that your rack width accommodates the 442 mm cooling unit width.
