Procurement Report: Radiation Detection Systems

1. Technical Specifications and Performance Metrics

When procuring radiation detection systems, the primary technical decision hinges on the specific radiation type (gamma, alpha, beta, neutron) and the required energy resolution. The selection must align with the operational environment, ranging from general field surveys to laboratory-grade analysis.

• Detector Technologies & Performance Ranges:

  • NaI(Tl) Scintillators: Best for general gamma field surveys.
    • Energy Range: 20–3000 keV.
    • Resolution: 6–8% FWHM at 662 keV.
    • Typical B2B Range: Cost-effective for high-sensitivity dose rate monitoring where spectral identification is secondary.
  • CZT/CdTe Semiconductors: Ideal for portable spectroscopy requiring high resolution without cryogenics.
    • Energy Range: 20–2000 keV.
    • Resolution: 2–4% at 662 keV.
    • Durability: Robust for field use; typically rated for IP65+ ingress protection in ruggedized housings.
  • HPGe (High-Purity Germanium): The standard for lab-grade gamma analysis.
    • Energy Range: 3–3000+ keV.
    • Resolution: 1.6–2.0 keV at 1.33 MeV.
    • Constraint: Requires liquid nitrogen or mechanical cooling; not suitable for unattended outdoor deployment without specialized housing.

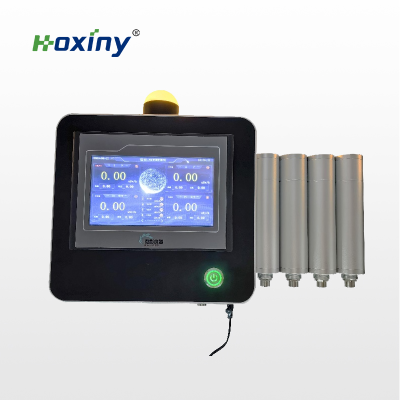

  • Gas-Filled Detectors: Specialized for dose-rate monitoring and contamination checks.
    • Response: Linear over a wide dynamic range; typically used for real-time alarm thresholds.

• Actionable Recommendation:

  • Define the target radiation and energy range before selecting a vendor. If spectral identification of isotopes is required in a portable format, prioritize CZT/CdTe. If the goal is simple dose-rate monitoring in a high-flux environment, NaI(Tl) or gas-filled detectors offer the best cost-to-performance ratio.

2. Industry Compliance and Quality Assurance

Procurement of radiation detection equipment is heavily regulated to ensure safety and data reliability. Compliance is not optional but a prerequisite for operational legality.

• Regulatory Frameworks:

  • Class II Prescribed Equipment: In many jurisdictions, radiation devices fall under Class II medical or industrial equipment classifications, requiring specific certification forms and submission processes.
  • Calibration Standards: Instruments must adhere to calibration protocols covering nuclear safety, transport safety, and waste safety. Calibration intervals typically range from 12 to 24 months depending on usage intensity.
  • Safety Standards: Devices must meet IEC 61010 (Safety requirements for electrical equipment) and specific radiation protection standards (e.g., ISO 4037 for calibration of X-ray and gamma-ray reference radiation).

• Actionable Recommendation:

  • Verify that the supplier provides a valid Calibration Certificate traceable to a national standards body (e.g., NIST, PTB) with every unit.
  • Ensure the procurement contract includes a clause for post-delivery certification to confirm the device meets local "Class II" or equivalent regulatory requirements before deployment.
  • Request documentation on the device's Environmental Compliance (RoHS, REACH) to ensure the materials used in the detector housing and electronics meet international standards.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) extends beyond the unit price, encompassing maintenance, cooling requirements, and integration with existing data systems.

• Cost Structure (Typical B2B Ranges):

  • Entry-Level (NaI/Gas): $2,000 – $8,000 per unit.
  • Mid-Range (CZT/CdTe): $10,000 – $25,000 per unit.
  • High-End (HPGe with Cooling): $30,000 – $60,000+ per unit.
  • MOQ & Lead Time: Minimum Order Quantities (MOQ) are often 1 unit for custom configurations, but bulk orders (10+) may reduce lead times from 12–16 weeks to 6–8 weeks.
  • Operational Costs: HPGe systems incur recurring costs for cryogens (LN2) or electricity for cooling (approx. $500–$1,500/year depending on duty cycle).

• Integration Capabilities:

  • Connectivity: Modern units support Wi-Fi, 4G/5G, and Bluetooth for real-time telemetry.
  • Drone Integration: For aerial surveys, systems must be lightweight (<2kg payload) and compatible with drone flight controllers via UART/SPI/RS-232 interfaces.
  • Data Protocols: Look for support in JSON, XML, or MQTT for seamless integration with GIS and SCADA systems.

• Actionable Recommendation:

  • Prioritize CZT/CdTe for mobile or drone applications to eliminate the logistical burden of cryogenics while maintaining high resolution.
  • Negotiate a Service Level Agreement (SLA) that includes annual calibration and software updates to mitigate long-term operational costs.
  • Verify API documentation availability before purchase to ensure the device can be integrated into your existing data dashboard without custom engineering.

4. Typical Use Cases

The application scenario dictates the optimal hardware configuration.

• Environmental & Site Survey:

  • Scenario: Mapping contamination levels in soil or water.
  • Requirement: High sensitivity (NaI) or portable spectroscopy (CZT) for isotope identification.

• Emergency Response & Security:

  • Scenario: Border control, port security, or nuclear accident response.
  • Requirement: Ruggedized, instant alarm thresholds, and dose-rate monitoring (Gas-filled or NaI).

• Aerial Monitoring (Drone-Based):

  • Scenario: Large-scale area scanning (e.g., Fukushima exclusion zones, mining sites).
  • Requirement: Lightweight, low power consumption, and GPS-synced data logging.

• Laboratory Analysis:

  • Scenario: Precise isotopic composition analysis of samples.
  • Requirement: Maximum resolution (HPGe) and controlled temperature environments.

• Actionable Recommendation:

  • For drone deployment, explicitly request a "flight-ready" package with vibration damping and weight-optimized cabling.
  • For emergency response, prioritize devices with hardened casings (IP67) and audible/visual alarms that function independently of network connectivity.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and the evolving landscape of radiation safety.

• Market Trends & Demand Signals:

  • Miniaturization: There is a growing demand for handheld and drone-integrated spectrometers, shifting focus from heavy lab equipment to portable field units.
  • IoT & AI: Integration of edge computing for real-time isotope recognition using AI algorithms is becoming a standard differentiator.
  • Regulatory Tightening: Increased scrutiny on Class II prescribed equipment suggests a need for more robust compliance documentation in future procurement cycles.
  • Sustainability: Shift towards mechanical cooling (Stirling coolers) over liquid nitrogen for HPGe systems to reduce operational waste and cost.

• Actionable Recommendation:

  • Select vendors who offer firmware upgrade paths to ensure the device remains compatible with new AI-based analysis tools.
  • Plan for a 5-year lifecycle where the initial hardware purchase is complemented by a budget for re-calibration and software licensing.
  • Consider modular systems that allow the detector head to be swapped (e.g., from NaI to CZT) as mission requirements evolve, rather than replacing the entire unit.

6. Special Product Recommendations

The following table compares the primary detector technologies to assist in selecting the right product based on buyer profile and risk factors.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | NaI(Tl) Scintillator | General field surveyors, environmental agencies | 20–3000 keV, 6–8% FWHM, High Sensitivity | Moderate (Temperature sensitivity) | Best for budget-conscious bulk buys; verify temperature compensation features. | | CZT/CdTe Semiconductor | Mobile teams, drone operators, emergency responders | 20–2000 keV, 2–4% FWHM, Room Temp | Low (Solid state, robust) | Recommended for portable use; check battery life vs. duty cycle. | | HPGe Detector | National labs, forensic analysis, high-precision QA | 3–3000+ keV, 1.6–2.0 keV @ 1.33 MeV | High (Cooling complexity, fragility) | Only procure if dedicated lab space and cooling infrastructure exist. | | Gas-Filled Monitor | Safety officers, dose-rate monitoring, portal monitors | Wide Dynamic Range, Instant Alarm | Low (Simple, durable) | Ideal for alarm thresholds; not suitable for isotope identification. |

• Actionable Recommendation:
  • For drone integration, the CZT/CdTe option is the clear winner due to its balance of resolution and lack of cooling requirements.
  • For high-volume screening where specific isotope ID is not needed, Gas-Filled or NaI units offer the fastest ROI.

7. Frequently Asked Questions (FAQ)

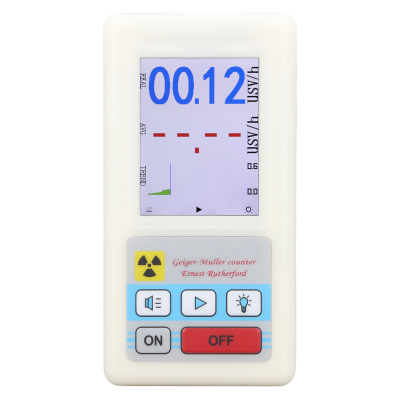

Q1: What is the difference between a survey meter and a spectrometer? A: A survey meter (often gas-filled or NaI) measures the total radiation dose rate (e.g., µSv/h) and triggers alarms. A spectrometer (CZT, HPGe) identifies specific radioactive isotopes by analyzing the energy spectrum of the gamma rays.

Q2: Do I need liquid nitrogen for all high-resolution detectors? A: No. Only HPGe detectors typically require cryogenic cooling (liquid nitrogen or mechanical coolers). CZT and CdTe detectors operate at room temperature and provide high resolution without cryogens.

Q3: How often should radiation detection equipment be calibrated? A: Industry standards typically recommend calibration every 12 to 24 months, or immediately after any impact, repair, or if the device is suspected of being exposed to extreme conditions.

Q4: Can these detectors be mounted on drones? A: Yes, provided the detector is lightweight (typically <2kg) and has a low power profile. CZT/CdTe units are the preferred choice for drone integration due to their compact size and lack of cooling requirements.

Q5: What certifications are required for purchasing radiation devices? A: In many regions, radiation devices are classified as Class II Prescribed Equipment. Procurement requires verification of certification forms and compliance with national safety standards (e.g., IEC 61010).

Q6: What is the typical lead time for custom radiation detection systems? A: Standard off-the-shelf units may ship in 2–4 weeks. Custom configurations, especially those involving specialized mounting or integration, typically have a lead time of 8–16 weeks.

Q7: How do I ensure data integrity when using multiple detectors? A: Ensure all units support a common data protocol (e.g., MQTT, JSON) and are synchronized via GPS time. Regular cross-calibration against a known source is recommended to maintain data consistency across the fleet.

Q8: Are there specific safety risks associated with HPGe detectors? A: Yes, besides the fragility of the crystal, the primary risk is the handling of liquid nitrogen (cryogenic burns) or the mechanical failure of Stirling coolers. Proper training and safety protocols are mandatory for HPGe deployment.
