Procurement Report: Railing Systems

1. Technical Specifications and Performance Metrics

The core of a successful railing procurement strategy lies in adhering to precise dimensional and load-bearing specifications. Based on industry standards for both residential and commercial applications, the following parameters define a compliant and safe system:

• Handrail Profile Dimensions: The optimal handrail diameter or width should fall within the 38–50 mm range. This dimension ensures a secure grip for users while maintaining structural integrity.
• System Height: To meet safety codes and accessibility standards, the vertical height of the railing system must be maintained between 900–1100 mm from the walking surface.
• Post Spacing: Structural posts should be spaced at intervals of 900–1200 mm. This spacing balances material efficiency with the necessary rigidity to prevent excessive deflection under load.
• Load Requirements: Procurement specifications must verify that the system can withstand:
  • Uniformly distributed load: 0.73–0.74 kN/m.
  • Concentrated load: 0.89 kN applied at any point on the handrail.

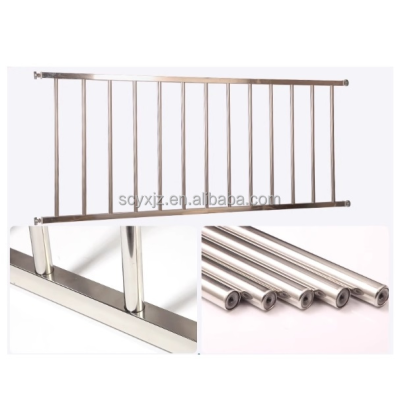

• Material Selection: For exposed environments, coastal areas, or high-humidity zones, 316/316L stainless steel is the mandatory material choice due to its superior corrosion resistance compared to standard 304 grades. For interior or dry environments, carbon steel or aluminum may be considered based on budget.

Actionable Recommendation: When drafting Requests for Quotation (RFQs), explicitly state the 38–50 mm handrail profile and 900–1100 mm height as non-negotiable minimums. Require suppliers to provide third-party test reports confirming compliance with the 0.89 kN concentrated load requirement before finalizing orders.

2. Industry Compliance and Quality Assurance

Compliance is not merely a regulatory hurdle but a critical risk mitigation factor. Railing systems must align with a suite of international and local standards to ensure legal operability and user safety.

• Certification Standards: Look for systems that exceed ICC-ES (International Code Council Evaluation Service) requirements. Specific certifications such as ESR-4813 (for aluminum systems) and ADA (Americans with Disabilities Act) compliance are essential for commercial projects to ensure accessibility.
• Testing Protocols: Vendors should demonstrate proven load, wind, and corrosion testing capabilities. Systems must be verified against ASTM standards for structural strength and material composition.
• Material Grades: Verify that stainless steel components are explicitly labeled as 316 or 316L for coastal applications. Carbon steel systems must have galvanization or coating processes that meet ASTM corrosion resistance benchmarks.
• Type Classification: Ensure the system meets Type II classifications where applicable, which often denote specific structural performance levels for commercial use.

Actionable Recommendation: Demand a "Certificate of Compliance" or "Test Report" from the supplier for every batch of railing components. Do not accept verbal assurances regarding ADA or ICC-ES compliance; require physical documentation referencing specific standard numbers (e.g., ESR-4813) to avoid liability issues during building inspections.

3. Cost Efficiency and Integration Capabilities

Balancing upfront costs with long-term value is essential for B2B procurement. The market offers a spectrum of materials, from carbon steel to stainless steel and aluminum, each with distinct cost and integration profiles.

• Material Cost vs. Durability: While carbon steel offers a lower initial cost, stainless steel (316/316L) provides a higher Total Cost of Ownership (TCO) reduction in corrosive environments by eliminating frequent repainting or replacement.

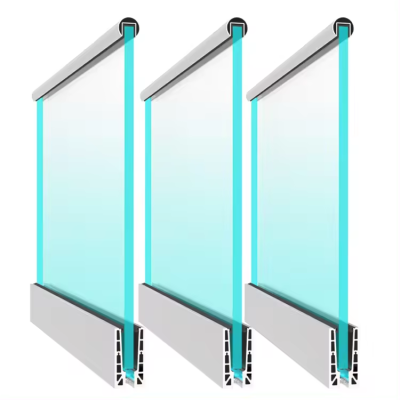

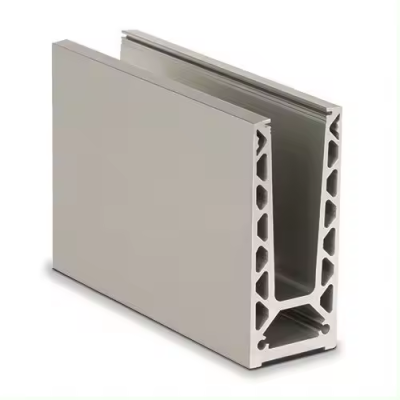

• Integration: Modern railing systems, such as those with sleek solid connections (e.g., top rail designs), are designed for seamless integration with various architectural styles, including glass balustrades.
• MOQ and Lead Time: Typical B2B ranges for railing systems suggest a Minimum Order Quantity (MOQ) of 50–100 linear meters for custom profiles. Lead times typically range from 4 to 8 weeks for standard configurations, extending to 12+ weeks for custom finishes or coastal-grade 316L steel.
• Installation Efficiency: Systems designed with pre-drilled holes and standardized post spacing (900–1200 mm) reduce on-site labor costs by approximately 15–20% compared to custom-fabricated field-welded systems.

Actionable Recommendation: Conduct a lifecycle cost analysis rather than a simple price-per-meter comparison. For projects in coastal zones, prioritize the 316L grade despite the higher unit cost, as the savings on maintenance over a 10-year period will outweigh the initial premium. Negotiate for volume discounts on the 900–1200 mm post spacing components to optimize material usage.

4. Typical Use Cases

Railing systems are versatile but require specific configurations based on the application environment:

• Coastal and Marine Environments: High-salinity areas require 316/316L stainless steel railings with 900–1100 mm heights to prevent rapid corrosion. These are common in boardwalks, harbors, and seaside hotels.

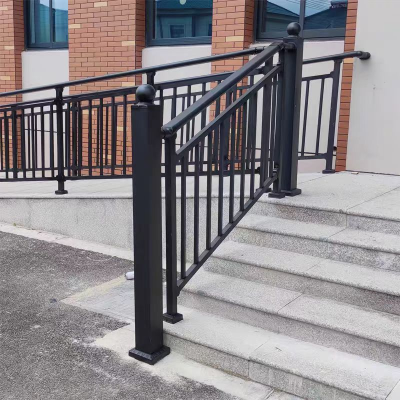

• Commercial Public Spaces: Stairwells, balconies, and mezzanines in offices or retail centers require ADA-compliant systems with Type II certification. These areas demand high traffic durability and strict adherence to the 0.89 kN concentrated load.

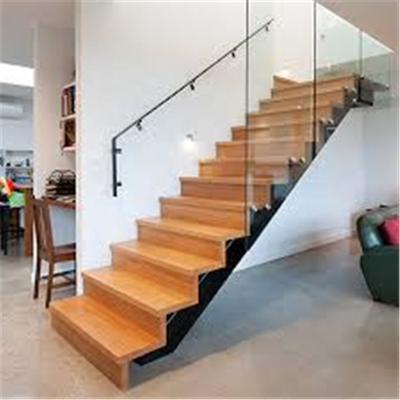

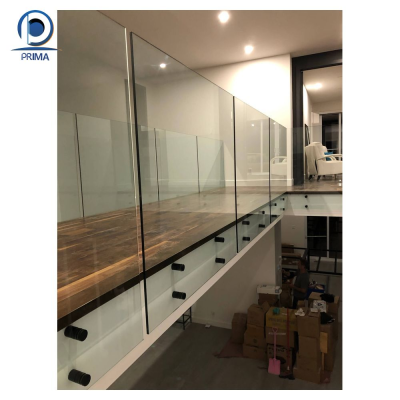

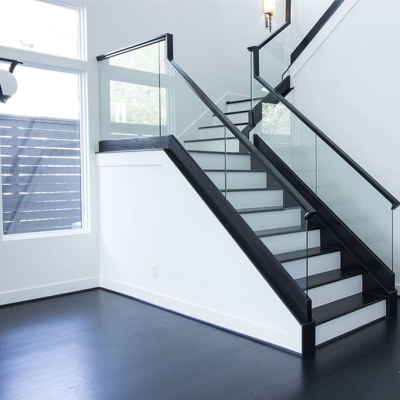

• Residential Balconies and Decks: Homeowners often opt for glass railing systems with stainless steel handrails for aesthetic appeal. These must still meet the 38–50 mm grip profile and 900–1100 mm height codes.

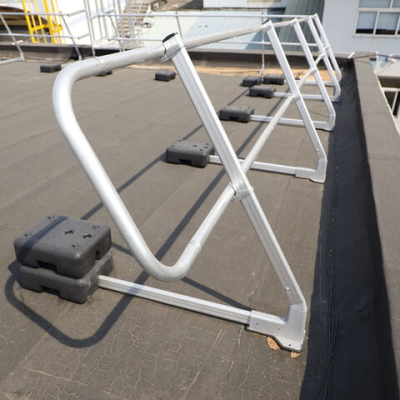

• Industrial Facilities: Carbon steel safety railings are frequently used in factories and warehouses where cost-efficiency is paramount and the environment is controlled (non-corrosive).

Actionable Recommendation: Map the project site's environmental exposure immediately. If the site is within 1 km of the coast or has high humidity, mandate 316L steel in the procurement spec. For high-traffic commercial areas, prioritize systems with ICC-ES certification to ensure rapid permitting.

5. Long-Term Planning Considerations

Procurement decisions should account for future market trends and the longevity of the asset.

• Market Trends: There is a growing demand for "frameless" and "minimalist" designs that maximize visibility, particularly in residential and luxury commercial sectors. Aluminum railing systems with sleek top rails are gaining traction for their low maintenance and modern aesthetic.
• Demand Signals: The shift toward sustainable building practices is increasing the demand for recyclable materials like aluminum and stainless steel. Buyers should anticipate stricter local regulations regarding corrosion resistance in coastal zones.
• Durability Planning: A railing system should be planned for a service life of 20–30 years. This requires selecting materials that do not require frequent repainting (e.g., choosing 316L over painted carbon steel for wet environments).
• Supply Chain Resilience: Given the volatility in steel prices, consider locking in long-term supply agreements for 316/316L stainless steel components to mitigate price fluctuations.

Actionable Recommendation: Incorporate a "Future-Proofing" clause in contracts that allows for the replacement of handrail profiles with updated designs without changing the post infrastructure. Prioritize suppliers who offer 10+ year warranties on corrosion resistance to align with long-term asset management goals.

6. Special Product Recommendations

The following table compares common railing system types to assist in selecting the right product for specific buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | 316L Stainless Steel | Coastal/High-Humidity Projects | 38–50 mm profile, 900–1100 mm height, 0.89 kN load | Verify mill certs for 316L grade | Prioritize for salt-exposed sites; higher upfront cost but lower TCO. | | ADA-Compliant Aluminum | Commercial/Public Buildings | ICC-ES Certified (e.g., ESR-4813), Type II, 900–1200 mm spacing | Check for "Type II" structural rating | Ideal for accessibility mandates; ensure solid connection points. | | Carbon Steel (Galvanized) | Industrial/Interior Budget Projects | ASTM Strength Ratings, Cost-effective | Verify coating thickness for rust prevention | Use only in dry, controlled environments; avoid for exterior coastal use. | | Glass Railing w/ Steel Handrail | Residential/Luxury Commercial | Frameless glass, 38–50 mm handrail, 900–1100 mm height | Verify glass tempering standards | Best for aesthetics; ensure structural posts meet 0.73–0.74 kN/m load. |

Actionable Recommendation: For mixed-use developments, consider a hybrid approach: use 316L stainless steel for exterior balconies and ADA-compliant aluminum for interior stairwells to balance cost and compliance. Always request a sample of the specific finish (e.g., brushed, polished) before bulk ordering.

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum handrail diameter required for code compliance? A: The industry standard for a comfortable and compliant grip is a diameter or width between 38–50 mm. Anything smaller may fail accessibility checks, while anything significantly larger may be difficult to grip.

Q2: Can I use 304 stainless steel for a coastal project? A: It is not recommended. For exposed or coastal use, 316 or 316L stainless steel is required due to its superior resistance to chloride-induced corrosion. 304 steel will likely degrade prematurely in these environments.

Q3: What concentrated load must the railing system withstand? A: Procurement specifications must ensure the system can withstand a concentrated load of 0.89 kN applied at any point on the handrail, in addition to a distributed load of 0.73–0.74 kN/m.

Q4: How far apart should the posts be spaced? A: To maintain structural rigidity and meet code requirements, post spacing should be between 900–1200 mm. Wider spacing may require thicker rails or additional bracing.

Q5: Are there specific certifications I should look for in a supplier? A: Yes. Look for ICC-ES certification (such as ESR-4813 for aluminum), ASTM compliance for material strength, and ADA compliance for accessibility. These ensure the system has passed rigorous testing.

Q6: What is the typical lead time for custom railing orders? A: Typical B2B lead times range from 4 to 8 weeks for standard configurations. Custom finishes or specific 316L grades may extend this to 12 weeks or more depending on the supplier's capacity.

Q7: How do I verify the corrosion resistance of a stainless steel product? A: Request the Mill Test Certificate (MTC) to verify the material grade is explicitly 316 or 316L. Additionally, ask for corrosion testing data specific to the intended environment (e.g., salt spray testing).

Q8: Is there a difference between Type I and Type II railing systems? A: Yes. Type II systems generally offer higher structural performance and are often required for commercial applications or areas with higher public traffic, whereas Type I may suffice for lighter residential loads. Always verify the specific type required by local building codes.
