Procurement Report: Resistance Testers

Product Category: Electrical Test Instruments (Specifically Winding Resistance and Insulation Resistance Testers)

1. Technical Specifications and Performance Metrics

When procuring resistance testers, the technical requirements diverge significantly based on whether the application requires Winding Resistance (low resistance, high current) or Insulation Resistance (high resistance, high voltage).

• Measurement Range:
  • Winding Resistance: The standard procurement specification for transformer windings typically spans from 0.1 µΩ to 200 kΩ.
  • Insulation Resistance: For high-voltage equipment, testers must support ranges up to 10 TΩ (Terohms) or higher, depending on the insulation quality of the asset.
• Test Current and Voltage:
  • Winding Resistance: Portable units generally operate between 1 A and 30 A, while high-precision lab units may reach 200 A.
  • Insulation Resistance: Test voltage selection is critical. Industry standards suggest 5 kV for motors rated under 6 kV and 10 kV for higher voltage classes.
• Accuracy and Temperature Compensation:
  • Low-resistance windings require high-accuracy temperature compensation to normalize readings to a standard reference (e.g., 20°C).
  • Typical B2B Range: Accuracy should be within ±0.5% to ±1.0% of the reading for winding resistance.
• Safety Ratings:
  • Multimeters and integrated testers used in field environments must be rated Cat III or higher to withstand transient overvoltages in industrial distribution systems.

Procurement Recommendation: Define the specific application first. If measuring transformer windings, prioritize units with high test current (≥10 A) and temperature compensation algorithms. If testing cable insulation, prioritize high test voltage (up to 10 kV) and high input impedance.

2. Industry Compliance and Quality Assurance

Reliability in resistance testing is non-negotiable for safety and asset integrity. Procurement must focus on the manufacturer's verification processes and calibration standards.

• Certification Verification:
  • Buyers must verify that the manufacturer has established Quality Assurance (QA) processes and holds relevant international certifications (e.g., ISO 9001).
  • For high-voltage applications, ensure the device meets specific regional safety standards (e.g., IEC 61010).
• Calibration and Traceability:
  • Every unit should come with a Calibration Certificate traceable to national standards.
  • Typical B2B Range: Calibration intervals for industrial use are typically 12 months. The certificate must explicitly state the serial number (e.g., "Serial No. 2306031380") and the specific test parameters verified.
• Innovation and Durability:
  • Manufacturers should demonstrate a track record of innovation in battery life and ruggedization for field crews.
  • Durability Metric: Look for IP ratings of IP54 or higher for portable units to ensure protection against dust and water splashes.

Procurement Recommendation: Do not accept a unit without a valid, traceable calibration certificate. Prioritize suppliers who offer on-site calibration services or have a clear, documented QA process for their manufacturing lines.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in this sector is not just about the unit price but the Total Cost of Ownership (TCO), including calibration, battery replacement, and data management.

• Cost Structure:
  • Typical B2B Range: Portable winding resistance testers typically range from $2,500 to $8,000, while high-voltage insulation testers can range from $3,000 to $15,000 depending on voltage rating and data logging features.
  • MOQ (Minimum Order Quantity): For B2B procurement, MOQs are often 1 unit for standard models, but bulk discounts (10+ units) may apply for OEM integration projects.
• Integration Capabilities:
  • Modern testers should support USB, Bluetooth, or Wi-Fi for seamless data transfer to central maintenance databases.
  • Software Compatibility: Ensure the device supports standard file formats (CSV, PDF) and integrates with existing CMMS (Computerized Maintenance Management Systems).
• Lead Time:
  • Typical B2B Range: Standard stock items have a lead time of 2–4 weeks. Custom configurations or high-voltage units may require 8–12 weeks.

Procurement Recommendation: Evaluate the cost of the calibration contract over a 5-year period, not just the initial purchase price. Select units with open API or standard data export to avoid vendor lock-in for data analysis.

4. Typical Use Cases

The application of resistance testers is highly specialized. Procurement must align the device with the specific asset being tested.

• Transformer Winding Testing:
  • Scenario: Measuring DC resistance of transformer windings to detect shorted turns or poor connections.
  • Requirement: High current (1 A–30 A) and precise temperature compensation.
• Motor and Generator Maintenance:
  • Scenario: Insulation resistance testing on stator windings of motors (e.g., <6 kV).
  • Requirement: 5 kV test voltage, polarization index (PI) and dielectric absorption ratio (DAR) calculation capabilities.

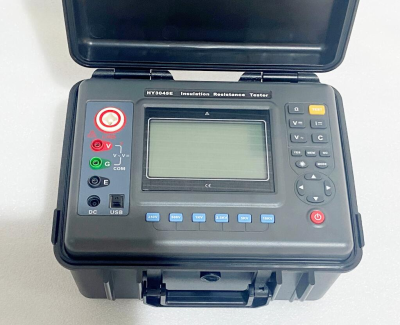

• Cable and Busbar Inspection:
  • Scenario: Verifying insulation integrity of high-voltage cables and busbars.
  • Requirement: 10 kV test voltage and high resistance range (up to 10 TΩ).
• Field Portability:
  • Scenario: Mobile crews performing on-site diagnostics.
  • Requirement: Lightweight design (<5 kg), long battery life (>8 hours), and rugged casing.

Procurement Recommendation: Match the test current/voltage strictly to the asset rating. Do not over-specify (e.g., buying a 200 A tester for a small control panel) as it increases cost and weight unnecessarily.

5. Long-Term Planning Considerations

Market trends indicate a shift towards smart, connected, and predictive maintenance tools.

• Market Trends:
  • Demand Signal: There is a growing demand for IoT-enabled testers that automatically upload data to cloud platforms for trend analysis.
  • Automation: Integration with robotic inspection systems is becoming a priority for large-scale OEMs.
• Technology Obsolescence:
  • Older analog testers are being phased out in favor of digital units with auto-ranging and graphical displays.
  • Battery Technology: Procurement should favor units using Lithium-Ion batteries over NiCd for longer life and faster charging.
• Regulatory Changes:
  • Anticipate stricter regulations regarding electrical safety testing intervals (e.g., NFPA 70B), which will drive demand for more frequent, reliable testing equipment.

Procurement Recommendation: Invest in upgradable firmware and software-locked features to extend the device's lifecycle. Plan for a 3-5 year refresh cycle to incorporate new connectivity standards.

6. Special Product Recommendations

The following table compares the two primary categories of resistance testers to assist in selecting the right product for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Winding Resistance Tester | Transformer Maintenance Teams, OEMs | Range: 0.1 µΩ–200 kΩ; Current: 1–30 A; Temp. Compensation | Verify accuracy at low µΩ levels; Check battery life under high current load | Prioritize units with high test current for large transformers; ensure temperature compensation is active. | | High Voltage Insulation Tester | Electrical Contractors, Facility Managers | Voltage: 5–10 kV; Range: up to 10 TΩ; PI/DAR Functions | Verify safety interlocks; Check calibration certificate validity | Select 5 kV for motors <6 kV; 10 kV for higher voltage. Ensure Cat III safety rating. | | Multifunction Tester | General Field Technicians | Resistance, Voltage, Current, Insulation; Cat III Rated | Verify individual module accuracy; Check software integration | Best for mobile crews needing a single device for multiple tasks; verify data export capabilities. |

Procurement Recommendation: For large-scale operations, consider a hybrid approach: high-end winding testers for the lab and rugged, portable multifunction units for field crews.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between a winding resistance tester and an insulation resistance tester? A: A winding resistance tester measures very low resistance (µΩ to kΩ) using high DC current to check conductor continuity and balance. An insulation resistance tester measures very high resistance (MΩ to TΩ) using high DC voltage to check the quality of the insulation material.

Q2: What test voltage should I use for a 4 kV motor? A: According to industry guidelines, a 5 kV test voltage is typically sufficient for motors rated under 6 kV. Using 10 kV is generally reserved for higher voltage classes.

Q3: How often should my resistance tester be calibrated? A: The standard industry practice is annual calibration. Always ensure the device comes with a traceable calibration certificate upon purchase.

Q4: Is a Cat III rating necessary for a resistance tester? A: Yes, if the tester is used in live environments or connected to distribution systems. A Cat III rating ensures the device can withstand transient overvoltages common in industrial settings.

Q5: What is the typical measurement range for transformer windings? A: The typical procurement specification for transformer winding resistance is a range of 0.1 µΩ to 200 kΩ.

Q6: Can I use a standard multimeter for transformer winding resistance? A: No. Standard multimeters lack the high test current (1 A–30 A) required to overcome contact resistance and inductance in windings, leading to inaccurate readings.

Q7: What are the lead times for high-voltage insulation testers? A: For standard models, expect 2–4 weeks. Custom high-voltage units or those requiring specific certifications may take 8–12 weeks.

Q8: Do these testers support data logging? A: Most modern B2B-grade testers include USB, Bluetooth, or Wi-Fi connectivity for data logging and integration with maintenance software. Verify this feature during procurement.
