Procurement Report: Industrial Drilling Rigs

1. Technical Specifications and Performance Metrics

Based on industry standards and available manufacturer data, drilling rigs are categorized by their rated power, drilling depth, and hydraulic capabilities. When sourcing rigs, procurement teams must prioritize the following technical parameters to ensure operational compatibility:

• Rated Power: Industrial drilling rigs typically range from 75 kW to 1,500 kW for standard operations, with heavy-duty units exceeding 2,200 kW (approx. 3,000 hp) for deep-well applications.
• Drilling Depth:
  • Standard Surface Rigs: 3,000 – 6,000 meters.
  • Deep-Well Rigs: Up to 9,000 meters (30,000 ft) as demonstrated by high-capacity models.
• Hook Load: Critical for handling drill pipe and casing. Typical ranges are 3,000 kN to 6,750 kN for heavy-duty units.
• Transmission & Power Systems:
  • Transmission: Modern rigs utilize Electrical (DC SCR or AC VFD) systems for superior torque control and efficiency.
  • Drawworks: Rated between 1,000 hp and 3,000 hp.
  • Mud Pumps: Typically 3 units per rig, rated 1,500 hp to 2,200 hp each.
• Hydraulic System: Pressure and flow rates must match the drilling method (rotary vs. top drive). High-pressure systems often operate between 3,000 psi and 5,000 psi.
• Mast & Dimensions:
  • Mast Height: Ranges from 30 m to 46 m (approx. 100–152 ft).
  • Drill Floor Height: Typically 10 m to 12 m (approx. 33–40 ft).
• Environmental Limits: Noise levels and emissions must comply with local regulations. Underground units require specific ATEX/IA certifications for explosive atmospheres.

Actionable Recommendation: Define the maximum required drilling depth and hook load before requesting quotes. For deep-well projects (>6,000m), prioritize rigs with AC VFD transmission and drawworks rated above 2,000 hp to ensure stability and efficiency. Verify that the mast height fits the site's vertical clearance constraints.

2. Industry Compliance and Quality Assurance

Procurement of drilling rigs requires strict adherence to international safety and quality standards, particularly for offshore or underground operations.

• Certifications:
  • API Certification: Essential for oil and gas applications to ensure component compatibility and safety.
  • ATEX/IA Compliance: Mandatory for underground mining or hazardous area drilling to prevent ignition of explosive gases.
  • ISO Standards: Look for ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) compliance in the manufacturer's facility.
• Quality Assurance:
  • Field-Proven Track Record: Prioritize manufacturers with rigs that have documented field performance history.
  • Manufacturing Origin: Sourcing directly from manufacturing bases (e.g., China-based factories) can reduce costs but requires rigorous third-party inspection (e.g., SGS, Bureau Veritas) to verify build quality against API standards.
• Emissions & Noise:
  • Surface rigs must meet Tier 4 or equivalent emission standards for diesel engines.
  • Underground rigs must operate within specific decibel limits to protect personnel and equipment.

Actionable Recommendation: Request a "Certificate of Conformance" and specific API certification documents for all major components (drawworks, mud pumps, mast) prior to signing the contract. For underground projects, explicitly demand ATEX/IA certification documentation. Do not accept "equivalent" claims without third-party verification.

3. Cost Efficiency and Integration Capabilities

The total cost of ownership (TCO) involves more than the initial purchase price. Skid-mounted and modular designs offer significant advantages in logistics and integration.

• Cost Structure:
  • Unit Price: Direct-from-manufacturer pricing can be 20–40% lower than local supplier markups.
  • MOQ (Minimum Order Quantity): Typically 1 unit for custom skid-mounted rigs, though bulk orders (3+ units) may trigger volume discounts.
  • Lead Time: Standard manufacturing lead time is 4–8 months; expedited options may reduce this to 3 months at a premium.
• Integration Capabilities:
  • Skid-Mounted Design: Allows for rapid deployment and transport via standard heavy haulage.
  • Customization: Manufacturers should offer tailor-made solutions for specific drilling methods (e.g., rotary, percussion) and site-specific environmental constraints.
  • Compatibility: Ensure the rig's electrical system (DC SCR vs. AC VFD) is compatible with the site's power grid or existing generator sets.

Actionable Recommendation: Calculate the "landed cost" including shipping, customs, and on-site assembly. Prioritize skid-mounted rigs for remote sites to minimize assembly time. Negotiate a contract that includes a "performance guarantee" clause, where the supplier covers costs if the rig fails to meet the specified drilling depth or power output within the first 6 months of operation.

4. Typical Use Cases

Drilling rigs are highly specialized based on the application environment.

• Oil & Gas Exploration:
  • Scenario: Deep well drilling (up to 9,000m) for hydrocarbon extraction.
  • Requirements: High hook load (6,750 kN), high-pressure mud pumps, and API certification.
• Surface Mining:
  • Scenario: Open-pit mining for blast hole drilling.
  • Requirements: Moderate power (75–500 kW), high mobility, and noise/emission compliance for surface operations.
• Underground Mining:
  • Scenario: Deep underground resource extraction.
  • Requirements: Compact dimensions, ATEX/IA certification, low noise, and specific ventilation compatibility.

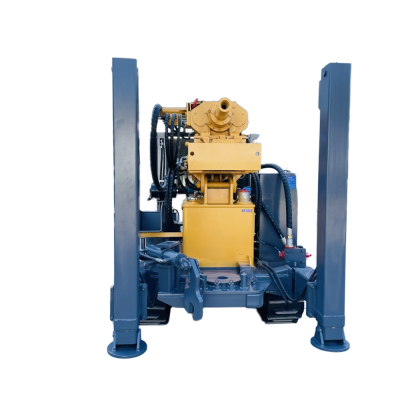

• Water Well & Geothermal:
  • Scenario: Shallow to medium-depth water or geothermal drilling.
  • Requirements: Flexible drilling methods, lower hook loads, and portable skid-mounted designs.

Actionable Recommendation: Match the rig's "Drilling Method" and "Environmental Limits" strictly to the project site. Do not use a deep-well oil rig for surface mining due to excessive cost and size, and never use a surface rig in an underground mine without ATEX certification.

5. Long-Term Planning Considerations

Procurement strategies must account for market trends and the lifecycle of the equipment.

• Market Trends:
  • Electrification: There is a growing shift from DC SCR to AC VFD transmission systems for better energy efficiency and lower maintenance.
  • Sustainability: Increasing demand for rigs with lower emissions and noise profiles to meet stricter environmental regulations.
  • Modularity: The trend toward skid-mounted and modular rigs is accelerating to reduce deployment time and allow for easy relocation.
• Demand Signals:
  • Global exploration for deep resources is driving demand for high-capacity rigs (9,000m+ depth).
  • Underground mining expansion in Asia and South America is driving demand for compact, certified underground rigs.
• Lifecycle Management:
  • Plan for a 15–20 year operational lifespan.
  • Ensure the manufacturer provides long-term spare parts availability (minimum 10 years).

Actionable Recommendation: Future-proof your procurement by selecting rigs with AC VFD transmission systems, which are more adaptable to future grid changes and offer better control. Include a 10-year spare parts agreement in the initial contract to mitigate obsolescence risks.

6. Special Product Recommendations

The following table compares product types based on buyer profiles and critical specifications.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Deep-Well Oil & Gas Rig | Major E&P Companies | Depth: 9,000m; Hook Load: 6,750 kN; Power: 3,000 hp Drawworks | High Capital Risk; Complex Logistics | Verify API certification on all critical components; require third-party inspection. | | Skid-Mounted Surface Rig | Mining Contractors | Power: 75–500 kW; Modular Transport; Low Noise | Site Compatibility | Confirm transport dimensions (width/height) against local road regulations. | | Underground ATEX Rig | Underground Miners | ATEX/IA Certified; Compact Dimensions; Low Emissions | Safety Compliance | Demand full ATEX documentation; test for noise levels in confined spaces. | | Custom Special-Purpose Rig | Niche Applications | Tailored Drilling Method; Specific Hydraulic Flow | Integration Complexity | Define all "Special Requirements" in the RFP; avoid generic off-the-shelf models. |

Actionable Recommendation: For buyers with specific site constraints (e.g., limited headroom or power availability), opt for Custom Special-Purpose Rigs rather than standard models. Ensure the "Risk Check" column is addressed by the supplier in their technical proposal before finalizing the order.

7. Frequently Asked Questions (FAQ)

Q1: What is the typical lead time for a custom drilling rig? A: Typical B2B lead times range from 4 to 8 months from order confirmation to delivery. Expedited production may be available for an additional cost, potentially reducing this to 3 months.

Q2: Are these rigs API certified? A: Yes, high-capacity rigs intended for oil and gas applications are typically API Certified. Buyers must request specific API certification documents for the drawworks, mud pumps, and mast.

Q3: Can I use a surface rig in an underground mine? A: No. Underground mines require ATEX/IA certified rigs to prevent explosions in hazardous atmospheres. Surface rigs lack the necessary safety certifications and often have dimensions too large for underground shafts.

Q4: What is the maximum drilling depth for a standard heavy-duty rig? A: High-capacity rigs can reach depths of up to 9,000 meters (30,000 ft). Standard surface rigs typically range between 3,000 and 6,000 meters.

Q5: How does the transmission system affect performance? A: AC VFD (Variable Frequency Drive) systems offer superior torque control and energy efficiency compared to traditional DC SCR systems. They are increasingly the standard for new procurement.

Q6: What is the typical hook load capacity for deep-well rigs? A: Deep-well rigs typically feature hook loads between 3,000 kN and 6,750 kN, depending on the specific model and intended drilling depth.

Q7: Do you offer skid-mounted options for easier transport? A: Yes, skid-mounted drilling rigs are a standard offering. They are designed for efficient transport and rapid deployment, making them ideal for remote or temporary sites.

Q8: What are the environmental limits for noise and emissions? A: Surface rigs must comply with local Tier 4 or equivalent emission standards. Noise levels are typically regulated based on site proximity to residential areas, often requiring <85 dB(A) at the operator's station.
