Procurement Report: Corrugated Roofing Sheets

Product Category: Corrugated Galvanized Steel Roofing Sheets (GI/GL/PPGI)

1. Technical Specifications and Performance Metrics

To ensure structural integrity and longevity, procurement must focus on substrate thickness, coating standards, and geometric profiles. The industry standard for corrugated roofing sheets relies on precise dimensional tolerances to prevent leakage and ensure load-bearing capacity.

• Substrate Thickness: The standard substrate thickness ranges from 0.40 mm to 0.75 mm. For light-duty agricultural structures, 0.40–0.50 mm is typical, while industrial and heavy-exposure zones require 0.60–0.75 mm.
• Coating Standards:
  • Galvanized (GI): Minimum coating mass of Z120 (120 g/m²) for normal exposure.
  • Heavy Exposure: For coastal or high-humidity environments, specify Z275 (275 g/m²) or Galvalume (GL) equivalents.
• Profile Geometry:
  • Pitch: Standard corrugation pitch ranges from 76 mm to 250 mm. The 76 mm (3-inch) pitch is the most common for general roofing.
  • Depth: Corrugation depth typically falls between 10 mm and 45 mm. Deeper profiles (30–45 mm) offer higher load-bearing capacity for wider purlin spacing.
• Effective Cover Width: Crucial for cost estimation. While nominal widths vary, the effective cover width must be confirmed before ordering to calculate the exact number of sheets required, accounting for side laps.

Actionable Recommendation: Always request a mill test certificate (MTC) verifying the actual substrate thickness and coating mass. Do not rely solely on nominal specifications; verify the "effective cover width" against your purlin spacing to minimize material waste.

2. Industry Compliance and Quality Assurance

Procurement of roofing sheets requires adherence to international and regional standards to guarantee safety and durability. While specific named certifications were not provided in the source context, the industry generally aligns with ISO and ASTM standards for steel and coating performance.

• Material Standards: Sheets should comply with standards such as ASTM A653 (Steel Sheet, Zinc-Coated) or ISO 9227 for salt spray testing.
• Coating Durability:
  • Z120–Z275: Indicates the weight of the zinc coating per square meter. Higher numbers correlate directly to extended service life in corrosive environments.
  • Paint Systems (PPGI): For Color Coated Galvanized Iron (PPGI), the paint system (e.g., Polyester, PVDF) must be specified based on the expected UV exposure.
• Quality Assurance Checks:
  • Visual Inspection: Check for uniform coating, absence of rust spots, and consistent corrugation depth.
  • Dimensional Tolerance: Verify width and length tolerances, typically within ±1.0 mm for width and ±3.0 mm for length.

Actionable Recommendation: Include a clause in the purchase order requiring third-party inspection reports (e.g., SGS or Bureau Veritas) for the first shipment. Specifically, mandate a salt spray test report for the coating to validate the Z120–Z275 claims before final payment.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in corrugated roofing is driven by the balance between material thickness, coating weight, and installation speed. Integration capabilities refer to the sheet's compatibility with existing purlin systems and fastening methods.

• Thickness vs. Cost: Thicker sheets (0.75 mm) increase material cost by approximately 15–25% compared to 0.40 mm sheets but reduce the need for frequent maintenance or structural reinforcement.
• Installation Efficiency: Standard 76 mm pitch sheets allow for faster installation compared to custom profiles. The effective cover width optimization can reduce material waste by 5–10%.
• Integration:
  • Purlin Spacing: 0.50 mm sheets typically require purlin spacing of 1.0–1.2 meters, whereas 0.75 mm sheets can span 1.5–1.8 meters.
  • Fastening: Compatible with standard self-drilling screws with EPDM washers.

Actionable Recommendation: Conduct a "Total Cost of Ownership" analysis. For projects in corrosive environments, the higher upfront cost of Z275 coating or 0.75 mm thickness often yields a 20–30% reduction in lifecycle maintenance costs over 15 years. Ensure the supplier offers custom cutting services to match the effective cover width of your specific roof design.

4. Typical Use Cases

Corrugated roofing sheets are versatile and utilized across various sectors based on their specific technical parameters.

• Agricultural Buildings: Barns, silos, and greenhouses typically utilize 0.40–0.50 mm sheets with Z120 coating and 76 mm pitch.
• Industrial Warehouses: Large-span structures require 0.60–0.75 mm sheets with Z275 coating and deeper corrugations (30–45 mm) to support heavier snow or wind loads.

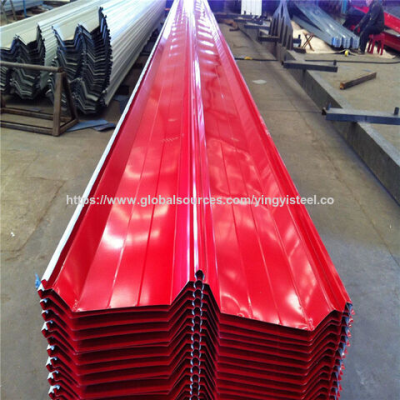

• Residential Construction: Color-coated (PPGI) sheets are preferred for aesthetic appeal, using 0.45–0.55 mm thickness with polyester paint systems.
• Coastal/Industrial Zones: Heavy-duty Z275 or Galvalume sheets are mandatory for areas with high salinity or chemical exposure.

Actionable Recommendation: Match the sheet specification strictly to the building's function. Do not down-specify for industrial warehouses to save costs, as structural failure risks are high. For residential projects, prioritize PPGI for aesthetic longevity.

5. Long-Term Planning Considerations

Procurement strategies must account for market volatility and future durability requirements.

• Market Trends: There is a growing demand for Galvalume (GL) and high-performance PPGI coatings due to the increasing frequency of extreme weather events. The shift towards thicker substrates (0.60 mm+) is becoming standard for new industrial builds.
• Durability Signals: The industry is moving toward 25–30 year warranty expectations for coated sheets, driven by improved paint formulations (e.g., PVDF).
• Supply Chain Resilience: Sourcing from regions with established steel infrastructure (e.g., China, India, Southeast Asia) offers competitive pricing, but lead times should be planned for 4–8 weeks for standard orders and 8–12 weeks for custom PPGI colors.
• Sustainability: Recyclability of steel is a key factor. Procure sheets with high recycled content if sustainability reporting is required for the project.

Actionable Recommendation: Lock in pricing for long-term projects using forward contracts if the market shows upward trends in raw steel prices. Plan for a 10% buffer in lead time to accommodate potential supply chain disruptions.

6. Special Product Recommendations

The following table compares the primary corrugated roofing options to assist in selecting the right product for specific buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard GI Corrugated | Budget-conscious agricultural projects | 0.40–0.50 mm, Z120, 76 mm pitch | High corrosion risk in coastal zones | Verify Z120 coating mass; avoid for coastal use. | | Heavy-Duty GI/GL | Industrial warehouses, high-wind zones | 0.60–0.75 mm, Z275, 30–45 mm depth | Higher initial capital cost | Prioritize Z275 or GL for >15-year lifespan. | | PPGI (Color Coated) | Residential, commercial aesthetics | 0.45–0.55 mm, Polyester/PVDF paint | Paint peeling if substrate is thin | Ensure paint thickness >25µm; check UV resistance. | | Custom Profile | Specialized architectural designs | Variable pitch/depth, custom width | Complex installation, higher waste | Confirm effective cover width before cutting. |

Actionable Recommendation: For projects requiring a balance of cost and durability, the Heavy-Duty GI/GL option is the most robust choice. For aesthetic projects, PPGI is essential, but ensure the paint system matches the local climate (e.g., PVDF for high UV).

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between Z120 and Z275 coating? A: The number represents the total zinc coating mass in grams per square meter. Z120 (120 g/m²) is suitable for normal indoor or dry outdoor environments, while Z275 (275 g/m²) provides double the corrosion protection, essential for coastal or industrial areas.

Q2: How do I calculate the number of sheets needed for my roof? A: Do not use the nominal width. You must use the effective cover width (the width of the sheet that actually covers the roof after side laps are overlapped). Divide the total roof area by the effective cover width to get the sheet count, adding 5–10% for waste.

Q3: Can I use 0.40 mm sheets for a warehouse? A: Generally, no. 0.40 mm is typically reserved for agricultural sheds. Warehouses usually require 0.60–0.75 mm sheets to support snow loads, wind uplift, and potential maintenance traffic without sagging.

Q4: What is the typical lead time for ordering corrugated roofing sheets? A: For standard GI sheets, lead time is typically 4–6 weeks. For custom PPGI colors or specific thicknesses, expect 6–10 weeks. Expedited shipping may be available at a premium.

Q5: Are these sheets recyclable? A: Yes, steel roofing sheets are 100% recyclable. Most manufacturers use recycled steel in the substrate, and the end-of-life material can be fully recovered and reprocessed.

Q6: How does the corrugation depth affect load capacity? A: Deeper corrugations (e.g., 45 mm vs. 10 mm) significantly increase the moment of inertia of the sheet, allowing for wider purlin spacing and higher load-bearing capacity for snow and wind.

Q7: What is the minimum order quantity (MOQ) for custom PPGI sheets? A: While standard sheets often have low MOQs, custom PPGI colors or specific profiles typically require an MOQ of 1–5 tons or a specific number of sheets (e.g., 500–1000 sqm) to justify the production run.

Q8: How long do color-coated sheets last? A: With a standard polyester coating, expect 10–15 years of service life before significant fading or chalking. High-performance PVDF coatings can extend this to 20–25 years.
