Procurement Report: RS-232 Interface Solutions

Product Category: Industrial Serial Communication Interfaces (RS-232)

1. Technical Specifications and Performance Metrics

The RS-232 standard (also referenced as EIA/TIA-232 or EIA/TIA-574) defines the electrical, functional, and mechanical characteristics required for serial communication between Data Terminal Equipment (DTE) and Data Circuit-Terminating Equipment (DCE). When procuring RS-232 interface boards, adapters, or transceivers, the following technical parameters are critical for ensuring system reliability.

• Electrical Signaling:
  • Voltage Levels: Logic "1" (Mark) is typically between -3V and -15V; Logic "0" (Space) is between +3V and +15V. The standard allows for a maximum of ±25V.
  • Current Drive: Typical transceivers support drive currents of ±10mA to ±25mA.
  • Capacitive Load: The standard specifies a maximum cable capacitance of 2500 pF to maintain signal integrity over distance.
• Data Transmission:
  • Baud Rates: Standard operation ranges from 300 bps to 115,200 bps. High-speed implementations may reach up to 230,400 bps or 921,600 bps depending on the specific transceiver chip and cable quality.
  • Data Frame: Typical configurations include 8 data bits, 1 stop bit, and no parity (8N1), though 7N1, 8E1, and 8O1 are supported.
  • Distance: Effective transmission distance is typically 15 meters (50 feet) at standard baud rates. Distances up to 30 meters (100 feet) are achievable at lower baud rates (e.g., <9600 bps) with high-quality shielded cabling.
• Connector Types:
  • DB-9 (9-pin): The most common connector for DTE devices (PCs, controllers).
  • DB-25 (25-pin): Historically common for DCE devices (modems) and older mainframes.
  • RJ-45: Increasingly used in industrial PLCs for compact serial connections.

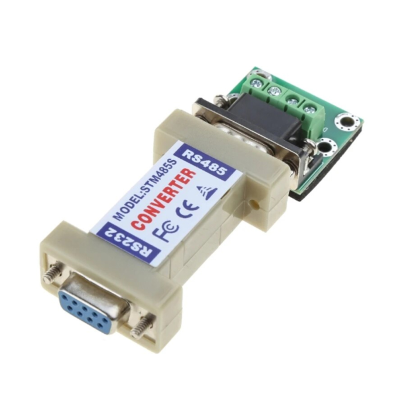

Procurement Recommendation: Verify that the selected interface hardware explicitly supports the ±15V swing range to ensure compatibility with legacy equipment. For applications requiring distances exceeding 15 meters, procure RS-232 to RS-485 converters or fiber optic serial extenders rather than attempting to extend standard copper cabling, as signal degradation will occur rapidly beyond the 2500 pF capacitance limit.

2. Industry Compliance and Quality Assurance

RS-232 is a well-established standard defined by the Electronic Industries Alliance (EIA) and Telecommunications Industry Association (TIA). While the standard itself is open, the components used to implement it must adhere to rigorous quality and safety certifications to ensure interoperability and safety in industrial environments.

• Standard Adherence: Products must conform to EIA/TIA-232-F (or the newer EIA/TIA-574) specifications regarding electrical characteristics and pin assignments.
• Safety Certifications:
  • UL/cUL: Required for North American industrial deployments.
  • CE Marking: Mandatory for European markets, ensuring compliance with EMC (Electromagnetic Compatibility) directives.
  • RoHS/REACH: Compliance is standard for all modern electronic components to restrict hazardous substances.
• Environmental Durability:
  • Operating Temperature: Industrial-grade RS-232 interfaces typically operate between -40°C and +85°C.
  • Vibration/Shock: For rack-mounted PCI/PCIe boards, look for vibration resistance ratings of 5g to 10g across 10Hz to 500Hz.
• Quality Assurance Metrics:
  • Mean Time Between Failures (MTBF): High-quality industrial boards should exceed 50,000 hours.
  • Connector Cycles: DB-9 connectors should withstand at least 500 mating cycles without signal degradation.

Procurement Recommendation: Prioritize suppliers who provide third-party test reports verifying EMC compliance (e.g., IEC 61000-4-2 for ESD). In noisy industrial environments, ensure the interface board includes galvanic isolation (typically 2500Vrms isolation voltage) to protect the host system from ground loops and voltage spikes.

3. Cost Efficiency and Integration Capabilities

RS-232 remains a cost-effective solution for low-speed, point-to-point communication, particularly in legacy system maintenance and specialized instrumentation.

• Cost Structure:
  • Single Port Adapters: $5 – $25 USD per unit (B2B bulk pricing).
  • Multi-Port Expansion Cards (PCI/PCIe): $80 – $250 USD per card (typically 2 to 8 ports).

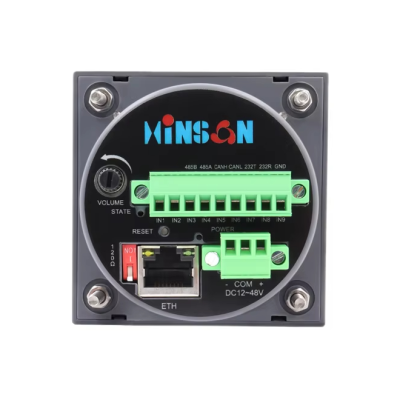

  • Industrial Serial Servers: $150 – $400 USD per unit (for Ethernet-to-Serial conversion).
  • MOQ (Minimum Order Quantity): Typically 10 units for custom configurations; 1 unit for standard off-the-shelf items.
• Lead Times:
  • Standard Stock: 1 – 5 business days.
  • Custom Cabling/Assembly: 2 – 4 weeks.
  • PCB Assembly (Turnkey): 4 – 8 weeks depending on component availability.
• Integration Capabilities:
  • Driver Support: Universal support for Windows, Linux, and real-time OS (RTOS) environments.
  • Form Factors: Available as USB-to-Serial adapters, PCI/PCIe internal cards, and standalone industrial serial servers.
  • Power Consumption: Low power draw, typically 0.5W to 2W per port for active components.

Procurement Recommendation: For large-scale deployments involving 10+ devices, opt for multi-port PCI/PCIe expansion cards rather than multiple USB hubs to reduce latency and eliminate single points of failure. When budgeting, factor in a 15% contingency for specialized cabling (null-modem vs. straight-through) and isolation requirements, which can significantly impact the total cost of ownership in harsh environments.

4. Typical Use Cases

RS-232 is ubiquitous in industries where reliability and simplicity outweigh the need for high bandwidth.

• Industrial Automation: Connecting Programmable Logic Controllers (PLCs), HMIs (Human-Machine Interfaces), and VFDs (Variable Frequency Drives) for configuration and monitoring.
• Medical Devices: Legacy and specialized equipment such as patient monitors, infusion pumps, and diagnostic analyzers often rely on RS-232 for data export.
• Telecommunications: Configuration of legacy modems, routers, and network switches via console ports.
• Point-of-Sale (POS) & Retail: Connection of cash registers, barcode scanners, and receipt printers.
• Test and Measurement: Interfacing with oscilloscopes, spectrum analyzers, and power supplies for automated testing sequences.
• Aviation and Marine: Navigation systems and flight data recorders often utilize RS-232 for internal data logging.

Procurement Recommendation: When procuring for medical or aviation sectors, verify that the interface hardware meets specific industry safety standards (e.g., IEC 60601-1 for medical) regarding leakage current and isolation. For automated testing, prioritize interfaces with hardware flow control (RTS/CTS) to prevent data loss during high-volume logging.

5. Long-Term Planning Considerations

While RS-232 is a mature technology, its role in modern infrastructure is evolving. Procurement strategies must balance legacy support with future-proofing.

• Market Trends:
  • Legacy Support: Demand remains stable for maintenance of existing infrastructure, particularly in heavy industry and utilities.
  • Migration to Ethernet: New designs increasingly favor RS-485, RS-422, or Ethernet (Modbus TCP) for multi-drop and high-speed needs.
  • USB Dominance: Consumer and light industrial markets have largely shifted to USB-to-Serial, but RS-232 remains the gold standard for industrial robustness.
• Supply Chain Stability:

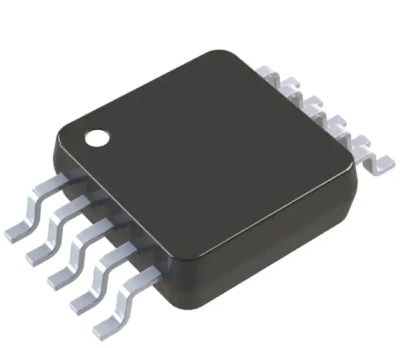

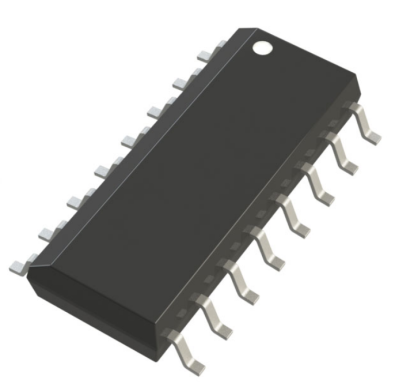

  • RS-232 transceiver chips (e.g., from Maxim Integrated, Texas Instruments, Analog Devices) are widely available with long-term availability commitments (10+ years).
  • DB-9 and DB-25 connectors are standard components with minimal risk of obsolescence.
• Demand Signals:
  • Steady demand in retrofitting projects where replacing entire control systems is cost-prohibitive.
  • Growing demand for serial-to-Ethernet gateways to bridge RS-232 devices to modern SCADA systems.

Procurement Recommendation: Adopt a "Bridge Strategy": Procure RS-232 interfaces that include Ethernet conversion capabilities (Serial Servers) to allow legacy devices to be integrated into modern IP networks. Avoid procuring pure RS-232 solutions for new greenfield projects unless the specific device requires it; instead, plan for RS-485 or Ethernet as the primary backbone.

6. Special Product Recommendations

The following table compares common RS-232 product types to assist in selecting the right hardware for specific procurement scenarios.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | USB-to-Serial Adapter | IT Dept, Lab Technicians | 1-2 Ports, 921kbps, DB-9 Female | Driver compatibility on Linux/Win11 | Verify chip chipset (FTDI vs. Prolific) for driver stability. | | PCI/PCIe Multi-Port Card | System Integrators, OEMs | 2-8 Ports, 115kbps+, Isolated | PCIe slot availability, Driver signing | Choose cards with onboard isolation for noisy factory floors. | | Industrial Serial Server | Network Engineers, SCADA Ops | 1-4 Ports, Ethernet to RS-232, PoE | Network security, IP configuration | Ensure support for Modbus TCP and SNMP for remote management. | | Null-Modem Cable | Field Technicians, Maintenance | DB-9 to DB-9, Crossover wiring | Pinout errors, cable length | Always verify pinout diagrams match the specific DTE/DCE devices. | | RS-232 to RS-485 Converter | Automation Engineers | Half-duplex, 2-wire, 1200m range | Termination resistor requirement | Include 120Ω termination resistors in the BOM for long runs. |

Procurement Recommendation: For new deployments, Industrial Serial Servers offer the highest long-term value by enabling remote access. For internal expansion, PCIe cards provide the lowest latency and highest port density. Always validate the voltage isolation rating (minimum 2500Vrms) before purchasing for industrial applications to prevent ground loop damage.

7. Frequently Asked Questions (FAQ)

Q1: What is the maximum distance for a standard RS-232 connection? A: The standard specifies a maximum distance of 15 meters (50 feet) at typical baud rates. At lower speeds (e.g., 9600 bps), distances up to 30 meters (100 feet) are possible with high-quality, shielded cables.

Q2: Can I use an RS-232 cable to connect two computers directly? A: Yes, but you must use a Null-Modem cable (or a crossover adapter). Standard cables connect DTE to DCE; connecting two DTE devices (like two PCs) requires swapping the Transmit (TX) and Receive (RX) lines.

Q3: What is the difference between RS-232 and USB? A: RS-232 is an older, slower, point-to-point standard using voltage levels (-3V to +15V) and typically DB-9 connectors. USB is a faster, multi-drop capable (via hubs) standard using differential signaling (5V) and is the modern standard for peripherals, though it often requires a converter to interface with legacy RS-232 devices.

Q4: Do I need to worry about ground loops in RS-232? A: Yes. RS-232 is not inherently isolated. If two devices have different ground potentials, a ground loop can occur, causing data errors or hardware damage. Use isolated RS-232 interfaces or converters in such scenarios.

Q5: What are the standard voltage levels for Logic 1 and Logic 0? A: Logic 1 (Mark) is a negative voltage between -3V and -15V. Logic 0 (Space) is a positive voltage between +3V and +15V. Voltages between -3V and +3V are undefined.

Q6: Is RS-232 still relevant in 2024? A: Yes, particularly for industrial automation, medical devices, and legacy system maintenance. While newer protocols like Ethernet and RS-485 are preferred for new designs, the vast installed base of RS-232 equipment ensures continued demand for interfaces and adapters.

Q7: How do I determine the correct baud rate for my application? A: The baud rate must match the device on the other end of the connection. Common rates are 9600, 19200, 38400, 57600, and 115200. Always consult the device manual; mismatched rates will result in garbled data.

Q8: What is the difference between DTE and DCE in RS-232? A: DTE (Data Terminal Equipment) is the source of data (e.g., a PC, terminal). DCE (Data Circuit-Terminating Equipment) is the device that provides the clocking and connection to the network (e.g., a modem). Standard cables connect DTE to DCE.
