Sea Freight Procurement Report

1. Technical Specifications and Performance Metrics

Procurement of sea freight solutions, specifically intermodal shipping containers, requires adherence to rigorous dimensional and structural standards to ensure compatibility with global logistics networks. The primary technical baseline is defined by ISO (International Organization for Standardization) regulations, which dictate the size, strength, and durability required for containers to withstand extreme environments and heavy handling.

• Standard Dimensions: The most common unit is the 20-foot and 40-foot ISO container.
  • 20ft Dry Container: Approx. 6.06m (L) x 2.44m (W) x 2.59m (H).
  • 40ft Dry Container: Approx. 12.19m (L) x 2.44m (W) x 2.59m (H).
  • 40ft High Cube: Approx. 12.19m (L) x 2.44m (W) x 2.90m (H).
• Structural Integrity: Containers must support stacking loads of up to 8 to 10 containers high when fully loaded on a vessel.
• Lifting Capacity: Structural frames are engineered to withstand side-loading and crane lifting forces of 30 to 40 metric tons without deformation.
• Durability: Steel construction (typically Corten steel) provides a service life of 15 to 25 years under standard maritime conditions.
• Payload Capacity:
  • 20ft: Typical B2B range of 28,000 – 29,000 kg.
  • 40ft: Typical B2B range of 26,000 – 28,000 kg.

Actionable Recommendation: When sourcing containers, verify the "CSC Plate" and "ISO Markings" on the door frame. Ensure the tare weight (empty weight) aligns with the payload capacity to maximize shipping efficiency and avoid overweight penalties from carriers.

2. Industry Compliance and Quality Assurance

Compliance is non-negotiable in sea freight to ensure legal transportability and safety. The procurement process must prioritize containers that meet international conventions to avoid rejection at ports or during rail/road transit.

• CSC Certification: The International Convention for Safe Containers (CSC) is mandatory for all containers used in international transport. It certifies that the container has passed a structural safety test and is safe for handling.
• ISO Standards: Containers must adhere to ISO 668 (Series 1 Freight Containers) for dimensions and ratings.
• Cargo-Worthy (CW) vs. Out of Specification (OOS):
  • Cargo-Worthy: Meets IICL (International Institute of Container Lessees) standards; suitable for direct export.
  • Out of Specification: May not meet strict export standards but retains structural integrity for storage or domestic use.
• Safety Standards: Adherence to UN/IMO regulations regarding hazardous material transport (if applicable) and fire resistance.

Actionable Recommendation: For export procurement, strictly require "Cargo-Worthy" (CW) certification with a valid CSC plate. For domestic storage or non-export applications, "Out of Specification" units can be procured at a lower cost, provided the structural integrity is verified by a third-party inspection.

3. Cost Efficiency and Integration Capabilities

Sea freight procurement balances initial acquisition costs against long-term operational efficiency and integration with existing logistics infrastructure.

• Acquisition Cost Ranges:
  • Used 20ft Container: Typical B2B range of $2,500 – $4,500.
  • Used 40ft Container: Typical B2B range of $3,500 – $6,000.
  • New/One-Trip Container: Typical B2B range of $4,500 – $8,000 (20ft) and $6,000 – $10,000 (40ft).
• Lead Times:
  • Standard Inventory: 1 – 3 weeks for local delivery.
  • Custom Modifications: 4 – 8 weeks.
  • New Build Orders: 12 – 20 weeks.
• Integration: ISO containers are designed for seamless intermodal transfer. They integrate directly with:
  • Trucking: Standard chassis compatibility.
  • Rail: Flatcar compatibility.
  • Cranes: Side loaders and gantry cranes.
• MOQ (Minimum Order Quantity): Typically 1 unit for spot purchases; bulk discounts often apply for orders of 10+ units.

Actionable Recommendation: Calculate the "Total Cost of Ownership" (TCO). While used containers are cheaper upfront, inspect them for corrosion that may require immediate repair. For long-term storage projects, consider buying used "out of specification" units to reduce capital expenditure by 30-40% compared to new units.

4. Typical Use Cases

The versatility of sea freight containers allows for diverse applications beyond simple cargo transport.

• Intermodal Freight Transport: The primary use case involves moving goods via ship, rail, and truck. ISO containers ensure the cargo remains secure during these transfers.
• On-Site Storage: Used as secure, weather-resistant storage for construction materials, equipment, or inventory at remote sites.

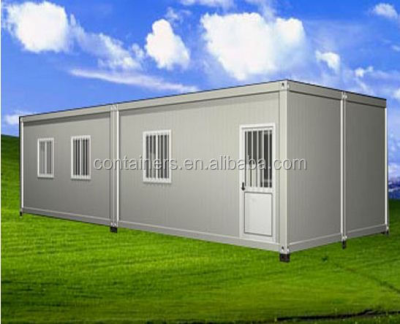

• Modular Construction: Converted into pop-up offices, site cabins, or permanent housing units.
• Specialized Logistics:
  • Open-Top: For loading oversized cargo from the top (e.g., machinery).
  • Flat Rack: For heavy machinery or vehicles that cannot fit inside a standard box.
  • Platform: For heavy loads that do not require side walls.

Actionable Recommendation: Match the container type to the cargo geometry. Do not use a standard dry freight container for tall or wide machinery; opt for Open-Top or Flat Rack variants to prevent damage and ensure efficient loading.

5. Long-Term Planning Considerations

Strategic procurement for sea freight must account for market volatility, regulatory changes, and lifecycle management.

• Market Trends:
  • Supply Chain Resilience: There is a growing demand for "buy-to-own" models rather than leasing, as companies seek to secure assets during global shipping disruptions.
  • Sustainability: Increased interest in repurposing containers for green building projects to reduce carbon footprints compared to new construction.
• Demand Signals:
  • Rising costs of new steel and manufacturing lead times are pushing buyers toward the secondary market (used containers).
  • Regulatory tightening on container safety (CSC re-inspection cycles) may increase the cost of maintaining older fleets.
• Lifecycle Management: Plan for a 15-20 year lifecycle. Budget for repainting and structural repairs every 5-7 years for outdoor storage units.

Actionable Recommendation: Diversify your fleet mix. Procure a mix of new and used units to hedge against price spikes in new container manufacturing. Establish a maintenance schedule based on the "CSC" re-inspection intervals (typically every 30 months for safety certification renewal).

6. Special Product Recommendations

The following table compares standard and specialized container types to assist in selecting the right asset for specific procurement needs.

Actionable Recommendation: For buyers requiring export capability, never compromise on the "Cargo-Worthy" status. For buyers needing immediate storage solutions for domestic use, "Out of Specification" units offer significant cost savings but require a thorough visual inspection for roof leaks and floor rot.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between a "Cargo-Worthy" and an "Out of Specification" container? A: "Cargo-Worthy" (CW) containers meet IICL standards and are certified by the CSC for international export. "Out of Specification" containers may have cosmetic damage or minor structural issues that prevent them from meeting export safety standards but are still structurally sound for domestic storage or non-export applications.

Q2: Do all shipping containers require CSC certification? A: Yes, for any container used in international intermodal transport (ship, rail, or truck across borders), the International Convention for Safe Containers (CSC) certification is mandatory. It ensures the container has passed a safety test.

Q3: How long does it take to receive a shipping container after ordering? A: For standard used or new containers in stock, lead times are typically 1 to 3 weeks. Custom modifications or new builds can take 4 to 20 weeks depending on the complexity and manufacturer capacity.

Q4: What is the typical lifespan of a sea freight container? A: Under standard maritime conditions, a steel shipping container has a service life of 15 to 25 years. Lifespan can be extended with regular maintenance, repainting, and structural repairs.

Q5: Can I stack shipping containers on top of each other? A: Yes, ISO containers are designed with structural integrity to be stacked up to 8 or 10 containers high when fully loaded on a vessel. However, ensure the ground foundation is level and capable of supporting the total weight.

Q6: Are there specific certifications required for hazardous materials? A: Yes, transporting hazardous materials requires containers that comply with specific UN/IMO regulations, often involving specialized cleaning, certification, and labeling beyond standard ISO/CSC requirements.

Q7: What is the Minimum Order Quantity (MOQ) for purchasing containers? A: Most suppliers allow the purchase of a single unit (MOQ of 1). However, bulk discounts are often available for orders of 10 units or more.

Q8: How do I verify the structural integrity of a used container? A: Look for the CSC plate and ISO markings. Visually inspect the roof for holes, the floor for rot, and the corners for cracks. For export purposes, a third-party inspection report confirming "Cargo-Worthy" status is essential.
