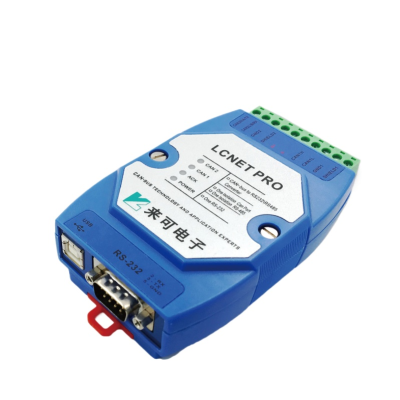

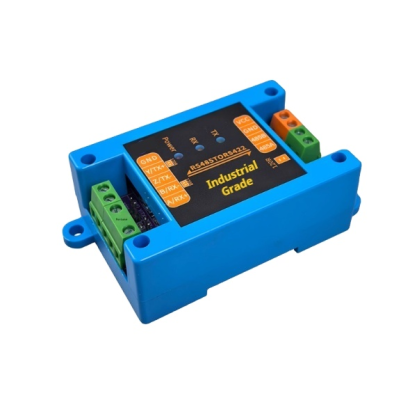

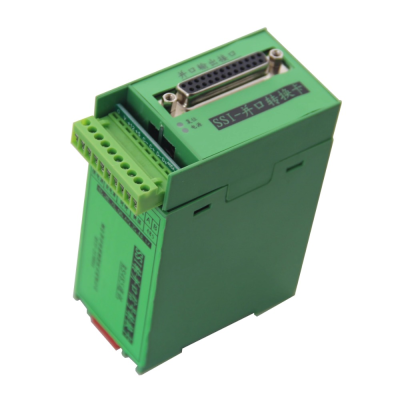

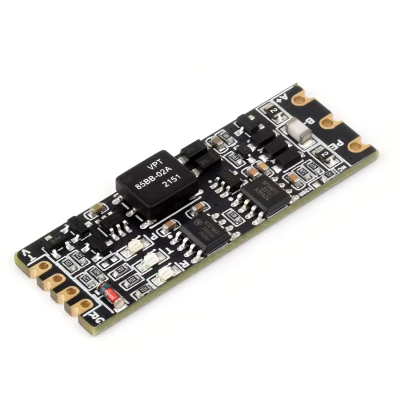

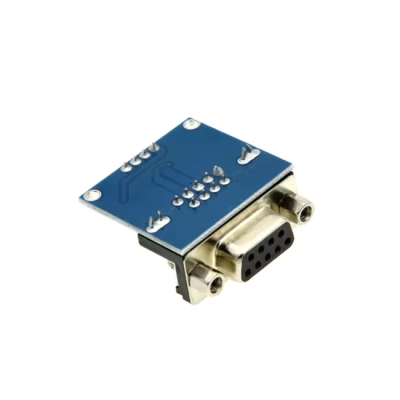

Procurement Report: Serial Converter Modules

1. Technical Specifications and Performance Metrics

The serial converter module, specifically within the industrial automation sector (e.g., Rockwell Automation DSI ecosystem), functions as a critical bridge between RS-232 serial devices and the Device Serial Interface (DSI) backbone. Procurement decisions must prioritize the following technical parameters to ensure system stability and data integrity.

• Communication Protocols & Rates:
  • RS-232 Side: Supports standard DF1 Full Duplex protocol.
  • Baud Rates: Configurable at 9600, 19.2K, or 38.4K bps.
  • Data Frame: 8 Data Bits, No Parity, 1 Stop Bit.
  • Error Detection: Auto-detection of CRC or BCC.
  • DSI Side: Operates at a fixed 19.2K drive serial interface rate.
• Power Consumption:
  • Voltage: +5V DC.
  • Current Draw: 170mA.
  • Power Source: Bus-powered (draws power from the connected product); no external power supply is required.
• Environmental Durability:
  • Vibration (Operating): 2.5G across 5Hz–2KHz.
  • Vibration (Non-Operating): 5G across 5Hz–2KHz.
  • Shock (Operating): 30G peak acceleration (11 ±1 ms pulse width).
  • Shock (Non-Operating): 50G peak acceleration (11 ±1 ms pulse width).
• Physical Dimensions:
  • Height: 103.5 mm (4.08 inches).
  • Width: 73.4 mm (2.89 inches).
  • Depth: 23.6 mm (0.93 inches).
  • Weight: 70.88 g (2.5 oz).

Procurement Recommendation: Verify that the target application environment matches the vibration and shock tolerances listed above. For high-vibration industrial floors, ensure the module is mounted to minimize stress. Confirm that the host system can supply a stable +5V DC at 170mA without requiring an auxiliary power adapter, as this simplifies cabling and reduces failure points.

2. Industry Compliance and Quality Assurance

Reliability in industrial settings is contingent upon adherence to rigorous safety and electromagnetic compatibility (EMC) standards. The serial converter module described meets the following critical certifications, which are essential for procurement in regulated industries.

• Safety Certifications:
  • UL/cUL: Compliant with UL508C and CAN/CSA C22.2 No. 14-M91.
  • CE: Meets European safety directives.
• EMC & Industrial Standards:
  • EN50178: General requirements for electronic equipment for industrial process control.
  • EN61800-3: EMC requirements for adjustable speed electrical power drive systems.
  • CTick: AS/NZS 2064, Group 1, Class A (Australia/New Zealand compliance).
• Compliance Prerequisites:
  • To maintain CE and CTick compliance, the shield of both the serial cable and the DSI cable must be properly grounded and connected. Failure to shield these cables voids compliance.

Procurement Recommendation: When sourcing, explicitly request documentation verifying that the module's CE and CTick status is contingent upon the use of shielded cabling. Procurement teams should budget for high-quality shielded serial and DSI cables to ensure the final system installation remains compliant. Do not substitute with unshielded cables, as this introduces EMI risks and potential regulatory non-compliance.

3. Cost Efficiency and Integration Capabilities

Integrating serial converters into existing automation architectures requires balancing upfront hardware costs with long-term maintenance and integration complexity.

• Power Efficiency: The device is bus-powered (170mA @ 5V), eliminating the need for external power supplies, transformers, or dedicated power distribution units. This reduces BOM (Bill of Materials) costs and installation labor.
• Configuration Flexibility: The "Adapter Cfg" parameter defaults to "Auto" for software tool compatibility, reducing the need for manual dip-switch configuration or complex firmware flashing during deployment.
• Integration Protocol: The module supports the DF1 protocol, a standard in many legacy and modern PLC environments, ensuring seamless data flow without the need for protocol gateways or complex middleware.

Procurement Recommendation: Prioritize modules that offer "Auto" configuration settings to minimize commissioning time. While the unit cost is a factor, the total cost of ownership (TCO) is significantly lower for bus-powered units due to reduced wiring and power supply requirements. When negotiating, ask for bulk pricing on shielded cabling bundles, as these are mandatory for compliance and often sold separately.

4. Typical Use Cases

Based on the environmental ratings and protocol support, these modules are designed for specific industrial scenarios:

• Legacy Device Migration: Connecting older RS-232 instruments (sensors, meters, legacy HMI) to modern DSI-based control networks without replacing the end devices.
• Harsh Industrial Environments: Deployment in manufacturing plants where vibration (up to 5G non-operating) and shock (up to 50G non-operating) are common, such as near heavy machinery or conveyor systems.
• Compact Control Panels: Utilization in tight control cabinet spaces due to the compact footprint (approx. 103.5mm x 73.4mm x 23.6mm).
• Safety-Critical Systems: Applications requiring UL/cUL and EN61800-3 compliance, such as power drive systems and process control units.

Procurement Recommendation: Match the module's shock and vibration ratings to the specific machinery location. If the installation is near high-impact machinery, verify the 50G non-operating shock rating is sufficient. For retrofit projects involving legacy equipment, confirm the RS-232 baud rate (9600/19.2K/38.4K) matches the legacy device's fixed settings.

5. Long-Term Planning Considerations

• Market Trends: The industrial IoT (IIoT) transition is driving a shift from pure serial communication to Ethernet-based protocols. However, the longevity of RS-232 devices in critical infrastructure ensures a sustained demand for high-reliability serial converters for at least the next 5–10 years.
• Supply Chain Resilience: As industrial automation components are often subject to long lead times, securing a steady supply of certified modules is crucial.
• Obsolescence Management: The reliance on specific protocols (DF1) and physical interfaces (DSI) suggests that future upgrades may require maintaining a "bridge" strategy rather than a full replacement strategy.
• Demand Signals: Increased focus on predictive maintenance and remote monitoring in manufacturing is driving demand for reliable, low-latency serial data acquisition.

Procurement Recommendation: Adopt a "bridge-first" procurement strategy. Instead of replacing all legacy serial devices immediately, procure high-quality serial converters to extend the life of existing assets. Maintain a safety stock of these modules (e.g., 10-15% of annual usage) to mitigate lead time risks associated with industrial component shortages. Ensure the procurement team stays updated on the manufacturer's roadmap for DSI and RS-232 support to anticipate future compatibility shifts.

6. Special Product Recommendations

The following table compares the standard serial converter module against potential alternatives or variations to aid in selection.

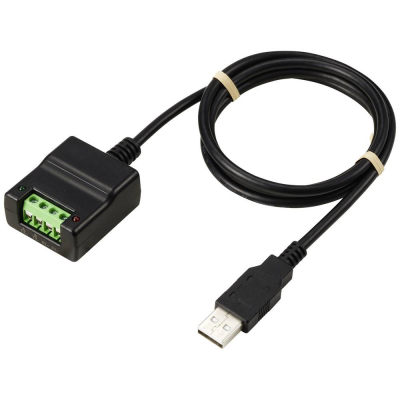

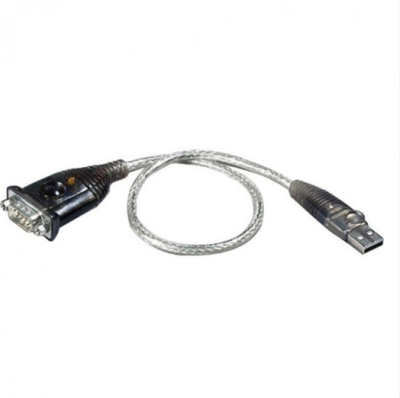

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard DSI Serial Converter | Plant Automation Engineers | 19.2K DSI rate, 170mA @ 5V, UL/cUL/CE, 50G Shock | High if unshielded cables used | Verify shielded cable availability in the same PO. | | Generic RS-232 to USB Converter | IT/Office Integration | USB interface, variable baud rates | Low industrial rating (vibration/shock) | Avoid for heavy industrial use; only for office monitoring. | | Industrial Ethernet Gateway | Modernization Projects | TCP/IP, high throughput, PoE | High cost, complex config | Use only if full network overhaul is planned; not for simple serial bridging. | | Ruggedized Serial Server | Extreme Environments | IP67 rating, -40°C to +85°C | Higher unit cost | Consider if ambient temperature exceeds standard industrial ranges. |

Procurement Recommendation: For most industrial applications, the Standard DSI Serial Converter is the optimal choice due to its balance of compliance, power efficiency, and environmental ruggedness. Avoid generic USB converters for field applications due to their lack of shock/vibration ratings. If the project involves extreme temperatures or moisture, evaluate the "Ruggedized Serial Server" option despite the higher cost.

7. Frequently Asked Questions (FAQ)

Q1: Does this serial converter require an external power supply? A: No. The module is bus-powered, drawing 170mA at +5V DC directly from the connected product. No external power source is required.

Q2: What are the maximum vibration and shock ratings for this device? A: The device can withstand 2.5G vibration in operating mode and 5G in non-operating mode (5Hz–2KHz). For shock, it handles 30G (operating) and 50G (non-operating) with a pulse width of 11 (±1) ms.

Q3: Is the device compliant with CE and CTick standards? A: Yes, it holds CE and CTick (AS/NZS 2064) certifications. However, compliance is conditional on using shielded serial and DSI cables that are properly grounded.

Q4: What data rates are supported on the RS-232 side? A: The module supports three baud rates: 9600, 19.2K, and 38.4K bps.

Q5: What are the physical dimensions and weight of the module? A: The dimensions are 103.5 mm (H) x 73.4 mm (W) x 23.6 mm (D), and it weighs 70.88 g (2.5 oz).

Q6: Can I use this module with software tools for configuration? A: Yes. The "Adapter Cfg" parameter should be left at "Auto" when used with standard software tools to ensure proper operation on the DSI.

Q7: What error detection methods are supported? A: The module supports CRC or BCC error detection, which is auto-detected during communication.

Q8: What is the recommended lead time for procurement? A: While exact lead times vary by supplier, industrial automation components typically have a lead time of 4–8 weeks. It is advisable to order well in advance of project start dates to avoid delays.
