Procurement Report: Laboratory and Industrial Shaker Systems

Product Category Identified: Laboratory Shakers (Orbital, Reciprocating, Rotating) and Industrial Vibration Shaker Systems.

1. Technical Specifications and Performance Metrics

When procuring shaker systems, the primary decision driver is the motion type and payload capacity, which dictate the achievable acceleration and frequency ranges.

• Motion Type & Stroke:

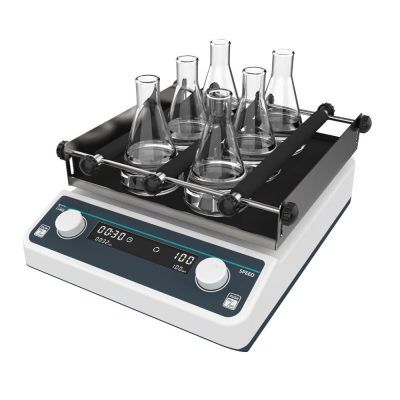

  • Orbital Shakers: Ideal for routine mixing with stroke sizes typically ranging from 2 mm to 25 mm. These are best suited for biological samples, flasks, and microplates where gentle agitation is required.
  • Vibration Shakers (Industrial): Require precise control loops. The frequency range must cover the specific test requirements, often spanning 5 Hz to 3,000 Hz depending on the actuator type.
• Speed and Acceleration:
  • Speed Range: Laboratory models typically operate between 10 rpm and 3,000 rpm. Industrial shakers are rated by acceleration (g-force), often ranging from 0.1 g to 50 g or higher for structural testing.
  • Payload Capacity: Platform size and load limits vary significantly. Laboratory units often support 10 kg to 50 kg on standard platforms, while industrial systems can handle payloads from 100 kg to several tons.
• Control & Sensing:
  • Closed-Loop Operation: High-quality systems require separate accelerometers for control, response monitoring, and limit channels.
  • Sensor Specifications: Select accelerometers with a frequency range covering the test profile and sensitivity appropriate for expected acceleration levels. Mounting methods must be verified (adhesive, magnetic, or stud-mounted) to ensure signal integrity.
• Environmental Control:
  • For incubated work, temperature control ranges are typically 4°C to 60°C with humidity control capabilities.
  • Duty Cycle: Air-cooled systems may require supplemental cooling blowers to extend duty cycles during continuous random testing or high-level applications.

Procurement Recommendation: Define the sample format (flask, microplate, or structural component) and required speed/acceleration range before selecting a model. Ensure the platform size accommodates the maximum payload with a 20% safety margin to prevent motor strain.

2. Industry Compliance and Quality Assurance

Quality assurance in shaker systems relies heavily on sensor calibration and environmental durability.

• Calibration Standards:
  • Accelerometers and control sensors must possess NIST-traceable calibration certificates. This is non-negotiable for any testing requiring regulatory compliance or data integrity.
• Environmental Ratings:
  • Sensors and control units must be rated for the specific operating environment, including temperature and humidity extremes. Industrial shakers used in harsh environments often require IP54 or higher ingress protection ratings for the control cabinet.
• Safety & Limit Channels:
  • Systems must include independent limit channels to prevent over-travel or over-acceleration, protecting both the sample and the equipment.
• Documentation:
  • Procurement packages must include full performance validation reports and user manuals detailing the calibration traceability chain.

Procurement Recommendation: Verify that the supplier provides NIST-traceable calibration certificates for all included accelerometers at the time of delivery. Do not accept "in-house" calibration without third-party verification for critical applications.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) extends beyond the initial purchase price, particularly regarding cooling and auxiliary equipment.

• Initial Investment:
  • Laboratory Shakers: Typical B2B price range is $2,000 – $15,000 depending on temperature control and platform size.
  • Industrial Vibration Systems: Prices range from $25,000 to $200,000+, heavily influenced by force rating and frequency range.
• Auxiliary Costs:
  • Cooling Systems: Budget for supplemental cooling blowers, which are essential for air-cooled shakers performing continuous random testing. This can add 10–15% to the base system cost.
  • Sensors: Purchase separate accelerometers for control and monitoring; these are often sold as add-ons costing $500 – $2,500 per unit.
• Integration:
  • Systems should support standard communication protocols (e.g., RS-232, Ethernet, USB) for integration with data acquisition software.
  • Ensure the control software allows for the definition of complex test profiles (sine, random, shock).

Procurement Recommendation: Include a line item for auxiliary cooling fans and separate control accelerometers in the initial budget. Do not assume the base unit includes all necessary sensors for closed-loop operation.

4. Typical Use Cases

• Biological & Chemical Mixing:
  • Application: Incubation of cell cultures, mixing reagents, and solubilization.
  • Equipment: Orbital shakers with temperature control (4°C–60°C) and stroke sizes of 2–25 mm.
  • Formats: Erlenmeyer flasks, microplates, and test tubes.
• Structural & Component Testing:
  • Application: Vibration fatigue testing, durability assessment of electronics, and aerospace component validation.
  • Equipment: Electrodynamic or hydraulic vibration shakers with high force ratings and wide frequency ranges.
  • Formats: Mounted test articles, PCBs, and mechanical assemblies.
• Material Characterization:
  • Application: Determining the dynamic properties of materials under stress.
  • Equipment: High-precision shakers with NIST-traceable sensors for accurate data collection.

Procurement Recommendation: Match the motion type strictly to the application. Use orbital shakers for fluid mixing and electrodynamic shakers for structural testing. Avoid using a high-force industrial shaker for delicate biological samples unless specifically designed for it.

5. Long-Term Planning Considerations

• Market Trends:
  • There is a growing demand for smart shakers with IoT connectivity for remote monitoring and predictive maintenance.
  • Energy Efficiency: Newer models are being designed with variable frequency drives (VFDs) to reduce power consumption during low-load operations.
• Capacity for Future Requirements:
  • Specify performance parameters that exceed current needs by 20–30% to accommodate future test requirements without immediate replacement.
  • Ensure the control software is upgradable to support new test standards.
• Maintenance & Durability:
  • Duty Cycle: For continuous testing, prioritize systems with forced air cooling or liquid cooling options to prevent thermal degradation.
  • Sensor Lifespan: Plan for periodic recalibration of accelerometers every 12–24 months to maintain data validity.

Procurement Recommendation: Select a system with a modular architecture that allows for the addition of cooling units or higher-force actuators later. Prioritize suppliers who offer long-term support for software updates and sensor recalibration services.

6. Special Product Recommendations

The following table compares common shaker types to assist in selecting the right product for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Orbital Lab Shaker | Biotech/Lab Managers | Stroke: 2–25 mm; Speed: 10–3,000 rpm; Payload: 10–50 kg | Check platform stability at high speeds | Verify temperature control range if incubation is needed | | Electrodynamic Shaker | R&D/Quality Assurance | Freq: 5–3,000 Hz; Accel: 1–50 g; Force: 500–5,000 lbf | Ensure NIST calibration certs are included | Budget for separate control/response accelerometers | | Hydraulic Shaker | Heavy Industry | Payload: 100 kg–5 tons; Low Freq: 0.1–100 Hz | Check hydraulic fluid maintenance requirements | Confirm auxiliary cooling is included for continuous duty | | Reciprocating Shaker | Food/Pharma Processing | Stroke: 10–50 mm; Speed: 50–300 cpm | Verify seal integrity for sterile environments | Ensure stainless steel construction for hygiene compliance |

Procurement Recommendation: For high-precision testing, do not compromise on the quality of accelerometers. For high-volume production mixing, prioritize duty cycle and cooling capabilities over extreme speed ranges.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between orbital and reciprocating shakers? A: Orbital shakers move in a circular motion (2–25 mm stroke) ideal for mixing liquids in flasks. Reciprocating shakers move back and forth, often used for heavier loads or specific screening applications.

Q2: Do I need to buy accelerometers separately? A: Yes, for high-quality closed-loop operation, you should purchase separate accelerometers for control, response monitoring, and limit channels to ensure accurate data and system safety.

Q3: How do I extend the duty cycle of an air-cooled shaker? A: Supplemental cooling blowers or auxiliary fans should be purchased and installed to prevent overheating during continuous random testing or high-level applications.

Q4: What calibration standard should the sensors meet? A: All accelerometers and control sensors must have NIST-traceable calibration certificates to ensure data integrity and regulatory compliance.

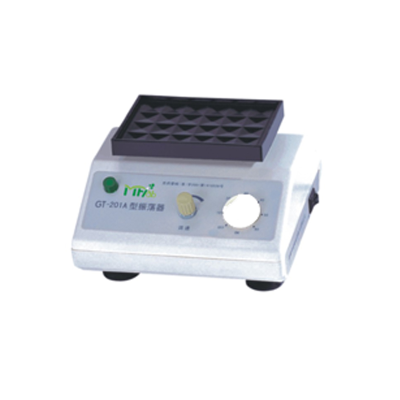

Q5: What stroke size is best for microplates? A: A smaller stroke size (typically 2–3 mm) is recommended for microplates to prevent splashing and ensure uniform mixing without damaging the wells.

Q6: Can I use a vibration shaker for biological incubation? A: Only if the unit has specific temperature and humidity control features. Standard industrial vibration shakers do not typically offer the gentle motion or environmental control required for cell cultures.

Q7: How often should I recalibrate my shaker sensors? A: It is standard practice to recalibrate accelerometers and control units every 12 to 24 months, or after any significant impact or repair.

Q8: What is the typical lead time for custom shaker systems? A: While standard lab shakers are often available immediately, custom industrial vibration systems with specific force ratings and frequency ranges typically have a lead time of 8–16 weeks.
