Procurement Report: Solar Panel Cells

1. Technical Specifications and Performance Metrics

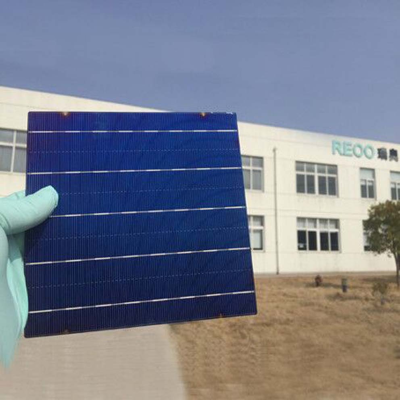

Solar panel cells are the fundamental building blocks of photovoltaic modules. Procurement decisions must prioritize cell architecture and conversion efficiency to ensure optimal system output.

• Cell Architecture & Efficiency:
  • Monocrystalline (Mono) PERC: Typical B2B efficiency range of 21.5% – 23.5%. These offer the highest power density and are the industry standard for space-constrained projects.
  • Bifacial Cells: Efficiency range of 20% – 22.5% (front side). These cells generate additional power from rear-side albedo reflection, offering a 5% – 25% yield increase depending on ground reflectivity and mounting height.
  • Thin-Film (CIGS/CdTe): Efficiency range of 10% – 14%. Lower efficiency but superior performance in low-light and high-temperature conditions.
• Electrical Parameters:
  • Open Circuit Voltage (Voc): Typically 0.65V – 0.75V per cell.
  • Short Circuit Current (Isc): Varies by cell size, typically 9A – 12A for standard 156mm/166mm cells.
  • Temperature Coefficient: Power output typically drops by -0.30% to -0.40% per °C rise in temperature.
• Physical Dimensions:
  • Standard wafer sizes have transitioned from 156mm (M2) to 166mm (G1) and 182mm (M10) or 210mm (G12) for high-power modules.
  • Cell thickness is typically 150µm – 180µm, with advanced thinning reaching 120µm to reduce material costs.

Actionable Recommendation: For utility-scale projects where land cost is a factor, prioritize 182mm or 210mm Mono PERC cells to maximize wattage per square meter. For residential or rooftop applications with shading risks, consider Bifacial cells or cells with a lower temperature coefficient. Always request a detailed I-V curve test report to verify the actual performance against the datasheet.

2. Industry Compliance and Quality Assurance

Certification is the primary defense against quality degradation and safety hazards. Procurement specifications must explicitly require adherence to international standards to ensure long-term reliability.

• Mandatory Standards:
  • IEC 61215: Qualification for terrestrial photovoltaic (PV) modules. Ensures the cell/module can withstand mechanical loads, thermal cycling, and humidity-freeze tests.
  • IEC 61730: Safety qualification for PV modules. Covers electrical insulation, fire resistance, and mechanical safety.
  • TÜV Certification: Often associated with the above IEC standards, providing third-party verification of manufacturing quality and safety compliance.
• Test Report Verification:
  • Buyers must review Type Approval Test Reports (not just a certificate of compliance).
  • Key metrics to verify in reports: PID (Potential Induced Degradation) resistance, Damp Heat stability (1000 hours at 85°C/85% RH), and Thermal Cycling (200 cycles).
• Risk Mitigation:
  • Verify the authenticity of certificates via the issuing body's database to avoid fake claims.
  • Ensure the manufacturing facility has an ISO 9001 quality management system certification.

Actionable Recommendation: Do not accept "self-declared" compliance. Require the supplier to provide the full IEC 61215/61730 test report from an accredited third-party laboratory (e.g., TÜV, UL, or Intertek). Specifically check for PID-free status if the project involves high-voltage systems (1500V+), as standard cells may degrade rapidly under high bias voltage.

3. Cost Efficiency and Integration Capabilities

The cost of solar cells is driven by wafer size, efficiency, and supply chain logistics. Integration capabilities determine how easily cells can be assembled into modules or flexible systems.

• Cost Metrics:
  • Cell Price: Typical B2B range is $0.08 – $0.12 per Watt (subject to silicon wafer market volatility).
  • MOQ (Minimum Order Quantity): Standard container loads (20ft) typically require 500 kW – 1 MW of cell volume.
  • Lead Time: Standard production lead time is 4 – 8 weeks from order confirmation, excluding shipping.
• Integration Features:
  • High Voltage Compatibility: Cells must be rated for 1500V+ systems to reduce cabling costs and inverter requirements in large farms.
  • Flexibility: For specialized applications (e.g., ETFE flexible panels), cells must be laser-cut or bonded to flexible substrates, often sacrificing some efficiency for weight reduction.
  • Interconnection: Busbar technology (e.g., Multi-busbar or 0BB - No Busbar) impacts soldering compatibility and mechanical stress resistance.

Actionable Recommendation: Negotiate based on $/Watt rather than per piece to account for efficiency variances. For large-scale projects, request a 1500V-rated cell specification to future-proof the system against voltage upgrades. When sourcing for custom applications (e.g., curved roofs), verify the bending radius capability of the cell before committing to a bulk order.

4. Typical Use Cases

Different cell technologies are optimized for specific environments and project scales.

• Utility-Scale Solar Farms:
  • Requirement: High efficiency, low degradation, and 1500V+ compatibility.
  • Preferred Cell: Large-format (182mm/210mm) Monocrystalline PERC or N-type TOPCon cells.
• Residential & Commercial Rooftops:
  • Requirement: Aesthetics, space efficiency, and partial shading tolerance.
  • Preferred Cell: High-efficiency Monocrystalline with half-cut cell technology to reduce resistive losses.
• Flexible & Portable Applications:
  • Requirement: Lightweight, bendable, and durable against vibration.
  • Preferred Cell: Thin-film (CIGS) or laser-cut Monocrystalline cells bonded to ETFE or PET substrates.
• High-Temperature Climates:
  • Requirement: Low temperature coefficient.
  • Preferred Cell: N-type cells (TOPCon/HJT) which typically exhibit better thermal performance than P-type PERC.

Actionable Recommendation: Match the cell technology strictly to the installation environment. Do not use standard P-type cells for high-temperature, high-humidity coastal projects without verifying PID resistance. For portable or marine applications, explicitly request flexible cell specifications with a minimum bending radius of 30°.

5. Long-Term Planning Considerations

The solar market is evolving rapidly with a shift toward higher efficiency and sustainability. Procurement strategies must align with these trends to avoid asset obsolescence.

• Market Trends:
  • N-Type Dominance: The industry is shifting from P-type PERC to N-type TOPCon and Heterojunction (HJT) cells due to higher efficiency (>24%) and lower degradation rates.
  • Higher Voltage Systems: As solar farms scale, the standard is moving toward 1500V+ systems, requiring cells with improved insulation and PID resistance.
  • Sustainability: Increasing demand for low-carbon manufacturing and recycled content in cells.
• Durability & Warranty:
  • Standard power warranties are 25 – 30 years, guaranteeing 80% – 87% of initial output.
  • Linear degradation rates are typically 0.4% – 0.55% per year.
• Supply Chain Resilience:
  • Diversify suppliers to mitigate risks associated with raw material (polysilicon) price spikes.
  • Consider local assembly capabilities to reduce logistics lead times.

Actionable Recommendation: Prioritize suppliers with N-type cell portfolios for new projects to ensure 25-year performance guarantees. When planning for 10+ year horizons, factor in the potential for 1500V+ system upgrades and ensure the selected cells are certified for these voltages. Avoid locking into long-term contracts with P-type only suppliers if the market is rapidly transitioning to N-type.

6. Special Product Recommendations

The following table compares common solar cell product types to assist in selecting the right component for specific procurement needs.

Actionable Recommendation: For new large-scale tenders, N-Type TOPCon is the recommended baseline to future-proof the investment. For retrofit projects or space-constrained sites, Bifacial or Half-Cut technologies offer immediate efficiency gains. Always validate the flexibility rating before purchasing for non-planar surfaces.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between IEC 61215 and IEC 61730? A: IEC 61215 focuses on performance and reliability (e.g., thermal cycling, humidity freeze), while IEC 61730 focuses on safety (e.g., electrical shock protection, fire resistance). Both are required for a fully certified module.

Q2: Why are 1500V+ systems becoming the standard? A: Higher voltage systems reduce the current for the same power output, which lowers cabling costs, reduces resistive losses, and allows for fewer inverters, improving overall system efficiency and reducing installation costs.

Q3: How can I verify if a solar panel certification is real? A: Request the specific test report number and verify it directly on the issuing body's website (e.g., TÜV, UL). Do not rely solely on a certificate of compliance image; check the test data for specific parameters like PID resistance and thermal cycling results.

Q4: What is the typical lifespan of solar cells? A: High-quality monocrystalline cells typically have a functional lifespan of 25 to 30 years, with a guaranteed power output of at least 80% of the initial rating after 25 years.

Q5: Are bifacial cells worth the extra cost? A: Yes, if the installation allows for rear-side light reflection (e.g., elevated mounting on light-colored ground). They can increase energy yield by 5% to 25%, often paying back the premium within the first few years.

Q6: What is the Minimum Order Quantity (MOQ) for solar cells? A: Typical B2B MOQs are based on container loads, usually ranging from 500 kW to 1 MW of cell volume. Smaller quantities may incur significantly higher per-watt costs.

Q7: How does temperature affect solar cell performance? A: As temperature rises, voltage drops. Most cells have a temperature coefficient of power between -0.30% and -0.40% per °C. In hot climates, this can result in a 10-15% power loss compared to standard test conditions (25°C).

Q8: What is the lead time for custom-sized flexible solar panels? A: Custom manufacturing, such as flexible ETFE panels, typically requires 6 – 10 weeks due to the specialized lamination and cutting processes involved, compared to 4-8 weeks for standard rigid modules.
