Procurement Report: Soldering Consumables and Equipment

1. Technical Specifications and Performance Metrics

For effective procurement of soldering consumables and equipment, specifications must align with the specific application process (manual electronics soldering vs. industrial brazing). The following parameters define the baseline for quality and performance:

• Soldering Iron Power & Voltage:
  • Power Rating: For general electronics bench work, 60W is the standard baseline. For high-thermal-mass components or rapid production lines, 100W+ is recommended to ensure rapid recovery time.
  • Voltage: Typically 220V or 110V depending on regional grid standards; ensure compatibility with local infrastructure to prevent thermal instability.
• Tip Geometry and Dimensions:
  • Tip Width: Standard tips range from 0.5 mm to 8 mm.
    • 0.5–1.5 mm: Best for fine-pitch components (0201, 0402) and micro-soldering.
    • 3–8 mm: Optimized for through-hole components, ground planes, and heat sinking.
• Desoldering Braid (Wick):
  • Width Range: 1.5 mm to 4.5 mm.
    • 1.5–2.5 mm: Precision removal for small pads.
    • 3.0–4.5 mm: Rapid removal for large ground planes or multi-layer board repair.
• Flux Formulation:
  • Format: No-clean flux paste is standard for bench work, typically supplied in 10 g to 100 g syringes.
  • Activity Level: Ensure the flux meets J-STD-001 activity requirements (typically RMA or RA) for the specific alloy being used.
• Durability & Lifespan:
  • Tip Life: Typically 500–1,000 hours of active heating cycles before plating degradation requires replacement.
  • Lead Time: Standard lead time for consumables is 2–4 weeks; custom tip shapes may require 6–8 weeks.

Actionable Recommendation: Procure a mix of tip sizes (0.8 mm, 2.4 mm, and 5 mm) to cover 90% of repair scenarios. Verify that the power rating of the iron matches the thermal mass of the most difficult component in your BOM to avoid cold joints.

2. Industry Compliance and Quality Assurance

Quality assurance in soldering is governed by strict industry standards to ensure reliability and safety, particularly for electronics exported to Southeast Asia and global markets.

• IPC Certification Standards:
  • IPC-J-STD-001: The primary standard for soldering requirements. Procurement must ensure materials (solder, flux, tips) are compatible with this standard's acceptance criteria.
  • IPC-MI-660: Relevant for facilities inspecting/test printed boards. Facilities must verify if their suppliers hold certification under this specification for printed board materials.
  • Personnel Certification: IPC offers three levels of certification for individuals. Procurement teams should verify that operators are IPC-A-610 (Acceptability of Electronic Assemblies) or IPC-J-STD-001 certified to ensure process consistency.
• Safety Certifications:
  • Export Compliance: For Southeast Asian exporters, soldering equipment must hold valid safety certifications regarding power rating and voltage specifications (e.g., CE, UL, or local equivalents).
  • Material Safety: Fluxes must be RoHS compliant (Lead-free) for most modern electronics, with specific documentation for halogen content if required by the end-client.

Actionable Recommendation: Require suppliers to provide a Certificate of Conformance (CoC) referencing J-STD-001 and IPC-A-610 for all solder and flux batches. Prioritize suppliers who can demonstrate their own facility certification under IPC-MI-660 if you are sourcing printed board materials or high-reliability assemblies.

3. Cost Efficiency and Integration Capabilities

Optimizing the Total Cost of Ownership (TCO) involves balancing upfront equipment costs with consumable longevity and integration into existing workflows.

• Cost Parameters:
  • Equipment: Entry-level 60W stations range from $150–$300; industrial 100W+ stations range from $400–$1,200.
  • Consumables:
    • Solder Wire (Lead-free): $20–$50 per kg.
    • Flux Syringes (10–100g): $15–$40 per unit.
    • Desoldering Braid: $5–$15 per roll.
  • MOQ (Minimum Order Quantity): Typical B2B ranges are 10–50 units for consumables and 1–5 units for equipment.
• Integration Capabilities:
  • Micro-Soldering Workstations: Modern workstations allow for modular upgrades (e.g., adding hot air, magnification, or fume extraction). Ensure the power supply supports 100W+ if planning for future high-volume scaling.
  • Process Compatibility: Ensure the selected flux is "no-clean" to reduce post-soldering cleaning costs, provided the application allows for residual flux (per J-STD-001).

Actionable Recommendation: Calculate TCO based on a 12-month horizon. If your volume exceeds 5 kg of solder per month, negotiate bulk pricing for wire and flux. Select equipment with modular expansion capabilities to avoid premature replacement when scaling from manual to semi-automated processes.

4. Typical Use Cases

Soldering consumables are categorized by the specific manufacturing or repair environment:

• Manual Electronics Soldering (Bench Work):
  • Scenario: R&D prototyping, PCB repair, and low-volume assembly.
  • Requirements: High precision, fine tips (0.5–1.5 mm), and no-clean flux in syringes (10–50 g).
• High-Volume Production:

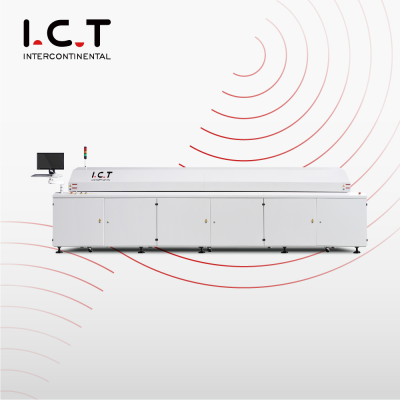

  • Scenario: Automated reflow or wave soldering support, or high-speed manual stations.
  • Requirements: High-power irons (100W+), large spools of solder, and bulk flux dispensers.
• Micro-Soldering:
  • Scenario: Mobile device repair, aerospace, and medical electronics.
  • Requirements: Micro-tips (<0.5 mm), specialized low-residue flux, and high-magnification integration.
• Brazing/Heavy Duty:
  • Scenario: HVAC, plumbing, or heavy industrial wiring.
  • Requirements: Larger tip widths (5–8 mm), higher thermal mass, and specific brazing alloys (distinct from electronics solder).

Actionable Recommendation: Map your current BOM and repair volume to these categories. If >80% of work involves fine-pitch components, invest in a micro-soldering workstation rather than a generic 60W iron. For mixed environments, a modular station with interchangeable tips is the most cost-effective solution.

5. Long-Term Planning Considerations

Strategic procurement must account for evolving market trends and regulatory shifts.

• Market Trends & Demand Signals:
  • Lead-Free Mandates: Global demand for lead-free solder (SAC305, SAC405) continues to rise, driven by RoHS and WEEE directives.
  • Micro-Electronics Growth: The proliferation of IoT and wearables drives demand for 0.5 mm and smaller tip sizes and high-precision flux.
  • Safety & Sustainability: Increased scrutiny on flux emissions and no-clean residues is pushing demand for water-soluble or ultra-low-residue fluxes.
• Supply Chain Resilience:
  • Diversify suppliers to mitigate risks associated with raw material (copper, silver, tin) price volatility.
  • Maintain a safety stock of critical consumables (tips, wick) with a 3-month lead time buffer.
• Skill Development:
  • Invest in IPC certification training for operators. The cost of rework due to poor soldering techniques often exceeds the cost of training.

Actionable Recommendation: Develop a 3-year roadmap that transitions all legacy lead-based inventory to lead-free equivalents. Allocate budget for IPC certification for key engineering staff to ensure process compliance with J-STD-001 updates.

6. Special Product Recommendations

The following table compares key product types to assist in selecting the right procurement strategy based on buyer profile and risk factors.

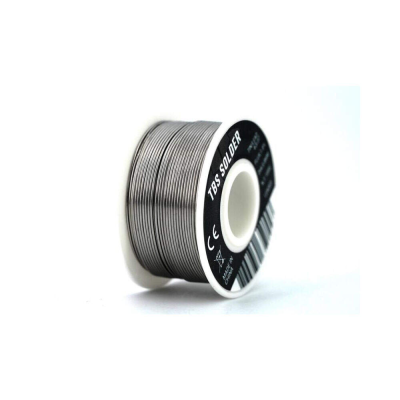

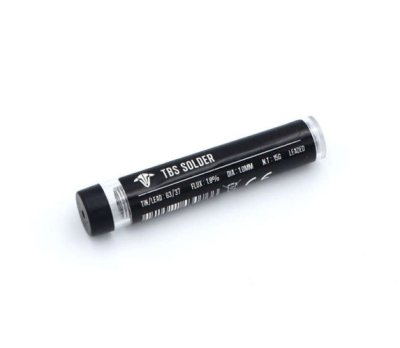

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Micro-Soldering Station | R&D Labs, Repair Shops | 60W+, Tip <1.0mm, High Mag | Tip wear rate is high; requires precise temp control | Buy with warranty; verify tip availability for specific shapes. | | Industrial 100W+ Iron | Production Lines, OEMs | 100W+, Tip 3–8mm, Fast Recovery | Overheating risk if not calibrated; high power draw | Ensure voltage compatibility; check for CE/UL safety certs. | | No-Clean Flux (Syringe) | General Assembly | 10–100g, J-STD-001 compliant | Residue buildup if left too long; shelf life 12mo | Check batch date; buy in bulk (10+ units) for cost efficiency. | | Desoldering Braid | Repair & Rework | 1.5–4.5mm width, Rosin core | Clogging if used on oxidized pads | Match width to pad size; keep a variety of widths in stock. | | Solder Wire (Lead-Free) | High-Volume Mfg | 0.3–1.0mm dia, SAC305 | Oxidation if not stored properly | Store in vacuum-sealed bags; verify RoHS/REACH compliance docs. |

Actionable Recommendation: For new buyers, start with a Micro-Soldering Station and a 100g flux syringe to cover 80% of scenarios. Avoid "all-in-one" cheap kits that often lack calibration stability; invest in modular systems that allow tip and power upgrades.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between manual electronics soldering and brazing in terms of consumables? A: Manual electronics soldering uses lower melting point alloys (typically <300°C) with fine tips (0.5–8 mm) and rosin-based fluxes. Brazing uses higher melting point alloys (>450°C) with larger tips and often requires different fluxes for metal-to-metal joining. Procurement must specify the process to avoid using the wrong tip or flux.

Q2: How do I ensure my soldering process meets IPC standards? A: Ensure your materials (solder, flux, tips) are compatible with IPC-J-STD-001. Additionally, verify that your operators hold IPC certification (Level I, II, or III) to guarantee the process meets global acceptance criteria for electronic assemblies.

Q3: What is the typical lifespan of a soldering iron tip? A: Under normal bench work conditions, a standard tip lasts 500–1,000 hours. Lifespan decreases significantly with improper temperature settings, lack of tinning, or use of corrosive fluxes.

Q4: Are "no-clean" fluxes always safe to leave on the board? A: Generally, yes, per J-STD-001 guidelines, provided the flux is designed for no-clean applications. However, for high-reliability aerospace or medical applications, a post-soldering cleaning step may still be required despite the "no-clean" label.

Q5: What voltage and power rating should I choose for a Southeast Asian export facility? A: Verify the local grid voltage (typically 220V or 110V). For export facilities, select equipment with 100W+ power ratings for high-volume throughput and ensure it holds local safety certifications (e.g., CE, UL) as required by the destination market.

Q6: What is the standard Minimum Order Quantity (MOQ) for soldering consumables? A: Typical B2B MOQs for consumables like flux syringes and solder wire are 10–50 units. For specialized tips or custom shapes, MOQs may be higher, and lead times can extend to 6–8 weeks.

Q7: How do I select the right desoldering braid width? A: Select a braid width that covers the target pad but does not exceed it by more than 10–20%. Standard widths range from 1.5 mm to 4.5 mm. Use 1.5–2.5 mm for fine components and 3.0–4.5 mm for large ground planes.

Q8: Is lead-free solder more difficult to work with than leaded solder? A: Yes, lead-free solder (e.g., SAC305) has a higher melting point and requires slightly higher iron temperatures and better wetting characteristics. Ensure your equipment can reach 350°C–380°C and that your flux is rated for lead-free alloys.
