Procurement Report: Sound Level Meters

1. Technical Specifications and Performance Metrics

Based on industry standards for professional acoustic measurement, the core technical requirements for a sound level meter (SLM) center on dynamic range, frequency weighting, and time weighting capabilities.

• Measurement Range: Typical professional units offer a range of 26 dB to 130 dB, often segmented into 6 distinct ranges to ensure precision across low-level ambient noise and high-intensity industrial environments.
• Resolution and Accuracy: High-grade meters provide a resolution of 0.1 dB. Accuracy is typically specified as ±1.5 dB (referenced at 94 dB, 1 kHz), which is critical for legal and compliance measurements.
• Frequency Weighting: The standard requirement includes Frequency Weighting A (mimicking human hearing) and Frequency Weighting C (for peak noise and low-frequency assessment). The operational frequency range generally spans 31.5 Hz to 8 kHz.
• Time Weighting: Units must support FAST (125 ms) and SLOW (1 s) time constants, with some advanced models offering LEQ (Energy-Equivalent Sound Level) calculation for noise exposure over time.
• Data Handling: Modern procurement should prioritize units with USB or RS-232 interfaces for real-time PC monitoring and data transfer. Internal memory capacity typically supports 30 to 99 readings (via keystroke or auto-logging).
• Operating Environment: Standard durability specs include an operating temperature range of 0°C to +40°C and relative humidity tolerance up to <80% RH.

Procurement Recommendation: Select meters that explicitly state IEC 61672-1 Class 2 compliance for general industrial and environmental monitoring. If the application involves legal disputes or strict regulatory audits, verify if the specific model supports Class 1 specifications, though Class 2 is the industry baseline for most B2B procurement. Ensure the unit includes MIN/MAX functions and bar graph displays for immediate visual feedback during site surveys.

2. Industry Compliance and Quality Assurance

Procurement of sound level meters requires strict adherence to international standards to ensure data validity and legal defensibility.

• International Standards: The primary benchmark is IEC 61672-1 (replacing older IEC 60651 and IEC 60804 standards). Look for explicit certification stating compliance with IEC 651 Type II or Class 2.
• Regulatory Directives: For European markets, devices must meet Machinery Directives 89/393/EWG and hold CE certification.

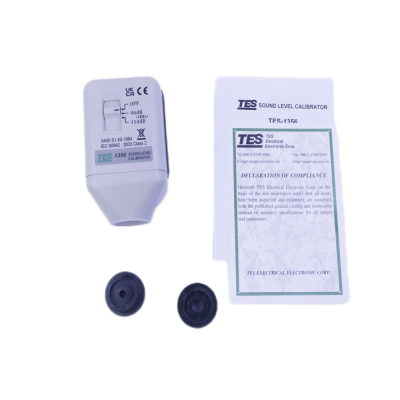

• Calibration Requirements: To maintain accuracy, units require periodic calibration. Procurement should include a budget for an external 94 dB Sound Calibrator (e.g., Type 42) and associated ISO calibration certificates.
• Quality Assurance: Verify that the manufacturer provides a calibration screwdriver and detailed instruction manuals. The device should feature an indication system for when values exceed or fall below set limits.

Procurement Recommendation: Do not purchase a sound level meter without a plan for its calibration lifecycle. Include the cost of a 94 dB calibrator in the initial budget. Request a CE certificate and a copy of the ISO calibration certificate for the specific unit batch before finalizing the order. Ensure the supplier offers a warranty that covers sensor drift and electronic failure within the first 12–24 months.

3. Cost Efficiency and Integration Capabilities

While unit costs vary by brand and class, the total cost of ownership (TCO) is driven by integration potential and accessory requirements.

• Interface Integration: Units with USB or RS-232 interfaces allow for direct integration with PC-based analysis software, eliminating manual data entry errors. Some models offer analogue AC & DC outputs for connecting to external recorders or control systems.
• Power Management: Standard units operate on 4 x 1.5 V AAA batteries, with an estimated operational life of 40+ hours depending on usage. For continuous monitoring, a 300 mA mains adaptor is a cost-effective alternative to battery replacement.
• Software Compatibility: Look for bundled or compatible software (e.g., K-SOFT type solutions) that supports data export and real-time monitoring.
• Typical B2B Cost Ranges:
  • Entry-Level (Class 2): $400 – $800 USD
  • Advanced (Class 2 with LEQ/USB): $800 – $1,500 USD
  • Calibration Accessories: $300 – $600 USD per calibrator

Procurement Recommendation: Prioritize models with USB connectivity and LEQ functionality to reduce long-term labor costs associated with manual data logging. If the application requires continuous monitoring (e.g., in a factory), procure the mains adaptor immediately to avoid battery downtime. Verify that the software included is compatible with the organization's existing data management systems to avoid licensing fees for third-party analysis tools.

4. Typical Use Cases

Sound level meters are versatile tools deployed across various sectors requiring noise control and safety compliance.

• Occupational Health and Safety (OHS): Monitoring worker exposure to noise to ensure compliance with OSHA or local regulations. The LEQ function is essential here for calculating time-weighted averages.
• Environmental Noise Assessment: Measuring community noise levels from traffic, construction, or industrial facilities. Frequency Weighting A is the standard metric for these assessments.
• Product Testing and R&D: Evaluating the acoustic output of machinery, appliances, or vehicles.
• Construction Site Monitoring: Real-time tracking of noise levels to prevent disturbance to surrounding areas and ensure site safety.
• HVAC and Building Diagnostics: Identifying excessive noise in ventilation systems or office environments.

Procurement Recommendation: For OHS applications, prioritize meters with LEQ and SLOW time weighting. For environmental monitoring, ensure the device has a wide dynamic range (26–130 dB) and a robust windscreen (often sold separately). For R&D, select units with USB data logging and high resolution (0.1 dB) to support detailed acoustic analysis.

5. Long-Term Planning Considerations

Strategic procurement involves anticipating market trends and the lifecycle of acoustic measurement technology.

• Market Trends: There is a growing demand for wireless connectivity (Bluetooth/Wi-Fi) and smartphone integration in sound level meters, moving away from RS-232 legacy ports.
• Regulatory Shifts: Regulations are becoming stricter regarding low-frequency noise and LEQ reporting. Future-proofing procurement by selecting meters with C-weighting and advanced LEQ capabilities is advisable.
• Durability and Maintenance: Standard units have a lifespan of 5–7 years before sensor degradation becomes significant. Plan for a 3-year recalibration cycle as a standard operating procedure.
• Supply Chain Resilience: Ensure the chosen model has a stable supply chain for AAA batteries and calibration accessories to avoid operational disruptions.

Procurement Recommendation: Adopt a 5-year refresh cycle for acoustic equipment. When renewing contracts, prioritize vendors offering firmware updates to extend device functionality. Consider the trend toward digital integration; if the current fleet relies on RS-232, plan a phased migration to USB/Wi-Fi enabled units to align with modern data analytics workflows.

6. Special Product Recommendations

The following comparison table highlights specific product configurations based on buyer profiles and risk factors.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Basic Class 2 Meter | General Facility Managers | Range: 26-130 dB; Weighting: A/C; Power: 4x AAA | Low risk for simple spot checks | Ideal for quick audits; ensure a separate calibrator is bought. | | LEQ/USB Integrated Meter | Safety Officers / EHS | Range: 26-130 dB; LEQ Mode; USB Interface; Memory: 99+ | Medium risk (software compatibility) | Best for compliance reporting; verify PC software compatibility first. | | Calibrator + Meter Bundle | Quality Assurance Labs | Meter: Class 2; Calibrator: 94 dB; ISO Cert Included | Low risk if bundle is from same vendor | Most cost-effective for new teams; ensures immediate calibration capability. | | Industrial Ruggedized Meter | Construction / Field Engineers | Range: 26-130 dB; IP Rating (if available); Battery Life >40h | Medium risk (higher cost) | Justified for harsh environments; check for windscreen inclusion. |

Procurement Recommendation: For most B2B scenarios, the LEQ/USB Integrated Meter offers the best balance of functionality and future-proofing. Avoid "bare minimum" purchases if the organization plans to generate formal compliance reports, as the lack of data logging capabilities will increase administrative overhead. Always bundle a 94 dB calibrator with the initial purchase to ensure immediate usability.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between Class 1 and Class 2 sound level meters? A: Class 1 meters are precision instruments with tighter tolerances (±0.7 dB) and are used for laboratory and legal applications. Class 2 meters (±1.5 dB) are general-purpose instruments suitable for most industrial, environmental, and occupational health applications.

Q2: How often should a sound level meter be calibrated? A: Industry best practice recommends calibration every 12 months or after any significant impact or repair. Some high-frequency users may require calibration every 6 months.

Q3: Can I use a sound level meter for legal compliance? A: Yes, provided the meter meets IEC 61672-1 Class 2 (or Class 1) standards and is currently calibrated with a valid ISO certificate. The specific legal requirements may vary by jurisdiction.

Q4: What is the significance of the LEQ function? A: LEQ (Equivalent Continuous Sound Level) calculates the average sound energy over a specific period. It is essential for assessing noise exposure in occupational settings to determine if workers are at risk of hearing damage.

Q5: Do these meters work in extreme temperatures? A: Standard operating conditions are typically 0°C to +40°C. For extreme environments, specialized ruggedized models or protective enclosures may be required, as standard units may suffer from sensor drift or battery failure outside this range.

Q6: Is a calibration screwdriver included with the meter? A: Yes, most professional units (such as the PCE-353 series) include a calibration screwdriver in the standard package to allow for minor adjustments, though full calibration requires an external calibrator.

Q7: How long do the batteries last? A: Standard units powered by 4 x AAA batteries typically offer 40+ hours of continuous operation. Using the mains adaptor (300 mA) is recommended for long-term stationary monitoring.

Q8: Can I export data to Excel or other software? A: Yes, models with USB or RS-232 interfaces can transfer data to a PC. Most manufacturers provide proprietary software (e.g., K-SOFT) or support standard data formats for integration with spreadsheet applications.
