Spectrometer Procurement Report

1. Technical Specifications and Performance Metrics

When procuring a spectrometer, the primary decision driver is the spectral range and resolution required for the specific application. The selection must align the detector technology, wavelength accuracy, and Signal-to-Noise Ratio (SNR) with the target sample type and measurement environment.

• Spectral Ranges & Resolution:
  • UV-Vis: 190–1100 nm (Typical resolution: 1–2 nm). Essential for color analysis and chemical concentration.
  • Visible (Vis): 380–780 nm. Critical for color matching in textiles and food.
  • NIR (Near-Infrared): 900–2500 nm. Ideal for moisture, protein, and fat content analysis in agriculture and pharma.
  • FTIR (Fourier Transform Infrared): 4000–400 cm⁻¹. Required for molecular fingerprinting and polymer identification.
• Performance Parameters:
  • Wavelength Accuracy: Typical B2B range of ±0.3 nm to ±1.0 nm for UV-Vis; ±0.5 cm⁻¹ for FTIR.
  • Photometric Accuracy: ±0.005 Abs (A) to ±0.01 Abs (A) at 1.0 A.
  • Signal-to-Noise Ratio (SNR): Minimum 1000:1 (1 Hz bandwidth) is standard for high-precision research; >5000:1 preferred for trace analysis.
  • Stray Light: <0.05% T (UV-Vis) to ensure linearity at high absorbance.

Procurement Recommendation: Do not select a spectrometer based solely on price. First, define the spectral range (e.g., UV-Vis vs. NIR) and the required resolution. Request a demonstration using your specific sample matrix to verify the SNR and wavelength accuracy in your actual operating environment before finalizing the order.

2. Industry Compliance and Quality Assurance

Spectrometers used in regulated industries must adhere to strict data integrity and performance validation standards. Compliance ensures that measurement data is legally defensible and reproducible.

• Regulatory Standards:
  • Pharmaceutical: Compliance with 21 CFR Part 11 (Electronic Records) and USP <857> (Spectrophotometry).
  • Food & Agriculture: Adherence to AOAC International methods and ISO 17025 for testing laboratories.
  • Environmental: EPA Method 600/400 series compliance for water quality analysis.
• Quality Assurance Metrics:
  • Calibration: Instruments should support automatic wavelength calibration (e.g., using Holmium oxide filters) with traceability to NIST standards.
  • Validation: Full IQ/OQ/PQ (Installation, Operational, Performance Qualification) documentation must be provided by the vendor.
  • Software Security: Role-based access control and audit trails are mandatory for GxP environments.

Procurement Recommendation: Verify that the vendor provides a comprehensive validation package (IQ/OQ/PQ protocols) and that the software is compliant with 21 CFR Part 11 if the instrument will be used in pharmaceutical or clinical settings. Ensure the warranty covers at least 2 years of calibration services to maintain ISO 17025 accreditation.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) extends beyond the initial purchase price to include maintenance, consumables, and integration with existing Laboratory Information Management Systems (LIMS).

• Cost Structure:

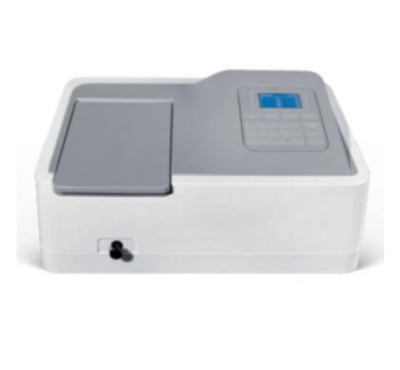

  • Initial Investment: Typical B2B range of $5,000 (benchtop UV-Vis) to $80,000+ (high-end FTIR or NIR).
  • Maintenance: Annual service contracts typically range from 10% to 15% of the instrument cost.
  • Consumables: Deuterium/Halogen lamps have a lifespan of 1,000–2,000 hours; replacement cost is $300–$800 per set.
• Integration Capabilities:
  • Connectivity: Standard interfaces include USB 2.0/3.0, Ethernet (TCP/IP), and RS-232.
  • Software: Look for open API support (e.g., Python, C#, .NET) for custom data processing and LIMS integration.
  • Automation: Compatibility with autosamplers and robotic liquid handlers is crucial for high-throughput labs.

Procurement Recommendation: Calculate the TCO over a 5-year period, factoring in lamp replacement and annual service fees. Prioritize instruments with open API documentation to avoid vendor lock-in and ensure seamless integration with your existing LIMS or ERP systems.

4. Typical Use Cases

Spectrometers are versatile tools applied across diverse sectors. The configuration must match the specific analytical challenge.

• Pharmaceuticals: Assay of active ingredients, dissolution testing, and polymorph identification (FTIR).
• Environmental Science: Monitoring water quality (COD, BOD, heavy metals) and air pollution analysis.
• Food & Beverage: Color consistency, moisture content (NIR), and adulteration detection.
• Materials Science: Thin-film thickness measurement, polymer characterization, and semiconductor quality control.
• Quality Control (QC): Rapid pass/fail testing in manufacturing lines for color matching and concentration verification.

Procurement Recommendation: Map your primary use case to the spectral range. For example, if your primary need is moisture analysis in grain, a NIR spectrometer (900–2500 nm) is the correct choice, whereas a UV-Vis unit would be insufficient. For high-throughput QC lines, prioritize ruggedized, automated models over research-grade benchtop units.

5. Long-Term Planning Considerations

The spectrometer market is evolving with a shift toward miniaturization, AI-driven data analysis, and remote monitoring.

• Market Trends:

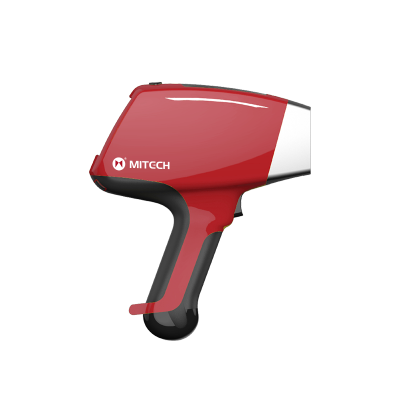

  • Miniaturization: Growing demand for handheld and portable spectrometers for field testing.
  • AI & Machine Learning: Integration of chemometrics algorithms for predictive modeling and automated anomaly detection.
  • IoT Connectivity: Instruments are increasingly equipped with cloud connectivity for remote diagnostics and firmware updates.
• Demand Signals:
  • Increased regulatory pressure in food safety and pharma is driving demand for higher data integrity and automation.
  • Sustainability initiatives are pushing for energy-efficient LED-based light sources over traditional lamps.
• Durability & Lifecycle:
  • Expected instrument lifespan: 7–10 years.
  • Component lifespan (Lamps/Detectors): 1–3 years depending on usage intensity.

Procurement Recommendation: Future-proof your procurement by selecting instruments with modular designs that allow for detector or software upgrades. Avoid proprietary, closed systems where possible to ensure the ability to upgrade to AI-driven chemometrics modules in the future. Plan for a 10-year lifecycle budget that includes periodic hardware refreshes.

6. Special Product Recommendations

The following table compares common spectrometer configurations to assist in selecting the right product for specific buyer profiles.

Procurement Recommendation: Select the product type based on the trade-off between portability and precision. For critical R&D, a high-resolution benchtop unit is non-negotiable. For field screening, a handheld unit with a robust calibration model is preferred, even if resolution is slightly lower.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between a spectrophotometer and a spectrometer? A: While often used interchangeably, a spectrophotometer typically measures the intensity of light as a function of wavelength (often for quantitative analysis like concentration), whereas a spectrometer is a broader term for any instrument that measures a spectrum, often including qualitative analysis (e.g., FTIR for molecular structure).

Q2: How often should a spectrometer be calibrated? A: For critical applications, calibration should be performed daily or before each batch of samples. A full performance verification (using standard reference materials) is typically required annually or after any major maintenance.

Q3: What is the typical lead time for custom-configured spectrometers? A: Standard off-the-shelf models typically have a lead time of 2–4 weeks. Custom configurations or specialized integration may require 8–12 weeks.

Q4: Can I integrate a spectrometer with my existing LIMS? A: Yes, provided the instrument supports standard communication protocols (TCP/IP, USB) and offers an open API. Always request a sample API documentation before purchasing.

Q5: What is the expected lifespan of the light source (lamp)? A: Deuterium lamps typically last 1,000–2,000 hours, while Halogen lamps last 2,000–3,000 hours. LED-based sources can last 10,000+ hours. Plan for replacement costs in your annual budget.

Q6: Is a higher resolution always better? A: Not necessarily. Higher resolution increases data density and processing time but may not improve accuracy for broad-band applications. Match the resolution (e.g., 1 nm vs. 2 nm) to the width of the spectral features you need to resolve.

Q7: What are the environmental requirements for operating a spectrometer? A: Most instruments require a stable temperature (20–25°C) and low humidity (<70% RH). Vibration isolation is critical for high-resolution FTIR and UV-Vis units to prevent baseline drift.

Q8: How do I verify the Signal-to-Noise Ratio (SNR) of a new instrument? A: Request a "noise scan" report from the vendor where the instrument measures a blank sample (e.g., air or solvent) over a specific time period. The SNR is calculated from the standard deviation of the baseline noise.
