Procurement Report: HVLP Spray Gun Systems

1. Technical Specifications and Performance Metrics

High Volume Low Pressure (HVLP) spray guns are engineered to maximize transfer efficiency while minimizing overspray. For procurement, the focus must be on matching air supply capabilities with fluid tip geometry to ensure optimal atomization.

• Inlet Pressure Range: The typical operating inlet pressure for HVLP systems is 0.7–2.1 bar. Procurement must verify that the compressor and regulator system can maintain this specific low-pressure range consistently to prevent dry spray or excessive fogging.
• Air Supply Requirements: These systems require a high volume of air at low pressure. The typical air consumption range is 4–22 CFM (Cubic Feet per Minute). Procurement teams must ensure the facility's compressor capacity exceeds the maximum CFM requirement of the selected gun to avoid pressure drops during operation.
• Fluid Tip and Nozzle Sizes: The fluid tip diameter is critical for viscosity matching. The standard range is 0.8–3.0 mm.
  • 0.8–1.3 mm: Best for light finishes, lacquers, and primers.
  • 1.4–2.0 mm: Ideal for base coats and standard automotive paints.
  • 2.1–3.0 mm: Required for high-viscosity materials like primers, sealers, and heavy body fillers.
• Transfer Efficiency: A primary performance metric for HVLP is a transfer efficiency rate of approximately 65–70%. This is significantly higher than conventional spray guns, directly reducing material waste and VOC emissions.

Actionable Recommendation: When sourcing, request a "Nozzle Size Chart" from the supplier for the specific gun model. Ensure the compressor specification sheet explicitly lists a CFM output that meets or exceeds the 22 CFM upper limit to guarantee performance stability.

2. Industry Compliance and Quality Assurance

While specific named certifications were not provided in the search context, HVLP technology is inherently aligned with environmental regulations due to its high transfer efficiency and reduced overspray.

• Environmental Standards: The 65–70% transfer efficiency of HVLP systems directly supports compliance with strict VOC (Volatile Organic Compound) regulations in automotive and furniture industries. By reducing overspray, these systems help facilities stay within allowable emission limits without requiring additional filtration infrastructure.
• Quality Assurance Metrics:
  • Finish Quality: The low-pressure atomization ensures a smoother finish with fewer runs and sags, reducing the need for rework.
  • Durability: Professional-grade HVLP guns typically feature corrosion-resistant materials (e.g., stainless steel fluid paths) to withstand daily use with various solvents and chemicals.
• Safety Compliance: The low-pressure operation reduces the risk of airborne particulate drift, enhancing workplace safety and reducing the load on personal protective equipment (PPE) filtration systems.

Actionable Recommendation: Verify that the supplier provides documentation confirming the gun's design adheres to "Low Pressure" HVLP standards (typically defined by EPA or local environmental agencies). Request a warranty period of at least 12 months for internal components to ensure quality assurance.

3. Cost Efficiency and Integration Capabilities

HVLP systems offer a balance between operational cost savings and integration flexibility.

• Material Cost Savings: With a transfer efficiency of 65–70%, procurement can expect a 20–30% reduction in paint consumption compared to conventional high-pressure guns. This is the primary ROI driver for HVLP adoption.
• Air Supply Integration:
  • Cup Sprayers: Ideal for small-scale operations or spot repairs; integrate directly with standard air lines without complex piping.
  • Cart Sprayers: Designed for larger volumes; require integration with a central air manifold or a dedicated high-CFM compressor.
• Operational Costs: The reduced overspray leads to lower costs for booth cleaning, filtration replacement, and waste disposal.
• Typical B2B Ranges:
  • Unit Cost: Professional HVLP guns typically range from $150 to $600 depending on the brand and material quality.
  • Lead Time: Standard procurement lead time is 2–4 weeks for stock items; custom configurations may require 6–8 weeks.
  • MOQ (Minimum Order Quantity): Typically 1 unit for individual procurement; 10+ units for bulk institutional orders to trigger volume discounts.

Actionable Recommendation: Calculate the total cost of ownership (TCO) by factoring in the 20–30% material savings against the initial purchase price. For facilities with multiple stations, consider a central air cart system to reduce the need for individual compressors, optimizing energy costs.

4. Typical Use Cases

HVLP spray guns are versatile tools designed for applications requiring high finish quality and material conservation.

• Automotive Painting: Widely used for OEM and repair shop applications for base coats, clear coats, and primers. The 0.8–2.0 mm tips are standard for achieving the smooth, high-gloss finishes required in this sector.
• Furniture and Cabinetry: Ideal for applying lacquers, stains, and varnishes on wood. The low pressure prevents the "blow-through" effect that can damage delicate wood surfaces.
• Industrial Coatings: Used for applying coatings on machinery, metal fixtures, and general manufacturing where a uniform finish is critical.
• DIY and Small Workshops: The 0.7–2.1 bar pressure requirement makes these guns accessible for smaller workshops that may not have industrial-grade high-pressure compressors.

Actionable Recommendation: Match the fluid tip size strictly to the coating viscosity. For automotive clear coats, specify a 1.3–1.4 mm tip. For furniture stains, a 1.0–1.2 mm tip is recommended to prevent runs.

5. Long-Term Planning Considerations

Procurement strategies for HVLP systems should account for evolving market trends and operational scalability.

• Market Trends and Demand Signals:
  • Environmental Regulation: Stricter global VOC regulations are driving a shift away from conventional high-pressure guns toward HVLP and electrostatic systems. Demand for HVLP is expected to remain stable or grow in regulated markets.
  • Efficiency Focus: Industries are increasingly prioritizing "green" manufacturing processes. HVLP's 65–70% transfer efficiency is a key selling point for sustainability reporting.
• Scalability: As production volumes increase, the choice between cup sprayers and cart sprayers becomes critical. Cart sprayers allow for continuous operation and larger fluid reservoirs, reducing downtime for refilling.
• Maintenance Lifecycle: High-quality HVLP guns are designed for longevity. Planning for a 3–5 year replacement cycle for the gun body, with annual nozzle replacement, ensures consistent performance.
• Skill Retention: The learning curve for HVLP is generally lower than for conventional guns due to reduced overspray, making it easier to train new staff.

Actionable Recommendation: Future-proof procurement by selecting modular systems where nozzles and fluid tips can be easily swapped. Avoid proprietary consumables that lock you into a single supplier for nozzles, ensuring long-term supply chain resilience.

6. Special Product Recommendations

The following table compares common HVLP configurations to assist in selecting the right product for specific buyer profiles.

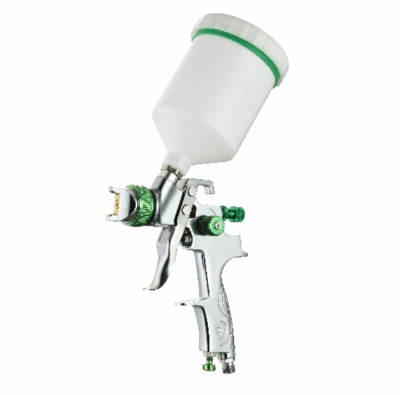

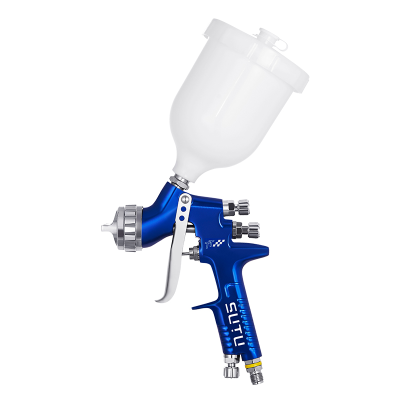

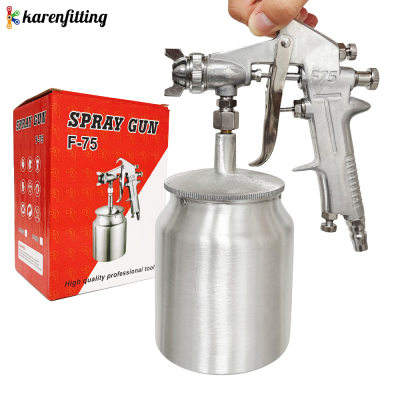

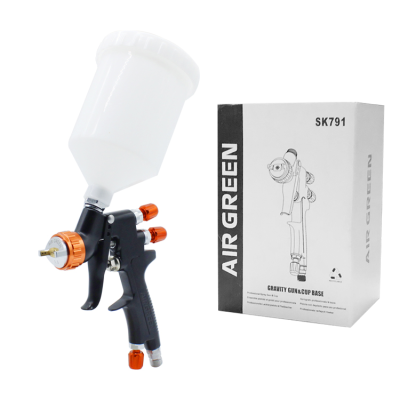

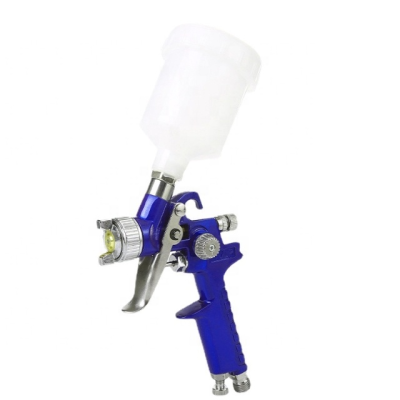

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Cup-Mounted HVLP | Small workshops, DIY, Spot repairs | Inlet: 0.7–2.1 bar; Air: 4–10 CFM; Tip: 1.3–1.7 mm | Low air volume may cause pressure drop on larger jobs. | Ideal for low-volume orders; ensure compressor has a tank buffer. | | Cart-Mounted HVLP | Automotive shops, Furniture factories | Inlet: 0.7–2.1 bar; Air: 15–22 CFM; Tip: 1.3–2.5 mm | Higher initial setup cost and space requirements. | Best for high-volume production; verify central air line capacity. | | Gravity-Feed HVLP | Precision work, Fine finishes | Tip: 0.8–1.3 mm; Gravity feed reduces pressure loss | Smaller fluid capacity requires frequent refilling. | Select for high-viscosity or delicate coatings where precision is key. | | Suction-Feed HVLP | Heavy coatings, Primers | Tip: 2.0–3.0 mm; Suction cup capacity: 1L+ | Lower atomization efficiency compared to gravity feed. | Use only for high-viscosity materials like primers or sealers. |

Actionable Recommendation: For a new automotive shop, a Cart-Mounted HVLP with a 1.4 mm fluid tip is the safest starting point for versatility. For a furniture refinisher, a Gravity-Feed model with a 1.0 mm tip is recommended for superior finish quality.

7. Frequently Asked Questions (FAQ)

Q1: What is the ideal air pressure range for an HVLP spray gun? A: The typical inlet pressure range is 0.7–2.1 bar. Operating outside this range can lead to poor atomization (too low) or excessive overspray (too high).

Q2: How much air flow (CFM) do I need to run an HVLP gun? A: Most HVLP systems require an air supply between 4–22 CFM. Ensure your compressor can deliver the peak CFM required by the gun at the operating pressure without dropping below the minimum threshold.

Q3: How do I choose the correct fluid tip size? A: Select a fluid tip between 0.8–3.0 mm based on the viscosity of your coating. Lighter materials (lacquers) require smaller tips (0.8–1.3 mm), while heavier materials (primers) require larger tips (2.0–3.0 mm).

Q4: What is the transfer efficiency of an HVLP gun? A: HVLP guns typically achieve a transfer efficiency of 65–70%, significantly reducing material waste compared to conventional spray guns.

Q5: Can I use an HVLP gun for automotive clear coats? A: Yes, HVLP is the industry standard for automotive clear coats. Use a fluid tip in the 1.3–1.4 mm range for optimal atomization and finish quality.

Q6: What is the difference between cup and cart HVLP sprayers? A: Cup sprayers are portable and suited for smaller jobs, while cart sprayers have larger fluid reservoirs and are designed for continuous, high-volume production.

Q7: How often should I replace the nozzle and fluid tip? A: Nozzles should be inspected regularly and replaced if wear is visible (typically every 6–12 months of heavy use) to maintain the 65–70% transfer efficiency and finish quality.

Q8: Is HVLP suitable for high-viscosity materials? A: Yes, provided you select a larger fluid tip (up to 3.0 mm) and ensure your air supply can handle the increased volume demand.
