Procurement Report: Sprinkler Head Systems

Product Category: Fire Suppression & Irrigation Components (Dual-Use Market Analysis) Report Date: October 26, 2023 Subject: Strategic Sourcing Guidelines for Sprinkler Heads

---

1. Technical Specifications and Performance Metrics

Procurement of sprinkler heads requires precise alignment between hydraulic requirements and environmental conditions. The market bifurcates into two primary technical domains: Fire Suppression and Landscape Irrigation.

• Fire Suppression Heads:

  • Temperature Ratings: Standard residential units typically operate at 155°F (68°C). Specialized environments (kitchens, high-heat zones) require ratings ranging from 135°F (57°C) to over 500°F (260°C).
  • Flow Characteristics: A critical metric is the K-factor. Standard quick-response heads often feature a K-factor of 11.2, indicating flow capacity under specific pressure.
  • Inlet Connections: Common thread standards include 3/4" diameter (often 3/4" NPT or BSP) for residential and light commercial applications.
  • Response Time: Quick-response models are preferred for residential safety, activating faster than standard heads to minimize water damage and fire spread.

• Irrigation Heads:

  • Operating Pressure: Pop-up and rotary heads generally require a pressure range of 20–60 psi (approx. 1.4–4.2 bar).
  • Optimal Pressure: Rotary models, designed for medium-to-large coverage, perform best at approximately 40 psi.
  • Inlet Sizing: Standard connections are 1/2" NPT or 3/4" BSP.
  • Coverage: Rotary heads are engineered for larger lawn areas, while pop-up heads suit smaller, residential zones.

Procurement Recommendation: Before ordering, conduct a hydraulic calculation to verify site pressure. For fire systems, select the temperature rating based on the maximum ambient temperature of the installation zone plus a safety margin. For irrigation, ensure the water source can sustain 40 psi for rotary heads to prevent misting or poor distribution.

2. Industry Compliance and Quality Assurance

Compliance is non-negotiable in fire safety procurement. While irrigation heads follow general engineering standards, fire sprinklers require strict adherence to life-safety certifications.

• Certification Requirements:
  • Products must possess a valid Certificate of Conformity. For example, specific batches of quick-response heads are certified with a K-factor of 11.2 and 175°F activation temperature.
  • Fire heads must meet local building codes (e.g., NFPA standards in the US, EN standards in Europe).
• Material Durability:
  • Fire heads are typically constructed from brass or bronze with glass bulb or fusible link elements.
  • Irrigation heads often utilize UV-stabilized polymers or brass for longevity.
• Quality Assurance Checks:
  • Verify the "Quick Response" designation if the application is residential or occupied space.
  • Ensure the K-factor matches the hydraulic design of the piping system to avoid under- or over-suppression.

Procurement Recommendation: Request the Certificate of Conformity and the specific test report for the batch being purchased. Do not accept generic "fire-rated" claims without verifying the specific temperature rating and K-factor against the project's hydraulic calculations. For irrigation, check for UV resistance ratings if the heads will be exposed to direct sunlight.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in this sector is driven by volume, compatibility, and lifecycle management rather than just unit price.

• Cost Drivers:
  • Fire Heads: Prices vary significantly based on temperature rating and response time (Standard vs. Quick Response). High-temperature ratings (>300°F) command a premium.
  • Irrigation Heads: Rotary heads are generally more expensive than pop-up heads due to complex internal gearing but offer better cost-per-square-foot coverage for large areas.
• Integration:
  • Fire Systems: Heads must integrate seamlessly with existing piping (NPT/BSP threads) and detection systems. Concealed heads require specific trim kits.
  • Irrigation Systems: Compatibility with existing valves and controllers is essential. Pressure-regulating heads can reduce energy costs by lowering pump requirements.
• Typical B2B Ranges:
  • MOQ (Minimum Order Quantity): Typically 50–100 units for fire heads; 200+ units for irrigation to secure bulk pricing.
  • Lead Time: Standard fire heads often have a lead time of 2–4 weeks; specialized high-temp or custom-rated heads may require 6–8 weeks.

Procurement Recommendation: Consolidate orders to meet MOQ thresholds for better pricing. For fire systems, prioritize "Quick Response" heads for residential projects to reduce liability and insurance premiums. For irrigation, calculate the total cost of ownership: a higher-priced rotary head may yield lower long-term maintenance costs due to fewer heads required for the same coverage area.

4. Typical Use Cases

Understanding the application scenario is vital for selecting the correct head type.

• Fire Suppression Applications:
  • Residential: Standard 155°F (68°C) heads for living areas; 135°F (57°C) for kitchens.
  • Commercial/Industrial: Sidewall heads for corridors; Concealed heads for aesthetic ceilings; ESFR (Early Suppression Fast Response) for high-pile storage warehouses.
  • High Heat: Ovens, stoves, and industrial processes requiring ratings up to 500°F (260°C).
• Irrigation Applications:
  • Residential Lawns: Pop-up heads for small to medium yards.
  • Commercial Landscapes: Rotary heads for parks, golf courses, and large corporate campuses.

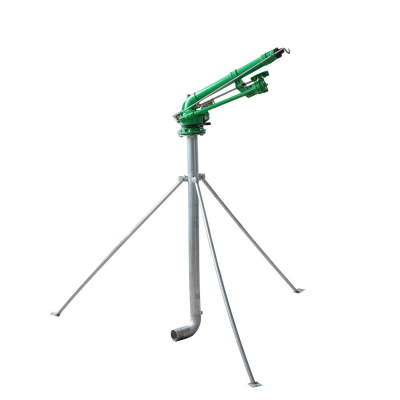

  • Agricultural: High-volume rotary heads for field irrigation.

Procurement Recommendation: Map the installation zone to the head type. Never use a standard residential fire head in a kitchen or near a heat source. In irrigation, avoid using pop-up heads for large open fields as they will result in uneven coverage and higher water waste.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and future regulatory shifts.

• Market Trends:
  • Water Conservation: There is increasing demand for irrigation heads with variable flow rates and pressure regulation to meet strict water usage regulations.
  • Smart Integration: Fire systems are seeing a rise in heads compatible with smart monitoring systems that detect leaks or tampering.
  • Sustainability: Manufacturers are moving toward lead-free brass and recyclable polymers.
• Demand Signals:
  • Rising construction in high-rise residential sectors drives demand for concealed and sidewall fire heads.
  • Drought conditions in various regions are increasing the procurement of high-efficiency irrigation rotary heads.
• Lifecycle Management:
  • Fire heads generally have a lifespan of 50+ years but require periodic inspection.
  • Irrigation heads may need replacement every 10–15 years due to wear and UV degradation.

Procurement Recommendation: Future-proof inventory by selecting heads that support smart monitoring capabilities where possible. For irrigation, prioritize water-efficient models to align with tightening environmental regulations. Maintain a stock of standard temperature-rated heads (155°F/68°C) as they represent the highest volume demand.

6. Special Product Recommendations

The following table compares key product types to assist in rapid selection based on buyer profile and risk factors.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Quick Response Fire Head | Residential Developers, Hospitals | K-factor 11.2, 155°F (68°C), 3/4" NPT | High if wrong temp rating selected | Verify Certificate of Conformity; prioritize for life-safety critical zones. | | High-Temp Fire Head | Industrial Plants, Kitchens | Rating >300°F (150°C), Fusible Link | Moderate (Installation complexity) | Ensure specific heat source proximity is calculated; order 10% buffer. | | Rotary Irrigation Head | Landscape Architects, Municipalities | 20–60 psi, 360° coverage, 3/4" BSP | Low (Standard) | Best for areas >1000 sq ft; check soil type for spray pattern adjustment. | | Pop-Up Irrigation Head | Homeowners, Small HOAs | 20–40 psi, 1/2" NPT, Retractable | Low | Ideal for small lawns; ensure pop-up height matches grass growth. | | Concealed Fire Head | Luxury Residential, Hotels | Aesthetic trim, 155°F (68°C) | High (Aesthetic risk) | Match trim finish to ceiling; verify access panel requirements. |

Procurement Recommendation: For large-scale projects, adopt a mixed strategy: use Quick Response heads for general occupancy and High-Temp heads for specific hazard zones. In irrigation, use Rotary heads for main zones and Pop-up heads for borders and corners to optimize water distribution.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between a standard and a quick-response sprinkler head? A: A quick-response head activates faster (lower thermal inertia) than a standard head, releasing water sooner to control the fire. This is critical in residential settings to minimize water damage and protect lives. Standard heads are often used in warehouses or industrial areas where rapid activation is less critical.

Q2: Can I use an irrigation sprinkler head for fire suppression? A: No. Irrigation heads are not designed to withstand the pressure surges of fire suppression systems, nor do they have the specific temperature ratings or flow characteristics (K-factors) required for fire safety compliance. Using them is illegal and dangerous.

Q3: How do I determine the correct temperature rating for a fire sprinkler head? A: Select a rating that is at least 30°F (approx. 17°C) above the maximum ambient temperature of the installation area. For example, in a kitchen where temperatures can reach 120°F (49°C), a 155°F (68°C) head is standard, but in high-heat industrial zones, ratings may exceed 300°F (150°C).

Q4: What pressure range is optimal for rotary irrigation heads? A: Rotary heads typically perform best at 40 psi. They are designed to operate within a broader range of 20–60 psi (1.4–4.2 bar), but operating at the optimal 40 psi ensures the most uniform water distribution and prevents misting.

Q5: What are the standard thread sizes for sprinkler heads? A: Fire sprinkler heads commonly use 3/4" NPT or 3/4" BSP threads. Irrigation heads typically use 1/2" NPT or 3/4" BSP. Always verify the thread standard against the existing piping to avoid costly adapters.

Q6: How often should fire sprinkler heads be inspected or replaced? A: While fire heads can last 50+ years, they require annual visual inspections. Heads should be replaced immediately if they show signs of damage, corrosion, or if they have been exposed to temperatures near their rating limit.

Q7: What is a K-factor, and why does it matter? A: The K-factor represents the flow capacity of the sprinkler head (e.g., K=11.2). It determines how much water flows at a given pressure. Selecting the wrong K-factor can result in insufficient water coverage or excessive water damage. It must match the hydraulic design of the system.

Q8: Are there specific certifications required for purchasing fire sprinkler heads? A: Yes. Procurement must include a Certificate of Conformity verifying that the batch meets relevant safety standards (e.g., NFPA, UL, FM). The certificate should specify the K-factor, activation temperature, and manufacturing batch details.
