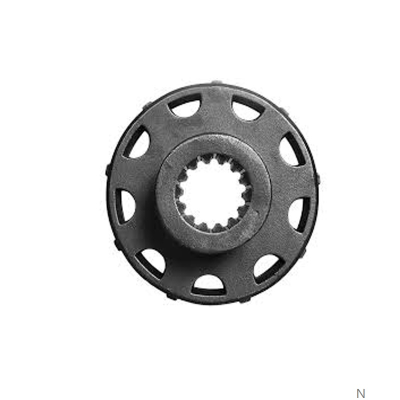

Procurement Report: Industrial Chain Sprockets

1. Technical Specifications and Performance Metrics

To ensure optimal power transmission and minimize wear, procurement must prioritize the precise matching of sprocket geometry to the drive chain. The selection process begins with defining the application environment, chain pitch, tooth count, and bore/keyway dimensions before selecting the material grade.

• Chain Pitch Compatibility: Sprockets are manufactured to standard chain pitches ranging from 0.250 inches to 2.000 inches (covering #25 to #160 series). Procurement must verify the pitch tolerance, typically held within ±0.002 inches for standard roller chains to prevent "chain jump."
• Tooth Count (Z): Standard configurations range from 12 to 120 teeth. Lower tooth counts (12–17) are used for high-speed reduction but increase impact loading; higher counts (20+) are preferred for heavy-load, low-speed applications to reduce noise and vibration.
• Bore and Keyway Dimensions: Bore sizes typically range from 0.500 inches to 4.000 inches. Keyway standards (e.g., ANSI B17.1) dictate dimensions based on shaft diameter, with keyway tolerances generally at H9/d9 for a sliding fit.
• Material Duty Ratings:
  • AISI 1045: Typical for general industrial use; tensile strength approx. 80,000 psi.
  • AISI 4140: Recommended for higher toughness and shock loads; tensile strength approx. 125,000 psi.
  • AISI 8620/9310 (Case-Hardened): Essential for heavy wear and fatigue; surface hardness 58–62 HRC with a core hardness of 30–35 HRC.
• Hub Types: Available in four standard configurations (A, B, C, and Double-Single). Hub diameters typically range from 1.5x to 2.5x the bore diameter depending on the load class.

Actionable Recommendation: Do not select sprockets based on chain size alone. Always cross-reference the specific chain pitch and tooth count against the shaft bore and keyway dimensions to ensure a 100% mechanical fit. For high-shock environments, mandate 4140 or case-hardened materials to prevent tooth shearing.

2. Industry Compliance and Quality Assurance

While specific named certifications were not provided in the source context, industry-standard compliance for chain sprockets relies on adherence to ANSI (American National Standards Institute) and ISO (International Organization for Standardization) specifications regarding tooth profile and dimensional tolerances.

• Dimensional Tolerances: Standard sprockets must adhere to ANSI B29.1 tolerances for pitch diameter and tooth spacing. Deviations exceeding 0.005 inches can lead to premature chain elongation and drive failure.
• Material Traceability: For critical applications, suppliers should provide material test reports (MTRs) verifying the chemical composition of AISI 1045, 4140, or 8620/9310 steels.
• Surface Finish: Machined sprockets typically require a surface finish of Ra 3.2 to 6.3 µm to ensure proper chain engagement without excessive friction.
• Hub Integrity: Hub-to-bore concentricity is critical, typically maintained within 0.002 inches TIR (Total Indicator Runout) to prevent vibration.

Actionable Recommendation: Require suppliers to confirm compliance with ANSI B29.1 standards in their technical data sheets. For custom orders, insist on a pre-shipment inspection of the first article to verify bore concentricity and keyway alignment before mass production begins.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in sprocket procurement is driven by the balance between material grade, lead time, and the reduction of downtime through accurate fitment.

• Lead Time Economics:
  • Standard Stocked Items: Available within 2–7 working days. These are the most cost-effective options for immediate repairs or maintenance.
  • Custom Parts (Domestic): Typically 2–6 weeks.
  • Custom Parts (Offshore): Typically 8–14 weeks.
  • Note: Extending lead times for offshore custom parts can increase total cost of ownership (TCO) due to inventory holding costs and potential production stoppages.
• Material Cost vs. Lifecycle: While AISI 1045 is the lowest cost option, the lifecycle cost of 8620/9310 case-hardened sprockets is often lower in high-wear environments due to extended service life (often 2x to 3x longer than standard carbon steel).
• Integration: Sprockets are designed for modular integration. The availability of four hub types (A to Double-Single) allows for seamless retrofitting onto existing machinery without modifying the shaft or housing, provided the bore and keyway match.

Actionable Recommendation: Prioritize standard stocked items (2–7 days lead time) for maintenance spares to minimize downtime costs. Reserve custom manufacturing (2–14 weeks) only for unique application requirements where standard stock is unavailable. Calculate the ROI of upgrading to case-hardened steel if the current sprocket replacement frequency exceeds quarterly intervals.

4. Typical Use Cases

Sprockets are ubiquitous in power transmission systems where positive drive is required. The selection of the specific hub type and material depends heavily on the application scenario.

• Conveyor Systems: High-load, low-speed applications requiring Double-Single hub sprockets for stability. Often utilize AISI 4140 for shock resistance.
• Agricultural Machinery: High-dust, high-wear environments. Case-hardened (8620/9310) sprockets are mandatory to resist abrasive wear from soil and debris.
• Industrial Packaging: High-speed applications requiring precise timing. AISI 1045 is sufficient for general use, provided the chain pitch is strictly maintained.
• Heavy Equipment: Excavators and mining machinery where fatigue is a primary failure mode. Case-hardened materials are essential to withstand cyclic loading.
• Automotive Assembly Lines: High-speed, low-torque applications where noise reduction is critical, often utilizing higher tooth counts (20+).

Actionable Recommendation: Match the hub type to the mounting constraints. Use Double-Single hubs for heavy-duty conveyors to distribute load across two bearings. For agricultural or mining equipment, strictly specify case-hardened materials to prevent premature tooth wear.

5. Long-Term Planning Considerations

Procurement strategies must account for supply chain volatility and evolving industry demands regarding durability and efficiency.

• Supply Chain Lead Times: The market indicates a significant variance between domestic (2–6 weeks) and offshore (8–14 weeks) custom lead times. Procurement planning should assume a 12-week buffer for non-standard custom orders to avoid production bottlenecks.
• Material Demand Signals: There is a growing trend toward higher toughness materials (4140 and 8620) in heavy industries as equipment operates under higher loads and longer shifts. Stocking standard 1045 sprockets is becoming less viable for critical path equipment.
• Inventory Strategy: Given the 2–7 day availability of standard stock, maintaining a "just-in-case" inventory of common pitches (e.g., #40, #50, #60) and tooth counts (12, 17, 21) is recommended to mitigate supply chain disruptions.
• Standardization: Reducing the variety of chain pitches and sprocket tooth counts in a facility can significantly lower inventory costs and simplify maintenance procedures.

Actionable Recommendation: Develop a safety stock model for the top 20% of sprocket SKUs that cover 80% of maintenance needs. For custom projects, initiate the procurement process at least 10 weeks prior to the required installation date to accommodate potential offshore delays.

6. Special Product Recommendations

The following table compares sprocket types based on buyer profile, key specifications, and risk factors to assist in rapid decision-making.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Stock (AISI 1045) | General Maintenance, Light Industry | Pitch: 0.250"–1.000"; Hub: A/B; Lead: 2–7 days | Low risk of fitment if pitch is standard | Order immediately for emergency repairs; verify bore size. | | High-Toughness (AISI 4140) | Heavy Machinery, Shock Loads | Pitch: 0.500"–1.500"; Hub: C/Double; Lead: 2–6 weeks | Moderate risk of machining time | Specify 4140 for any application with sudden load spikes. | | Case-Hardened (8620/9310) | Mining, Agriculture, High Wear | Pitch: 0.375"–2.000"; Hardness: 58–62 HRC | High risk of long lead time (8–14 wks) | Order 3 months in advance for critical wear parts. | | Custom Hub (Non-Standard) | Retrofit Projects, Unique Machines | Bore: Custom; Keyway: Custom; Lead: 2–14 wks | High risk of fitment error | Provide 3D CAD drawings and physical shaft samples to supplier. |

Actionable Recommendation: For critical production lines, avoid relying solely on "Standard Stock" if the application involves heavy wear. Invest in Case-Hardened inventory even if lead times are longer, as the cost of downtime far exceeds the cost of the part.

7. Frequently Asked Questions (FAQ)

Q1: How do I determine the correct sprocket material for my application? A: Select AISI 1045 for general, low-shock environments. Choose AISI 4140 for applications requiring higher toughness against shock loads. Opt for 8620 or 9310 case-hardened steel for heavy wear, fatigue, and abrasive environments like mining or agriculture.

Q2: What is the typical lead time for a standard sprocket? A: Standard stocked sprockets are typically available within 2–7 working days. Custom parts manufactured domestically take 2–6 weeks, while offshore custom orders require 8–14 weeks.

Q3: What are the standard hub types available? A: Sprockets generally come in four hub configurations ranging from Type A (simple hub) to Double-Single (dual hub for heavy load distribution). The choice depends on the shaft diameter and load requirements.

Q4: Can I use a standard sprocket with a non-standard chain? A: No. Sprockets must match the chain pitch exactly (e.g., #40 chain requires a #40 sprocket). Mismatched pitches will cause rapid wear, chain jump, and potential drive failure.

Q5: What are the critical dimensions I must verify before ordering? A: You must specify the Chain Pitch, Tooth Count, Bore Diameter, and Keyway Size. These four parameters define the mechanical fit and power transmission capability.

Q6: How does the tooth count affect performance? A: Lower tooth counts (12–17) are suitable for high-speed reduction but increase impact loading. Higher tooth counts (20+) reduce noise and vibration, making them ideal for heavy-load, low-speed conveyor applications.

Q7: What should I do if I cannot find specific information on a supplier's website? A: Contact the supplier's experienced professionals directly. They can guide you to the perfect chain sprocket based on your specific project or machine details, as many suppliers offer in-store or remote consultation.

Q8: Is there a minimum order quantity (MOQ) for custom sprockets? A: While specific MOQs vary by supplier, custom manufacturing typically requires a dedicated production run. For standard stock, MOQs are often low (1 unit), but for custom 8620/9310 parts, expect a higher threshold to justify the 8–14 week lead time.
