Procurement Report: Solid State Drives (SSDs)

1. Technical Specifications and Performance Metrics

The procurement of Solid State Drives (SSDs) requires a granular understanding of interface standards, NAND architecture, and endurance ratings to ensure alignment with system requirements. Unlike Hard Disk Drives (HDDs), SSDs utilize flash memory, eliminating mechanical latency and offering significantly higher IOPS (Input/Output Operations Per Second).

• Interface Standards: The market is bifurcated between SATA III (6 Gbps, ~550–560 MB/s sequential read/write) and NVMe (PCIe) interfaces. NVMe drives, available in M.2 and U.2 form factors, leverage the PCIe bus to achieve speeds ranging from 2,000 MB/s to over 7,000 MB/s depending on the generation (PCIe 3.0 vs. PCIe 5.0).
• NAND Types: Procurement decisions must distinguish between SLC (Single-Level Cell), MLC (Multi-Level Cell), TLC (Triple-Level Cell), and QLC (Quad-Level Cell).
  • SLC/MLC: Typically found in enterprise-grade drives, offering superior endurance (10,000–100,000 P/E cycles) but higher cost per GB.
  • TLC/QLC: Dominant in consumer and entry-level enterprise markets, offering higher density with endurance ratings typically between 1,000 and 3,000 P/E cycles for TLC and 300–1,000 P/E cycles for QLC.
• Endurance and TBW: Total Bytes Written (TBW) is a critical metric. For B2B procurement, enterprise drives typically offer 30 PBW to 100 PBW over a 5-year warranty, whereas consumer drives range from 150 TBW to 600 TBW.
• Form Factors: M.2 (2280, 2242, 22110) is the standard for modern laptops and workstations, while 2.5-inch drives remain prevalent in legacy server bays and external enclosures.

Actionable Recommendation: Prioritize NVMe PCIe 4.0 or 5.0 drives for high-throughput data centers and workstations. For cost-sensitive storage archives or legacy systems, select SATA III drives with high TBW ratings. Always verify single-sided vs. double-sided NAND compatibility with the target motherboard to avoid physical clearance issues.

2. Industry Compliance and Quality Assurance

SSD procurement must adhere to rigorous quality assurance protocols to mitigate data loss risks and ensure supply chain stability. While specific named certifications vary by manufacturer, industry standards generally align with the following:

• Reliability Standards: Drives should comply with MTBF (Mean Time Between Failures) ratings, typically ranging from 1.5 million to 2 million hours for enterprise-class units.
• Data Security: Look for drives featuring AES-256 hardware encryption and support for TCG Opal 2.0 standards to ensure data at rest is protected against unauthorized access.
• Environmental Compliance: All units must meet RoHS (Restriction of Hazardous Substances) and REACH directives. For global deployment, UL and CE safety certifications are mandatory.
• Warranty and Support: Standard B2B warranties range from 3 to 5 years. Procurement contracts should explicitly define the RMA (Return Merchandise Authorization) process and the availability of DPA (Drive Protection Architecture) or similar data recovery services.

Actionable Recommendation: Mandate that all suppliers provide a Certificate of Conformance (CoC) verifying RoHS compliance and MTBF ratings. For critical infrastructure, require a minimum 5-year warranty with an on-site replacement clause. Avoid sourcing drives without explicit encryption capabilities if handling sensitive PII or financial data.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in SSD procurement extends beyond the unit price (USD/GB) to include Total Cost of Ownership (TCO), which factors in power consumption, cooling requirements, and replacement cycles.

• Pricing Ranges:
  • Consumer SATA: $0.08 – $0.12 per GB.
  • Consumer NVMe: $0.10 – $0.18 per GB.
  • Enterprise NVMe: $0.25 – $0.45 per GB (priced higher due to endurance and reliability).
• MOQ and Lead Time: Typical B2B Minimum Order Quantities (MOQ) range from 50 to 100 units for standard SKUs. Lead times are currently 4 to 8 weeks for standard inventory, though custom configurations or high-demand enterprise tiers may extend to 12–16 weeks.
• Integration: Modern M.2 NVMe drives offer plug-and-play integration with minimal driver overhead. However, legacy 2.5-inch SATA drives may require specific mounting brackets or adapter cards in server racks. Power consumption for NVMe drives is generally 2–5 Watts under load, compared to 6–8 Watts for 2.5-inch SATA drives, impacting data center cooling loads.

Actionable Recommendation: Calculate TCO rather than unit price. For high-density deployments, the lower power consumption of NVMe drives may offset their higher upfront cost. Negotiate volume discounts for orders exceeding 500 units and secure a buffer stock of 10% to mitigate lead time volatility. Verify that the chosen form factor (M.2 vs. 2.5-inch) matches the existing infrastructure to avoid adapter costs.

4. Typical Use Cases

SSDs are deployed across a spectrum of applications where speed, reliability, and shock resistance are paramount.

• High-Performance Computing (HPC) & AI: Requires NVMe drives with low latency (<100 µs) and high IOPS (>500,000) to accelerate model training and inference.
• Enterprise Data Centers: Utilizes enterprise-grade NVMe drives with high TBW and dual-port capabilities for virtualization, databases, and cloud storage.
• Workstations & Creative Suites: Designers and video editors benefit from SATA or mid-range NVMe drives for rapid file access and rendering.
• Edge Computing & IoT: M.2 2242 or 2230 form factors are preferred for space-constrained edge devices requiring shock resistance and low power.

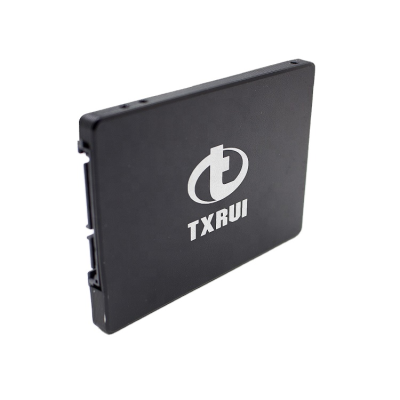

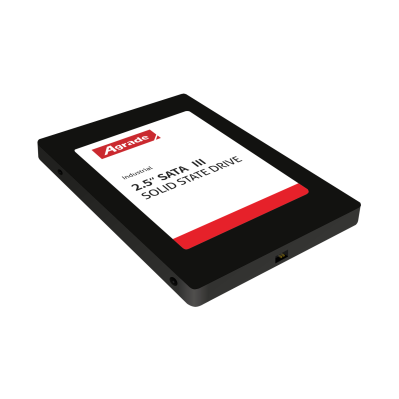

• Legacy System Upgrades: 2.5-inch SATA SSDs are the standard replacement for HDDs in older servers and desktops to improve boot times and application responsiveness.

Actionable Recommendation: Match the drive tier to the workload. Do not use consumer-grade QLC drives for write-intensive database servers; instead, select TLC or MLC enterprise drives. For mobile or edge deployments, prioritize smaller form factors (M.2 2242) and lower power profiles.

5. Long-Term Planning Considerations

The SSD market is characterized by rapid technological iteration and shifting supply dynamics. Procurement strategies must account for these trends to avoid obsolescence.

• Technology Trends: The industry is shifting rapidly from PCIe 4.0 to PCIe 5.0, with PCIe 6.0 emerging. Procurement for 5-year horizons should consider PCIe 4.0/5.0 compatibility to ensure future-proofing.
• NAND Evolution: As QLC density increases, write endurance remains a bottleneck. Long-term planning should favor TLC for general enterprise use to balance cost and longevity.
• Supply Chain Volatility: NAND flash prices are cyclical. Market demand signals indicate a potential shift toward 3D NAND stacking (176+ layers), which improves density but may introduce complexity in thermal management.
• Sustainability: There is growing demand for drives with power-loss protection (PLP) and recyclable packaging. Future regulations may require stricter carbon footprint reporting for storage hardware.

Actionable Recommendation: Adopt a "modular" procurement strategy. Avoid locking into a single generation of PCIe for long-term contracts; instead, design systems with PCIe 5.0 slots to accommodate future drives. Monitor NAND pricing cycles to time bulk purchases during market dips. Prioritize vendors with transparent sustainability reporting.

6. Special Product Recommendations

The following table compares the primary SSD categories to assist in selecting the optimal product based on buyer profile and risk tolerance.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Enterprise NVMe (PCIe 4.0/5.0) | Data Centers, HPC, AI | 3,000–7,000 MB/s, 100k+ TBW, DPA | High initial cost; Thermal throttling | Prioritize drives with DRAM cache and PLP. Verify cooling infrastructure. | | Consumer NVMe (PCIe 3.0/4.0) | Workstations, Gaming, SMB | 2,000–5,000 MB/s, 150–600 TBW | Lower endurance for write-heavy tasks | Ideal for read-heavy workloads. Ensure motherboard supports the specific PCIe generation. | | SATA III (2.5-inch) | Legacy Servers, Budget Builds | ~550 MB/s, 150–600 TBW | Interface bottleneck (6 Gbps) | Best for cost-effective upgrades of older hardware. Check for physical mounting clearance. | | M.2 2242/2230 | IoT, Edge Devices, Laptops | Compact size, Low power (2-5W) | Limited capacity (usually <1TB) | Critical for space-constrained environments. Verify BIOS support for non-standard sizes. |

Actionable Recommendation: For mission-critical applications, always select drives with Power Loss Protection (PLP) to prevent data corruption during unexpected outages. For budget-conscious projects, SATA III remains a viable option, but ensure the workload is not write-intensive to avoid premature wear.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between SATA and NVMe SSDs regarding performance? A: SATA III is limited to a theoretical maximum of 6 Gbps (approx. 560 MB/s real-world speed). NVMe drives utilize the PCIe bus, offering speeds ranging from 2,000 MB/s to over 7,000 MB/s, resulting in significantly lower latency and higher IOPS.

Q2: How do I determine the correct form factor for my system? A: Check the motherboard or device manual for supported slots. M.2 drives come in various lengths (2280, 2242, 22110); ensure the physical length fits the slot. 2.5-inch drives are standard for desktops and servers but require a specific mounting bracket.

Q3: What is the typical lifespan of an SSD in a B2B environment? A: Lifespan is measured in TBW (Total Bytes Written). Enterprise drives typically last 5+ years under heavy load with TBW ratings of 30–100 PBW. Consumer drives may last 3–5 years with lower TBW ratings (150–600 TBW).

Q4: Are SSDs more reliable than HDDs for data centers? A: Yes, SSDs have no moving parts, making them more resistant to shock, vibration, and mechanical failure. They also offer faster data recovery times and better performance under heavy concurrent access.

Q5: What is the typical lead time for bulk SSD orders? A: Standard B2B lead times are typically 4 to 8 weeks. Custom configurations or high-demand enterprise models may require 12 to 16 weeks. Early ordering is recommended for large-scale deployments.

Q6: Do I need to worry about thermal throttling with NVMe drives? A: Yes, high-performance NVMe drives can generate significant heat. Ensure your system has adequate airflow or use drives with integrated heatsinks. Thermal throttling can reduce performance by up to 30% if temperatures exceed safe limits.

Q7: Can I use a consumer SSD for a database server? A: It is generally not recommended. Consumer drives often lack the endurance (TBW) and power-loss protection required for write-intensive database workloads, increasing the risk of premature failure and data loss.

Q8: How does NAND type (TLC vs. QLC) affect procurement? A: TLC offers a balance of speed, endurance, and cost, making it the standard for most enterprise applications. QLC offers higher capacity at a lower cost but has lower endurance and slower write speeds, making it suitable for cold storage or read-heavy archives.
