Procurement Report: Hybrid Stepper Motors

1. Technical Specifications and Performance Metrics

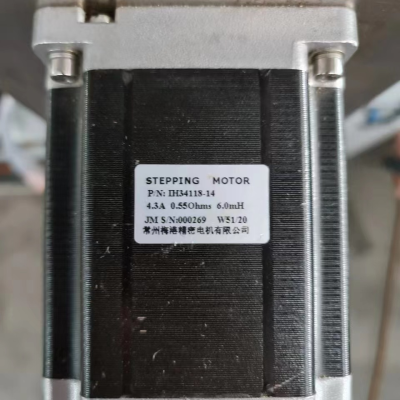

The hybrid stepper motor remains the industry standard for applications requiring precise positioning and high holding torque. When evaluating procurement options, the following technical parameters define performance boundaries:

• Step Angle: Standard options are 1.8° (200 steps/rev) for general applications or 0.9° (400 steps/rev) for high-resolution requirements.
• Holding Torque: The market spans a wide range from 0.04 N·m for micro-applications to >10 N·m for heavy industrial drives. Specifically, the NEMA 23 frame (56 mm flange) typically delivers 1.4 N·m to 2.3 N·m (140–230 Ncm), suitable for demanding axis drives.
• Phase Current: Operating currents typically range from 0.5 A to 10 A, with the most common B2B selection falling between 0.8 A and 4.0 A.
• Speed: Practical operational speeds are 1000–3000 rpm. With specialized drivers and cooling, speeds can reach 5000–6000 rpm.
• Frame Sizes: NEMA standards are critical for mechanical integration. Common sizes include NEMA 17 (23 mm), NEMA 23 (56 mm), and NEMA 34 (86 mm).
• Inductance: Must be matched to the driver voltage to optimize the current rise time and torque-speed curve.

Procurement Recommendation: Select the motor frame size and step angle first based on your mechanical envelope and resolution needs. Then, verify that the holding torque and phase current align with your driver's voltage and current capabilities. For high-speed applications, prioritize low inductance models to maintain torque at higher RPMs.

2. Industry Compliance and Quality Assurance

Safety and reliability are paramount in industrial automation. Modern procurement strategies must prioritize motors with recognized safety certifications and environmental protections.

• Safety Certifications: Look for UL (Underwriters Laboratories) and CSA (Canadian Standards Association) certifications, which verify compliance with North American electrical safety standards.
• Environmental Protection: For applications in dusty or wet environments, an IP65 rating is the minimum standard, ensuring total dust tightness and protection against water jets.
• Durability: High-quality hybrid motors are designed to withstand extreme temperatures and continuous operation cycles typical of machine tools and surgical robotics.
• Encoder Integration: For closed-loop control, motors may come with integrated encoders (incremental or multiturn) to ensure high positioning accuracy without external feedback loops.

Procurement Recommendation: Do not compromise on safety certifications for cost savings. Mandate UL/CSA certification for any equipment deployed in North America. For harsh environments, explicitly require IP65 or higher ratings. If your application involves critical safety (e.g., medical or automotive), verify the availability of integrated encoders to reduce system complexity and failure points.

3. Cost Efficiency and Integration Capabilities

While unit costs vary by frame size and torque, the total cost of ownership (TCO) is driven by integration ease and reliability.

• Cost Structure: High-torque NEMA 23 motors with integrated brakes and encoders command a premium but reduce the need for external components.
• Integration: Motors with integrated encoders simplify wiring and control logic. Options with integrated holding brakes eliminate the need for external brake assemblies, saving space and reducing assembly time.
• Scalability: Suppliers capable of supplying larger quantities with custom configurations (e.g., specific shaft lengths or flange modifications) offer better long-term cost efficiency.
• Driver Compatibility: Ensure the motor's inductance and current ratings match the driver's voltage profile to prevent overheating and maximize efficiency.

Procurement Recommendation: Calculate TCO rather than just unit price. A slightly more expensive motor with an integrated brake and encoder can significantly reduce assembly labor and wiring costs. Prioritize suppliers who offer volume discounts and can accommodate custom shaft dimensions to minimize machining costs downstream.

4. Typical Use Cases

Hybrid stepper motors are versatile and found across multiple high-precision industries:

• Machine Tools: Ideal for axis drives in CNC routers and milling machines where high holding torque and repeatability are required.
• Medical Robotics: Used in surgical robots and diagnostic equipment where precision, safety certifications (UL/CSA), and reliability are non-negotiable.
• Industrial Automation: Suitable for pick-and-place robots, conveyor systems, and packaging machinery.
• High-Torque Applications: The NEMA 23 frame (e.g., 1.4–2.3 N·m) is specifically noted for robot-assisted applications requiring robust performance.

Procurement Recommendation: Match the motor's torque curve to the specific load profile of the application. For medical or surgical robotics, prioritize models with UL/CSA certification and integrated encoders. For general machine tools, focus on the balance between holding torque and speed capabilities (up to 3000 rpm).

5. Long-Term Planning Considerations

The demand for high-precision motion control is growing, driven by the expansion of automation and robotics.

• Market Trends: There is a rising demand for "smart" motors with integrated feedback (encoders) to support Industry 4.0 initiatives.
• Supply Chain Resilience: Suppliers with the capacity to handle larger quantities and offer custom configurations (e.g., integrated brakes) provide better supply chain stability.
• Technological Evolution: The shift toward closed-loop stepper systems (stepper motors with encoders) is reducing the gap with servo motors in terms of reliability and ease of tuning.
• Environmental Regulations: Increasing focus on energy efficiency and robust environmental ratings (IP65+) will likely become a standard requirement rather than an option.

Procurement Recommendation: Future-proof your procurement strategy by selecting suppliers who offer modular designs (e.g., motors that can be upgraded with encoders or brakes later). Consider the trend toward closed-loop systems; investing in stepper motors with integrated encoders now may reduce the need for retrofitting in the future.

6. Special Product Recommendations

The following table compares key product categories to assist in selecting the right fit for your specific application needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Hybrid (NEMA 23) | General Automation | 1.4–2.3 N·m Torque, 1.8° Step, 0.8–4.0 A | Verify shaft length matches load | Standard choice; ensure driver compatibility | | High-Torque with Brake | Heavy Industry | Integrated Holding Brake, >2.0 N·m | Check brake release time and voltage | Reduces external components; verify power supply | | IP65 Encoded Motor | Medical/Outdoor | IP65 Rating, Integrated Encoder (Multiturn) | Confirm encoder resolution (PPR) | Essential for harsh/critical environments | | High-Speed Variant | High-RPM Applications | 5000+ RPM capability, Low Inductance | Monitor thermal performance at speed | Requires specialized driver; check cooling |

Procurement Recommendation: For critical applications like surgery or outdoor machinery, the IP65 Encoded Motor is the recommended choice despite the higher initial cost. For general machine tools, the Standard Hybrid offers the best balance of cost and performance. Always verify the specific shaft dimensions and inductance before finalizing the order.

7. Frequently Asked Questions (FAQ)

Q1: What is the typical step angle for a standard hybrid stepper motor? A: The most common step angles are 1.8° (200 steps per revolution) for general use and 0.9° (400 steps per revolution) for high-resolution applications.

Q2: What holding torque range should I expect from a NEMA 23 motor? A: A NEMA 23 motor typically provides a holding torque between 1.4 N·m and 2.3 N·m (140–230 Ncm), though specialized models can exceed this range.

Q3: Are UL and CSA certifications mandatory for all stepper motors? A: No, they are not mandatory for all applications, but they are required for equipment sold or used in North America to ensure electrical safety compliance. Look for these marks for critical or commercial applications.

Q4: Can stepper motors operate at speeds above 3000 rpm? A: Yes, while 1000–3000 rpm is the practical standard, specialized drivers and motor designs can enable speeds up to 5000–6000 rpm.

Q5: What does an IP65 rating mean for a stepper motor? A: IP65 indicates the motor is dust-tight (6) and protected against water jets from any direction (5), making it suitable for harsh or washdown environments.

Q6: Do I need an external encoder if I buy a motor with an integrated one? A: No, if the motor comes with an integrated incremental or multiturn encoder, you do not need an external one, which simplifies wiring and reduces system cost.

Q7: How do I match a stepper motor to my driver? A: Match the motor's phase current and inductance to the driver's voltage and current limits. Ensure the holding torque meets your load requirements at your desired speed.

Q8: Is it possible to add a holding brake to a stepper motor later? A: While some motors are designed with integrated brakes, adding a brake post-purchase is difficult. It is recommended to order motors with integrated brakes if the application requires them.
