Procurement Report: Sterilization Systems and Processes

Product Category: Medical Device Sterilization Equipment & Services Report Date: October 26, 2023 Subject: Strategic Procurement Guidelines for Sterilization Solutions

1. Technical Specifications and Performance Metrics

When selecting a sterilization system, the primary technical decision hinges on matching the cycle mode to the load's thermal and material tolerance. The baseline for modern procurement includes the following specifications:

• Chamber Construction: Must utilize 316L stainless steel for the chamber and internal components to ensure corrosion resistance and cleanability in high-humidity or reactive environments.
• Control Architecture: Systems should feature PLC (Programmable Logic Controller) based recipe control to manage complex sterilization cycles, ensuring repeatability and traceability.
• Instrumentation & Monitoring:
  • Temperature sensors: Pt100 class A or B sensors.
  • Pressure gauges: Range of 0–6 bar with high-precision transducers.
  • Data logging: Continuous recording of time, temperature, and pressure with ±0.1°C and ±0.01 bar accuracy.
• Cycle Modes & Parameters:

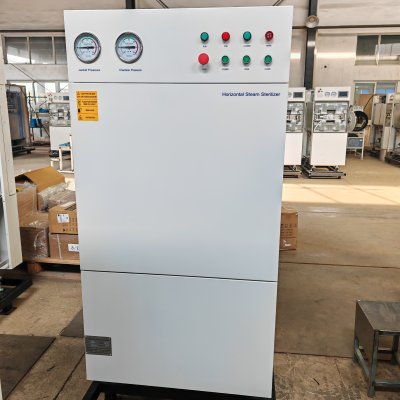

  • Steam Autoclaves: Operate at 121°C to 135°C with exposure times typically ranging from 15 to 45 minutes depending on load density.
  • VHP/H2O2/Plasma: Operate at ambient or slightly elevated temperatures (20°C to 55°C) with cycle times typically 45 to 90 minutes to ensure penetration without thermal damage.
• Validation Features: Systems must include built-in traceable validation features, such as electronic signatures and audit trails compliant with 21 CFR Part 11 (where applicable).

Actionable Recommendation: Procure equipment with modular PLC controllers that allow for recipe customization. Ensure the instrumentation suite includes redundant sensors for critical parameters to minimize the risk of cycle failure.

2. Industry Compliance and Quality Assurance

Compliance is non-negotiable in the sterilization sector. Procurement must align with international standards for quality management systems (QMS) and specific sterilization process validation.

• Quality Management Systems: Manufacturers and service providers should hold ISO 13485:2016 certification. This ensures a controlled process for medical device sterilization activities.
• Process-Specific Standards:
  • Ethylene Oxide (EtO): Compliance with NF EN ISO 11135-1 is required for the development, validation, and routine control of EtO processes.
  • Radiation: Adherence to EN ISO 11137-1 (General requirements), EN ISO 11137-2 (Dose establishment), and EN ISO 11137-3 (Dosimetric guidance) is mandatory for gamma or electron beam sterilization.
  • Moist Heat (Steam): Compliance with EN 17665-1 is essential for the validation and routine control of steam sterilization processes.
• Traceability: All validation data must be stored in a format that allows for full traceability from the specific load to the sterilization parameters.

Actionable Recommendation: Prioritize vendors who can provide a complete "Validation Package" including IQ/OQ/PQ (Installation, Operational, Performance Qualification) documentation. Verify that their QMS certificate explicitly covers the specific sterilization modality you intend to use.

3. Cost Efficiency and Integration Capabilities

While upfront capital expenditure (CapEx) is significant, total cost of ownership (TCO) is driven by utility consumption, maintenance, and integration efficiency.

• Utility Profiles:
  • Steam: Requires high-quality boiler steam (typically 2–6 bar) and significant water consumption.
  • VHP/H2O2: Requires lower utility input but higher consumable costs (hydrogen peroxide cartridges) and strict ventilation requirements.
  • Radiation: Often outsourced; cost is calculated per dose (kGy) and volume.
• Integration: Modern systems must interface with Laboratory Information Management Systems (LIMS) or Enterprise Resource Planning (ERP) systems via standard protocols (e.g., OPC UA, Modbus).
• Typical B2B Cost Ranges:
  • Small Benchtop Units: $15,000 – $45,000.
  • Large Floor-Model Autoclaves: $60,000 – $150,000.
  • VHP/Plasma Systems: $80,000 – $200,000+.
  • Service Contracts: Typically 10–15% of the equipment cost annually.
• Lead Time & MOQ:
  • Lead Time: 8–16 weeks for standard configurations; 20+ weeks for custom integration.
  • MOQ: N/A for equipment (unit purchase); for services, minimum batch sizes often apply based on load capacity.

Actionable Recommendation: Conduct a utility audit before procurement. If steam is unavailable or expensive, VHP systems may offer better long-term savings despite higher consumable costs. Ensure the chosen system has open API capabilities to avoid data silos during integration.

4. Typical Use Cases

The application scenario dictates the technology selection:

• Heat/Moisture-Tolerant Instruments: Surgical steel instruments, glassware, and metal trays are best suited for Steam Autoclaves. This is the most common application in central sterile supply departments (CSSD).
• Heat-Sensitive Devices: Endoscopes, fiber-optic cables, and electronic medical devices require Vaporized Hydrogen Peroxide (VHP), Hydrogen Peroxide Plasma, or Low-Temperature Steam systems to prevent thermal degradation.
• Single-Use Medical Devices: Pre-packaged items like syringes, catheters, and implants are typically sterilized via Radiation (Gamma/E-beam) in a centralized facility, as the process penetrates packaging effectively.
• Complex Geometries: Items with long lumens or porous materials may require specific EtO cycles if other methods fail to penetrate effectively.

Actionable Recommendation: Perform a load analysis of your current inventory. If >60% of your load consists of heat-sensitive electronics, investing in a plasma or VHP system is critical; otherwise, a steam autoclave remains the most cost-effective solution.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and regulatory evolution.

• Market Trends:
  • Shift to Low-Temperature: There is a growing demand for VHP and plasma systems due to the increasing complexity of medical devices (more electronics, fewer metals).
  • Sustainability: EtO is facing regulatory pressure due to toxicity concerns; radiation and steam are seeing increased adoption for environmental compliance.
  • Digitalization: "Smart" sterilization with IoT connectivity for remote monitoring and predictive maintenance is becoming a standard requirement.
• Regulatory Signals: Stricter enforcement of ISO 13485 and EN 17665 suggests that validation documentation will require more rigorous electronic audit trails.
• Scalability: Procure systems with expandable capacity (e.g., modular chambers or scalable PLC logic) to accommodate future production increases without full replacement.

Actionable Recommendation: Avoid locking into proprietary consumables that may become obsolete. Select vendors with a roadmap for digital integration and sustainability to future-proof the investment against tightening environmental regulations.

6. Special Product Recommendations

The following table compares the primary sterilization modalities to assist in selecting the right product for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Steam Autoclave | Hospitals, CSSD, Labs | 121–135°C, 0–6 bar, 316L chamber | High water/steam dependency; cycle time ~30-45 min | Ideal for high-volume, heat-stable loads. Verify steam quality specs. | | VHP / H2O2 Plasma | Device Manufacturers, Endoscopy Units | 20–55°C, <60 min cycle, Low residue | Higher consumable cost; material compatibility limits | Best for heat-sensitive electronics. Check material compatibility lists. | | EtO Sterilization | Complex Device Mfrs (Outsourced) | Low temp, long cycle (12+ hrs), Gas penetration | Toxicity regulations; long cycle time | Only for porous/complex loads. Ensure vendor has ISO 11135-1 compliance. | | Radiation (Gamma/E-beam) | Single-Use Device Mfrs | Dose 25–50 kGy, No residue | Requires external facility; material embrittlement risk | Best for high-volume pre-packaged items. Verify dosimetry (ISO 11137). |

Actionable Recommendation: For mixed-load facilities, consider a hybrid approach: a steam autoclave for general instruments and a dedicated VHP unit for sensitive devices. Do not attempt to sterilize all items with a single modality.

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum certification required for a sterilization service provider? A: The provider must hold ISO 13485:2016 certification for their Quality Management System, along with specific process certifications like EN 17665-1 (Steam), NF EN ISO 11135-1 (EtO), or EN ISO 11137 (Radiation).

Q2: Can a single machine handle both steam and plasma sterilization? A: Generally, no. These are distinct technologies with different physical mechanisms (moist heat vs. gas plasma). While some advanced systems offer multiple modes, they are rare and expensive. Most facilities procure separate units for heat-tolerant and heat-sensitive loads.

Q3: How long is the typical lead time for a custom sterilization chamber? A: Typical B2B lead times range from 8 to 16 weeks for standard configurations. Custom chambers with specific PLC integrations or material requirements may extend to 20+ weeks.

Q4: What is the standard pressure range for medical steam sterilization? A: Standard instrumentation operates within a range of 0 to 6 bar, with typical operating pressures between 1.5 and 3.5 bar depending on the cycle temperature (121°C vs 135°C).

Q5: Is Ethylene Oxide (EtO) still a viable option for procurement? A: Yes, but it is increasingly restricted. It remains the only option for certain porous or heat-sensitive complex devices. Procurement must strictly adhere to NF EN ISO 11135-1 and local environmental safety regulations due to toxicity concerns.

Q6: How do I validate the sterilization dose for radiation processes? A: You must follow EN ISO 11137-2 to establish the sterilization dose and EN ISO 11137-3 for dosimetric guidance. This involves routine biological and chemical indicator testing.

Q7: What are the typical durability expectations for a sterilization chamber? A: With proper maintenance (cleaning and calibration), a 316L stainless steel chamber typically has a service life of 10 to 15 years. PLC controllers may require replacement or firmware updates every 5–7 years.

Q8: Does the system need to be compatible with LIMS? A: Highly recommended. Modern procurement standards expect PLC recipe control to interface with LIMS or ERP systems for automated data logging, traceability, and regulatory reporting.
